Protego Metal Consumer Unit – 20 Way | Right-Side Main Switch | Double Pole 100A | IP20

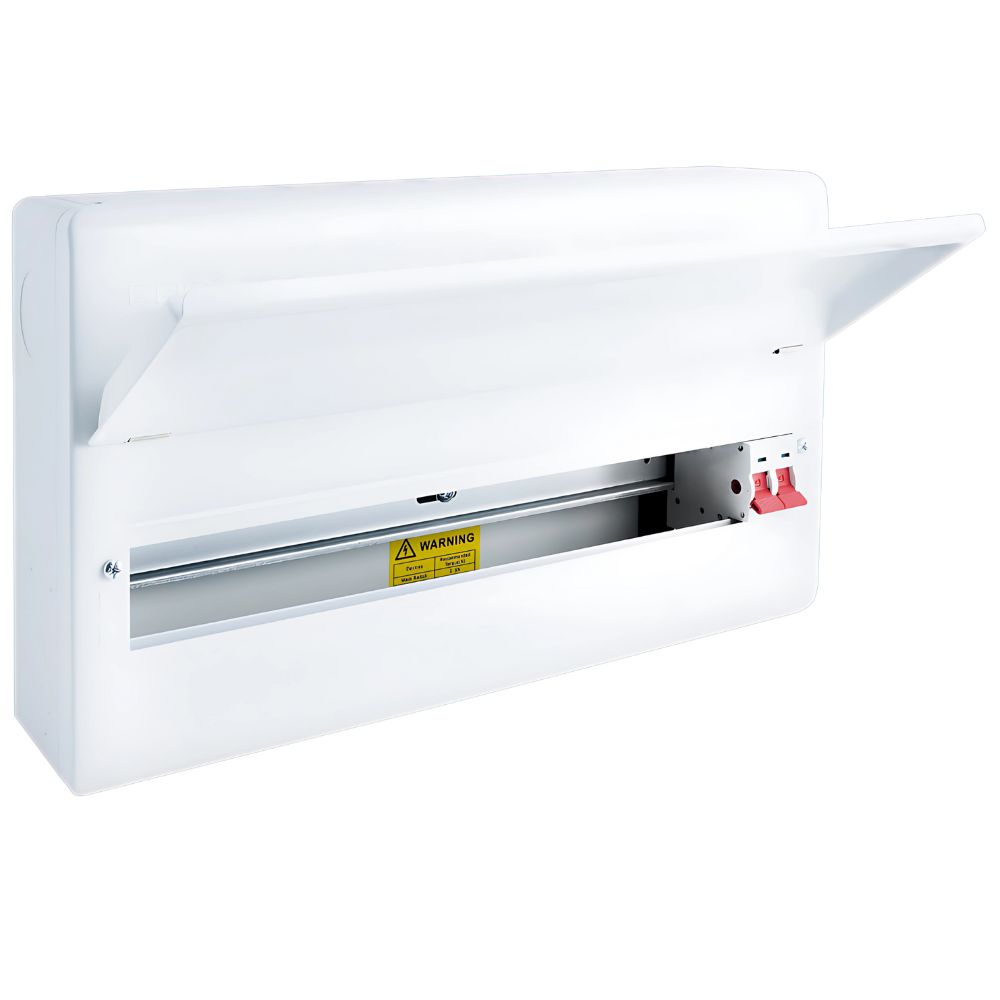

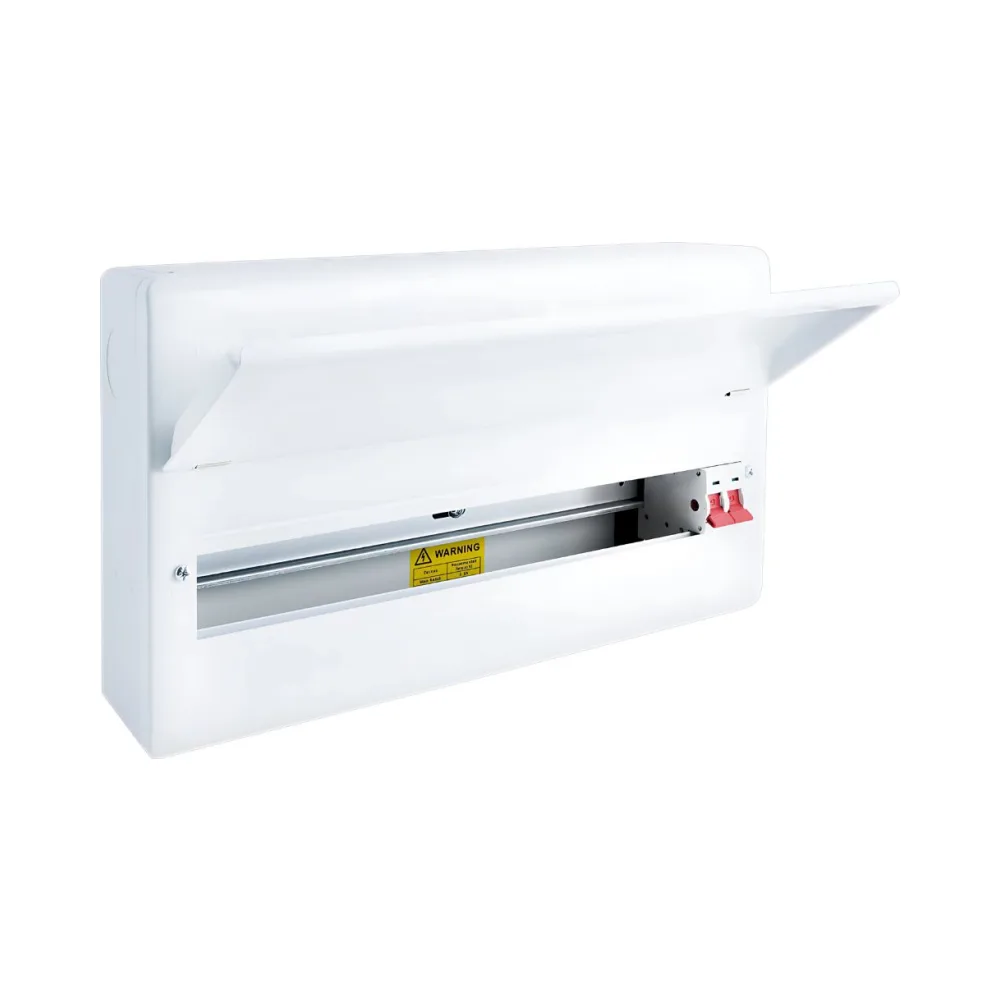

⚡ Niglon PCU2220M – Protego 20 Usable Way Metal Consumer Unit
✅ Maximum Space, Trusted Protection – The Largest in the Protego Range
The Niglon PCU2220M Protego 20 Way Consumer Unit, offering a spacious 22-module format for projects where extensive circuit coverage or accessory space is needed. Whether it’s a large residential setup or multi-zone domestic install, this board delivers uncompromising capacity, layout flexibility, and peace of mind.
It includes a pre-fitted 100A double pole isolator with installer-favoured twin screw terminals, ensuring safer and more secure meter tail connections. The right-hand incomer layout complements Protego’s clean, rounded-edge steel construction—built for performance and a professional finish.
🔧 Key Features of the Niglon PCU2220M Protego 20 Way Consumer Unit
- ✅ 22-module metal enclosure with 20 usable ways
- ✅ Factory-installed 100A double pole main switch
- ✅ Twin screw terminals for robust meter tail connection
- ✅ Right-hand incomer layout – preferred in certain install configurations
- ✅ Smooth, curved edge design for tidy installs and safe handling
- ✅ Strong powder-coated steel housing (RAL 9010)
- ✅ Terminal capacity: 35mm²
- ✅ IP20 ingress protection | IK05 mechanical resistance
- ✅ Complies with BS 7671:2018, BS EN 61439-3, EN60947-3
- ✅ Certified: Semko, CE, UKCA
📐 Dimensions of the Niglon Protego 20 Way Consumer Unit
- Width: 448mm
- Height: 260mm
- Depth: 110mm
⚙️ Surge Protection Ready – Add NSA2-240
- ✅ Compatible with the Niglon NSA2-240 SPD
- ✅ Clips directly onto the busbar – no MCB or extra module required
- ✅ Available in related products below – simply add to basket
💡 Ideal For
- ✅ Large domestic installations with multiple circuits
- ✅ Projects needing room for RCBOs, relays, or accessories
- ✅ Electricians who prefer right-hand incomer layout
- ✅ Professionals requiring 20 usable ways and robust safety features
- ✅ Tidy, regulation-ready results using a durable, sleek metal unit
Why Choose Niglon PCU2220M Protego 20 Way Consumer Unit?
The Protego range has been developed with installers in mind. From the clean curves and powder-coated finish to the internal layout and terminal design, every detail promotes faster, safer, and smarter installs. With strong UK certifications and trusted Niglon quality, Protego boards are built to perform.
🔎 Summary of the Niglon PCU2220M Protego 20 Way Consumer Unit
The Niglon PCU2220M Protego is a 22-module metal consumer unit with 20 usable ways, a 100A twin-screw isolator, and a right-hand main switch layout. Perfect for large domestic installs, it’s IP20-rated, BS 7671-compliant, and fully SPD-ready.
