Description
Protego Metal Consumer Unit – 12 Way | Right-Side Main Switch | Double Pole 100A | IP20

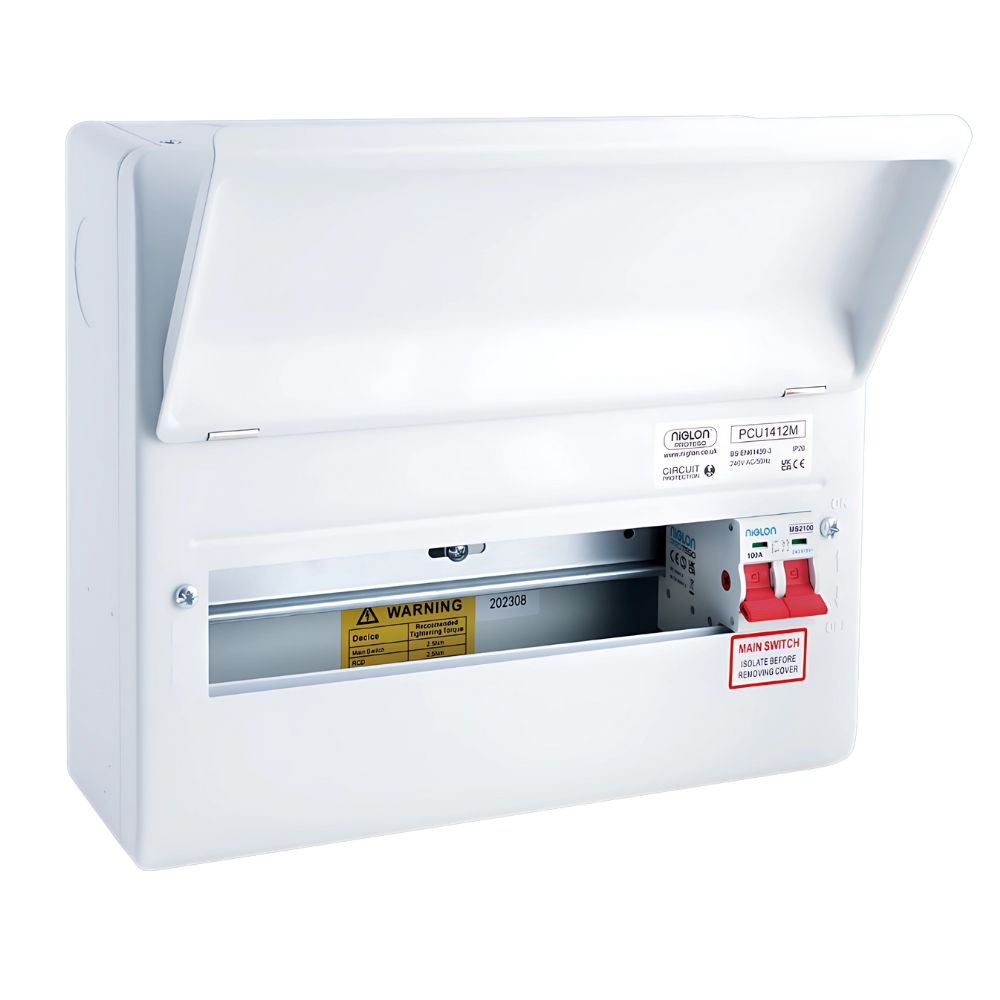

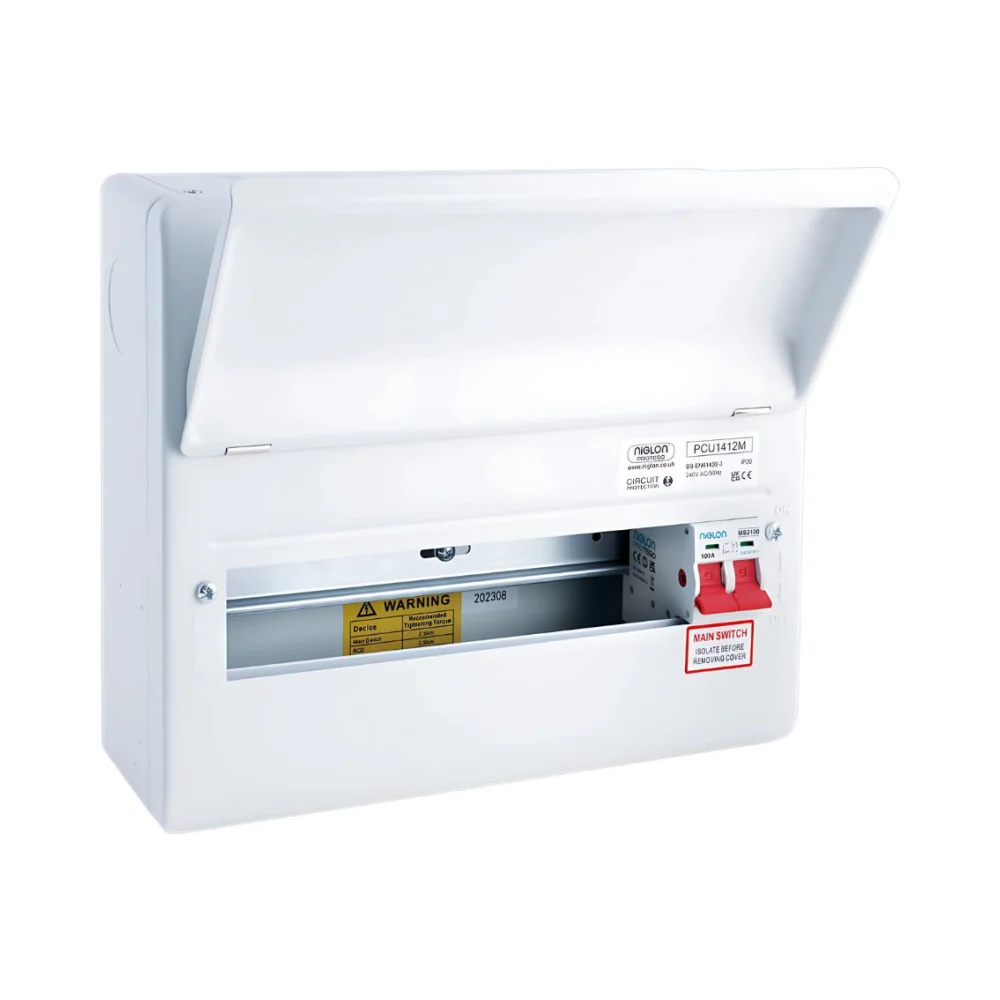

⚡ Niglon PCU1412M – Protego 12 Usable Way Metal Consumer Unit
✅ A Larger, Smarter Consumer Unit from the Protego Range
The Niglon PCU1412M is a 12-way metal consumer unit, part of the Protego series designed for cleaner installs, more flexibility, and reliable performance in domestic environments. Featuring a total of 14 modules with 12 usable ways, this unit offers additional space for future expansion or accessories like SPDs, RCBOs, or relays.
With a right-hand main switch and twin screw 100A double pole isolator, it mirrors the smart, user-first features of the Protego family—giving electricians an installation-ready board that performs well and looks the part.
🔧 Key Features of the Niglon PCU1412M Protego 100A Twin Screw Main Switch 12 Way Metal Consumer Unit
- ✅ 14-module metal consumer unit with 12 usable ways
- ✅ Pre-fitted 100A double pole main switch – right-hand incomer
- ✅ Twin screw terminals on isolator for a more secure connection
- ✅ Rounded corners and smooth front for a premium appearance
- ✅ Robust powder-coated steel construction – finished in RAL 9010
- ✅ Main switch terminal capacity: 35mm²
- ✅ IP20 ingress protection | IK05 impact protection
- ✅ Compliant with BS 7671:2018, BS EN 61439-3, and EN60947-3
- ✅ Certified by Semko, CE, and UKCA
📐 Dimensions
- Width: 304mm
- Height: 260mm
- Depth: 110mm
⚙️ Add SPD Protection Easily – No MCB Required
- ✅ Compatible with the Niglon NSA2-240 SPD
- ✅ SPD fits directly onto the busbar—no need for a breaker or extra module
- ✅ Simply scroll down and add the SPD from the related products section
💡 Ideal For
- ✅ Larger domestic rewire and new build installations
- ✅ Installers preferring a right-side main switch configuration
- ✅ Boards needing more room for circuit expansion
- ✅ Electricians looking for a 12-way metal consumer unit with installer-friendly features
- ✅ Jobs that demand strong terminal connections using twin screw tails
Why Choose Niglon Protego?
The Protego range is Niglon’s installer-focused evolution of the traditional metal-clad board. With cleaner curves, stronger terminals, and more intelligent layouts, these consumer units are built for compliant, long-lasting installs without fuss. Certified for safety and styled for quality.
🔎 Summary
The Niglon PCU1412M is a right-hand incomer 12-way metal consumer unit with 14 modules total and a 100A twin-screw double pole isolator. Built from powder-coated steel, it’s IP20-rated, BS 7671 compliant, and SPD-ready—ideal for larger domestic electrical installations with future expansion in mind.
