Description
GRP Enclosure (300mm x 250mm x 140mm)

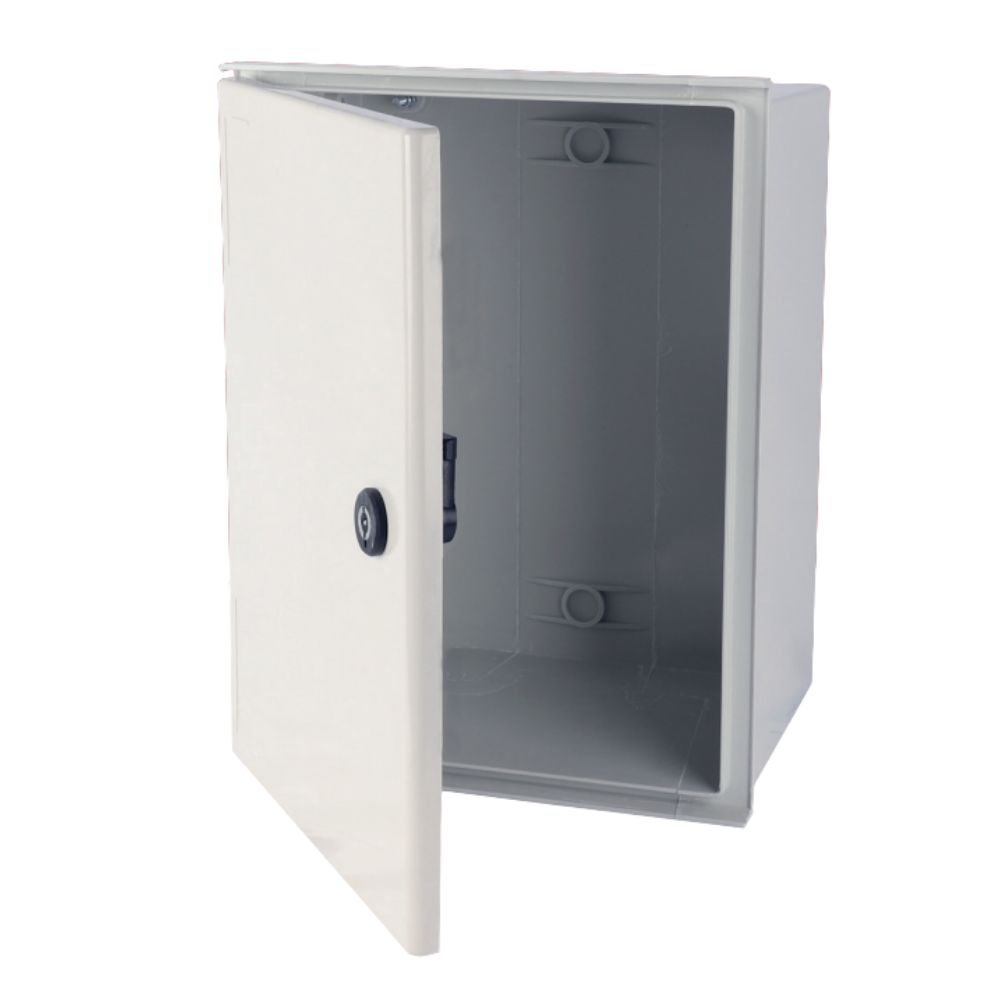

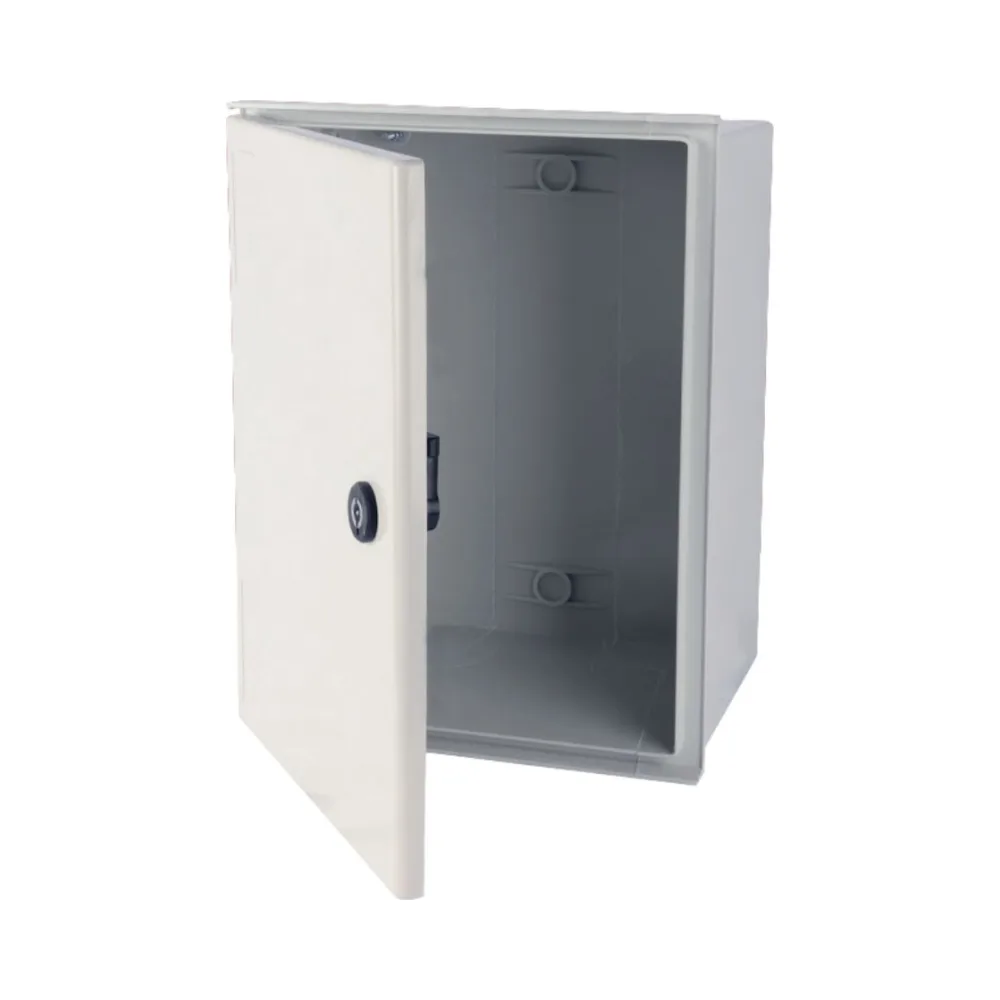

Niglon P302514 – Wall-Mounted Glass Reinforced Polyester (GRP) Enclosure
High-Performance GRP Enclosure for Industrial and Outdoor Applications – Niglon P302514 GRP Enclosure (300mm x 250mm x 140mm)
The Niglon P302514 GRP Enclosure is a rugged and weather-resistant electrical housing, built for demanding industrial, commercial, and outdoor environments. Designed from Glass Reinforced Polyester (GRP), it delivers superior durability, impact resistance, and corrosion protection. Unlike metal alternatives, GRP enclosures are non-conductive, making them an excellent choice for electrical insulation and safety.
This enclosure is built to withstand harsh conditions. With an IP66 rating, it offers full protection against dust and powerful water jets, preventing damage to internal components. Additionally, it meets IK10 impact resistance standards, ensuring durability against mechanical stress. Since it is lightweight yet strong, installation is quick and efficient, making it ideal for various electrical applications.
Key Features
- Durable Glass Reinforced Polyester (GRP) construction, offering long-lasting protection
- Corrosion-resistant and non-conductive, ensuring electrical safety
- IP66 ingress protection, shielding against dust and strong water jets
- IK10 impact resistance, providing maximum strength
- Flame-resistant up to 960°C Glow Wire, meeting strict fire safety standards
- Wide operating temperature range, from -30°C to +105°C
- Rated for up to 1000V, suitable for high-powered electrical systems
- Secure locking system, preventing unauthorised access
- Easily machinable, allowing for custom modifications
- Lightweight yet robust, simplifying installation
Technical Specifications of the Niglon P302514 GRP Enclosure (300mm x 250mm x 140mm)
- Material: Glass Reinforced Polyester (GRP)
- Flame Test: 960°C Glow Wire
- Ingress Protection: IP66 / IK10
- Standards Compliance: BSEN 62208, BSEN 62262, BSEN 60529
- Height: 300mm
- Width: 250mm
- Depth: 140mm
- Useable Depth (with backplate): 113mm
- Number of Locks: 1
- Operating Temperature: -30°C to +105°C
- Thermal Class: A
- Rated Voltage: 1000V
- Weight: 2.2kg
Available Accessories (not included)
- Document Pocket: A4DOCW
- Polyester Backplate (268 x 213mm): PBP321
- Metal Backplate (268 x 213mm): MBP321
- Small Ventilation Device: P-SVD
- Large Ventilation Device: P-LVD
- Key Lock with Butterfly Handle: P-DL
- Padlock Hasp: P-PH
- Wall Fixing Kit: P-WFK
Why Choose Niglon P302514 GRP Enclosure
- Trusted industry brand, recognised for high-quality enclosures
- Exceptional weather and impact resistance, ensuring long-term durability
- IP66-rated, providing full protection in harsh conditions
- Lightweight design, allowing for easy handling and quick installation
- Easily customisable, accommodating specific project requirements
Summary
The Niglon P302514 GRP Enclosure is a reliable and weatherproof solution for industrial and outdoor electrical installations. Constructed from Glass Reinforced Polyester (GRP), it delivers corrosion resistance, impact protection, and non-conductivity, ensuring long-lasting performance. With IP66 ingress protection, IK10 impact resistance, and a secure locking system, this enclosure guarantees safety and durability. Additionally, its lightweight design simplifies installation, making it the perfect choice for demanding electrical applications.
