Description
13 Way Consumer Unit with 10 Type A RCBOs, Type 2 SPD & 100A DP Main Switch

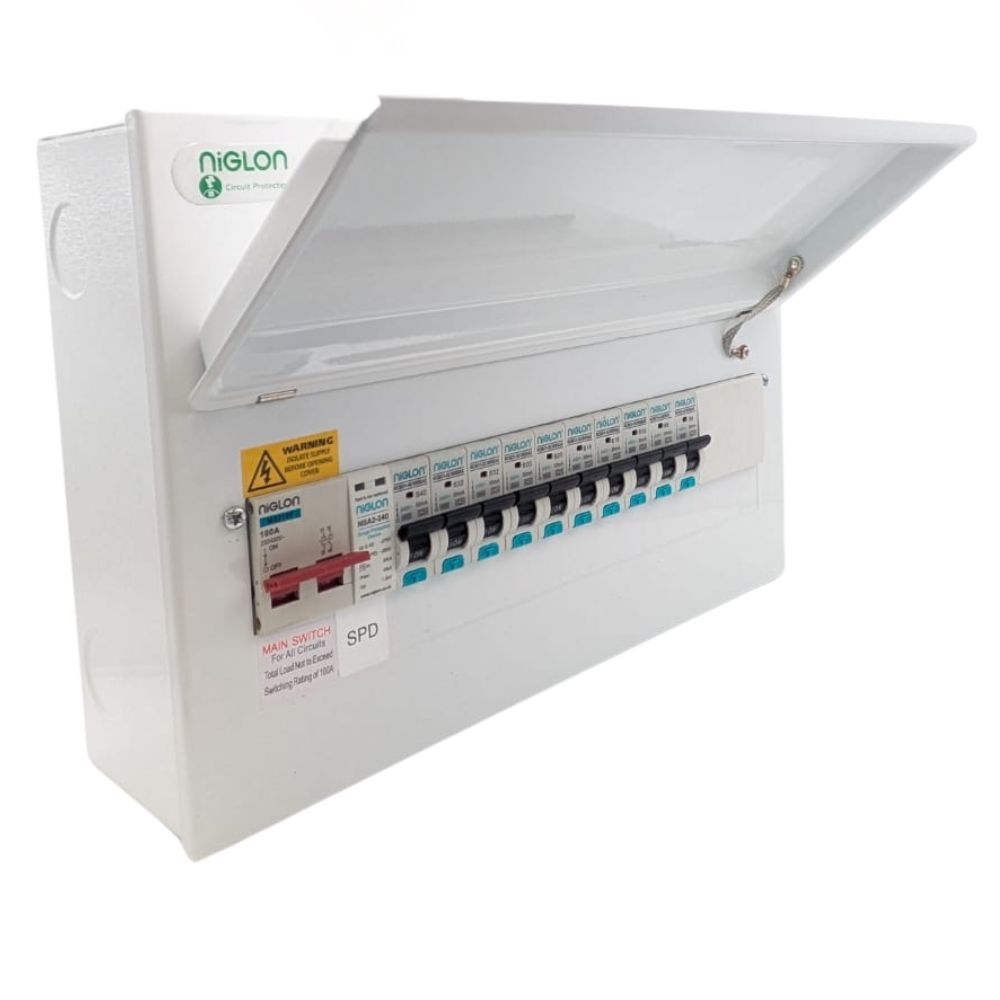

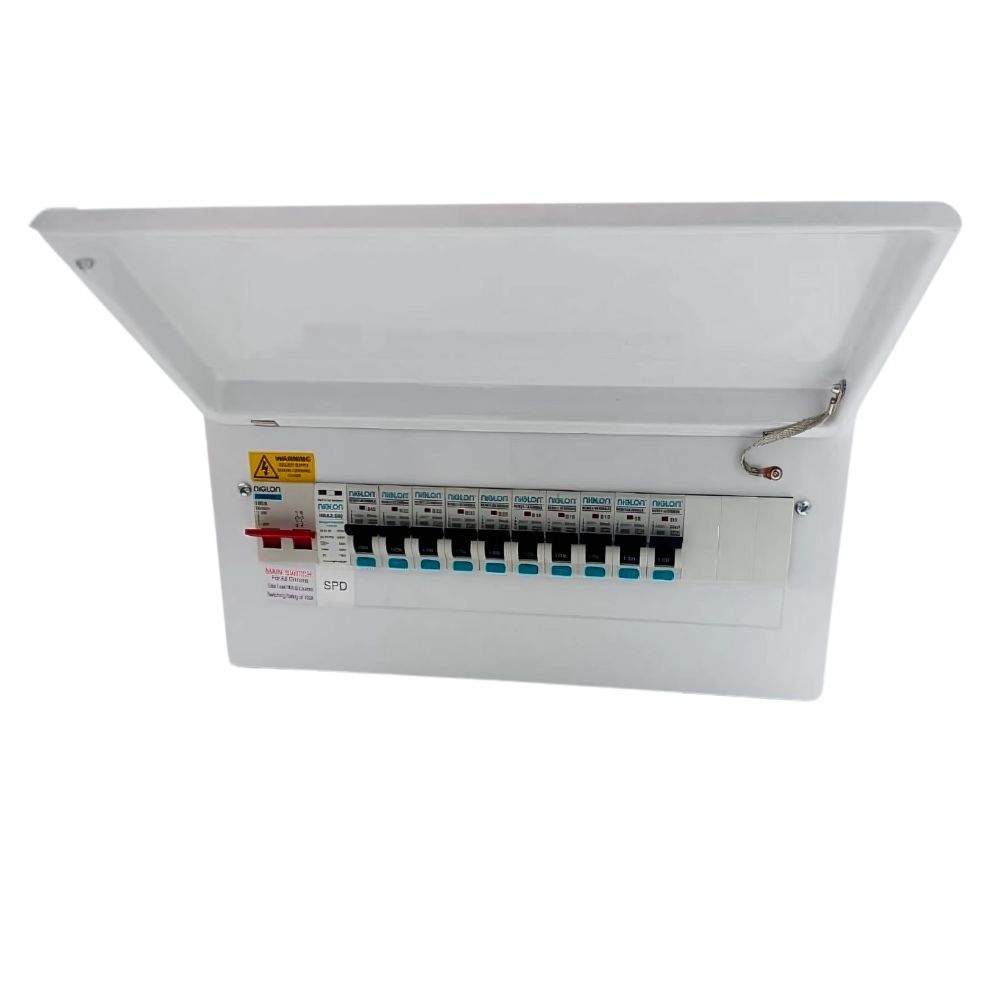

⚡ Niglon M3CU16SP/10RCBO – IP20 Metal Consumer Unit
When you need a no-fuss, all-in-one solution for modern circuit protection, the Niglon 13 Way SPD Consumer Unit Kit delivers. With pre-installed RCBOs, SPD, and isolator in a sleek steel enclosure, it’s designed to make your job faster, safer, and fully compliant.

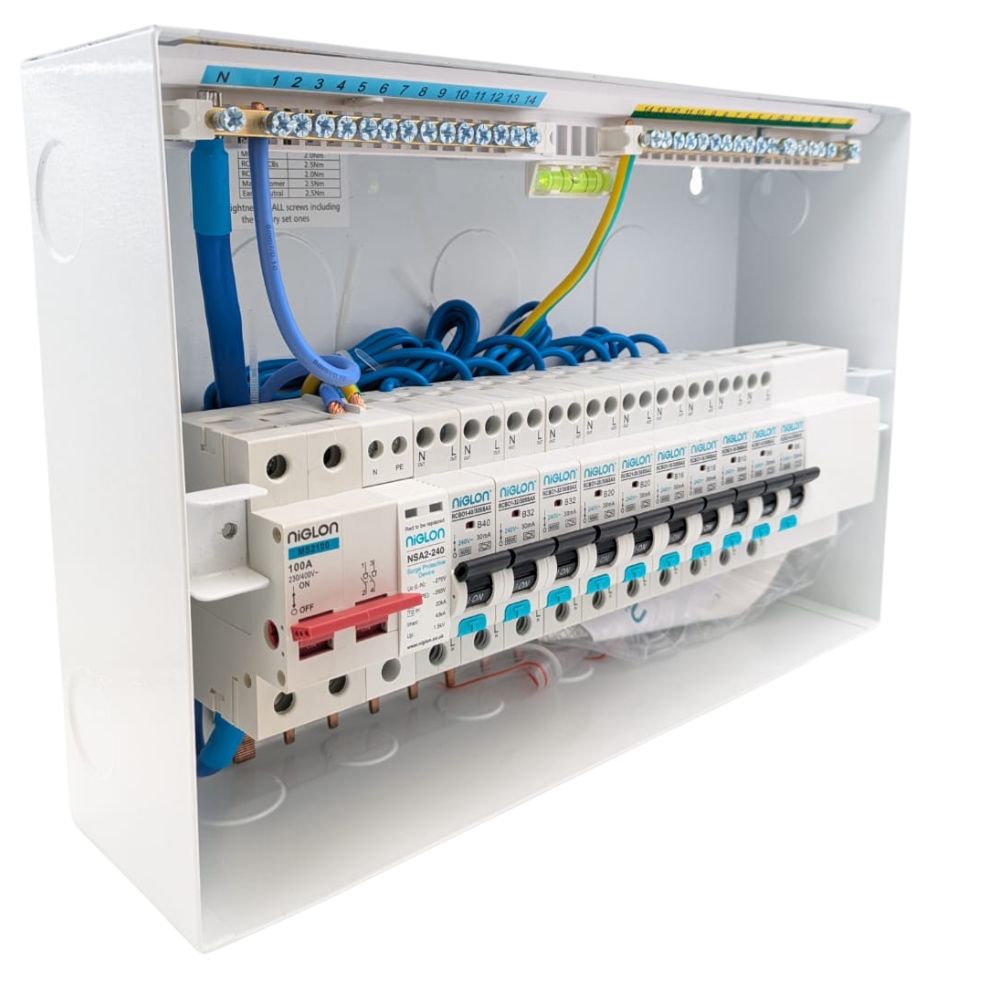

The Niglon M3CU16SP/10RCBO is a complete, 13-way consumer unit tailored for domestic installations. It arrives pre-wired and includes everything an electrician needs for a reliable, time-saving setup. What makes this unit unique? The main switch is mounted on the left, unlike most boards. This layout helps installers with routing in tight or retrofit spaces.
Additionally, the Type 2 SPD uses only 1 module and doesn’t require an MCB. As a result, all 13 ways remain usable for circuit protection. If you’re managing a rewire or new build, this kit delivers what you need—without extra purchases or wiring work.
✅ Niglon 13 Way SPD Consumer Unit Kit Contents:
- 1x 100A double pole main isolator
- 1x Type 2 SPD (15kA max), 1 module – no MCB required

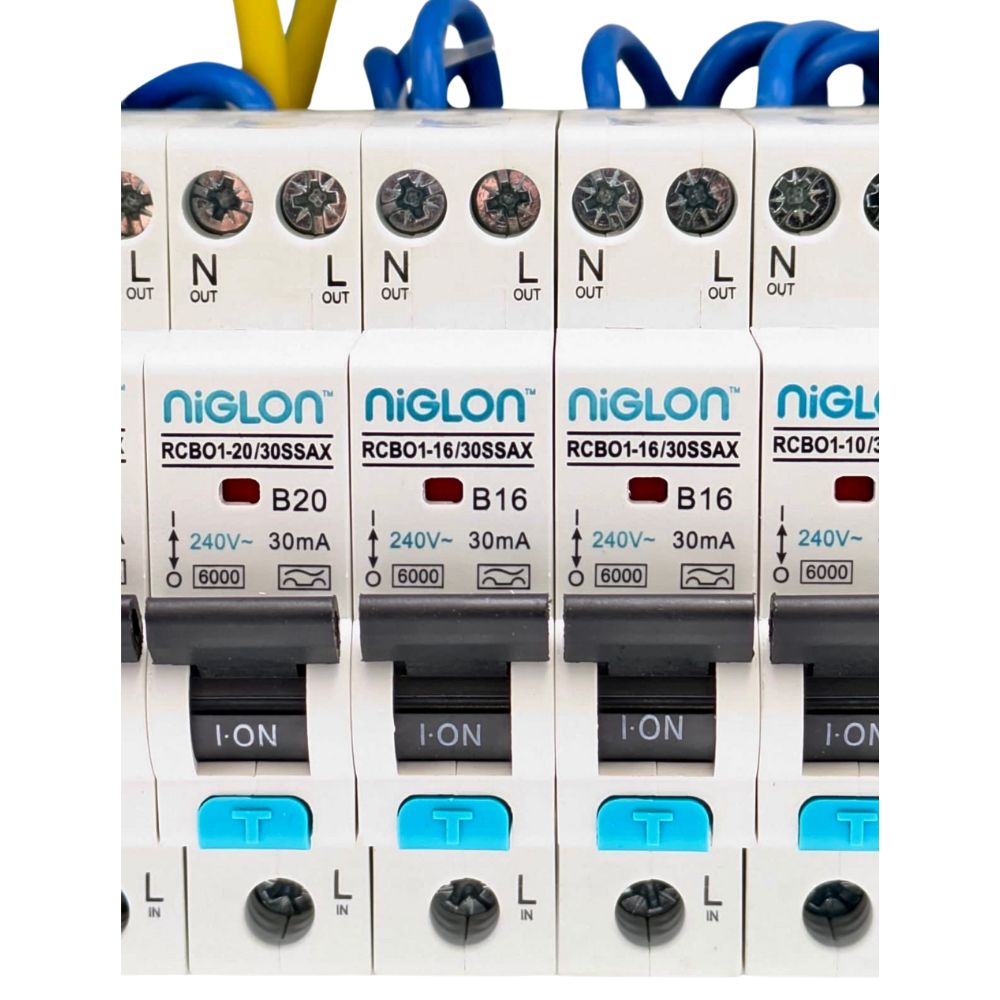

- 10x Type A RCBOs (B Curve, compact, switched line & neutral)
- 3x solid blanks

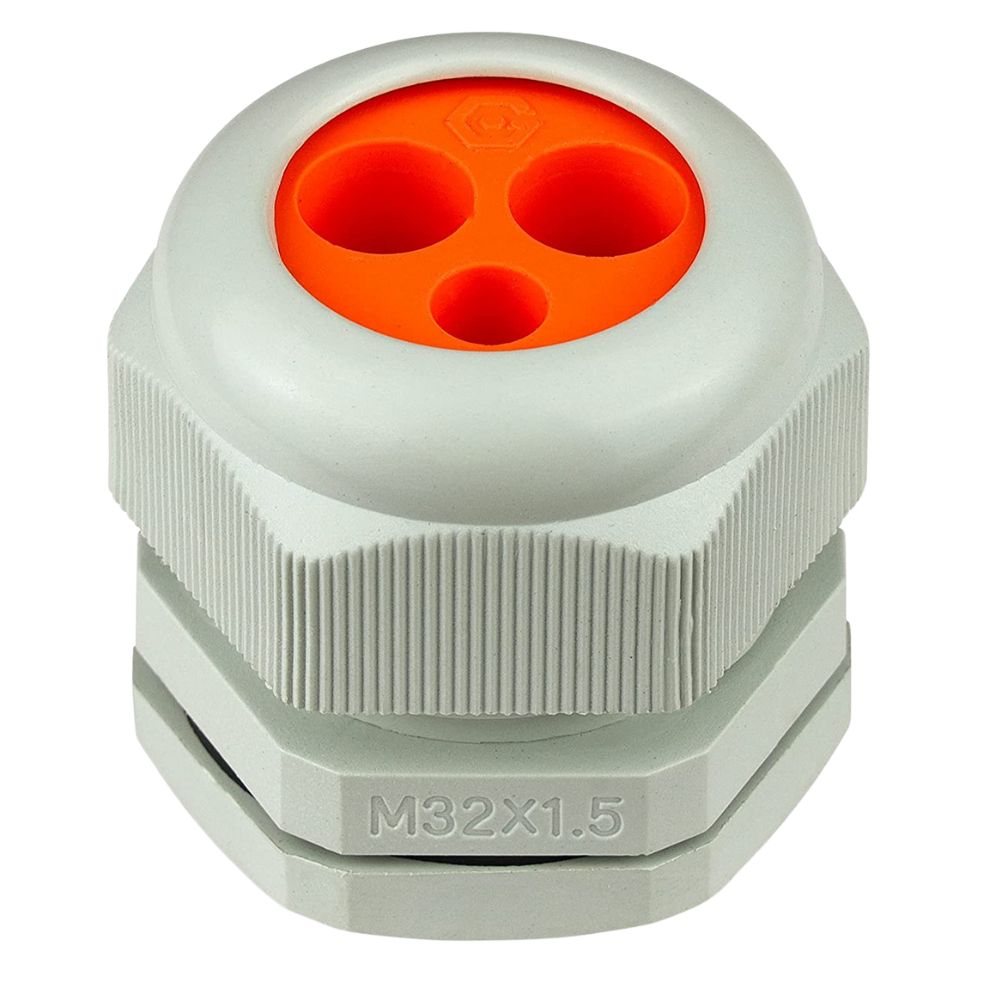

- 1x 32mm meter tail gland (included free)
✅ Your RCBO, Your Choice
You get to choose from RCBOs rated at 6A, 10A, 16A, 20A, 32A, or 40A.
Default kits ship with a balanced mix—unless you say otherwise.
➡️ Add your preferences at checkout
💬 Or WhatsApp us with your order number after purchase
This flexibility means fewer unused RCBOs and a better fit for every job.
✅ Specifications of the Niglon 13 Way SPD Consumer Unit Kit
- Steel enclosure (RAL 9010 white, powder-coated)
- Size: 343mm (W) x 237mm (H) x 110mm (D)
- Total modules: 16
- Usable ways: 13
- IP rating: IP20
- IK rating: IK05
- Max incoming cable size: 35mm²
- Complies with:
- BS 7671:2018
- BS EN 61009-1 (RCBOs)
- BS EN 61439-3 (assemblies)
- BS EN 61643-11 (SPD)
- Certified: Intertek, CE, UKCA, Semko, Kema Keur, CSA, EAC
✅ Why Choose Niglon 13 Way SPD Consumer Unit Kit?
With over 80 years in the industry, Niglon is a name trusted by electricians across the UK. Their consumer units are built for practicality, certified for safety, and backed by excellent service. Unlike generic brands, Niglon listens to installers—and it shows.
✅ Ideal For:
- Domestic rewires
- New build installations
- Electricians who want a complete, compliant kit
- Projects that need space-saving Type A RCBOs and integrated surge protection
✅ Summary – Niglon’s Smartest Domestic Consumer Unit – Built to Save You Time on Every Install
The Niglon M3CU16SP/10RCBO is a ready-to-install 13-way consumer unit. It features 10 compact Type A RCBOs, a 100A isolator, and a space-saving Type 2 SPD. Its left-side switch layout and RCBO selection flexibility make it perfect for BS 7671-compliant domestic installs. This IP20-rated steel board comes pre-wired and certified for UK electrical standards—ideal for fast, safe, and professional work.
