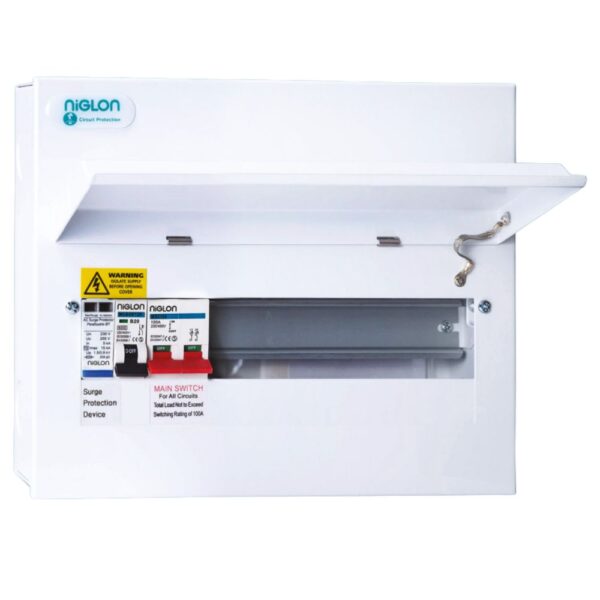

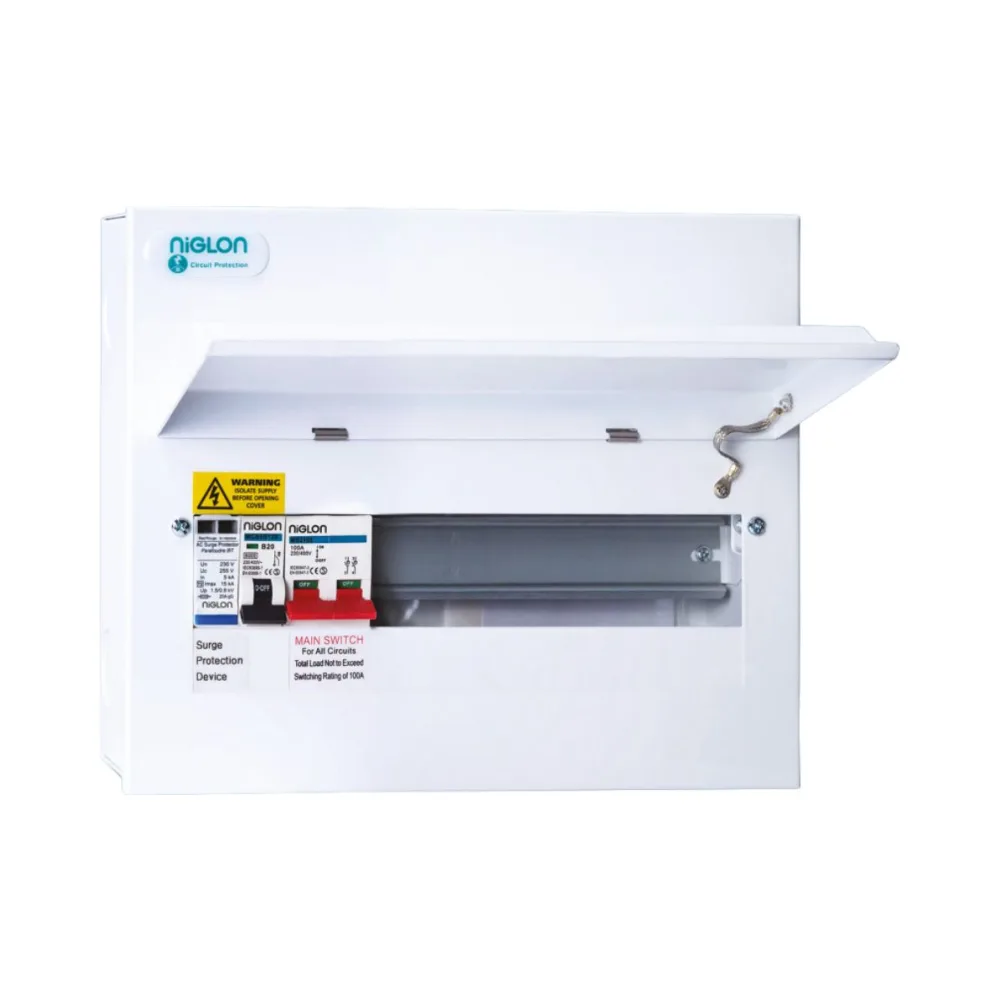

Niglon M3CU16SP 100A DP Main Switch 12 Way SPD Consumer Unit

Description

100A DP Main Switch Type 2 SPD Consumer Unit – 12 Usable Way SPD Consumer Unit

Comprehensive Circuit Protection with Type 2 Surge Protection – Niglon M3CU16SP 12 Way SPD Consumer Unit

Niglon M3CU16SP

The Niglon M3CU16SP 100A DP Main Switch Type 2 SPD Consumer Unit is a high-performance 18th Edition-compliant consumer unit, designed for modern residential and commercial installations. Featuring a 100A double pole (DP) main switch isolator and a 15kA Type 2 surge protection device (SPD), this unit offers superior circuit protection against transient voltage surges, ensuring compliance with BS7671:2018.

With 12 usable ways, this SPD consumer unit is perfect for RCBO setups, allowing individual circuit protection for maximum safety and reliability. The durable steel powder-coated enclosure (RAL 9010) ensures long-lasting performance.

Key Features of the Niglon M3CU16SP

• 100A DP Main Switch Isolator – Provides safe and efficient circuit control
• Integrated 15kA Type 2 SPD – Protects against power surges and transient voltage spikes
• 12 Usable Ways – Ideal for RCBO configurations, ensuring full circuit separation
• 16-Module Design – Offers expandability and flexibility
• Powder-Coated Steel Enclosure – RAL 9010 finish for corrosion resistance and durability
• IP20 Rated – Suitable for indoor installations
• IK05 Impact Rating – Protects against physical damage
• Fully Compliant with 18th Edition Wiring Regulations – Meets BS7671:2018 & BS EN 61439-3 standards

Technical Specifications of the Niglon M3CU16SP 12 Way SPD Consumer Unit

• Model: M3CU16SP
• Consumer Unit Type: SPD Consumer Unit / 18th Edition Consumer Unit
• Main Switch Rating: 100A Double Pole Isolator
• Surge Protection: Type 2 (or 3) 15kA SPD (BS EN 61643-11 compliant)
• Usable Ways: 12 (Ideal for RCBO setup)
• Voltage: 230V AC
• Frequency: 50Hz
• Max Incoming Cable Size: 35mm²
• Impact Protection (IK Rating): IK05
• Ingress Protection (IP Rating): IP20
• Material: Steel (Powder Coated RAL 9010)
• Standards Compliance:
  • BS7671:2018 (18th Edition Compliant)
  • BS EN 61439-3 (Consumer Unit Standard)
  • BS EN 61643-11 (Surge Protection Compliance)
• Certifications: Semko, Kema Keur, CSA, UR, EAC, CE, UKCA, Intertek
• Dimensions:
  • Width: 343mm
  • Height: 237mm
  • Depth: 110mm

Applications

• Residential Electrical Installations – Ideal for modern homes and rewires
• Commercial Properties – Provides safe and stable power distribution
• Workshops & Outbuildings – Ensures efficient circuit protection
• Ideal for RCBO Setups – 12 usable ways offer maximum circuit separation

Why Choose the Niglon M3CU16SP Consumer Unit?

• Enhanced Circuit Safety – Integrated 15kA Type 2 surge protection device (SPD)
• Optimised for RCBO Setups – 12 usable ways for individual circuit protection
• 18th Edition Compliant – Meets BS7671:2018 & BS EN 61439-3
• Durable & Compact – Steel powder-coated enclosure for longevity
• Trusted Electrical Brand – Niglon is known for reliable circuit protection solutions

Summary

The Niglon M3CU16SP 100A DP Main Switch Type 2 SPD Consumer Unit is a 12 usable way SPD consumer unit, designed for 18th Edition compliance. Featuring a 100A DP main switch and built-in 15kA surge protection device (SPD), it offers safe and efficient circuit protection, making it ideal for RCBO setups.

With a powder-coated steel enclosure and multiple cable entry points, this high-quality consumer unit is perfect for residential and commercial installations.
