11 Way SPD Consumer Unit Kit with 8 RCBOs
✅ Compact, Compliant, and Ready to Install – The Ideal RCBO Consumer Unit for Safer Circuits -Niglon 8 RCBOs SPD Consumer Unit Kit
⚡ Niglon M3CU14SP/8RCBO – Metal Consumer Unit with 100A Main Switch and Type 2 SPD
If you’re looking for a smart, 18th Edition-ready SPD consumer unit that saves time on-site and delivers full protection, the Niglon M3CU14SP/8RCBO Kit ticks all the boxes. It comes complete with 8 compact Type A RCBOs, a built-in 100A main switch, and a pre-installed Type 2 SPD—all housed in a durable, powder-coated steel enclosure.
Perfect for residential and commercial installs, this 11-way board provides efficient circuit separation, built-in surge defence, and simple setup—all while keeping your installs fully BS 7671 compliant.
✅ Product Overview

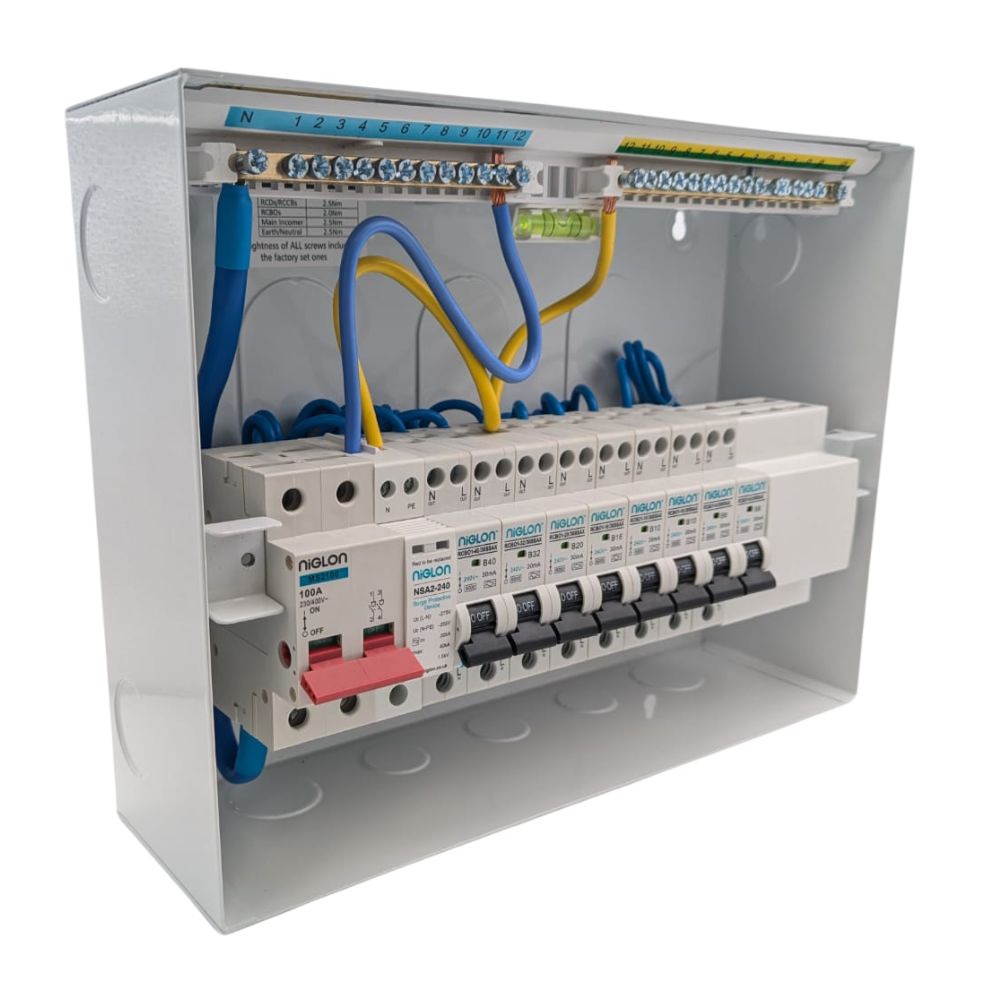

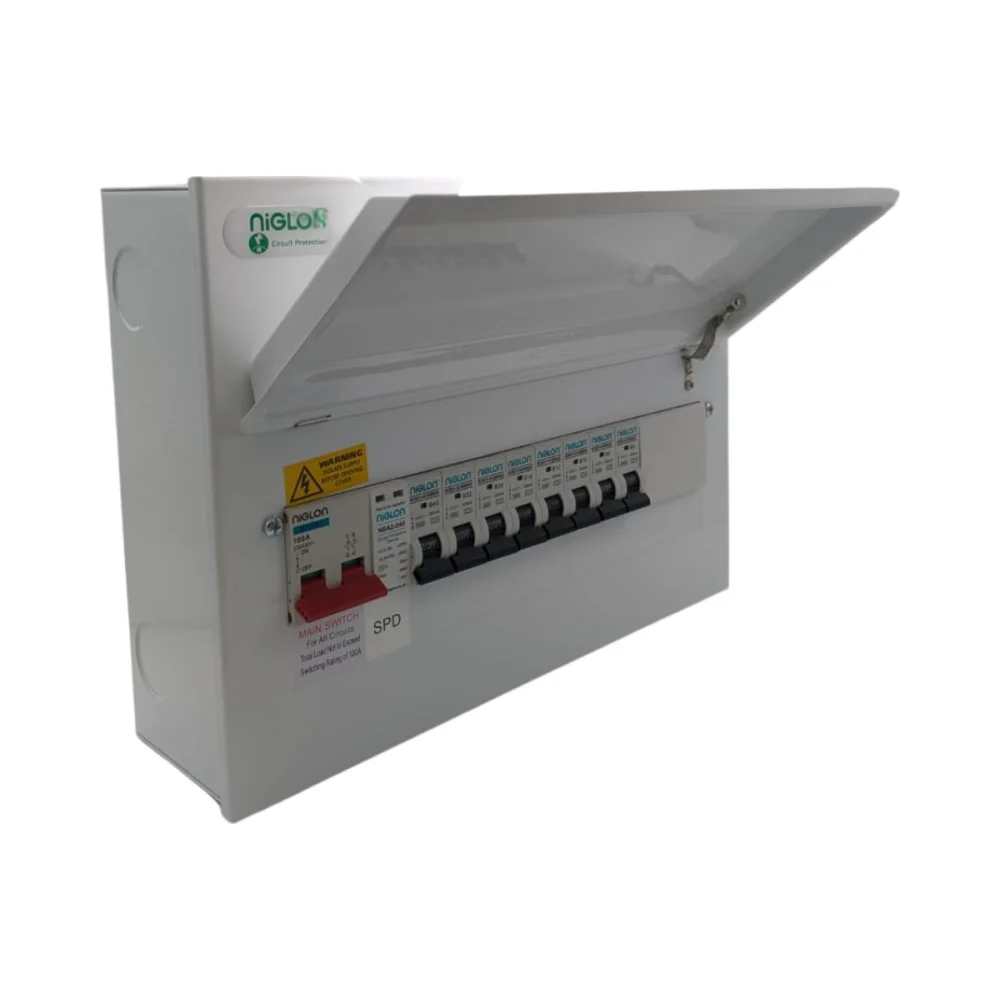

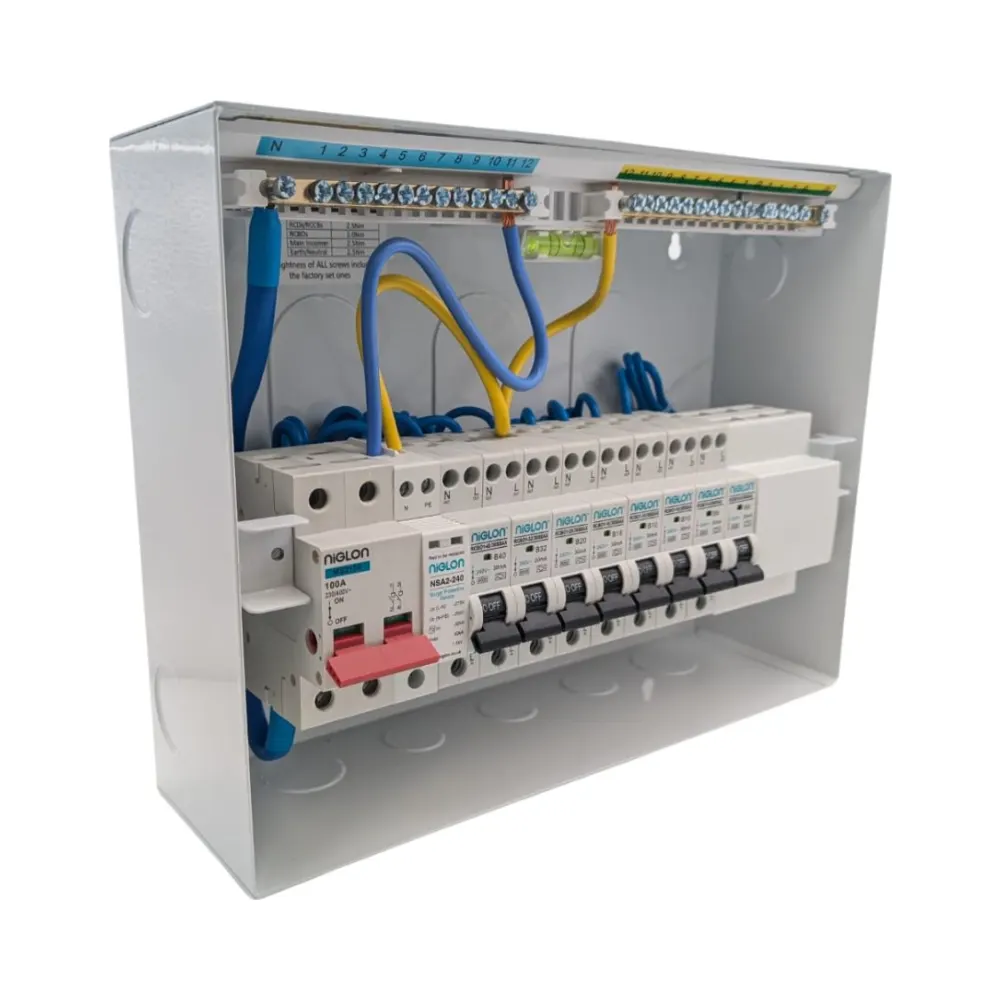

The Niglon M3CU14SP consumer unit is a compact, robust 14-module board with 11 usable ways. It features a 100A double pole main switch isolator, plus a Type 2 (or 3) SPD rated to 15kA—helping to protect connected devices and wiring from transient overvoltages.
The steel IP20-rated enclosure ensures long-term durability, while multiple cable entry points and a tidy internal layout make this board installer-friendly from start to finish.
Included in this kit are 8 RCBOs, ideal for clean, reliable individual circuit protection.
✅ Niglon 8 RCBOs SPD Consumer Unit Kit Includes
- 1x 100A Double Pole Main Switch Isolator
- 1x 15kA Type 2 SPD – compliant with BS EN 61643-11

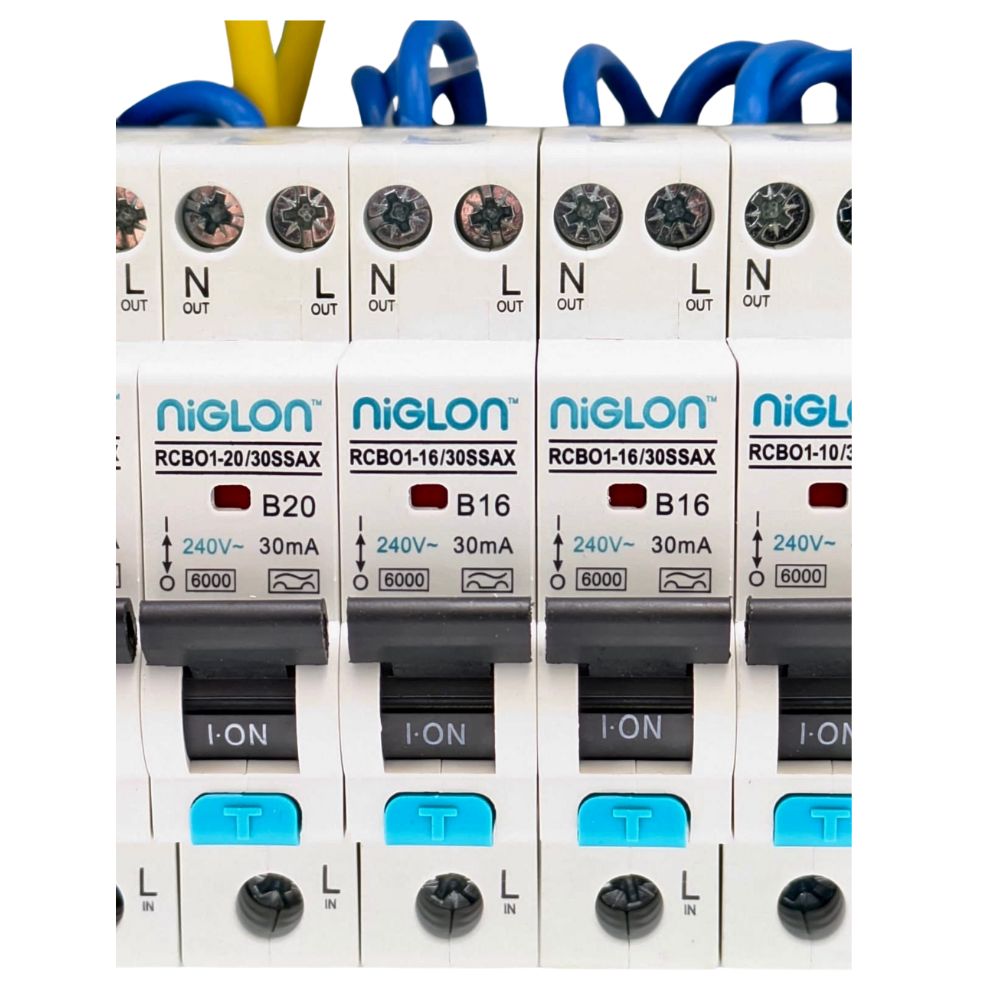

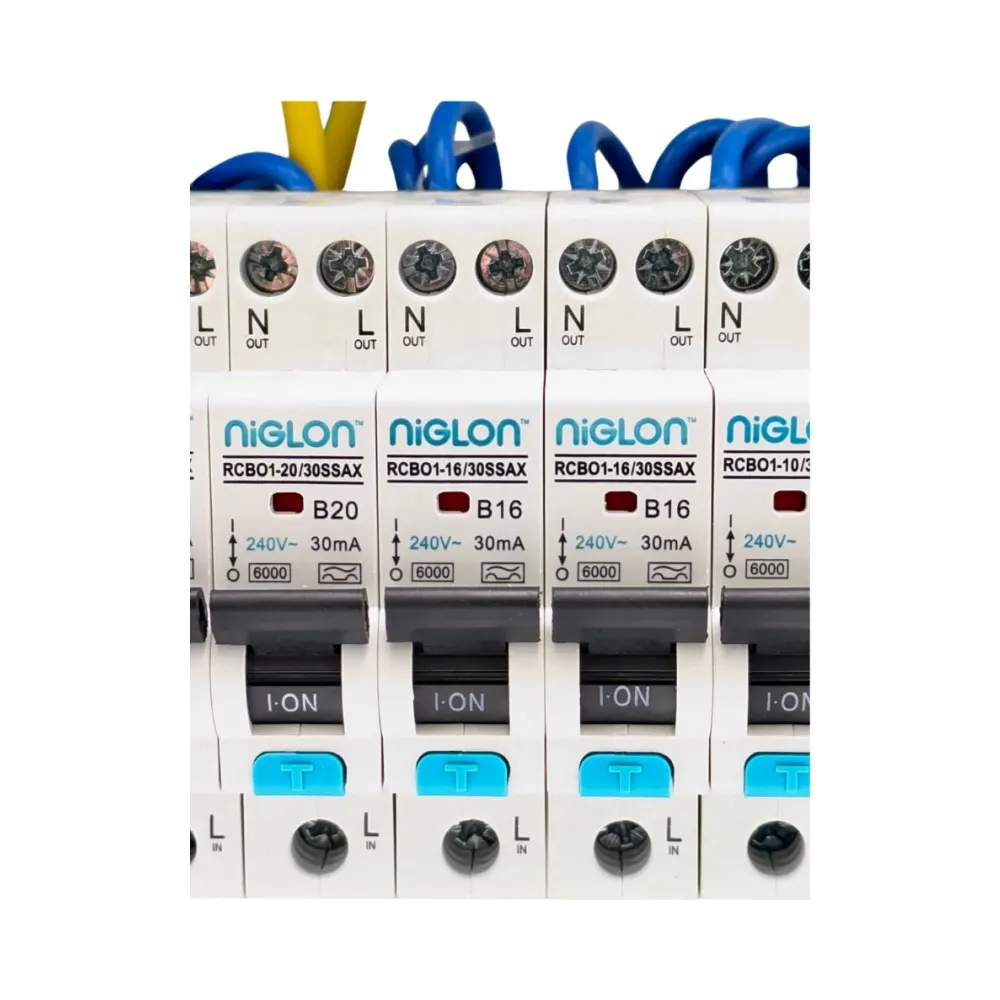

- 8x Type A RCBOs – B Curve, 30mA, space-saver format
- 3x Solid Blanking Plates

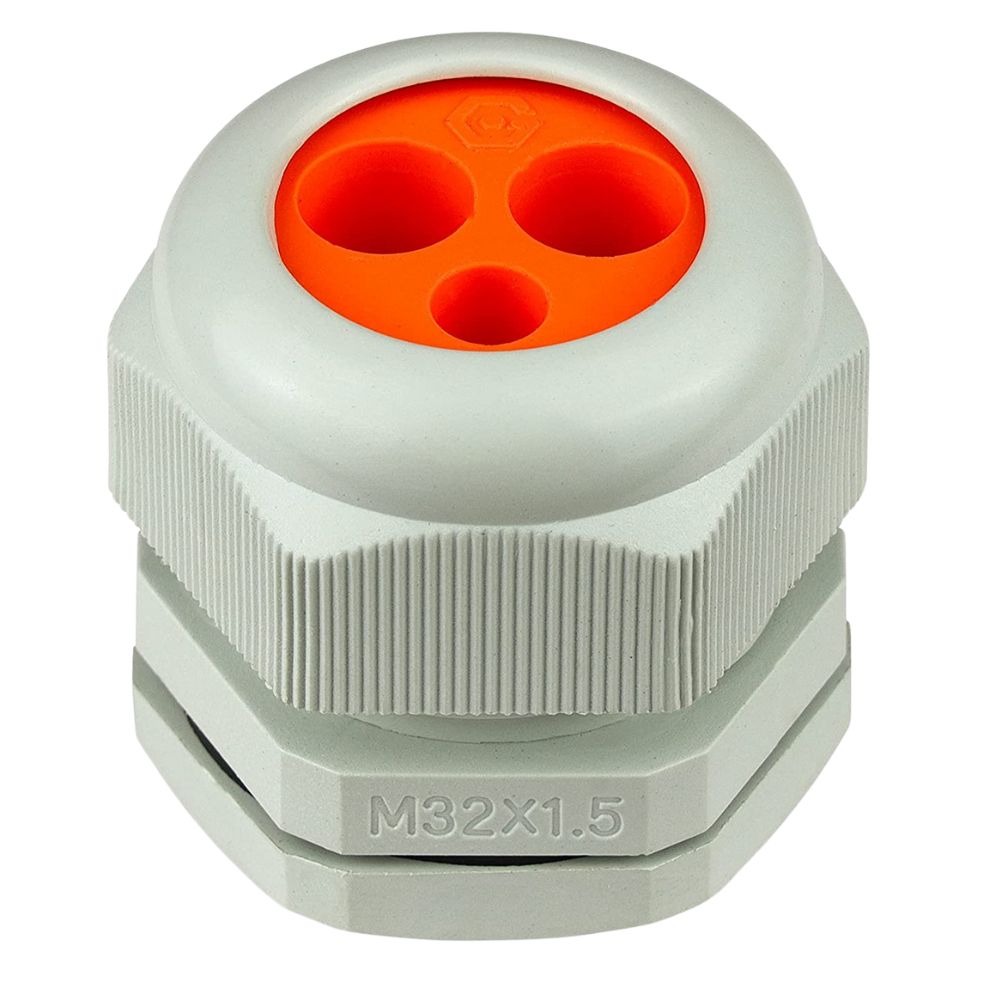

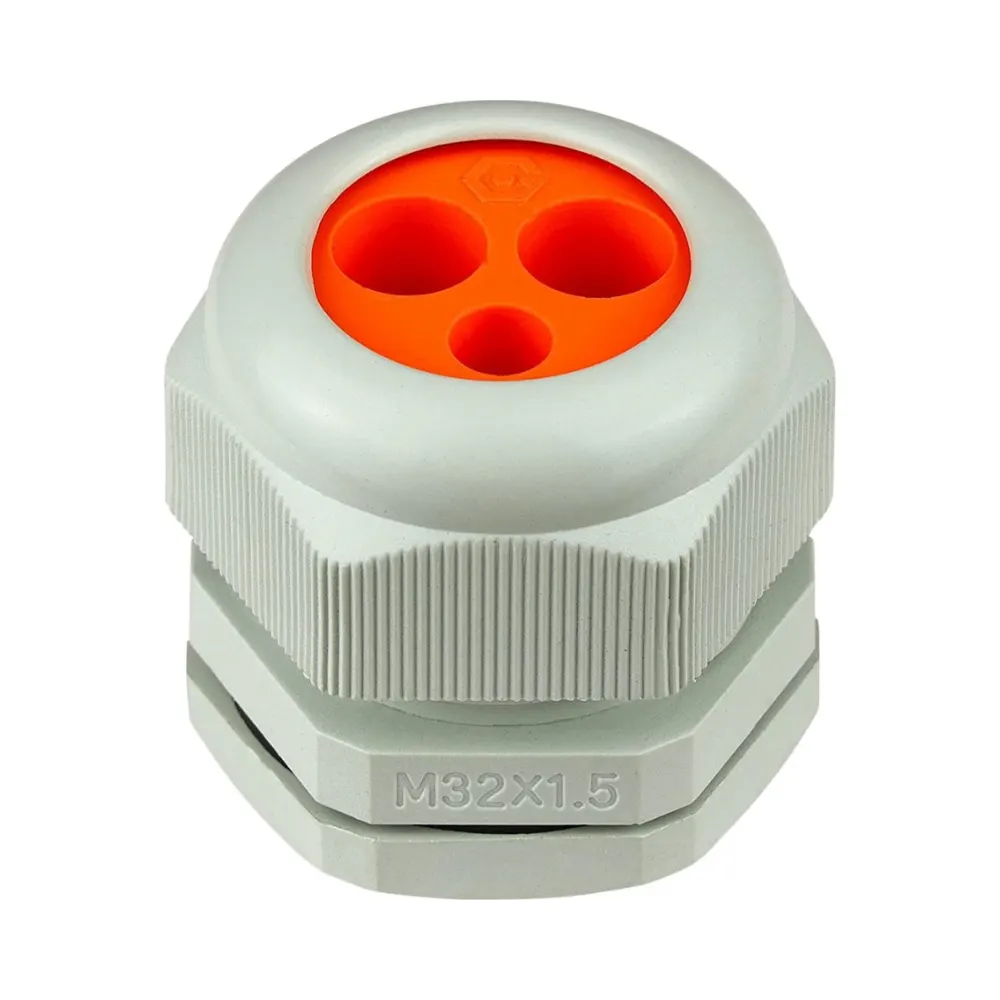

- FREE 32mm Meter Tail Gland

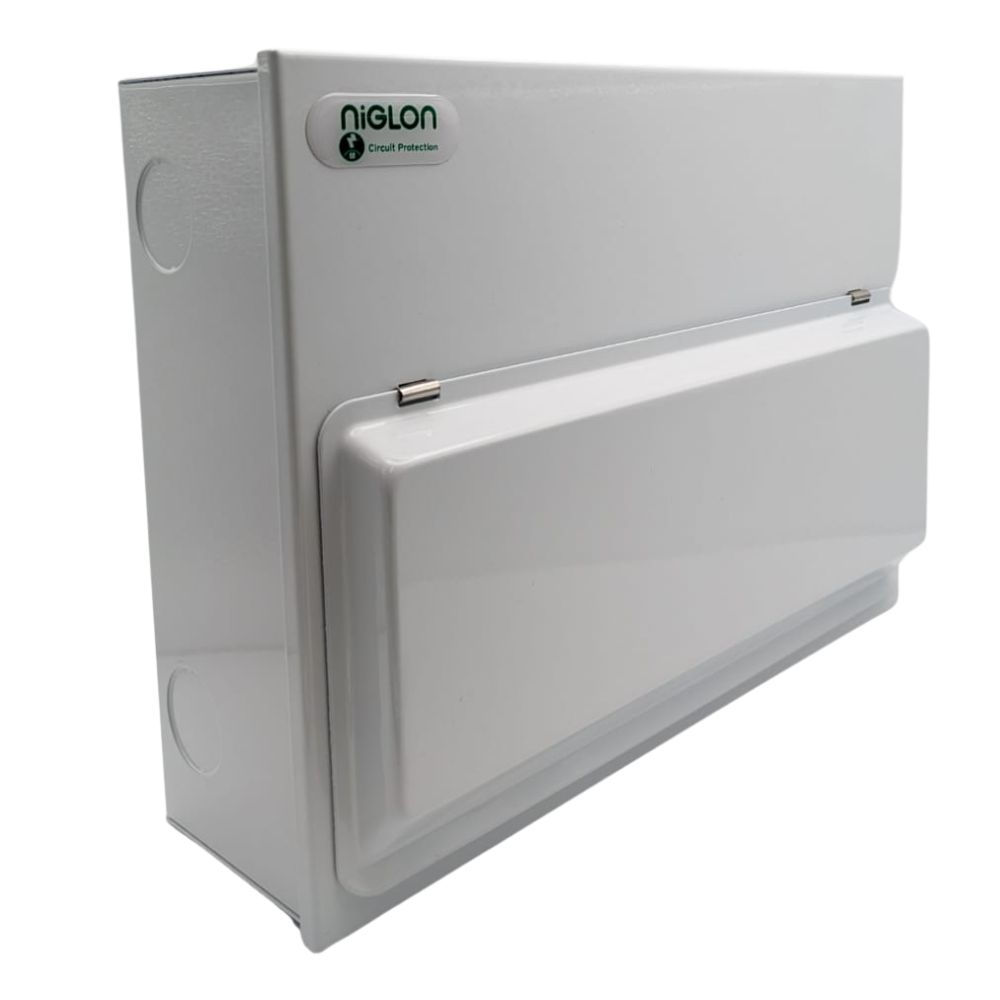

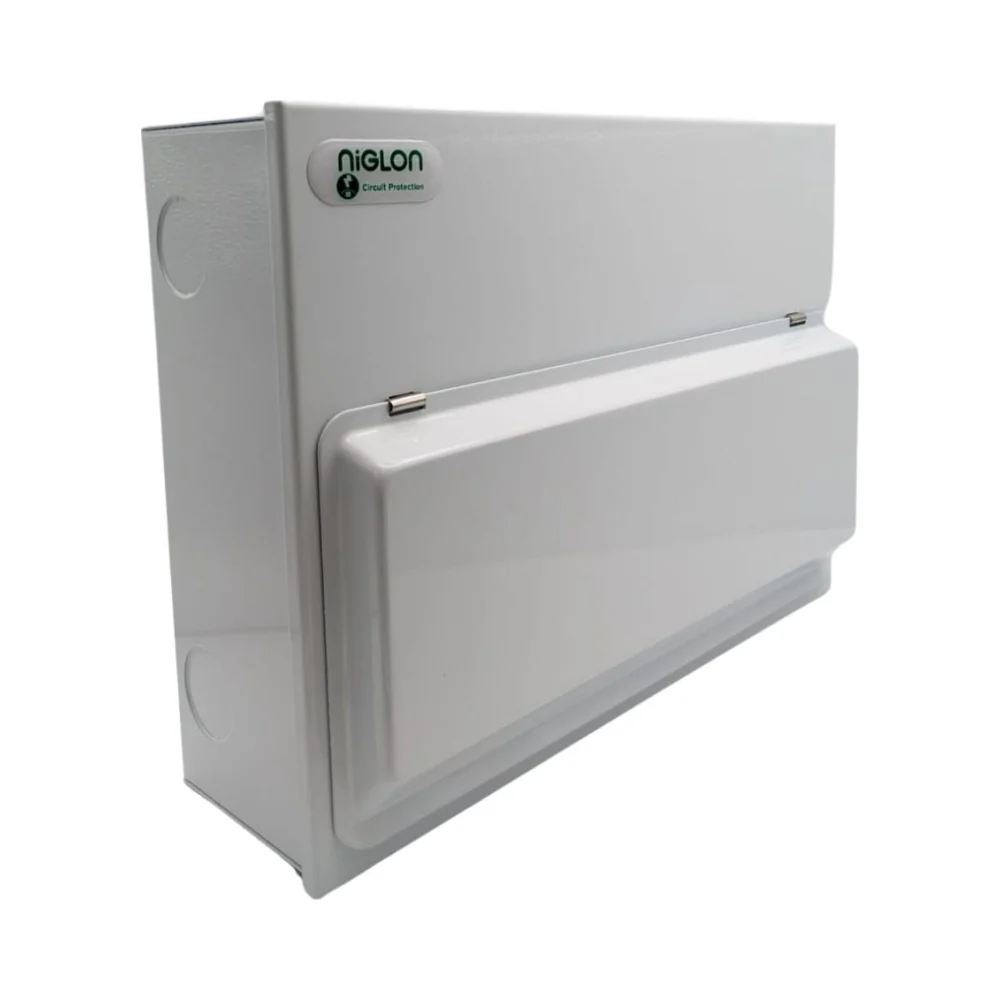

- Enclosure with removable front cover and top/bottom knockouts
✅ Your RCBO, Your Choice
You get to choose from RCBOs rated at 6A, 10A, 16A, 20A, 32A, or 40A.
Default kits ship with a balanced mix—unless you say otherwise.
➡️ Add your preferences at checkout
💬 Or WhatsApp us with your order number after purchase
This flexibility means fewer unused RCBOs and a better fit for every job.
✅ Specifications of the Niglon 8 RCBOs SPD Consumer Unit Kit
- Total Modules: 14
- Usable Ways: 11
- Voltage: 230V AC | Frequency: 50Hz
- Max Incoming Cable Size: 35mm²
- Material: Powder-coated steel (RAL 9010 white)
- IP Rating: IP20
- IK Rating: IK05
- Dimensions: 307mm (W) x 237mm (H) x 110mm (D)
✅ Standards & Certifications
- BS 7671:2018 (18th Edition Compliant)
- BS EN 61439-3 (Consumer Unit Standard)
- BS EN 61643-11 (Surge Protection Compliance)
- Intertek, CE, UKCA, Semko, Kema Keur, CSA, UR, EAC
✅ Ideal For:
- Domestic rewire and new build installations
- Small commercial properties requiring clean RCBO separation
- Electricians who want a compact, ready-to-go SPD board
- Outbuildings, garages, and workshops
✅ Why Choose Niglon 8 RCBOs SPD Consumer Unit Kit?
Niglon is a respected UK circuit protection brand trusted by wholesalers, electricians, and developers. With over 80 years of experience, they deliver consistent product quality, technical compliance, and dependable support across their entire consumer unit and protection range.
