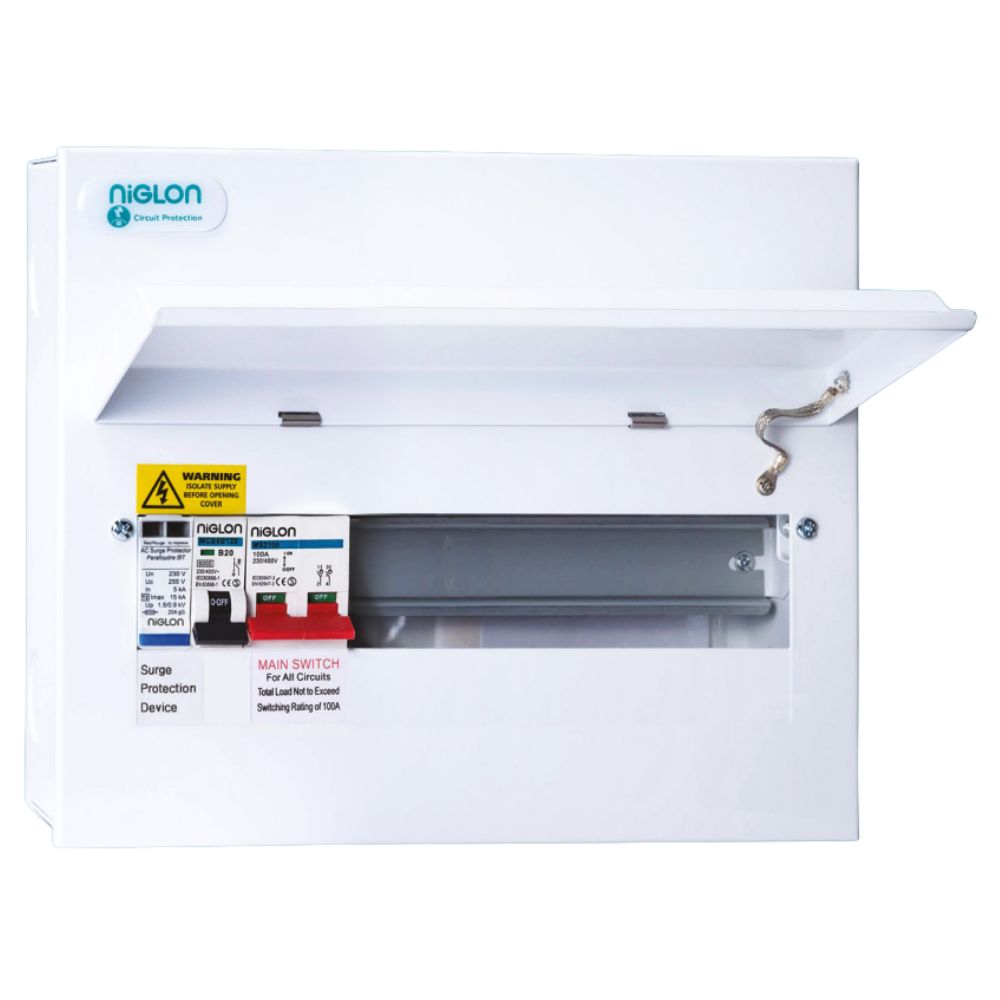

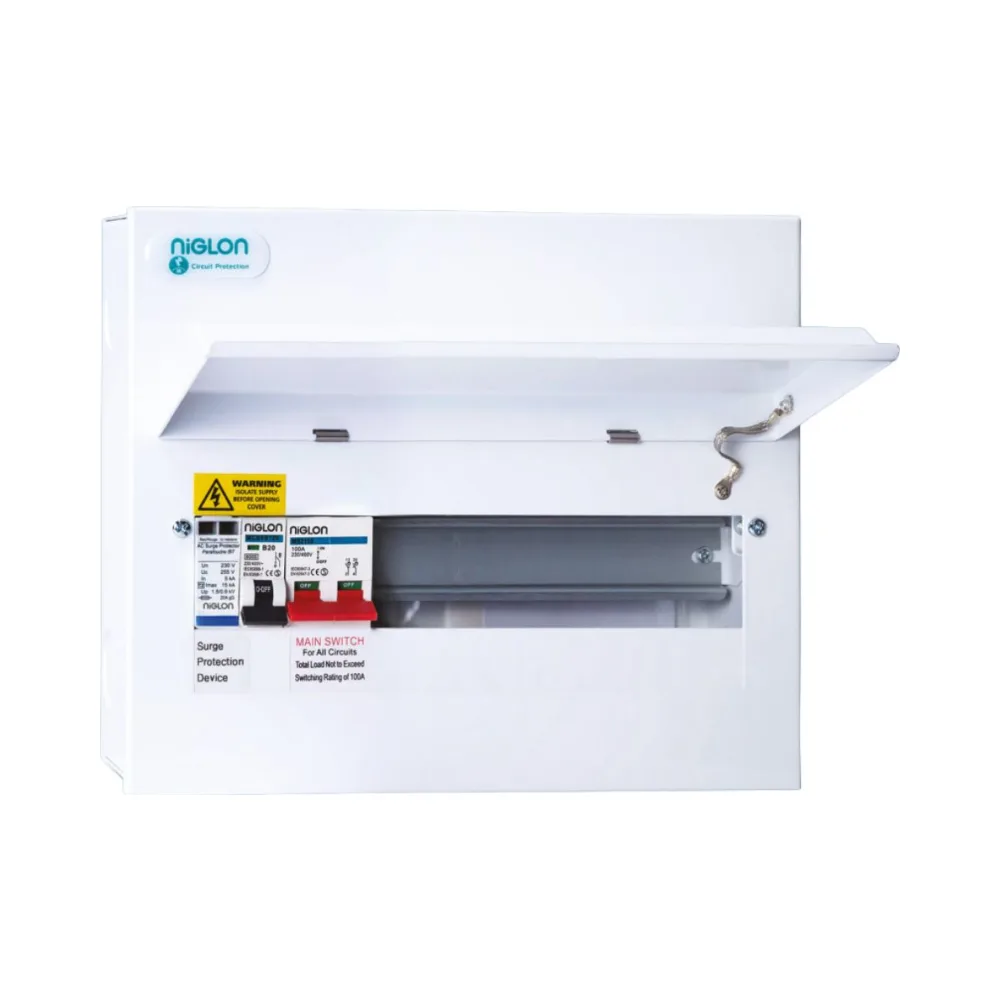

Niglon M3CU14SP 100A DP Main Switch 10 Way SPD Consumer Unit

Description

100A DP Main Switch SPD Consumer Unit – 10 Usable Way SPD Consumer Unit

Comprehensive Circuit Protection with Built-In Surge Protection – Niglon M3CU14SP 10 Way SPD Consumer Unit

Niglon M3CU14SP

The Niglon M3CU14SP 100A DP Main Switch SPD Consumer Unit is a high-quality 18th Edition-compliant consumer unit, designed for modern residential and commercial electrical installations. Featuring a 100A double pole (DP) main switch isolator and a 15kA Type 2 (or 3) surge protection device (SPD), this unit provides enhanced circuit safety by protecting against transient overvoltage surges.

With 10 usable ways, this SPD consumer unit is ideal for RCBO setups, ensuring maximum circuit separation and individual circuit protection. The durable steel powder-coated enclosure (RAL 9010) ensures longevity and reliability, making it perfect for a range of installations.

Key Features of the Niglon M3CU14SP

• 100A DP Main Switch Isolator – Ensures safe and reliable circuit control
• Integrated 15kA Type 2 SPD – Provides essential protection against transient voltage surges
• 10 Usable Ways – Perfect for RCBO configurations, offering individual circuit protection
• 14-Module Design – Allows for future expansion if needed
• Powder-Coated Steel Enclosure – RAL 9010 finish for a durable and professional appearance
• IP20 Rated – Suitable for indoor installations
• IK05 Impact Rating – Protects against physical damage
• Fully Compliant with 18th Edition Wiring Regulations – Meets BS7671:2018 & BS EN 61439-3 standards

Technical Specifications of the Niglon M3CU14SP 10 Way SPD Consumer Unit

• Model: M3CU14SP
• Consumer Unit Type: SPD Consumer Unit / 18th Edition Consumer Unit
• Main Switch Rating: 100A Double Pole Isolator
• Surge Protection: Type 2 (or 3) 15kA SPD (BS EN 61643-11 compliant)
• Usable Ways: 10 (Ideal for RCBO setup)
• Voltage: 230V AC
• Frequency: 50Hz
• Max Incoming Cable Size: 35mm²
• Impact Protection (IK Rating): IK05
• Ingress Protection (IP Rating): IP20
• Material: Steel (Powder Coated RAL 9010)
• Standards Compliance:
  • BS7671:2018 (18th Edition Compliant)
  • BS EN 61439-3 (Consumer Unit Standard)
  • BS EN 61643-11 (Surge Protection Compliance)
• Certifications: Semko, Kema Keur, CSA, UR, EAC, CE, UKCA, Intertek
• Dimensions:
  • Width: 307mm
  • Height: 237mm
  • Depth: 110mm

Applications

• Residential Electrical Installations – Ideal for new builds, rewires, and circuit upgrades
• Commercial Properties – Provides safe power distribution with surge protection
• Workshops & Outbuildings – Ensures efficient circuit protection
• Ideal for RCBO Setups – 10 usable ways allow for maximum circuit separation

Why Choose the Niglon M3CU14SP Consumer Unit?

• Enhanced Circuit Safety – Integrated 15kA surge protection device (SPD)
• Optimised for RCBO Setups – 10 usable ways for individual circuit protection
• 18th Edition Compliant – Meets BS7671:2018 & BS EN 61439-3
• Durable & Compact – Steel powder-coated enclosure for longevity
• Trusted Electrical Brand – Niglon is renowned for high-quality circuit protection solutions

Summary

The Niglon M3CU14SP 100A DP Main Switch SPD Consumer Unit is a 10 usable way SPD consumer unit, designed for 18th Edition compliance. Featuring a 100A DP main switch and built-in 15kA surge protection device (SPD), it offers safe and efficient circuit protection, making it ideal for RCBO setups.

With a compact powder-coated steel enclosure and multiple cable entry points, this high-quality consumer unit is perfect for residential and commercial installations.
