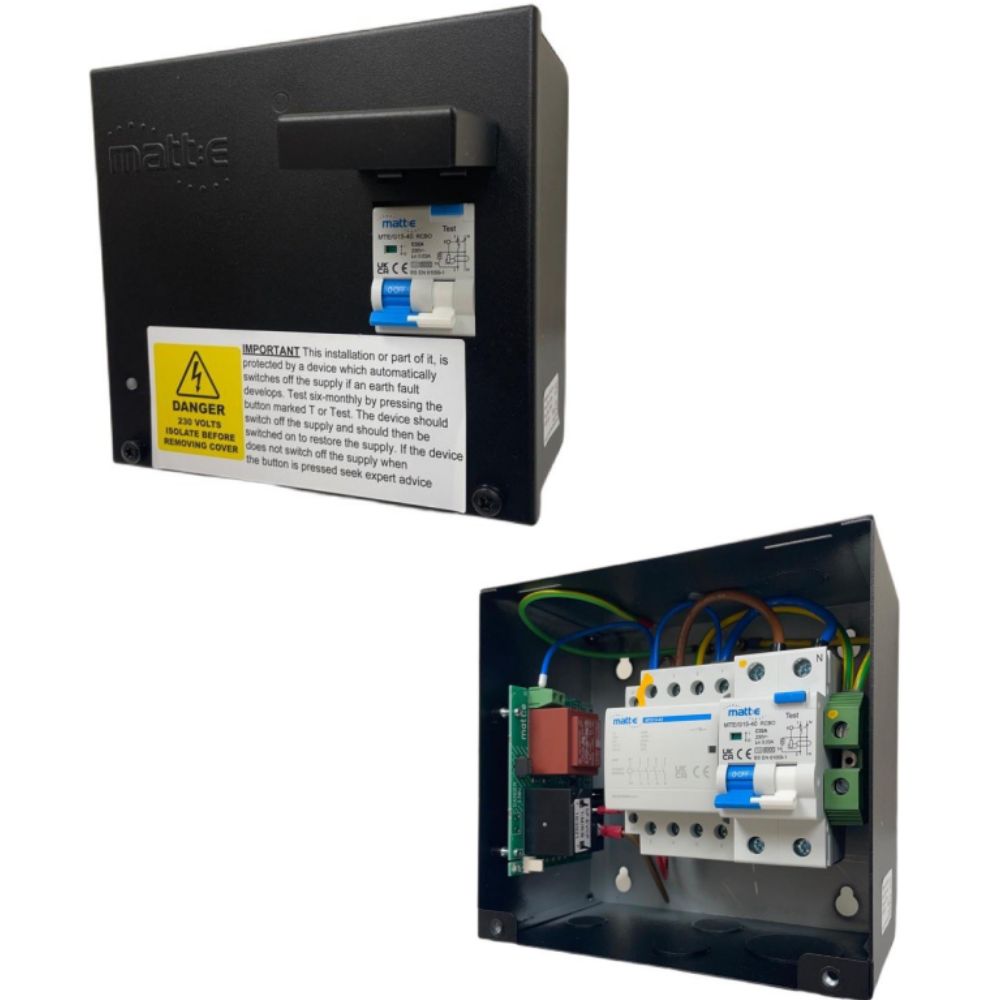

matt:e SP-EVCP-R Single-Phase EV Consumer Unit with Type A RCBO & PEN Fault Protection

Products may differ in size, colour and appearance to those shown. If you require further information please contact us directly.

matt:e SP-EVCP-R Single-Phase EV Consumer Unit with Type A C32 RCBO & PEN Fault Protection

SKU: SP-EVCP-R

Delivery usually within 1-3 working days

Confirm Availability

The matt:e SP-EVCP-R electric car consumer unit offers automatic PEN fault protection, a 32A Type A Curve C RCBO, and optional load management. Designed for safe and compliant EV charger installations, it eliminates the need for earth rods while ensuring BS 7671:2018 A1 compliance.

£172.75 + VAT

(incl. VAT £207.30)

— OR —

Category: PME / PEN Fault Detection UnitsSupplier: matt:e

Description

Single-Phase EV Consumer Unit with Type A 32A Curve C RCBO & PEN Fault Protection

matt:e SP-EVCP-R

Reliable and Compliant EV Charging Connection Centre

The Safe and Easy Solution for EV Charger Installations

The matt:e SP-EVCP-R EV consumer unit is a dedicated single-phase connection centre, designed to provide a safe, regulation-compliant, and easy-to-install solution for 32A EV charge points. Featuring built-in matt:e PEN fault protection, it allows for connection to PME (TN-C-S) earthing systems without requiring earth electrodes, simplifying installations while ensuring compliance with BS 7671:2018 Amendment 1 (2020) Regulation 722.411.4.1 (iv).

Additionally, this unit includes a built-in 32A Double Pole Type A C32 RCBO for overcurrent and residual current protection, ensuring maximum safety for EV chargers and electrical systems.

Key Features and Benefits

✅ Built-In matt:e PEN Fault Protection

Ensures a safe and compliant connection to PME earthing systems.
No earth rods required, significantly reducing installation complexity and cost.

✅ Overcurrent and Residual Current Protection

Built-in 32A Type A Curve C RCBO protects against overloads, short circuits, and residual currents.

✅ Simple Wire-In, Wire-Out Installation

Designed for quick and efficient EV charger connections.
Suitable for direct connection to supply tails for streamlined setup.

✅ No Earth Electrodes Required

Eliminates the need for costly and disruptive groundworks.
Reduces the risk of striking buried services, improving installation safety.

✅ Durable Mild Steel Enclosure with IP2X Rating

Protects internal components from dust and accidental contact.
Built for long-term durability in various installation environments.

✅ 3-Year Warranty for Peace of Mind

Standard 3-year parts warranty ensures long-term reliability.

Understanding PEN Loss and PME Faults

PEN Loss (Protective Earth & Neutral Loss): A dangerous fault in PME (Protective Multiple Earthing) systems where the neutral conductor is lost, potentially exposing users to hazardous voltages.
PME Fault: When the earth-neutral link in a PME system fails, it can create a serious risk of electric shock.

The matt:e SP-EVCP-R actively detects these faults and automatically ensures safe operation, eliminating the need for earth electrodes while maintaining compliance with EV charging regulations.

Technical Specifications of the matt:e SP-EVCP-R Single-Phase EV Consumer Unit

Input Voltage: 230V 50Hz
Maximum Load: 32A
Protection: Built-in 32A Double Pole Type A Curve C RCBO
Earthing System: TN-C-S (PME) compliant
Cable Terminal Capacity:
- Input (L/N): 2.5mm² – 25mm²
- Earth (E): 2.5mm² – 16mm²
- Output (L/N): 2.5mm² – 10mm²
Enclosure Material: Mild Steel Powder-Coated
Ingress Protection: IP2X
Dimensions (H x W x D): 169mm x 182mm x 111mm
Weight: Approx. 3kg
Warranty: 3 Years Parts

Ideal Applications

✅ Single-Phase EV Charger Installations – Designed for 32A EV charge points.
✅ Future-Proof EV Infrastructure – Eliminates the need for earth rods, reducing costs.
✅ Safe & Reliable Circuit Protection – Provides comprehensive compliance with EV charging regulations.

Why Choose the matt:e SP-EVCP-R?

This EV electric car charger consumer unit is a cost-effective, regulation-compliant, and future-proofed solution for safe and efficient EV charger installations. Featuring PEN fault protection, a 32A Type A RCBO, and optional load management, it guarantees maximum safety and efficiency.

Upgrade Your EV Charging Setup Today – Order Now!

Downloads

View Product Data Sheet Installation Manual Single Phase Product Warranty March 23 Returns Policy

Additional information

Brand	matt:e

This product will be ordered from one of ours suppliers. The usual dispatch time to you is displayed above. You will receive a notification if there are any delays once your order is placed.

Important: Special Return & Warranty Policy required by matt:e

Please note that this item is only returnable if found to be faulty. To request a replacement or refund, you must follow the manufacturer’s Warranty & Returns Procedure for the SP-EVCP Range:

Returns Procedure

Before leaving the site, the installer must take photographs of the device and its serial number. These should be sent to returns@matt-e.co.uk, and matt:e Ltd should be contacted at 01543 227290 for further instructions.
Matt:e Ltd will issue an RMA (Return Merchandise Authorisation) form via email with a unique RMA number. This form must be completed, signed, and returned to returns@matt-e.co.uk. Once received, a replacement unit will be sent, and collection of the faulty unit will be arranged.
The faulty unit must be ready for collection within 7 working days, suitably packaged to prevent damage during return. Failure to follow this process will result in additional charges, including the cost of the replacement unit and carriage.
All returned units will be fully inspected, and a report will be provided. If a unit has been incorrectly installed, damaged, or altered, a full replacement charge will apply.
This returns procedure does not affect the Limited Warranty Terms and Conditions.

Warranty Information

The matt:e Single Phase SP-EVCP-T, SP-EVCP-M, SP-EVCP-R, and SP-EVCP-B are covered by a 3-year warranty from the date of purchase, guaranteeing freedom from manufacturing defects.
To make a warranty claim, the original purchase invoice must be provided.
What is covered: Replacement of any defective component at matt:e Ltd’s sole discretion.
What is not covered: Labour charges, travel costs, mileage costs, or failure due to misuse, alterations, neglect, improper installation, or use of non-approved parts. The warranty is void if the serial number is removed, altered, or defaced.
Limitation of liability: This warranty replaces all other warranties, express or implied, including warranties of merchantability or fitness for a particular purpose. matt:e Ltd is not liable for any accidental or consequential damages.
