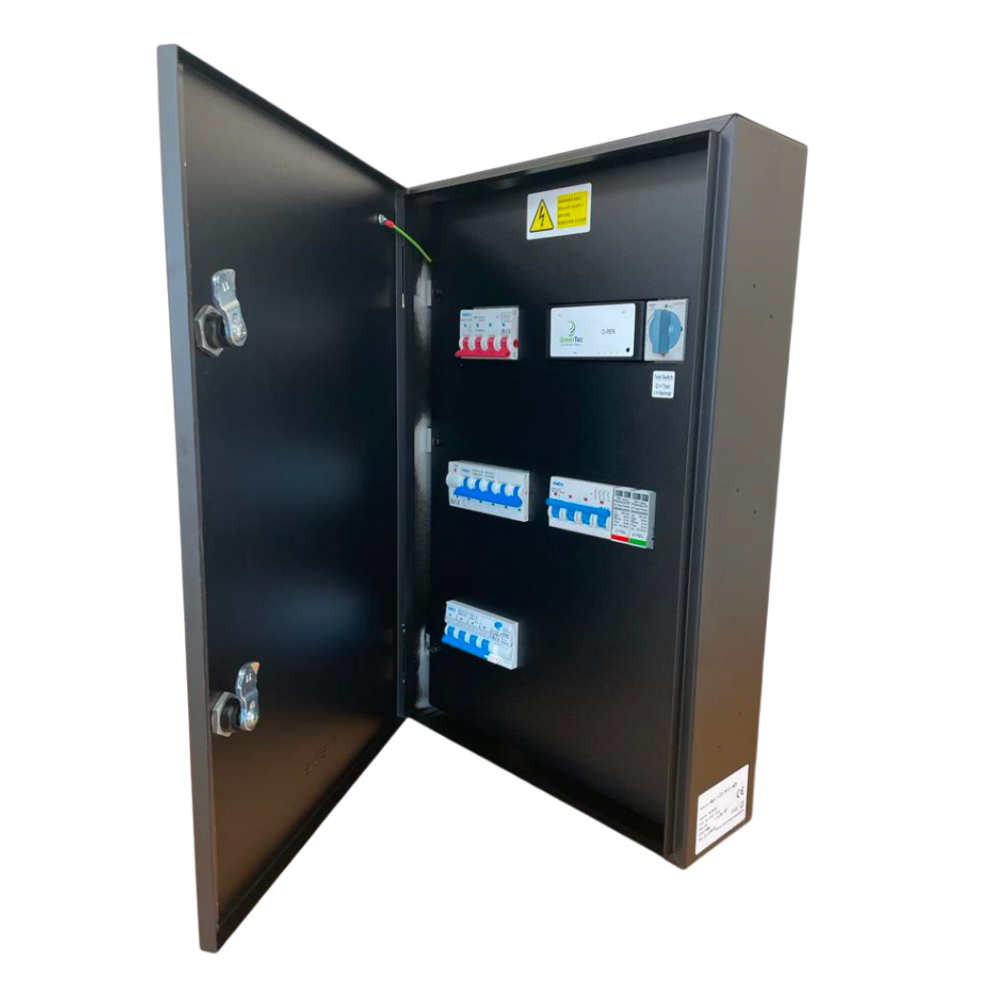

EV Connection Centre with O-PEN 63A TPN Curve C RCBO and SPD
matt:e ARD-1-63-TP-R-SPD
The Ultimate EV Charging Protection and Compliance Solution
Optimised for High-Ranking Performance
The matt:e ARD-1-63-TP-R-SPD EV Connection Centre is designed for fast, compliant, and hassle-free EV charge point installations. Since it features built-in O-PEN® technology, it removes the need for earth rods. As a result, installation becomes simpler, safer, and more cost-effective. Additionally, this unit ensures full compliance with BS 7671:2018 Amendment 2 (2022) Regulation 722.411.4.1.(iii), making it an ideal choice for electricians and installers.

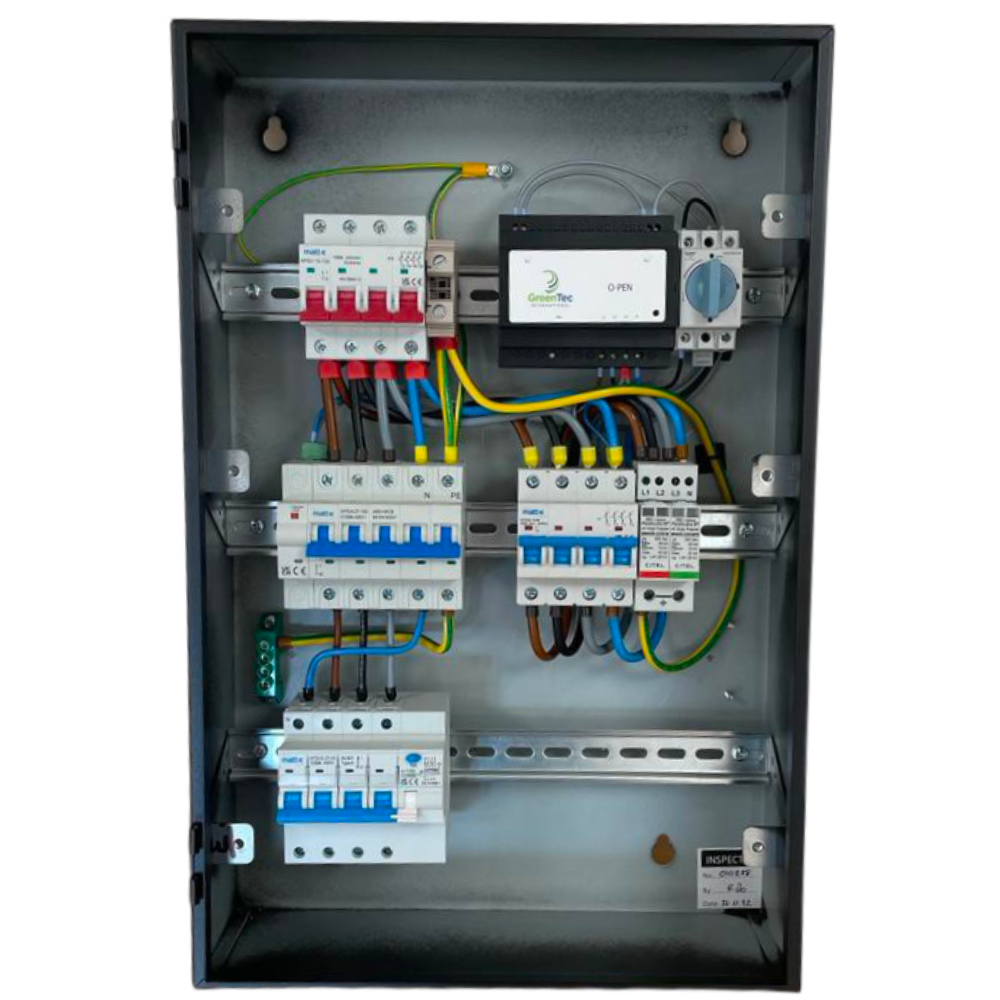

This three-phase EV connection centre includes an auto-reset isolator, a Type 2 Surge Protection Device (SPD), and a 63A TPN Type A RCBO. With these advanced features, it provides strong protection against electrical faults, overvoltages, and disruptions.
Key Features and Benefits
✅ O-PEN® Technology for PME Earthing Compliance
- Removes the need for earth rods, saving time and eliminating disruptive groundworks.
- Avoids the risk of striking buried services, reducing safety hazards.
✅ Pre-Assembled and Easy to Install
- Wire-in, wire-out design simplifies installation, reducing labour costs.
- Top and bottom cable entry for installation flexibility.
✅ Advanced Safety & Protection
- Built-in Type 2 SPD safeguards against transient overvoltages.
- 63A TPN Type A RCBO ensures robust short-circuit and overload protection.
- Auto-reset isolator for continuous operation without manual intervention.
✅ Durable and High-Quality Construction
- Mild steel powder-coated enclosure ensures long-term durability.
- IP4X ingress protection for safe indoor use.
✅ Regulation-Compliant for EV Charging Installations
- Designed to facilitate compliance with BS 7671:2018 Amendment 2 (2022) Regulation 722.411.4.1.(iii).
Technical Specifications
- Input Voltage: 400V 50Hz
- Maximum Load: 63A
- Terminal Capacity: 25mm²
- Cable Entry: Top & Bottom
- Dimensions (HxWxD): 550mm x 360mm x 120mm
- Weight: Approx. 7kg
- Enclosure: Mild Steel Powder Coated
- Ingress Protection: IP4X
- Warranty: 1 Year Parts
Ideal Applications
- EV Charging Installations – Enables fast and hassle-free EV charger connections.
- Commercial & Industrial Setups – Provides a safe and compliant solution for three-phase EV charge points.
- Future-Proof Electrical Installations – Ensures BS 7671 compliance without costly additional earth rods.
Why Choose the matt:e ARD-1-63-TP-R-SPD?
If you’re looking for a reliable, regulation-compliant, and easy-to-install EV connection centre, this unit is the perfect solution. Since it removes the need for an earth electrode, it simplifies installation and reduces costs. Furthermore, its built-in protection ensures long-term safety and reliability.
