Description

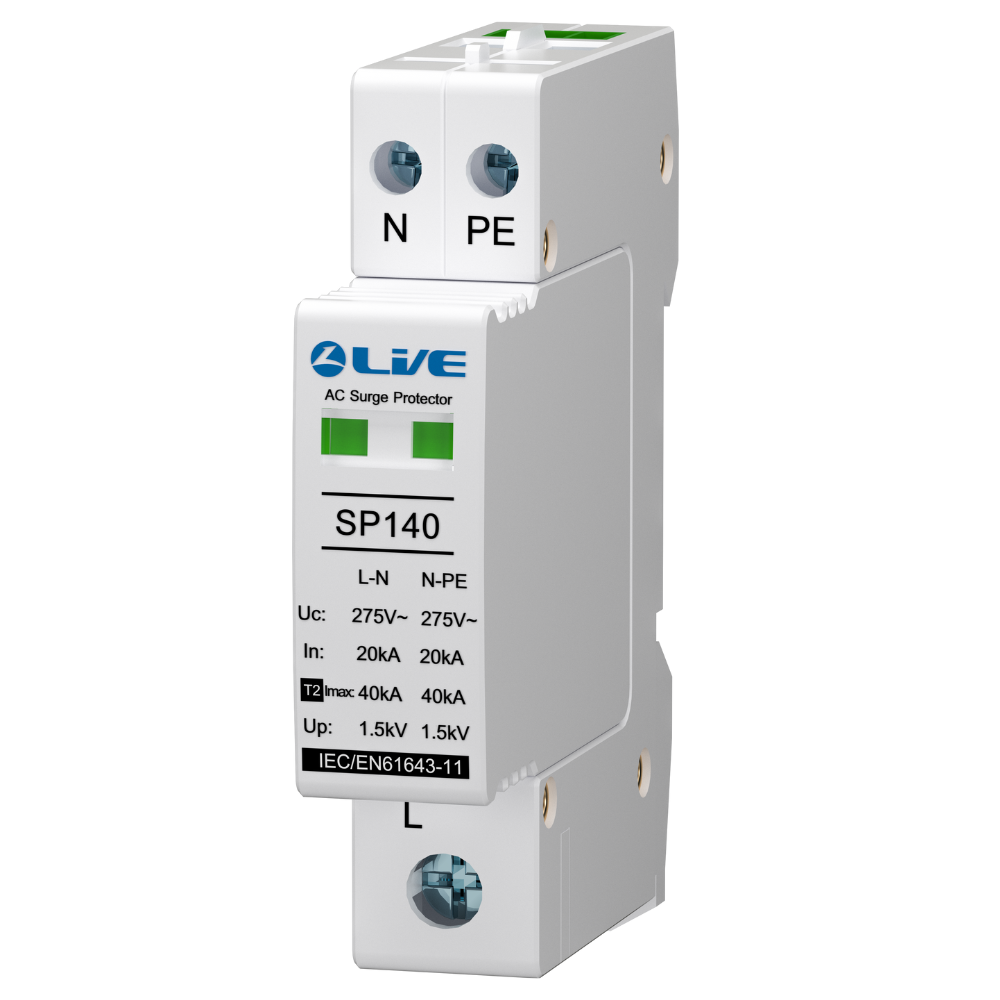

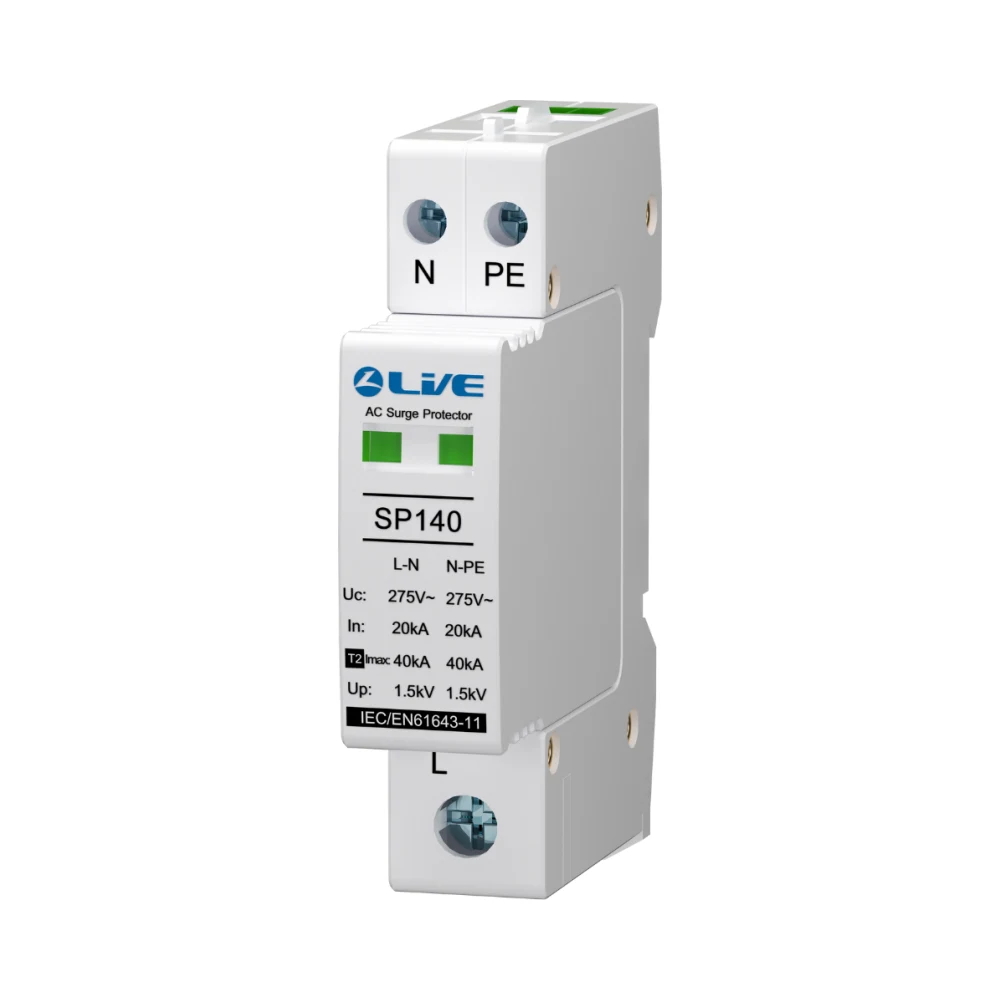

Type 2 SPD Surge Protection Device
Live Electrical SP1401P+N/1
The Live Electrical SP1401P+N/1 Type 2 SPD Surge Protection Device delivers reliable surge protection for residential, commercial, and industrial applications. With a nominal discharge capacity of 20kA and a maximum of 40kA, this device safeguards electrical systems from harmful surges and voltage spikes.
Key Features of Live Electrical SP1401P+N/1 Type 2 SPD
- High discharge capacity: Nominal (In) 20kA, Maximum (Imax) 40kA
- Type 2 SPD: Compliant with BS EN 61643-11, Type Test Class II
- Voltage ratings:
- Uc (Maximum continuous operating voltage): 275 VAC
- Up (Voltage protection level): 1.5 kV (L-N, N-PE)
- Short circuit current rating: 25kA (lsccr)
- Green window indicator changes when the device is spent for easy monitoring
- Remote indication terminals for enhanced convenience
- Degree of protection: IP20 (suitable for indoor use)
- Cable terminal capacities:
- L (Live): 16mm²
- N (Neutral): 10mm²
- PE (Protective Earth): 10mm²
Why Choose This Surge Protection Device?
- Protects systems from harmful power surges, extending equipment life.
- Meets the highest safety standards, ensuring reliable operation.
- Features easy-to-monitor green window indicators and remote signaling.
- Designed for versatile applications across residential, commercial, and industrial environments.
