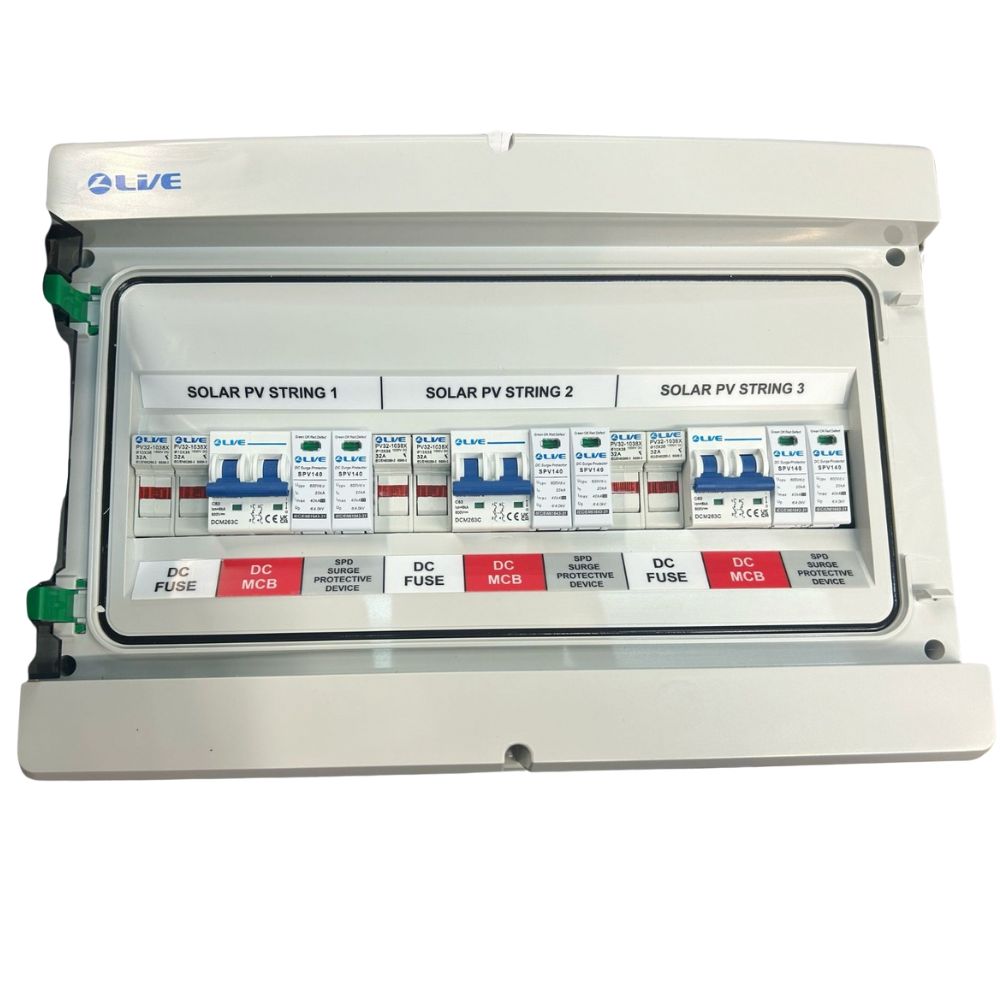

Live Electrical ENC18 PV3 – 18-Way Solar PV Consumer Unit | 3 String Input 3 String Output DC | IP65 Rated

Description

18-Way Solar PV Consumer Unit | 3 String Input, 3 String Output DC | IP65 Rated

🔋 Live Electrical ENC18 PV3 – 18-Way Solar PV Consumer Unit | 3 String Input, 3 String Output DC | IP65 Rated

The Live Electrical ENC18 PV3 is a fully pre-wired, high-spec 18-way photovoltaic (PV) consumer unit engineered for 3-string input and output solar panel systems. Designed to meet the evolving needs of domestic and light commercial solar PV installations, this board provides complete DC protection in one clean, IP65-rated enclosure.

Built with UK regulations and installers in mind, this unit includes a full suite of DC isolators, surge protection, and photovoltaic fuse holders—ensuring safe disconnection, overcurrent protection, and long-term reliability.

Whether you’re installing rooftop solar or integrating into a battery-ready setup, the ENC18 PV3 3 delivers speed, safety, and flexibility in every install.

✅ Key Features

• IP65-Rated Enclosure
  Waterproof, UV-resistant, and dust-tight. Suitable for indoor or outdoor mounting.
• Fully Pre-Wired Unit
  Saves installation time and reduces wiring errors—ideal for high-efficiency site work.
• 3-String Ready
  Accepts 3 DC inputs and 3 outputs, simplifying string management in PV systems.
• Flexible, Installer-Friendly Design
  With front-access knockouts, labelled components, and gland entries pre-installed.
• Strictly Tested for UK Environments
  Proven to perform under high and low temperature conditions.

🔧 Factory-Fitted Components

• 10×38 15A DC Photovoltaic Fuses
• 32A 1000V DC Photovoltaic Fuse Holders with Indicator Lights
• 2P 63A DC 600V Circuit Breakers
• 2P 20–40kA 1000V DC Type 2 Surge Protection Device
• 1000V DC Photovoltaic Cable Gland Connectors

💡 Ideal For:

• Domestic rooftop solar installations
• Small commercial PV system protection
• Inverter-side DC protection and isolation
• Battery-ready systems with 3 MPPT or string configurations

📐 System Configuration

• 🔌 3 PV String Inputs / 3 PV Outputs
• 🔋 Supports inverters, battery systems, and PV combiner setups
• 🔧 Plug-and-play with existing solar distribution systems

📄 Compliance & Standards

• Built in accordance with BS 7671 Wiring Regulations
• Compatible with MCS standards for solar PV installations
• CE, UKCA, and RoHS certified
• Designed and supported by Live Electrical UK

🧠 Why Choose Live Electrical?

Live Electrical Distribution UK Ltd is a trusted name in switchgear and protection products for renewable energy. Unlike rebranded imports, Live Electrical devices are designed, tested, and supervised by their UK-based engineering team.

From their Manchester facility, every unit undergoes rigorous quality control—delivering performance you can trust in real-world conditions.
