Description

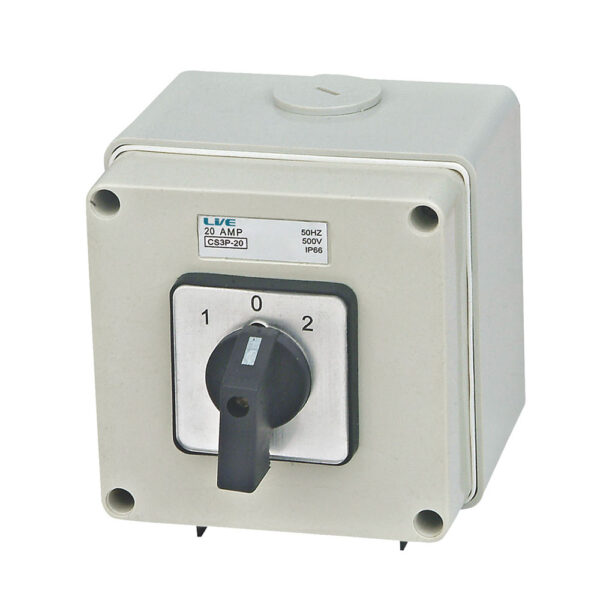

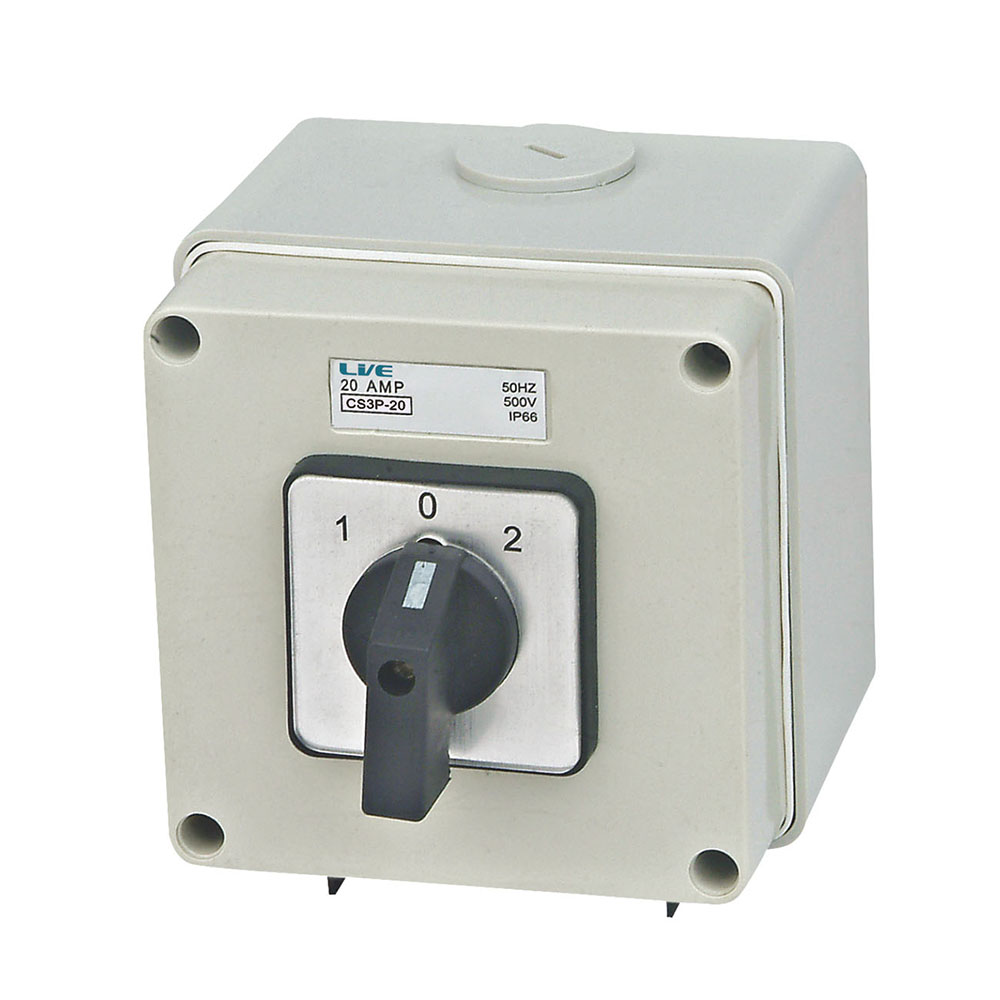

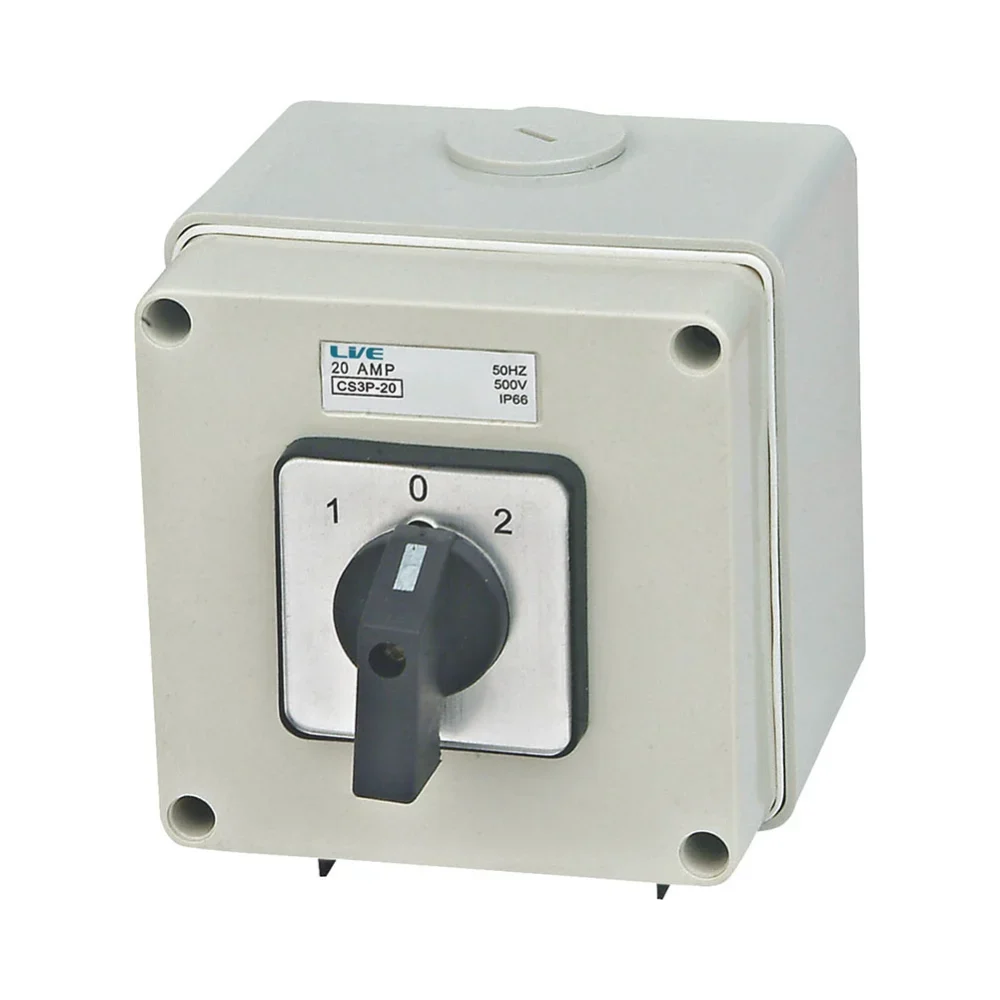

32A 3-Pole IP66 Changeover Switch
Live Electrical CS3P32 – Industrial Power Control Solution
The Live Electrical CS3P32 3-Pole Changeover Switch is a durable and reliable power switching solution, designed for safe and efficient control of power sources. With a three-position switch including a centre-off function, it enables seamless and controlled transitions between power supplies, making it ideal for backup power systems, industrial machinery, and distribution networks.
Constructed with an IP66-rated enclosure, this heavy-duty changeover switch offers superior protection against dust and water, ensuring long-lasting performance in harsh environments. Its flame-retardant housing enhances safety, while compliance with BS EN60947-3 standards guarantees secure operation in demanding industrial and commercial applications.
Key Features
- IP66 Rated – Provides maximum protection against dust and water ingress
- 32A Rated Current – Suitable for medium to high-power switching applications
- 3-Pole Configuration – Supports three-phase power distribution
- 3-Position Changeover with Centre-Off – Allows for controlled power switching
- Flame Retardant Enclosure – Ensures enhanced safety and impact resistance
- Knockouts on Top & Bottom – Allows for flexible cable entry options
- Certified to BS EN60947-3 – Meets strict industry safety standards
Technical Specifications
- Product Code: CS3P32
- Rated Current: 32A
- Number of Poles: 3
- IP Rating: IP66
- Mounting Type: Surface-Mounted
- Outgoing Terminals: 1, 3, 5, 7, 9, 11
- Input Terminals:
- Position 1: 2, 6, 10
- Position 2: 4, 8, 12
- Standards Compliance: BS EN60947-3

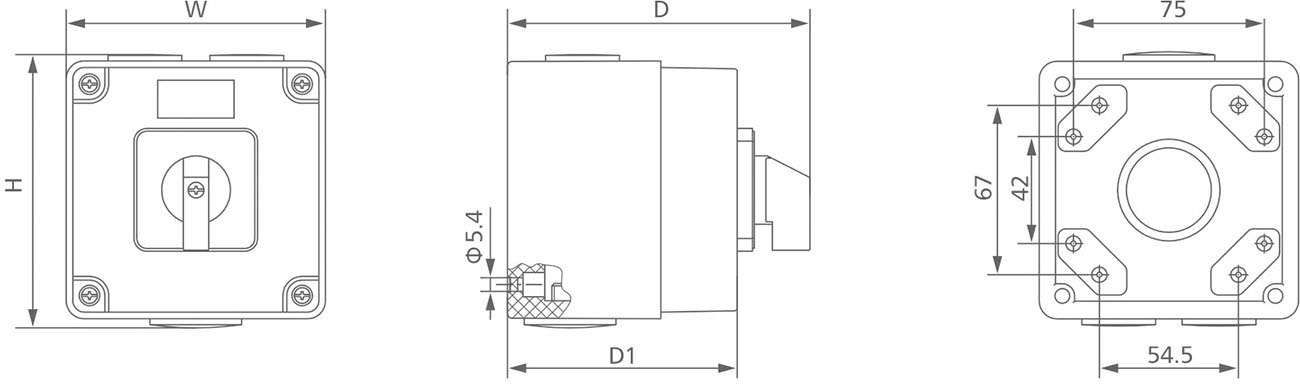

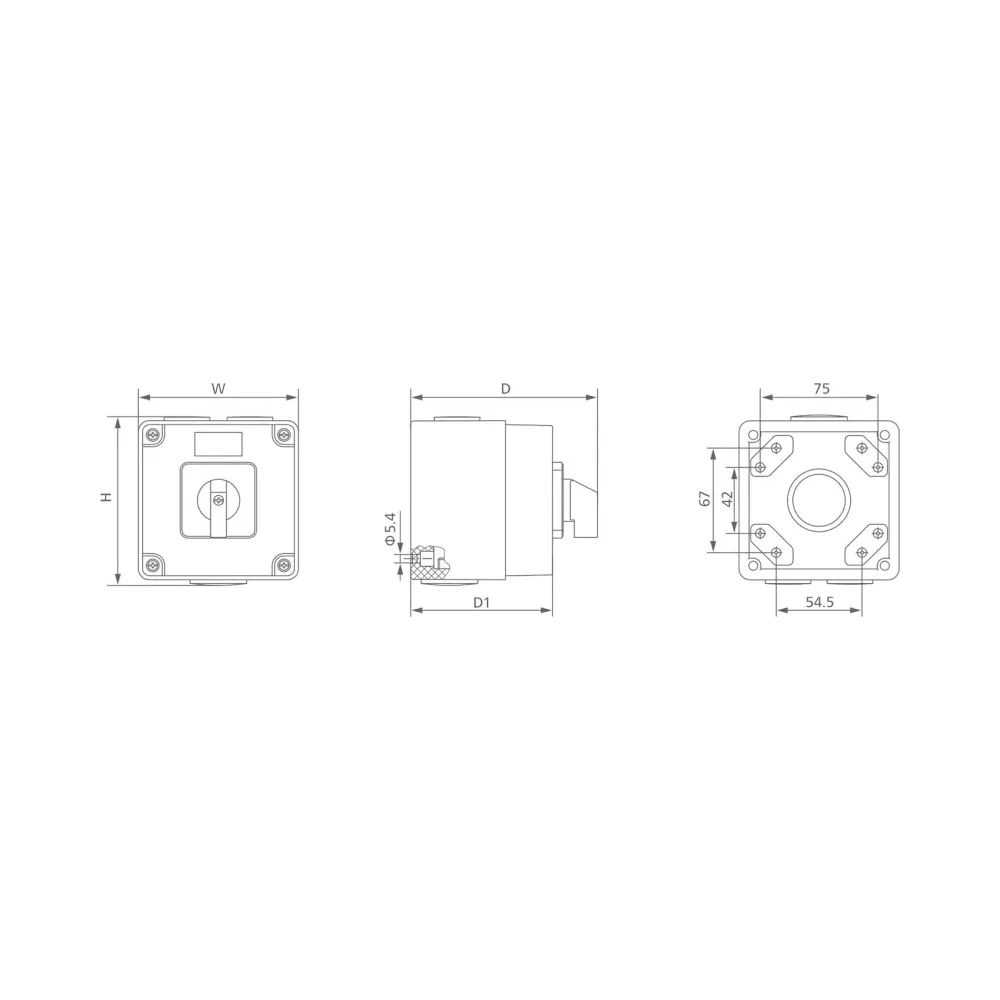

Dimensions (mm)
- Width (W): 101
- Height (H): 110
- Depth 1 (D1): 90
- Depth (D): 120
Why Choose This Product?
The Live Electrical CS3P32 Changeover Switch is a robust and efficient power control solution, designed to provide safe and reliable switching for industrial and commercial applications. Its flame-retardant enclosure, IP66 protection, and flexible cable entry options make it a trusted choice for demanding electrical installations.
