Description

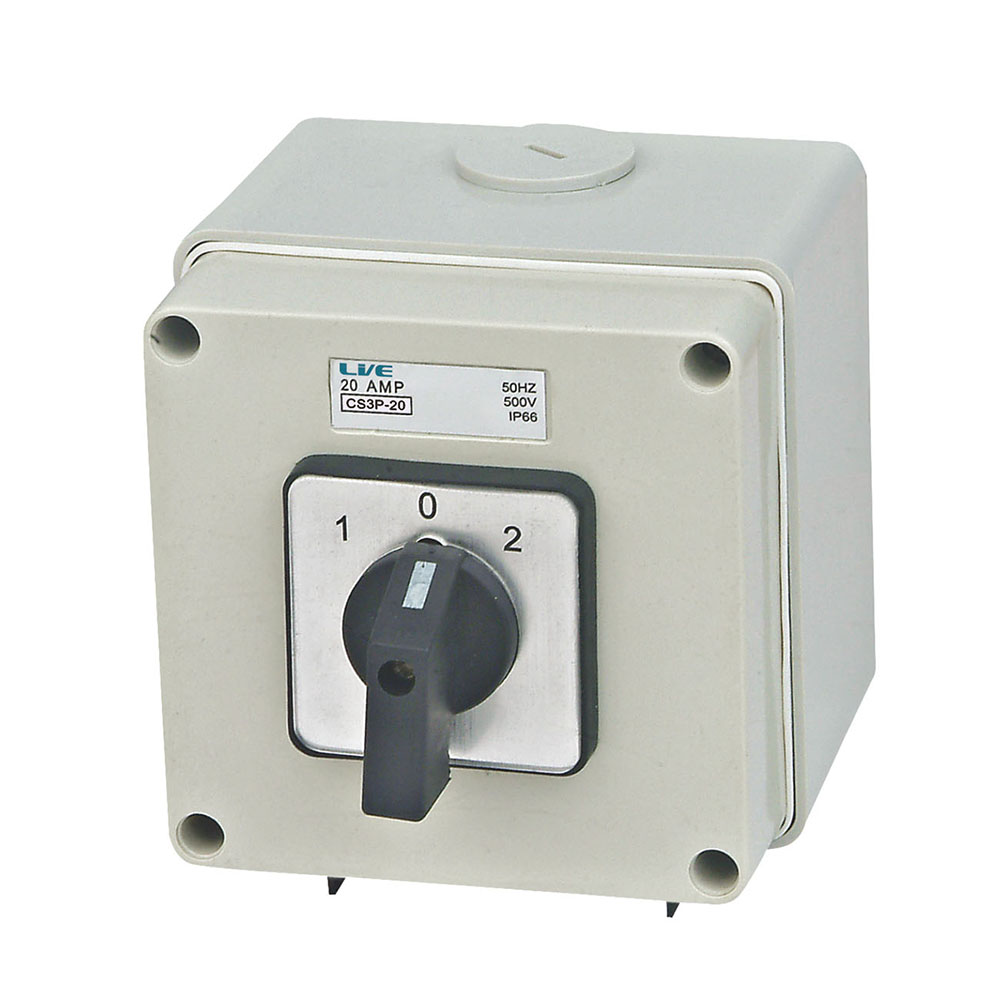

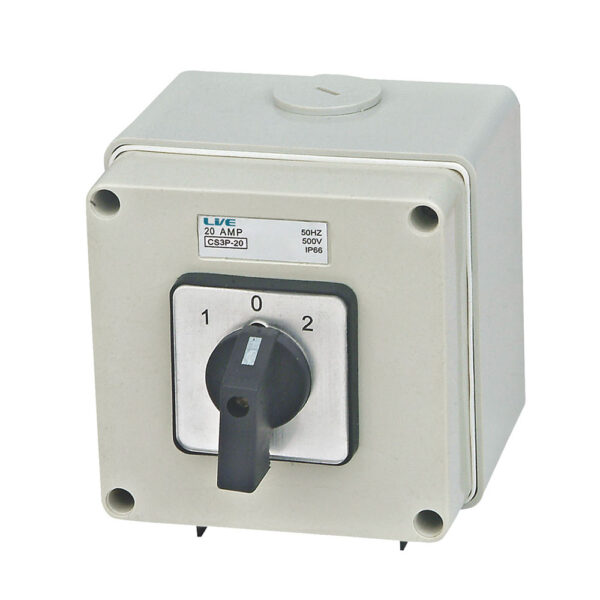

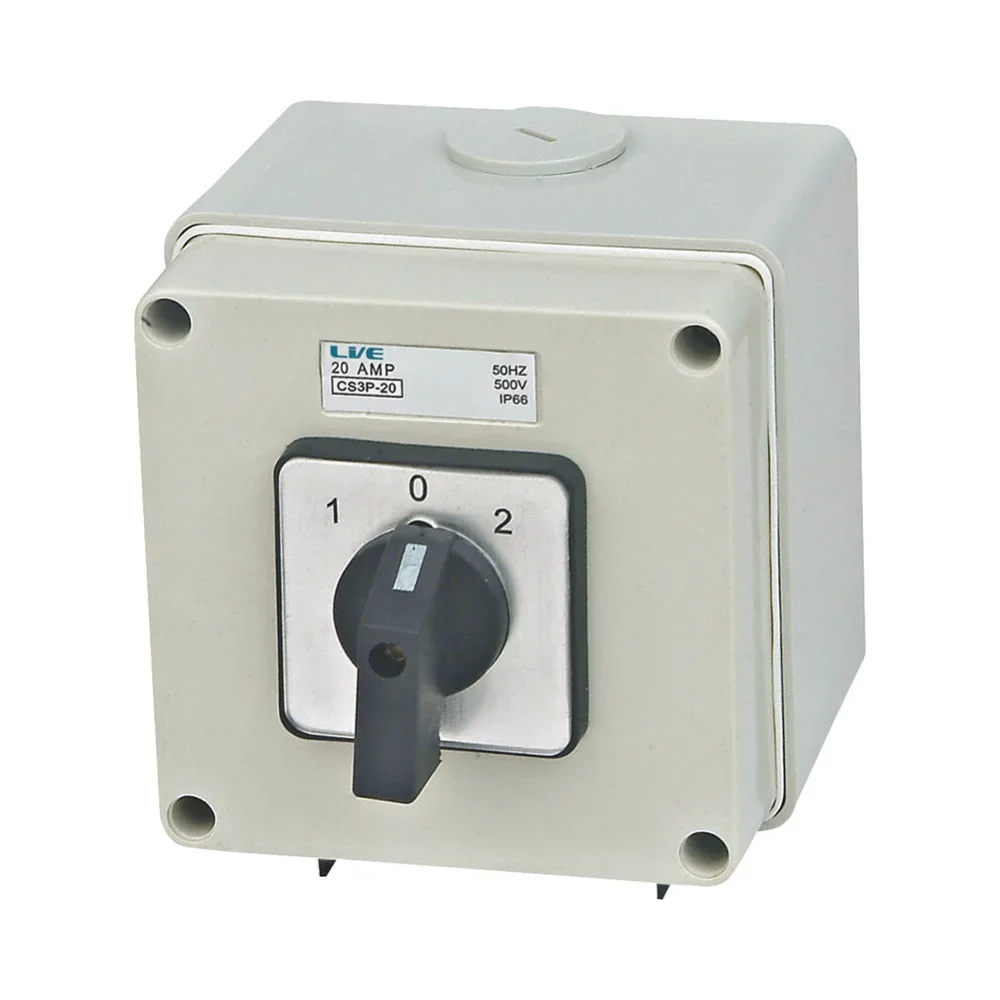

20A 3-Pole IP66 Changeover Switch
Live Electrical CS3P20 – Industrial Power Control Solution
The Live Electrical CS3P20 3-Pole Changeover Switch is a compact and reliable power switching solution, designed for safe and efficient transition between power sources. Featuring a three-position switch with a centre-off function, this switch enables controlled switching, making it ideal for backup power systems, industrial machinery, and distribution networks.
With an IP66-rated enclosure, this heavy-duty changeover switch provides superior protection against dust and water ingress, ensuring durability in harsh conditions. Constructed from flame-retardant materials, it is surface-mountable and fully compliant with BS EN60947-3 standards, ensuring safe and long-lasting operation.
Key Features
- IP66 Rated – Maximum protection against dust and water for industrial environments
- 20A Rated Current – Suitable for low to medium power switching applications
- 3-Pole Configuration – Supports three-phase power distribution
- 3-Position Changeover with Centre-Off – Enables smooth and controlled power transitions
- Flame Retardant Enclosure – Ensures enhanced safety and durability
- Knockouts on Top & Bottom – Allows for flexible cable entry options
- Certified to BS EN60947-3 – Compliant with safety and performance standards
Technical Specifications
- Product Code: CS3P20
- Rated Current: 20A
- Number of Poles: 3
- IP Rating: IP66
- Mounting Type: Surface-Mounted
- Outgoing Terminals: 1, 3, 5, 7, 9, 11
- Input Terminals:
- Position 1: 2, 6, 10
- Position 2: 4, 8, 12
- Standards Compliance: BS EN60947-3

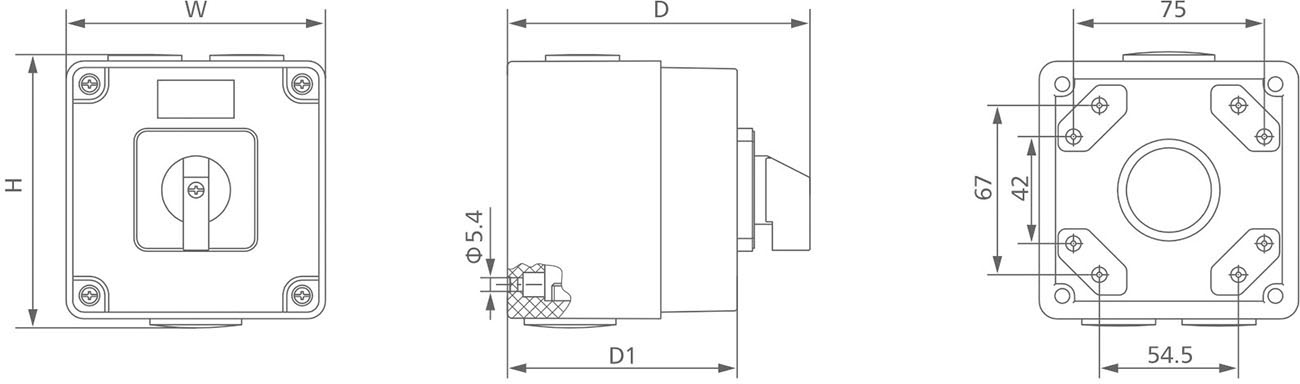

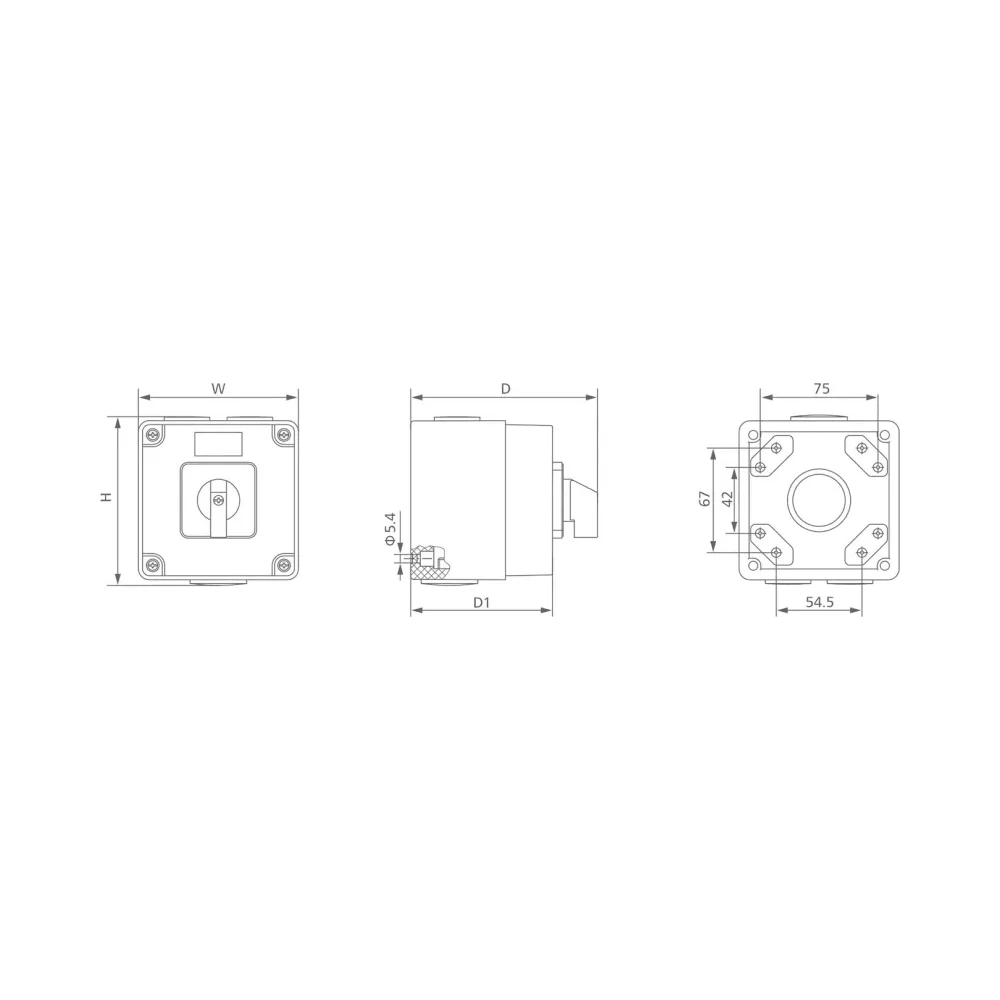

Dimensions (mm)
- Width (W): 101
- Height (H): 110
- Depth 1 (D1): 90
- Depth (D): 120
Why Choose This Product?
The Live Electrical CS3P20 Changeover Switch is a robust and reliable solution for safe power switching in commercial and industrial environments. Its flame-retardant enclosure, IP66 protection, and versatile cable entry options make it an excellent choice for controlling power distribution in demanding applications.
