Description
30mA Type A 20A 6kA B Curve Bi-Directional RCBO
20A Bi-Directional RCBO – Ideal for Domestic Installations and Solar Circuits – Live Electrical AMR120B-030 Bi-Directional RCBO

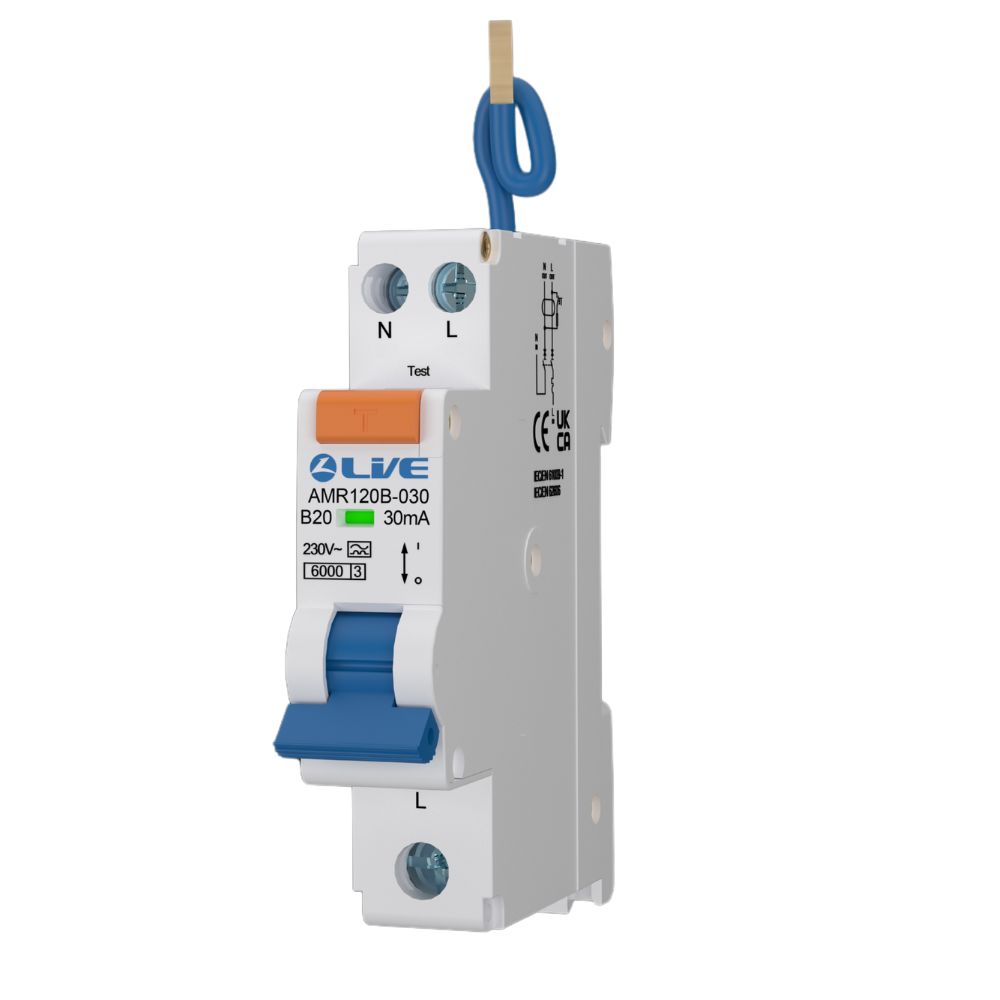

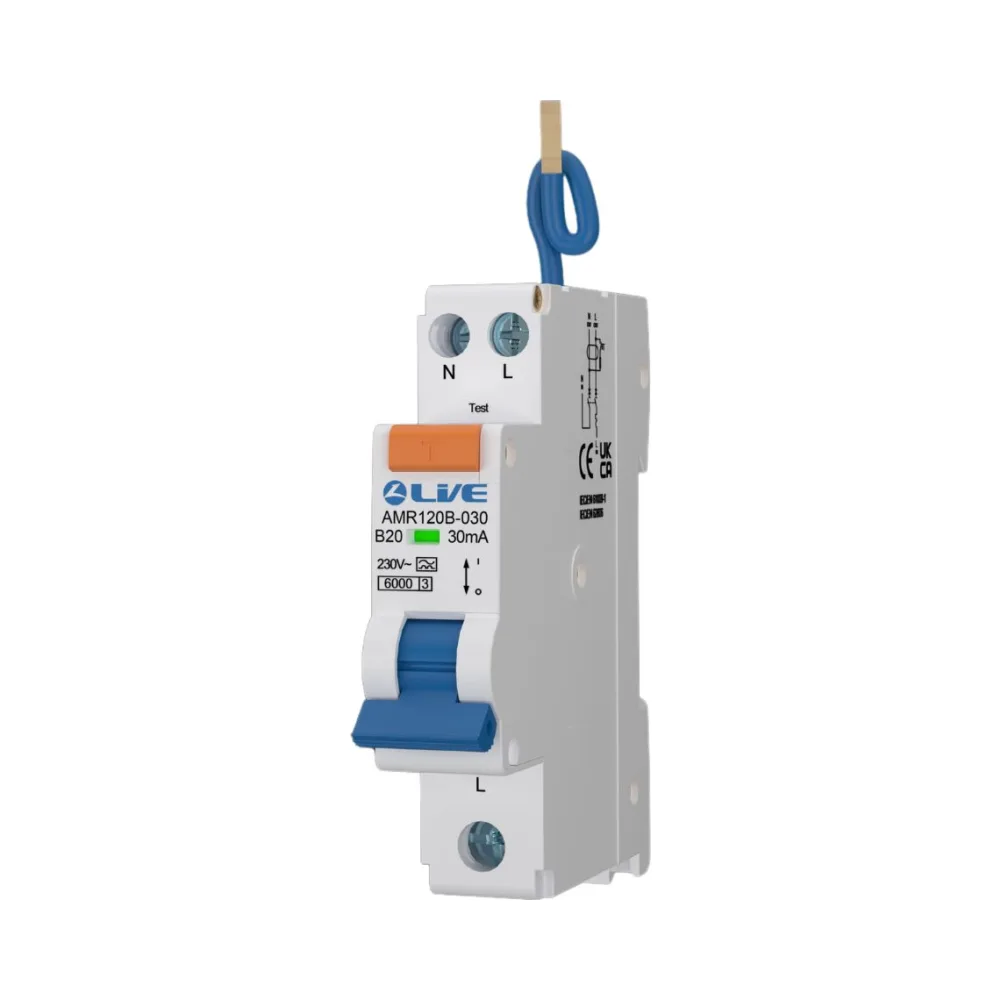

Live Electrical AMR120B-030 Bi-Directional RCBO
The Live Electrical AMR120B-030 30mA Type A RCBO provides reliable 20A protection for 230V AC circuits. This compact RCBO protects against overload, short circuit, and earth leakage faults with a B Curve tripping profile and 6kA breaking capacity. Designed for efficient, space-conscious installations, it features a switched neutral to maintain power to healthy circuits while isolating only the faulty one.
As a bi-directional RCBO, it is especially suitable for installations where circuits are connected to PV solar systems. This makes the Live Electrical 20A RCBO a dependable choice for both conventional and renewable energy setups.
Key Features of the Live Electrical AMR120B-030
- Rated Current: 20A
- Type A residual current protection (30mA) – detects AC and pulsating DC faults
- B Curve tripping characteristic – suitable for most domestic circuits
- Bi-directional design – supports solar and PV system integration
- Switched neutral – ensures only faulty circuits are disconnected
- Breaking capacity: 6kA
- Single-module (1P+N) compact format
- Electrical endurance: 4,000 cycles
- Mechanical endurance: 100,000 cycles
- Voltage: 230V AC
- Fully compliant with BS EN 61009-1
- Other Current Ratings available: 6, 10, 16, 32, 40
Why Choose Live Electrical AMR120B-030 Bi-Directional RCBO?
This Live Electrical 20A RCBO offers the perfect combination of protection, reliability, and installation flexibility. Its compact format makes it ideal for consumer units with limited space. The bi-directional design makes it suitable for circuits that connect to solar panels, while the switched neutral reduces testing time and improves overall safety.
Whether you’re working on new installations or upgrades, this 30mA Type A RCBO ensures your 20A circuits are fully protected and BS 7671 compliant.
About Live Electrical
Live Electrical produces high-quality circuit protection devices trusted by UK electricians. Their RCBOs are built to meet modern regulations, offering long-lasting performance, ease of use, and dependable protection in all types of installations.
Why Buy From Electrical4Less?
Electrical4Less is your reliable source for Live Electrical RCBOs and other protection devices. We offer:
- Competitive prices
- Fast, reliable UK-wide delivery
- Outstanding customer service
- A wide selection of regulation-compliant electrical products
Summary of the Live Electrical AMR120B-030 Bi-Directional RCBO
The Live Electrical AMR120B-030 RCBO provides 20A overload, short circuit, and 30mA Type A earth leakage protection in one compact unit. Its bi-directional design and switched neutral make it suitable for both conventional and PV solar installations, ensuring safety and compliance.
