IP65 Metal SPD 2 Way Garage/EV Unit with 40A RCBO – Grey
Live Electrical AGU5-SR/G

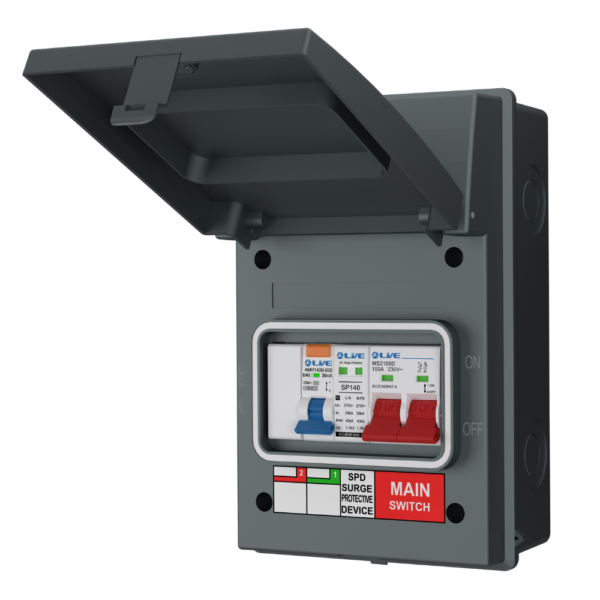

The AGU5-SR/G IP65 Metal Enclosure Garage/EV Consumer Unit is designed for outdoor installations, particularly for EV chargers. It features a 100A Main Switch, a 20/40kA Double Pole Surge Protective Device (SP140 1P+N/1), and a 40A Type A RCBO (AMR140B-030).
The IP65-rated grey metal enclosure ensures durability in harsh environments while providing reliable circuit protection.
- Dimensions: Width: mm, Height: 220mm, Depth: 101mm
- Ideal for sleek and modern installations, blending seamlessly with contemporary garage designs.
Key Features of AGU5-SR/G IP65 Metal SPD 2 Way Garage Unit
- Weatherproof IP65 metal enclosure, providing reliable protection for EV chargers and other outdoor applications.

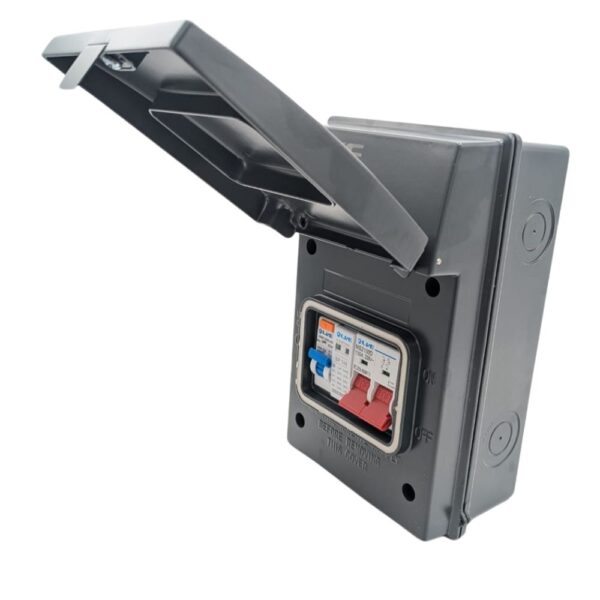

- Fully enclosed metal construction with a drop-down metal cover and lid for added safety and protection.
- 20mm & 32mm circular cable entry knock-outs located on the sides, top, and bottom for easy wiring.
- Modern finish in white polyester powder coating (RAL9010) for a sleek, professional look.

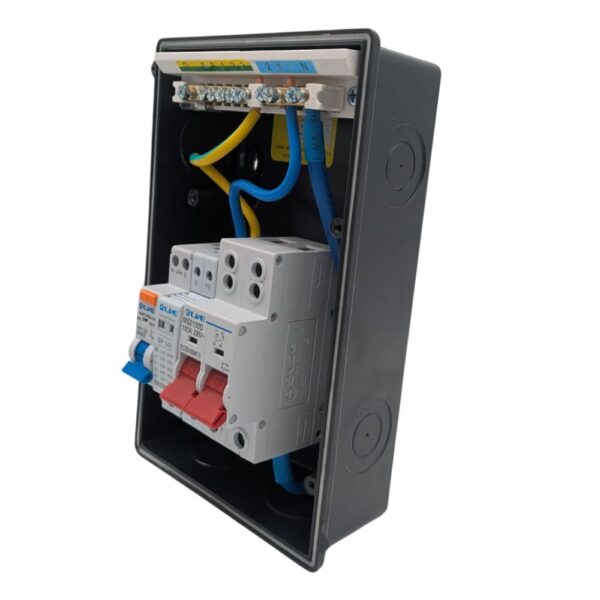

- Large, accessible wiring space with a robust die-cast construction.
- Raised DIN rail, enhancing cable routing for neat and efficient installation.
- T2 SPD (Surge Protective Device) for effective surge protection.
- Available in three color options: White, Grey, and Black.
- Compliant with BS EN 61439-3, BS EN 60947-3, and BS EN 61643-11 safety standards.
This AGU5-SR/G IP65 Metal SPD 2 Way Garage Unit is ideal for outdoor use, providing durable surge protection and circuit safety for garage-related applications.
If you have any specific requirements or need assistance, feel free to get in touch!
