Live Electrical 7 Way SPD Metal Consumer Unit Kit with 5 RCBOs

Description

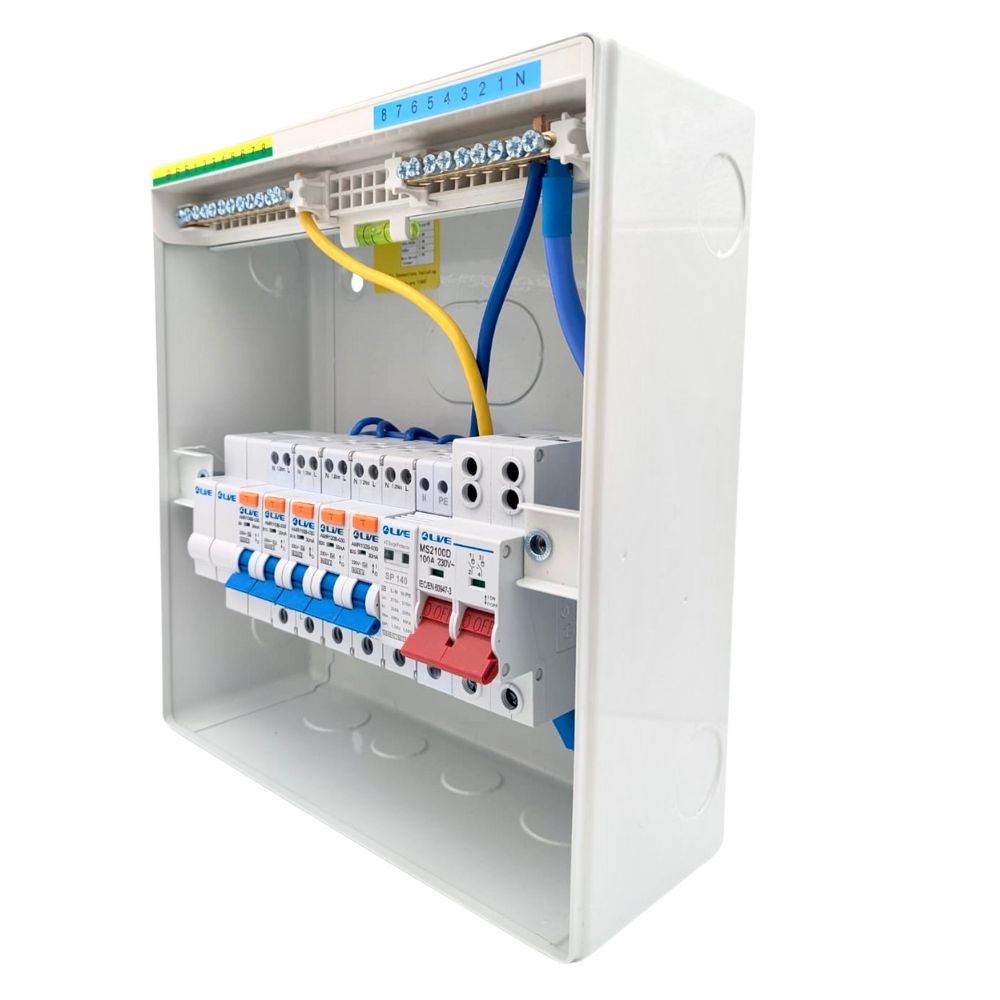

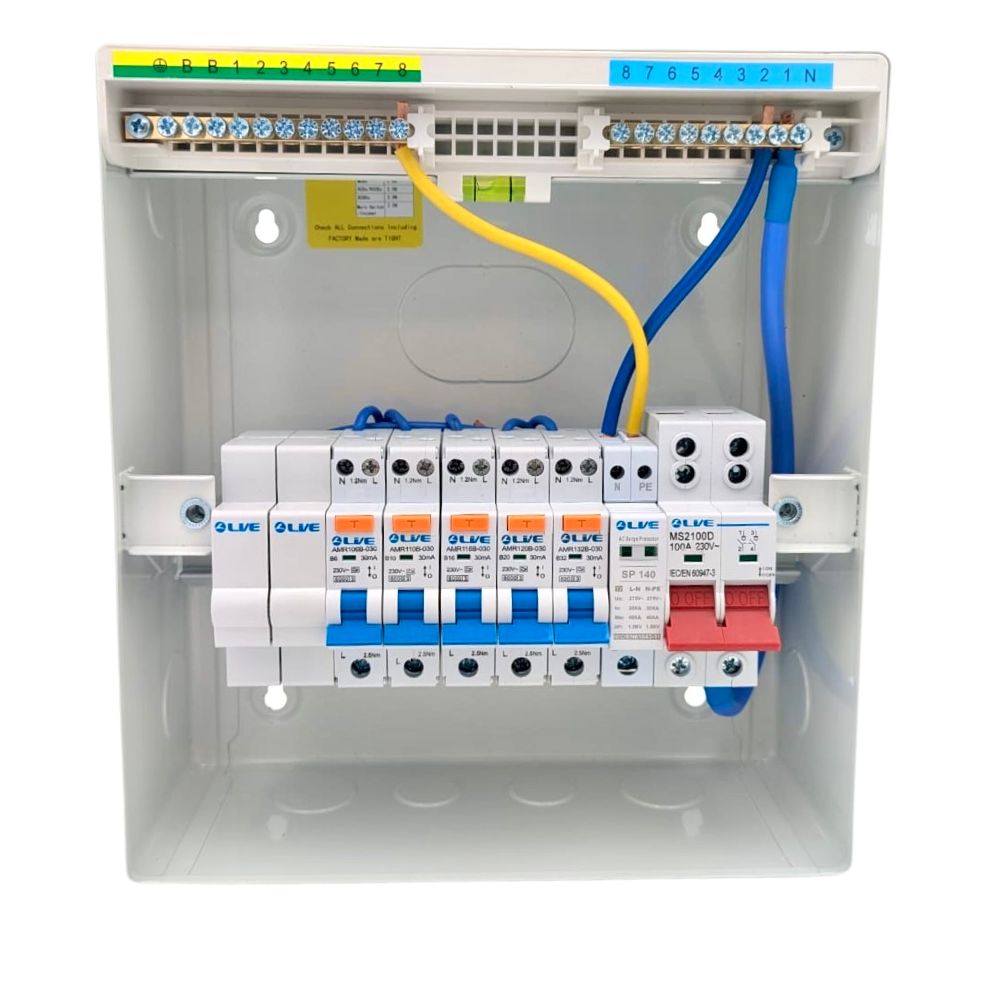

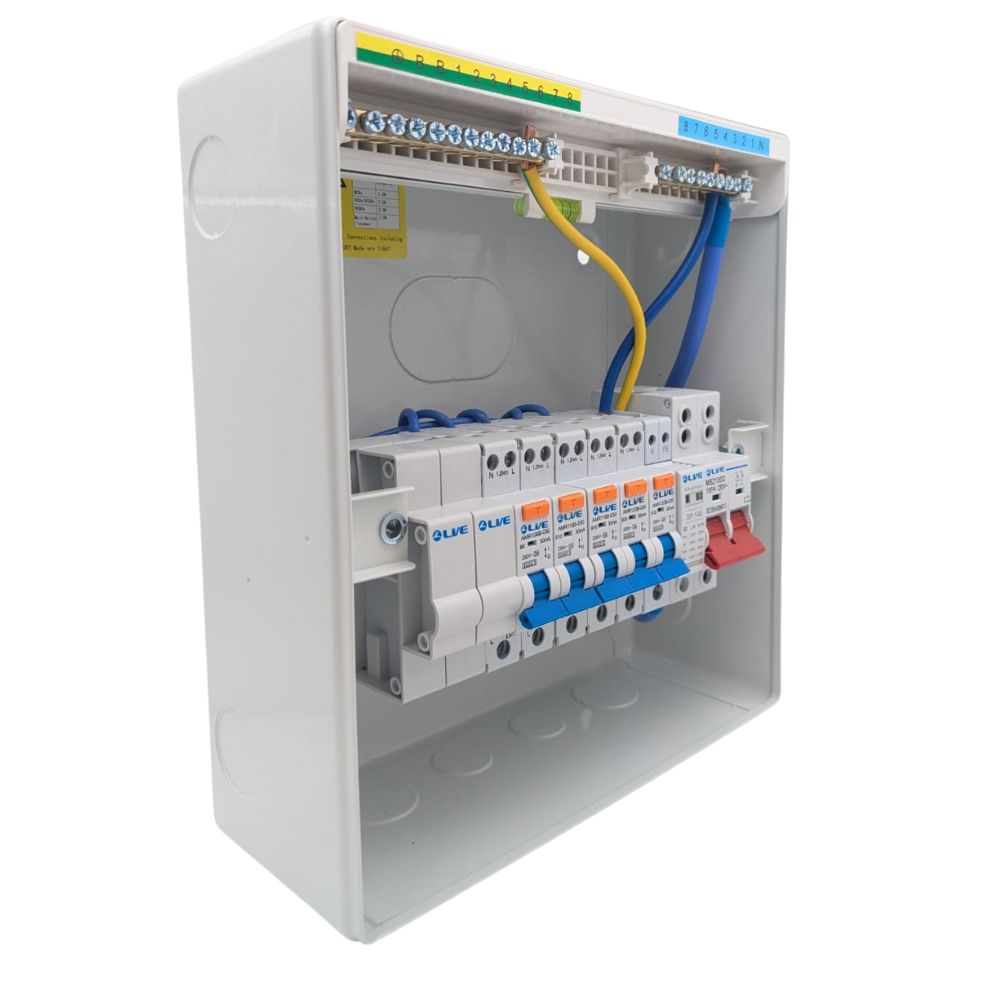

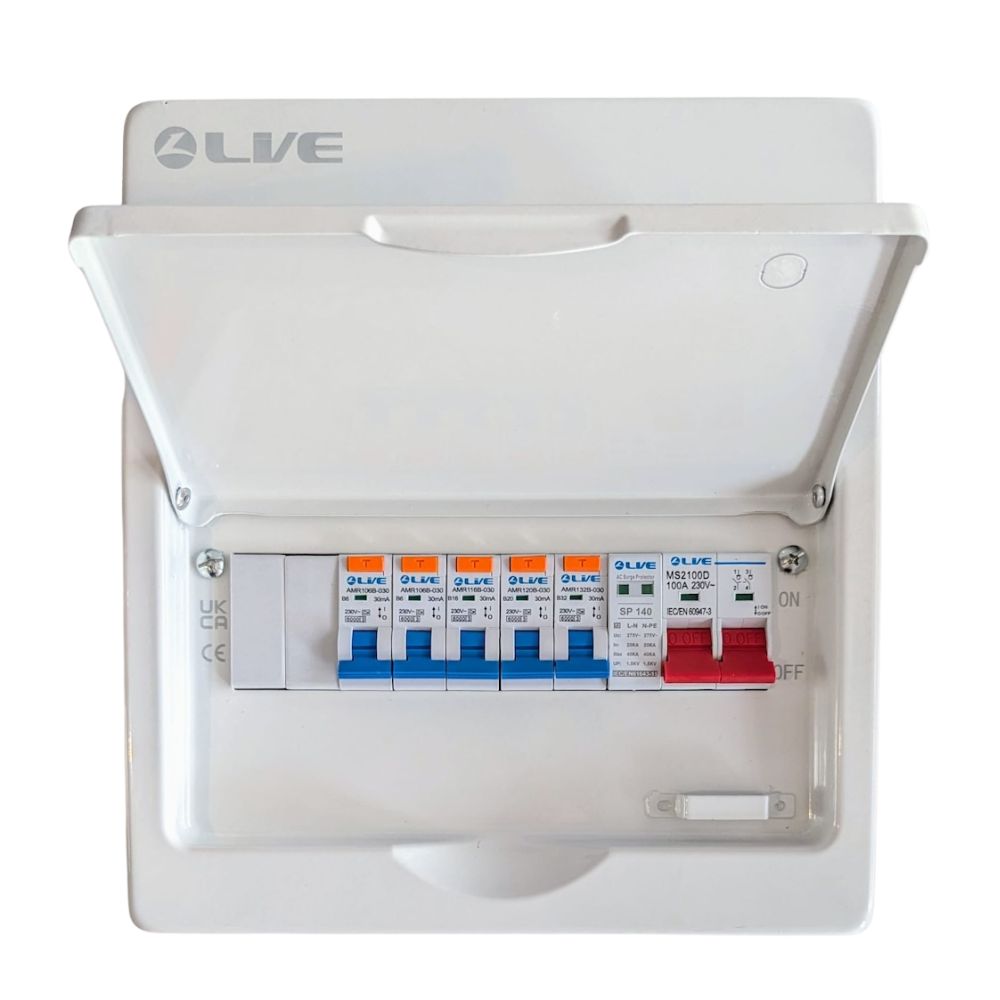

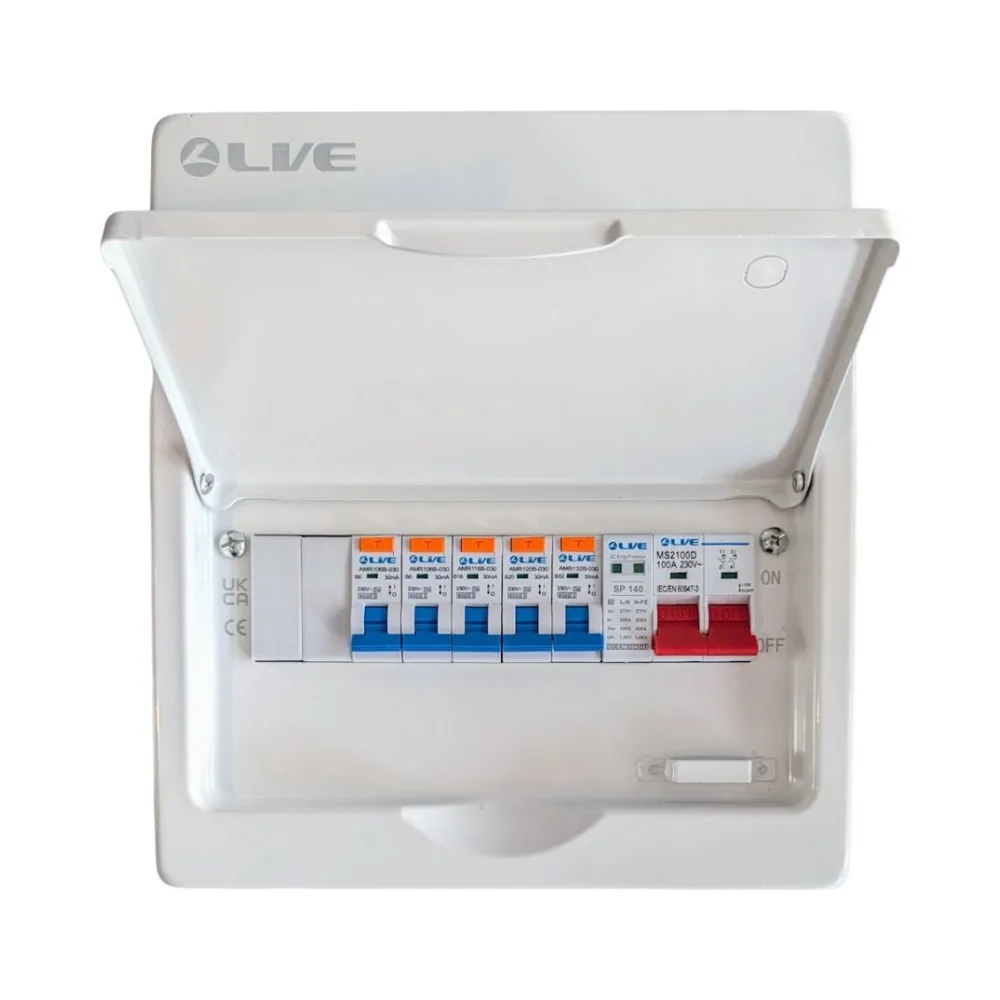

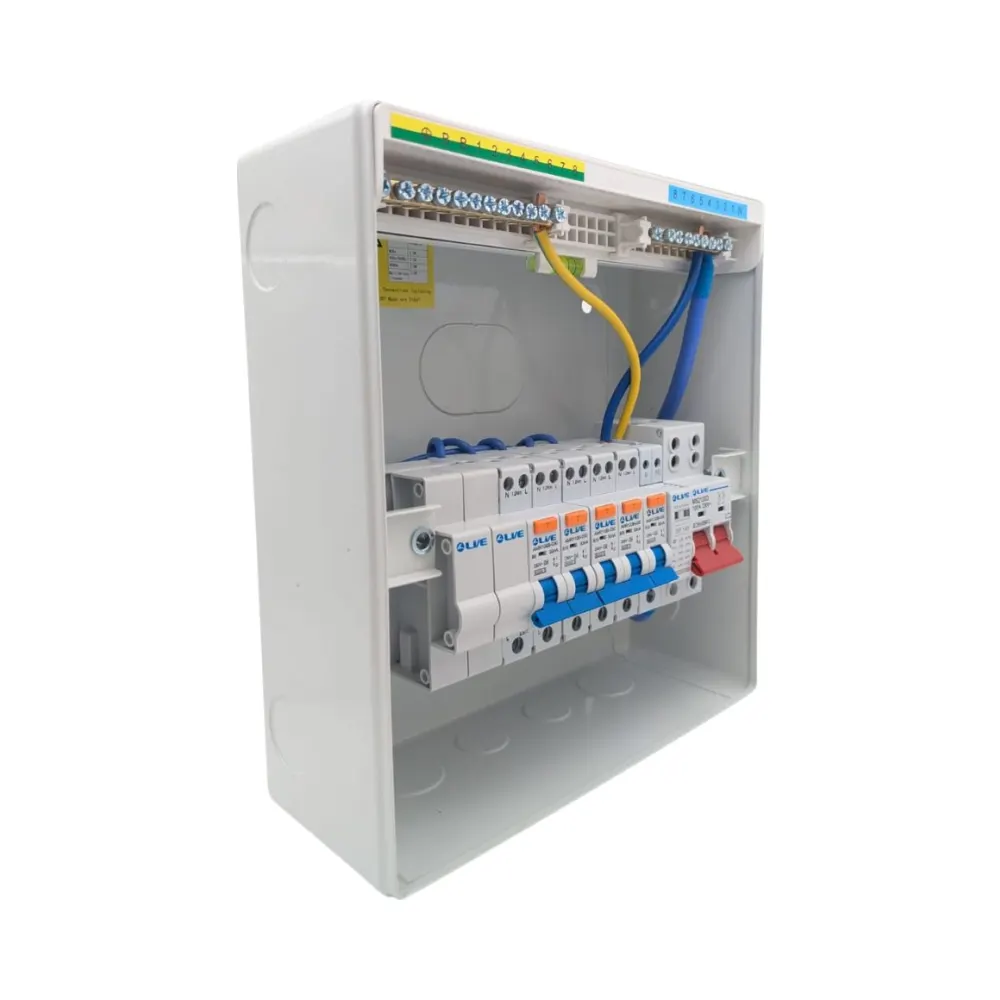

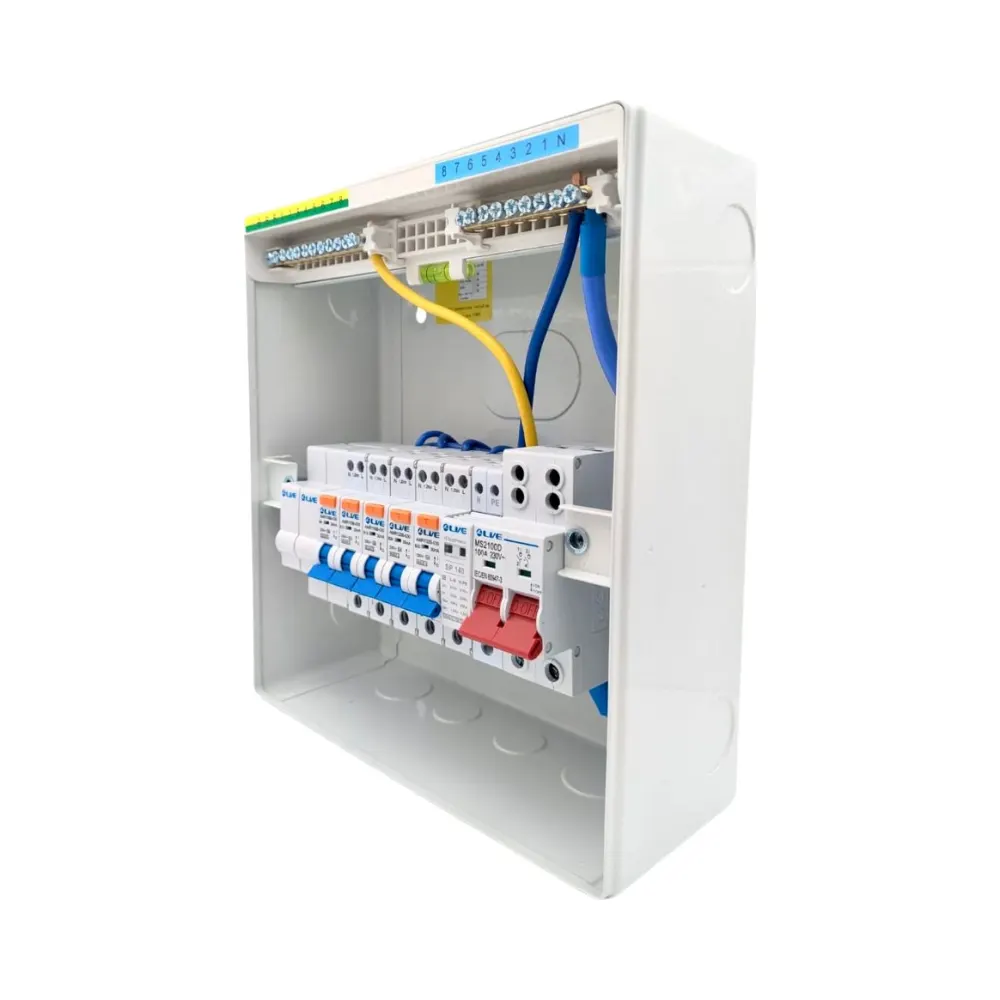

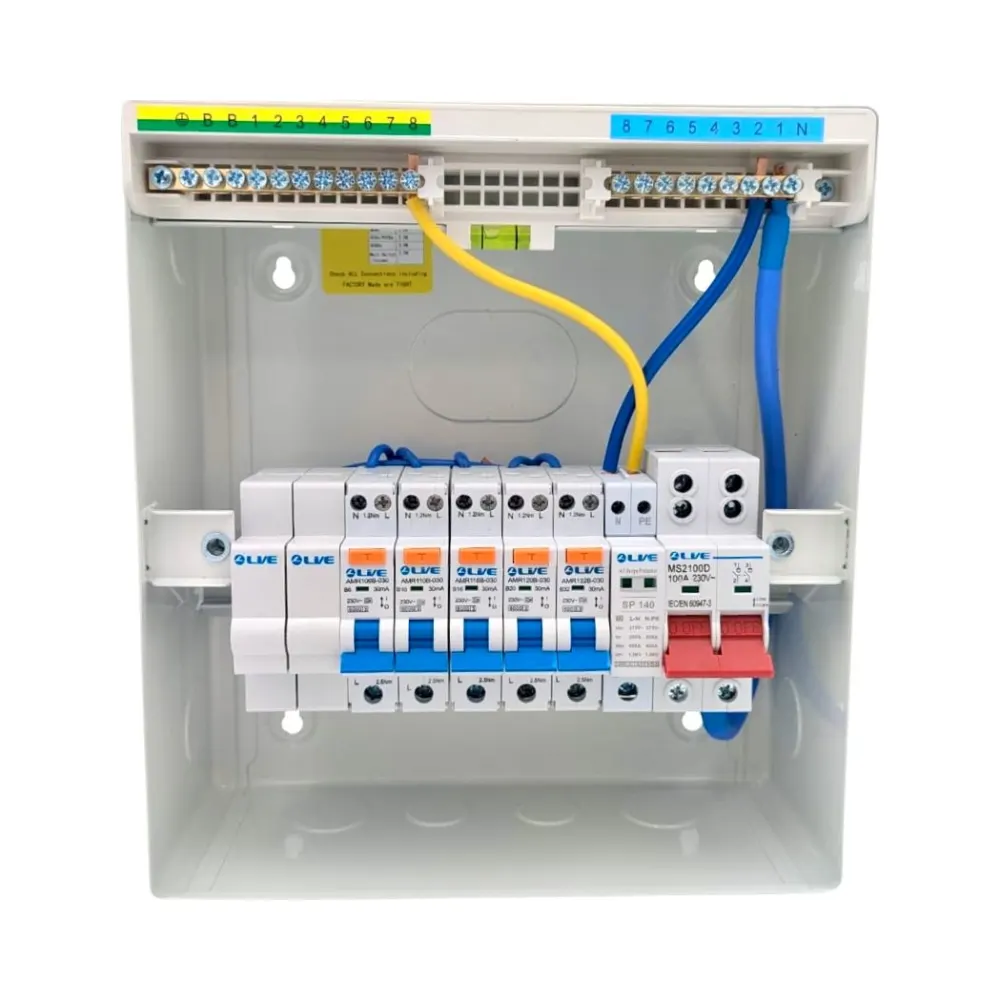

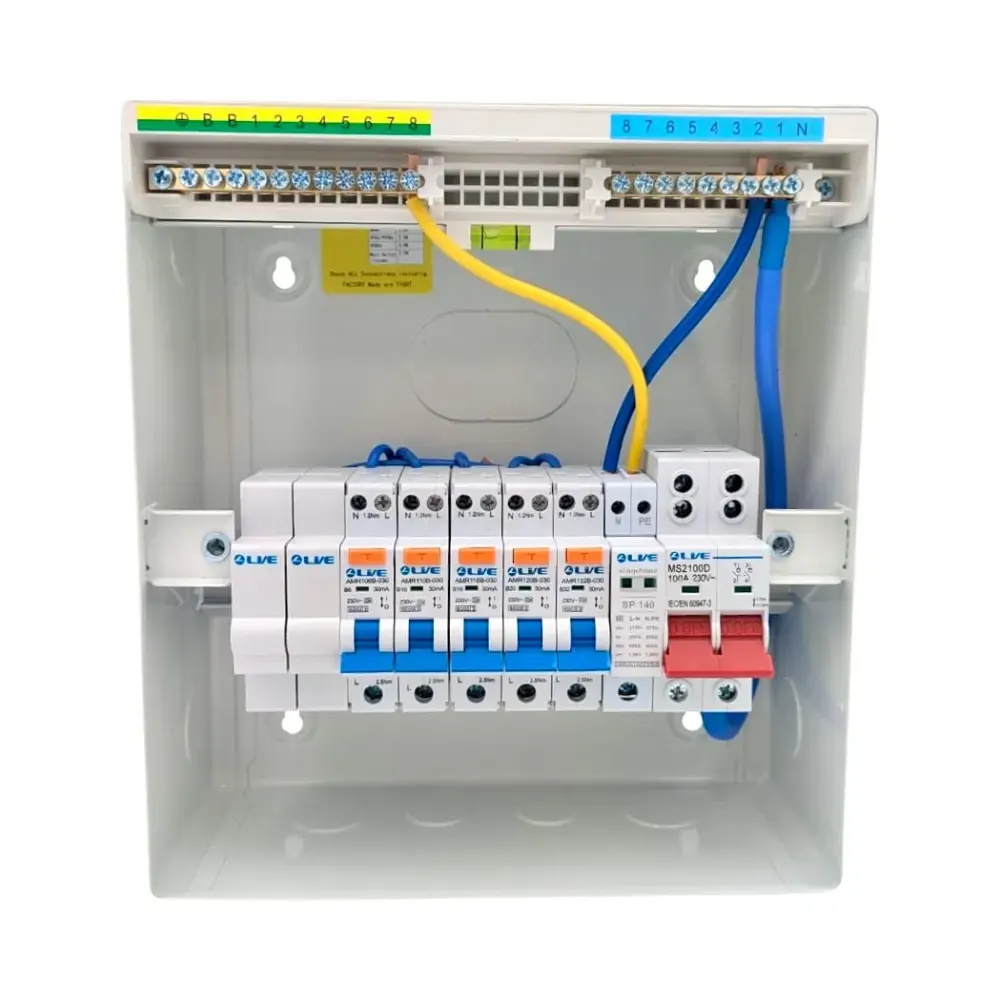

7 Way SPD Metal Consumer Unit Kit with 5 RCBOs

Live Electrical LSMC10M-SP/5RCBO

Maximise the efficiency of your electrical system with the Live Electrical 7 Way SPD Metal Consumer Unit Kit. Expertly designed for both residential and commercial installations, this kit provides a robust solution for power distribution. It ensures superior performance and safety, making it a top choice for modern electrical setups.

5 RCBO Units of Your Choice – Please specify amperage (6,10,16,20,32,40A) when placing your order at the checkout.

Included in the Kit / Bundle

• Live Electrical 7 Way SPD Metal Consumer Unit ( LSMC10M-SP )
• 2 Blanks: Allows for custom configuration and future expansion.

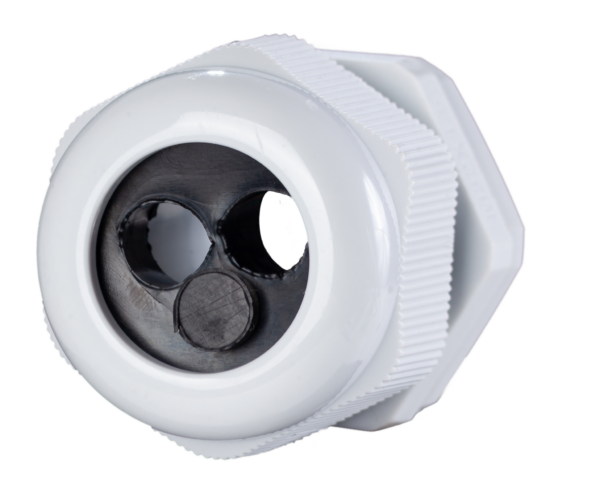

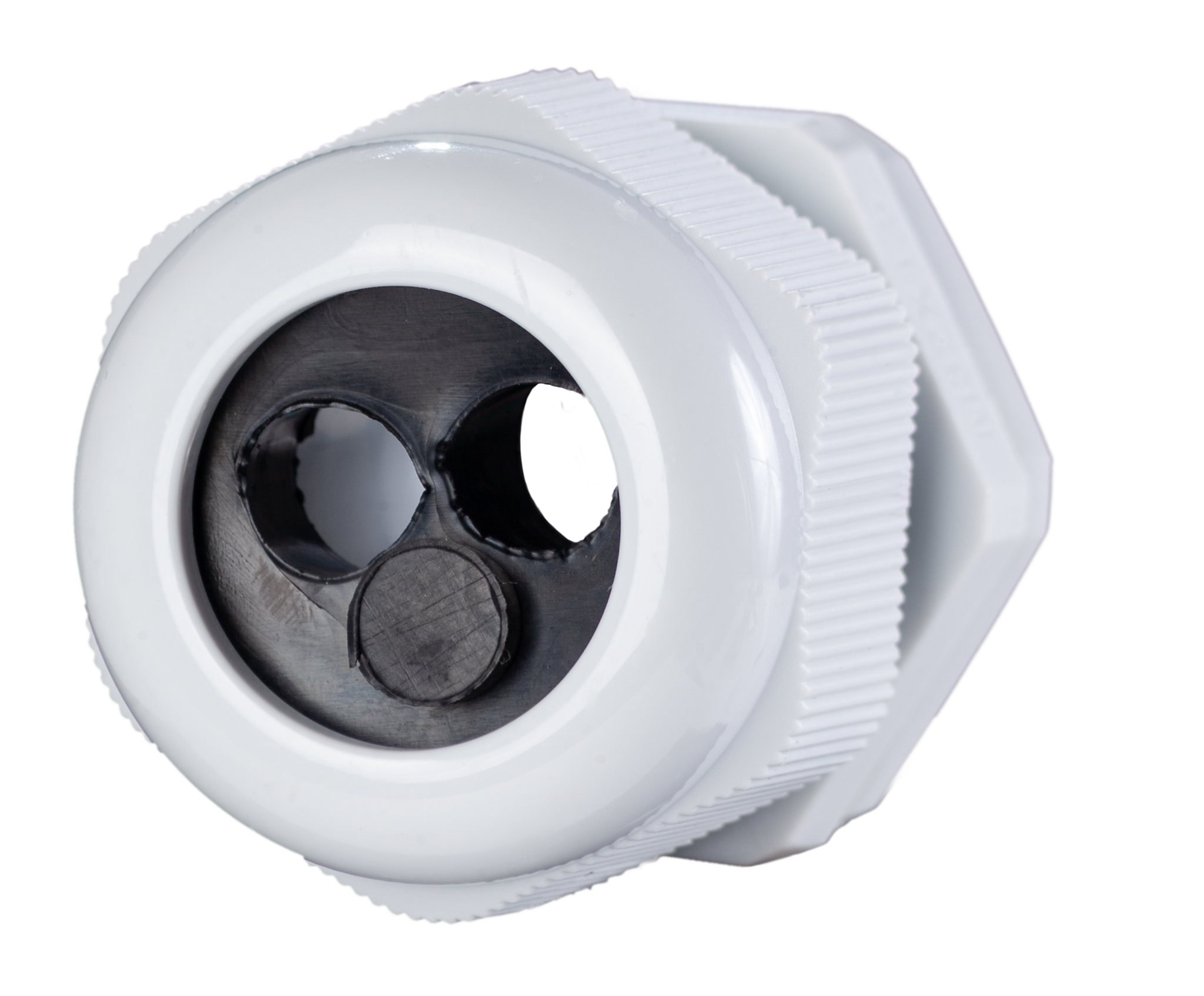

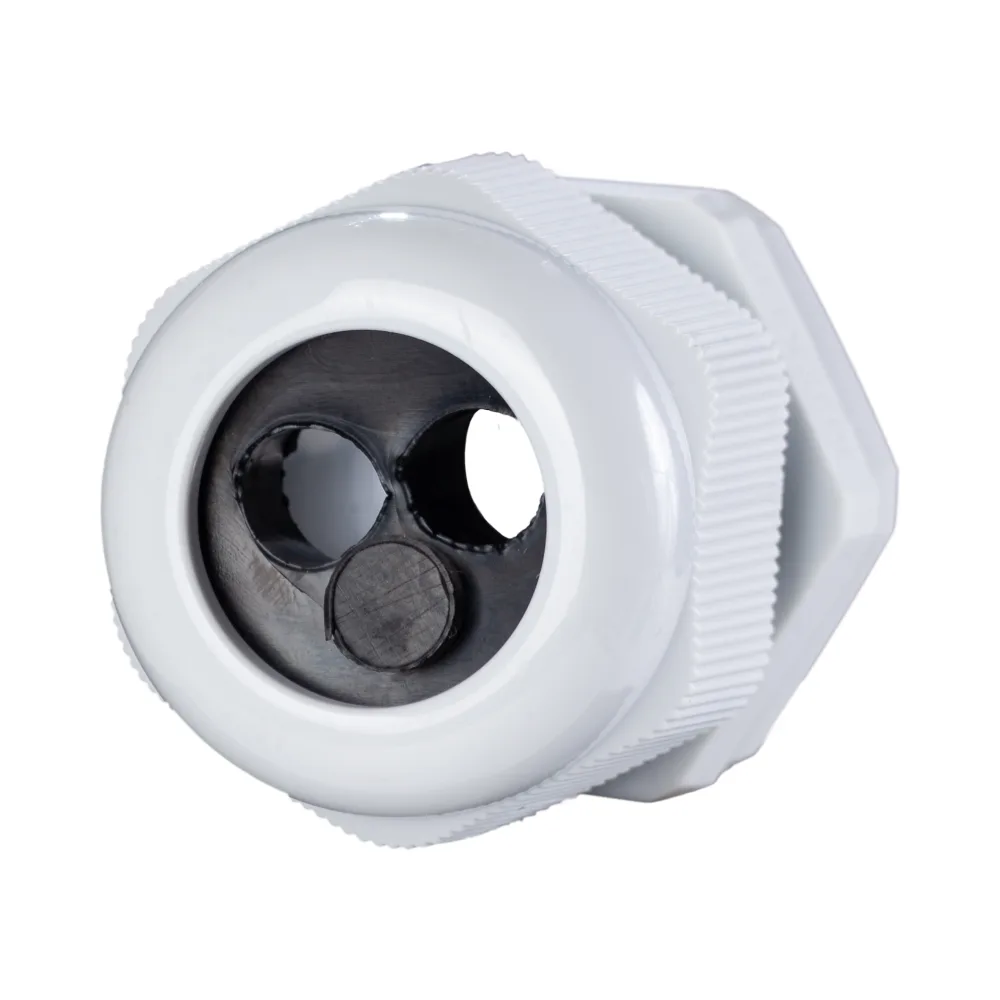

• Free Meter Tails Gland (32mm): Provides a secure and reliable connection to your metering equipment.

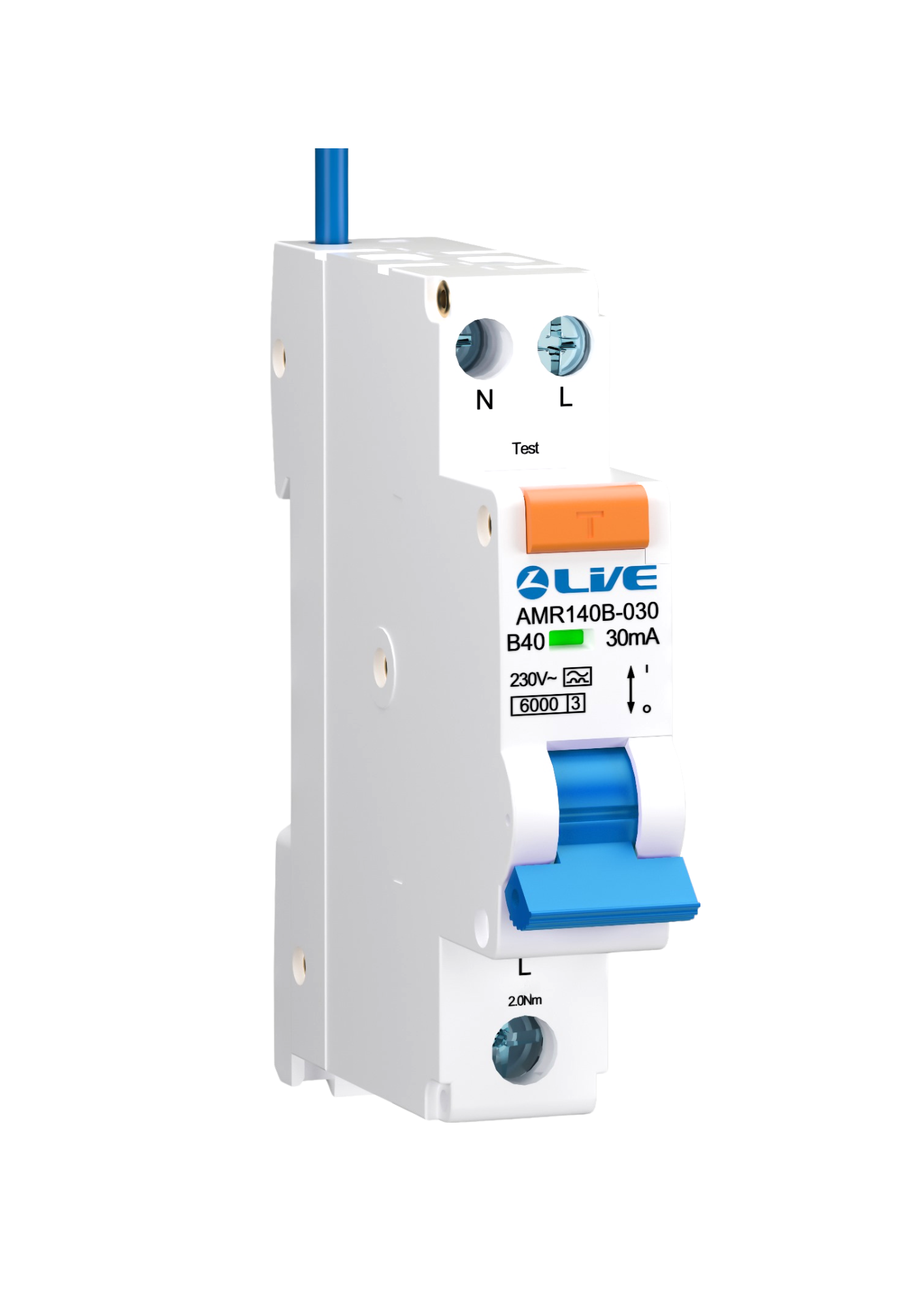

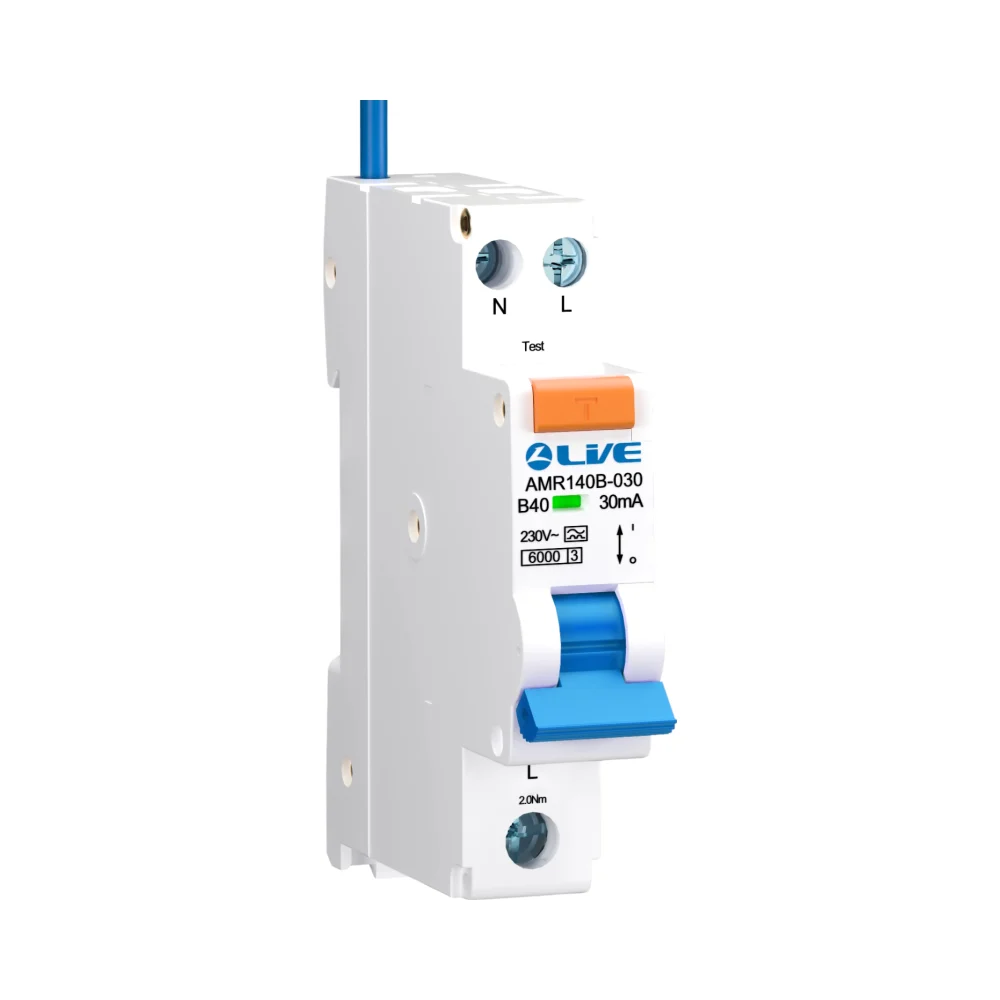

• 5 Bi-Directional Type A, Curve B RCBOs: Specially designed for solar PV installations, these RCBOs are sensitive in both directions to detect and interrupt fault currents effectively, ensuring safety in diverse electrical environments. Customers can choose the amperage that best suits their needs at checkout, allowing for personalised protection levels. These RCBOs are compliant with Amendment 3 BS 7671:2018+A3:2024 of the wiring regulations, ensuring up-to-date safety and performance standards.

Customisable RCBO Options

The kit includes 5 Bi-Directional Type A RCBOs, which are specifically designed for solar PV installations. These RCBOs detect fault currents in both directions, offering enhanced safety. You can choose the amperage (6, 10, 16, 20, 32, or 40A) at checkout, allowing you to customise the protection level for each circuit. These RCBOs comply with Amendment 3 BS 7671:2018+A3:2024 of the wiring regulations, ensuring they meet the latest safety standards.

Key Features:

• 7-Way Capacity: Ideal for both residential and small commercial properties, providing flexibility across multiple circuits.
• 5 Bi-Directional Type A RCBOs: Customisable amperage, ensuring protection tailored to each circuit’s needs, especially for solar PV installations.
• 100A Main Switch: Provides reliable and secure control over the entire electrical system.
• Surge Protection Device (SPD): Built-in SPD (20/40kA DP SPD) safeguards your system from power surges, ensuring equipment protection.
• Compliant with BS 7671: Fully compliant with the 18th Edition Wiring Regulations (BS 7671) and Amendment 3 BS 7671:2018+A3:2024, guaranteeing modern safety standards.
• Future Expansion: Includes 2 blank slots, allowing for future configuration changes or additional circuits.

Product Benefits:

• Perfect for Residential and Small Commercial Applications: This kit is ideal for ensuring safe and efficient electrical distribution across various circuits.
• Enhanced Fire and Surge Protection: The fully enclosed metal construction improves fire resistance, while the surge protection device prevents potential damage from power surges.
• Customisable Circuit Protection: Select the appropriate RCBO amperage for each circuit to ensure optimal performance and protection.

Certifications and Compliance

This consumer unit is fully compliant with the 18th Edition Wiring Regulations (BS 7671) and Amendment 3 BS 7671:2018+A3:2024, ensuring the highest safety standards for your installation. Its fully enclosed metal enclosure also meets Amendment 3 fire safety standards, offering enhanced protection against electrical hazards.

Technical Specifications:

• Model: Live Electrical 7 Way SPD Metal Consumer Unit (LSMC10M-SP)
• Dimensions (W x H x D): 244 x 270 x 110 mm
• Standards: BSEN61008, BS EN60898, BS EN61439-3
• Operating Voltage: 230V/50Hz
• Protection Degree: IP40

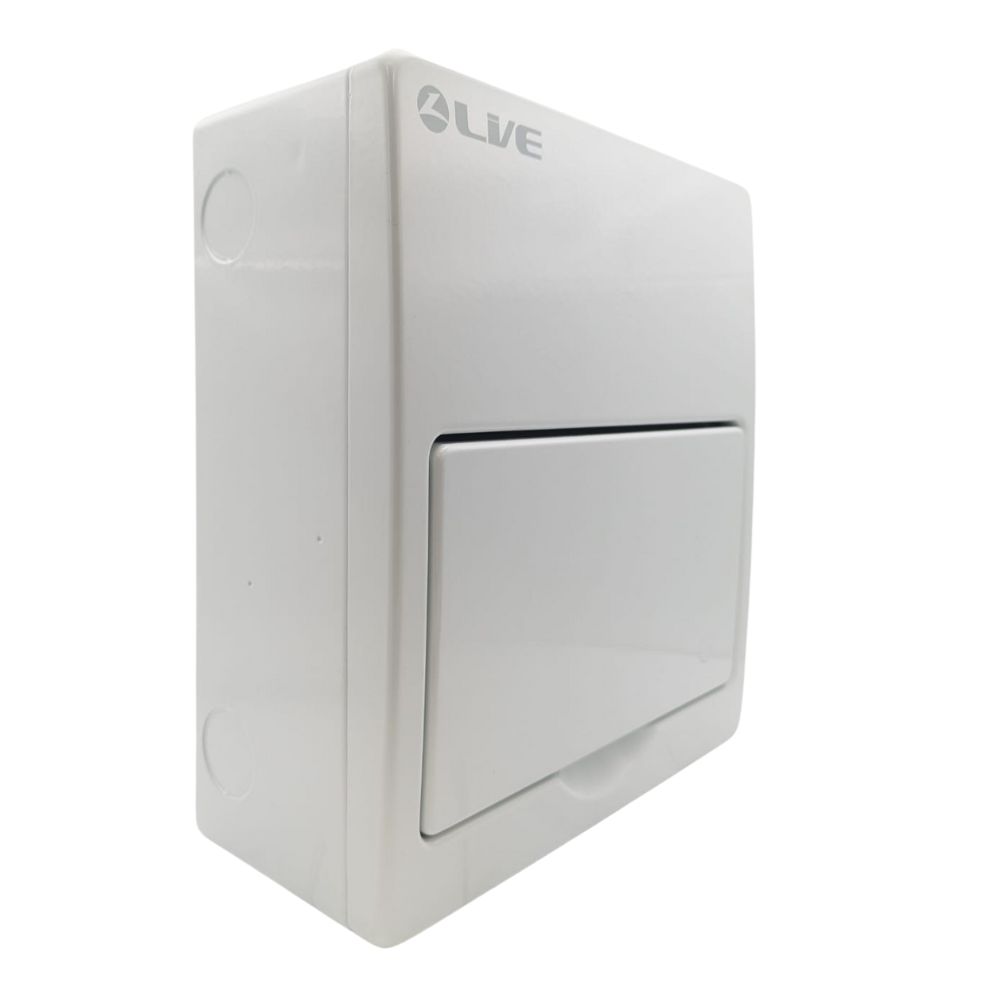

• Construction: Built from robust steel with a drop-down metal lid for added protection and ease of access.
• Surge Protection: Fitted with a 20/40kA DP SPD (SP140 1P+N/1)
• Main Switch: Equipped with a 100A DP Main Switch

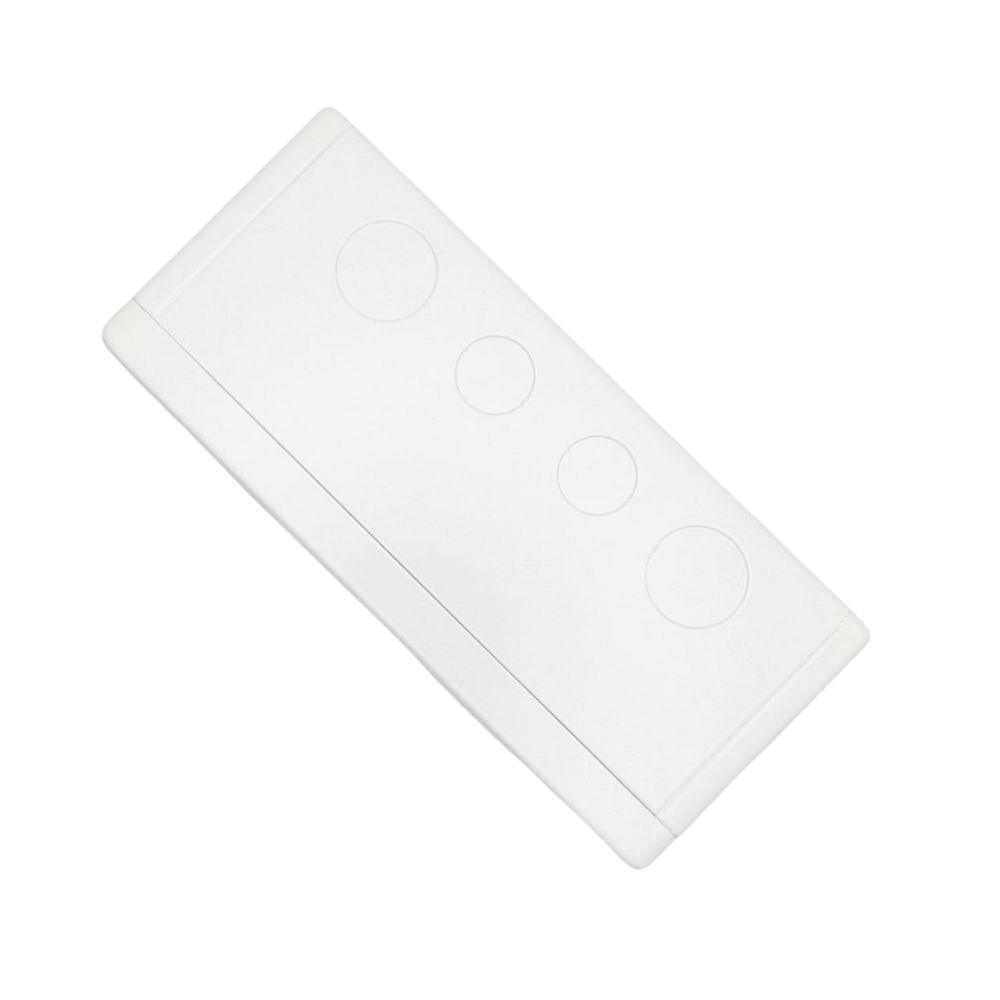

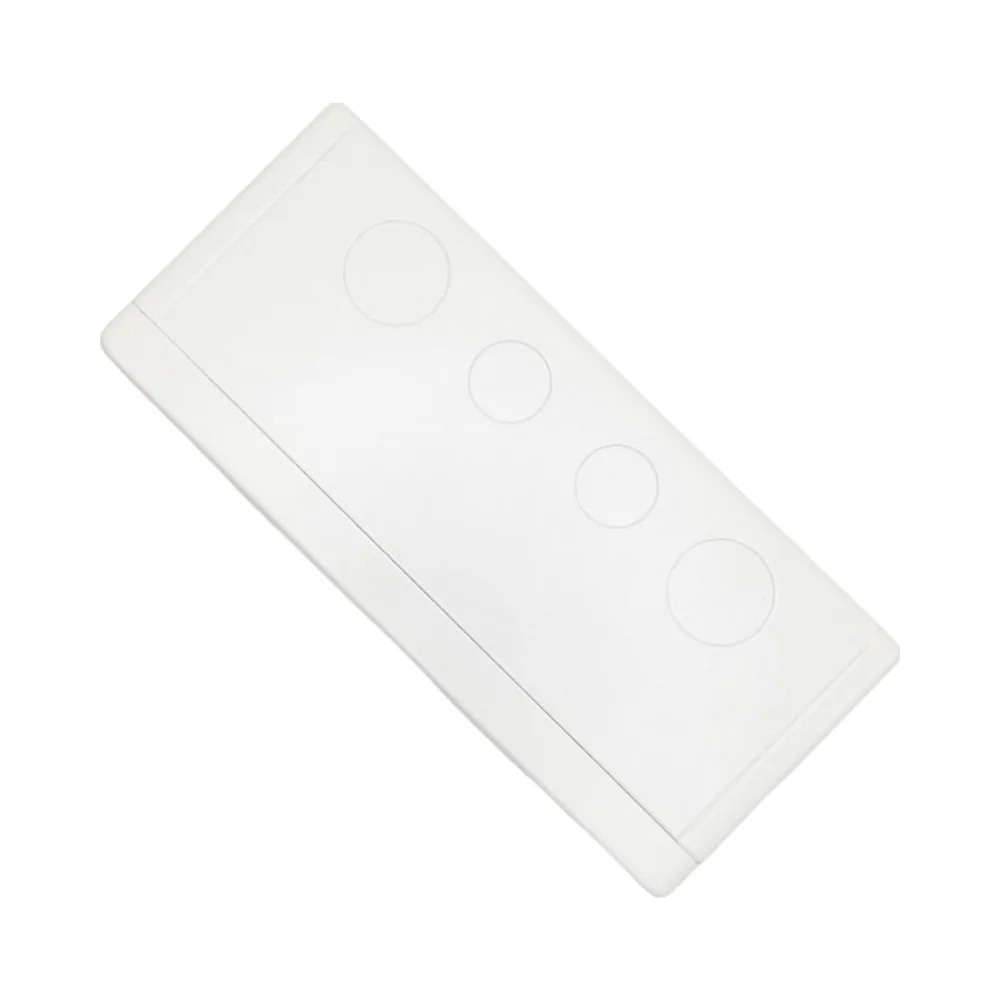

• Cable Entries: Multiple knock-outs (25mm & 32mm) on the top and bottom, 32mm on the sides, plus larger rear slots for flexible cable management.

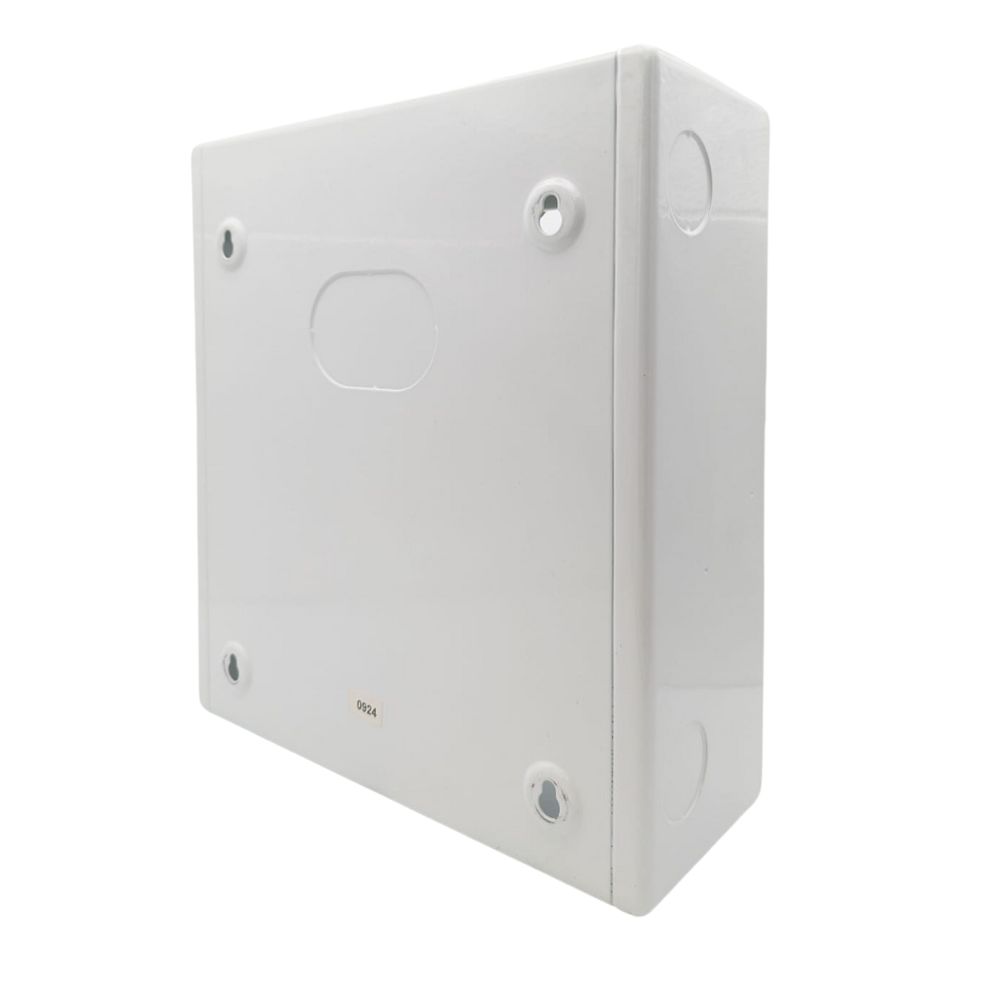

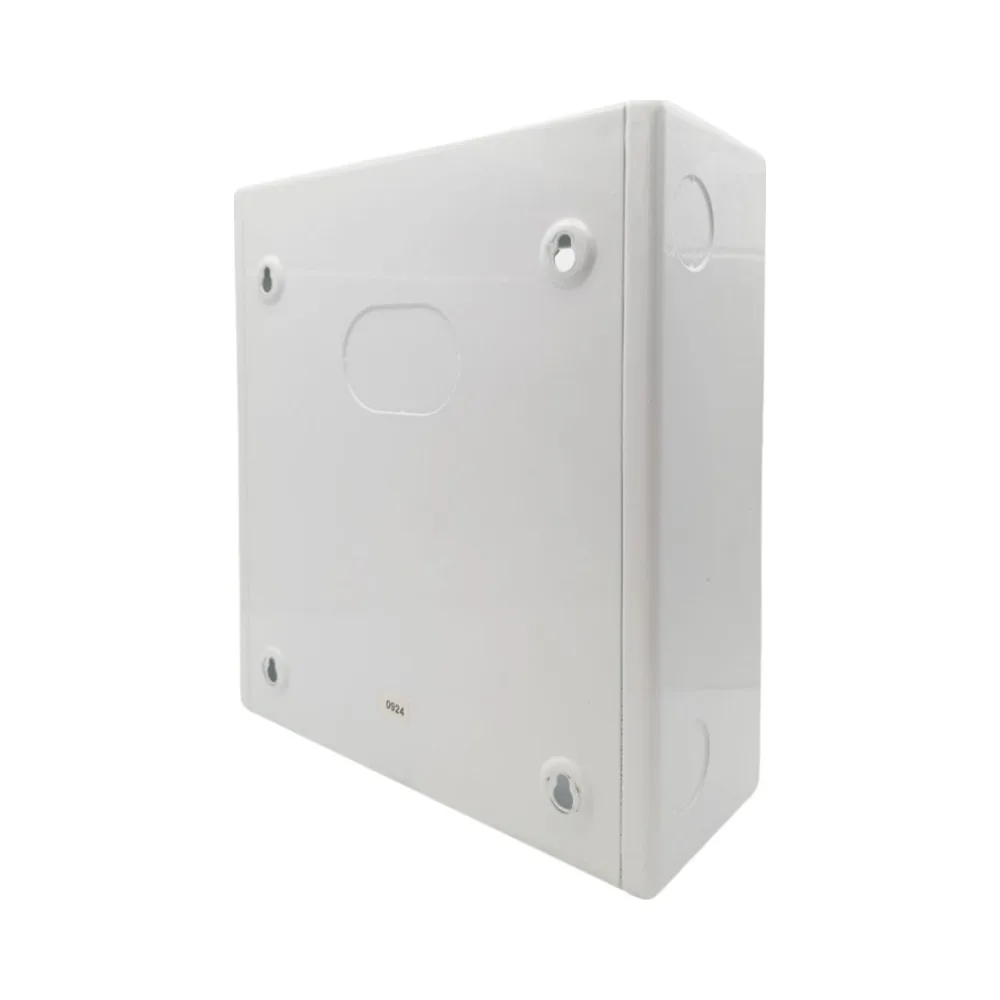

• Installation: Raised key holes for easy and secure installation, and a raised DIN rail to improve cable routing and organisation.
• Finish: Finished in white polyester powder coating (RAL9010) for a modern, sleek appearance.

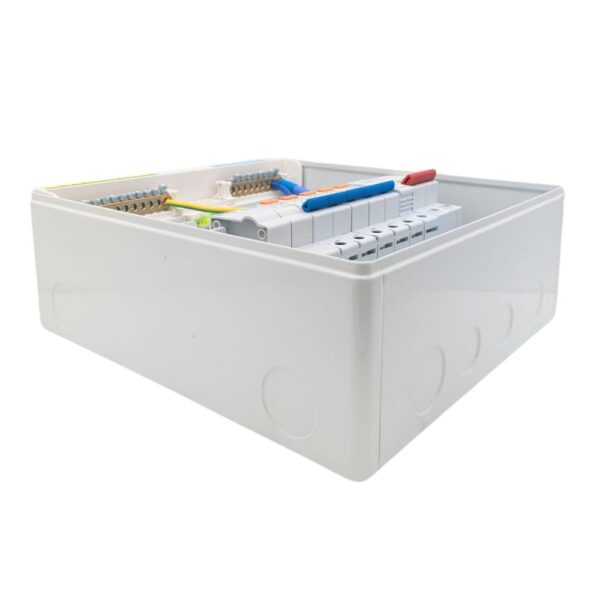

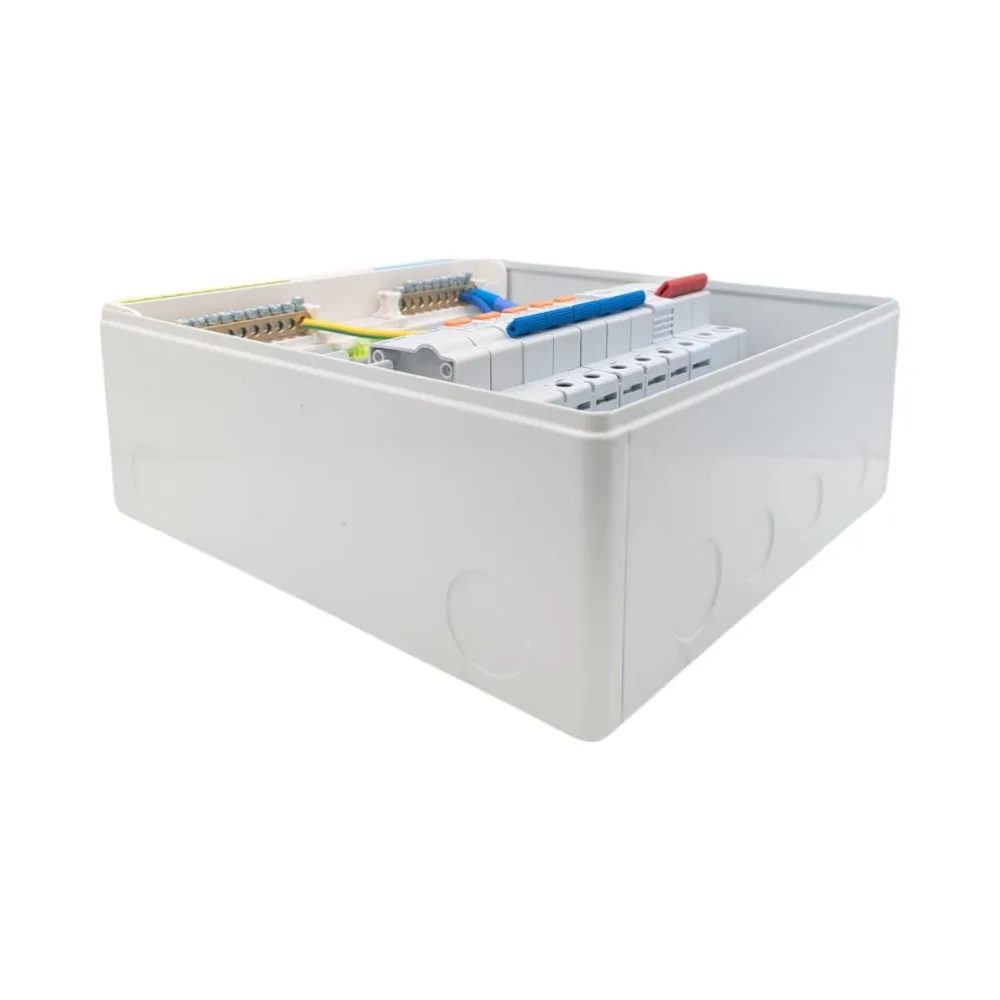

• Wiring Space: Offers a spacious area with extra room for RCBOs, making wiring easier and more organised.
• Free Meter Tails Gland: Includes a 32mm meter tails gland for a secure connection to your metering equipment.

FAQs:

• What is a 7-way consumer unit used for?
  • It manages multiple electrical circuits in homes or small businesses, ensuring safe and reliable power distribution across several circuits.
• How does the 100A main switch improve safety?
  • The 100A main switch allows you to isolate the entire system for maintenance or emergency situations, ensuring safety.
• Is this unit compliant with UK wiring regulations?
  • Yes, the unit is fully compliant with both the 18th Edition Wiring Regulations (BS 7671) and Amendment 3 BS 7671:2018+A3:2024, ensuring the highest level of safety for installations.

Why Metal Enclosures Matter – Amendment 3 Compliance

The fully enclosed metal body of this consumer unit complies with Amendment 3, which requires metal enclosures for improved fire safety. Compared to plastic units, metal enclosures offer superior protection against potential fire hazards, making this unit a safer option for residential and commercial properties.

The Live Electrical Consumer Units range is built to comply with the latest industry standards, offering flexible configurations and reliable protection. Our Live Electrical SPD Consumer Units feature integrated surge protection to shield your home or business from potentially damaging power surges. Whether you need a small unit for a residential setup or a larger unit for commercial use, these consumer units ensure long-term electrical safety and stability.
