Description

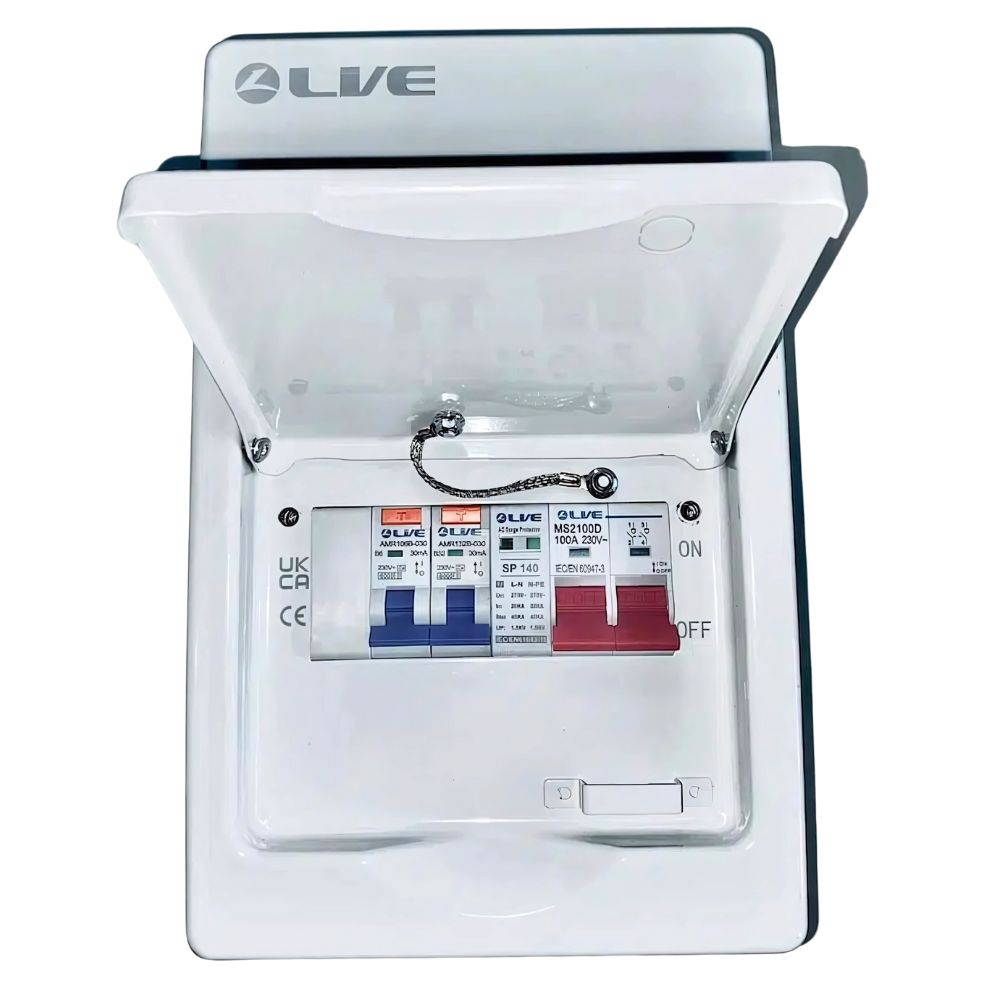

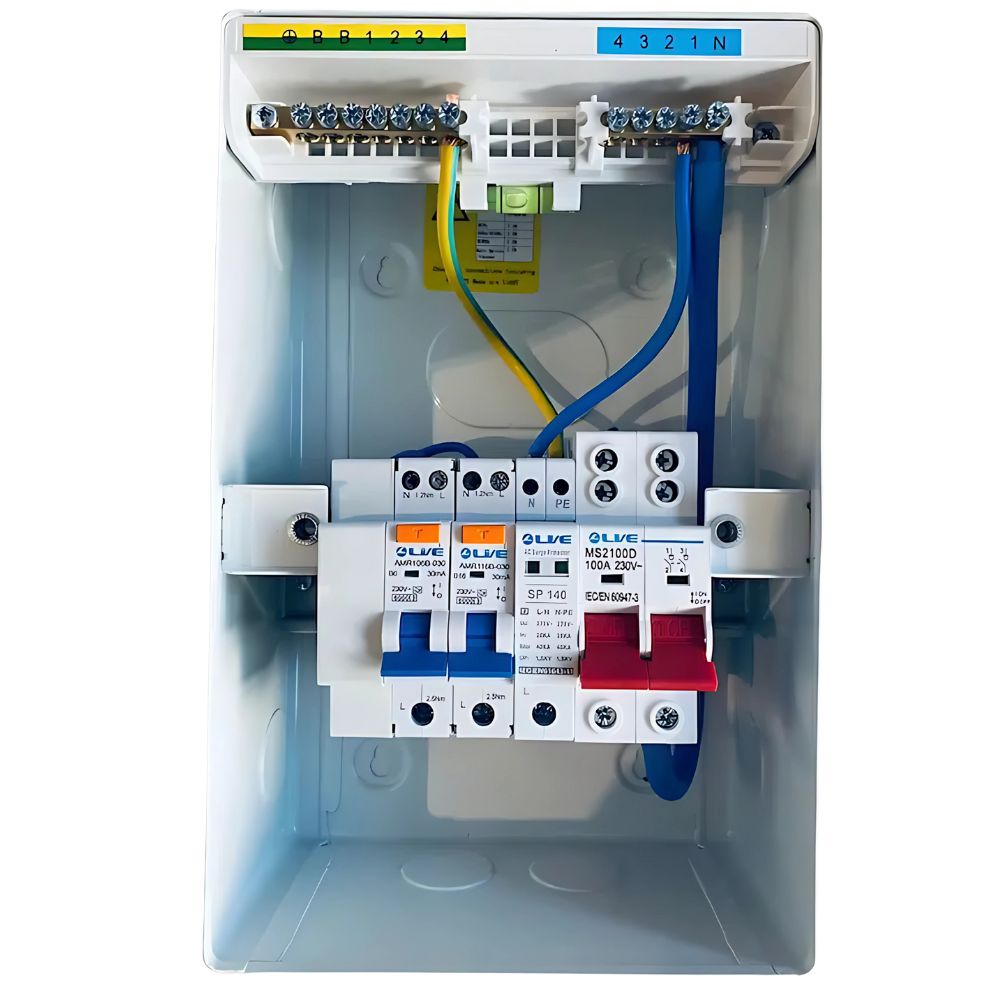

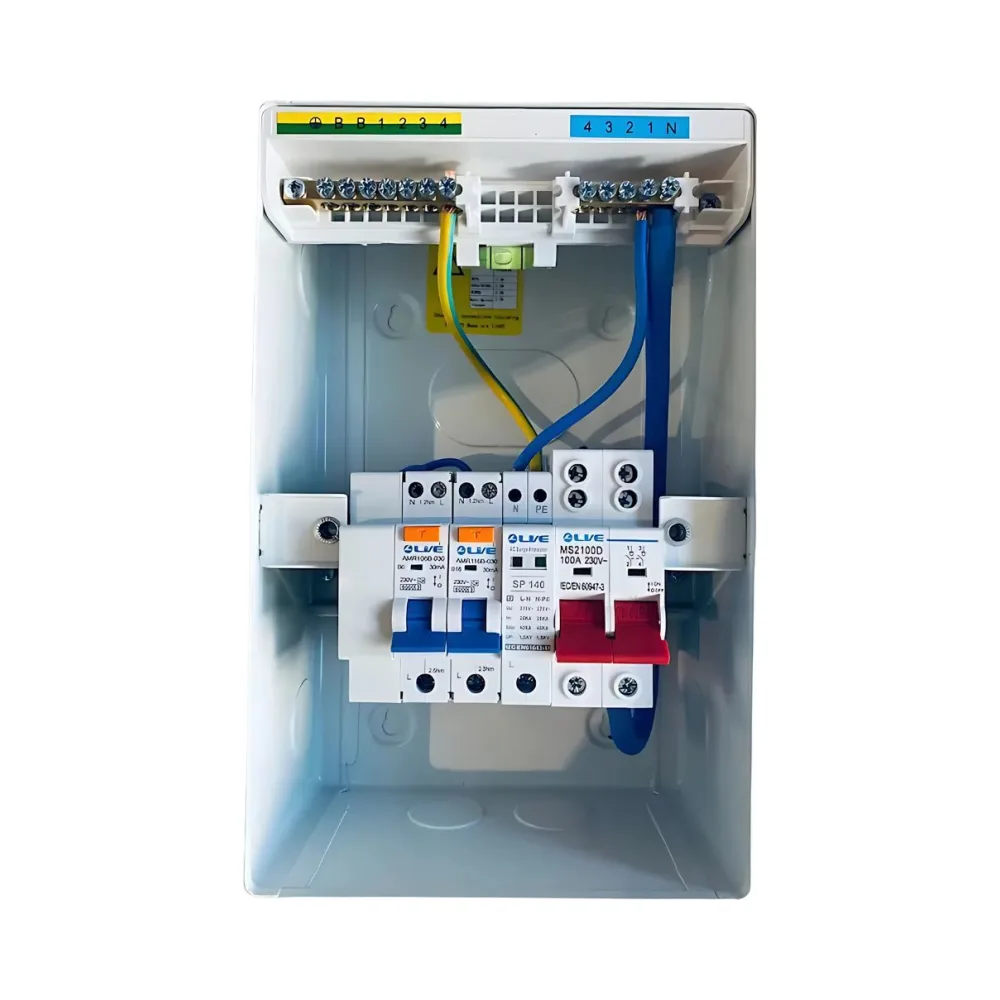

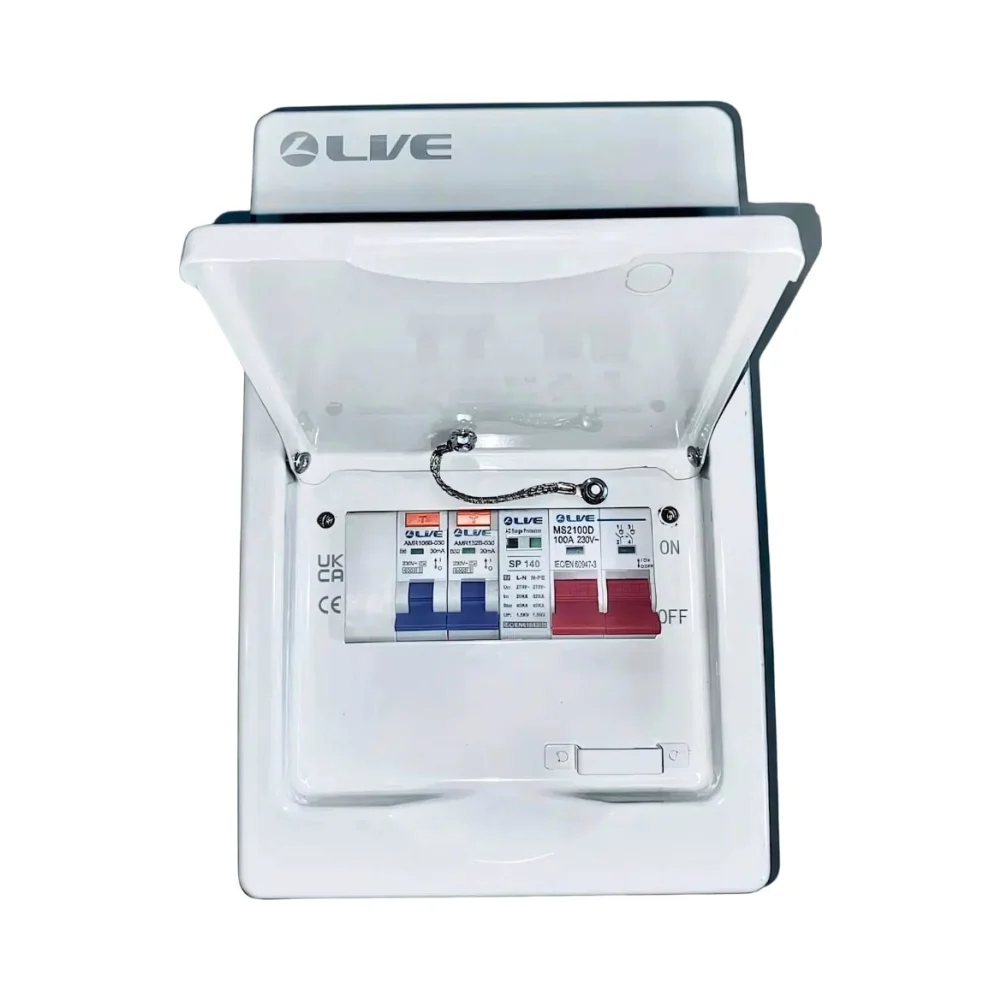

Metal Garage Consumer Unit with SPD and 2 Type A Bi-Directional RCBOs
Live Electrical LSMC6M-SP/2RCBO
Upgrade your electrical system with the Live Electrical 3 Way SPD Metal Consumer Unit Kit. Specifically designed for small residential and light commercial installations, this compact unit combines efficiency, safety, and modern design. With its 3-way configuration, it allows for safe and reliable power distribution across multiple circuits.
Customisable RCBO Options
2 RCBO Units of Your Choice – Please specify amperage (6,10,16,20,32,40A) when placing your order at the checkout.
The kit includes 2 Bi-Directional Type A RCBOs. These RCBOs are designed to provide enhanced protection for solar PV systems and other sensitive environments. Each RCBO detects fault currents in both directions, ensuring optimal safety. This flexibility ensures that your electrical system is both customised and compliant with Amendment 3 of BS 7671:2018+A3:2024.
Key Features
- 3-Way Capacity: Perfect for small residential or light commercial properties, this unit efficiently manages multiple circuits.
- 2 Bi-Directional Type A RCBOs: Customisable amperage for each circuit, ideal for solar PV and other sensitive setups.
- 100A Main Switch: Ensures reliable isolation and control of the entire electrical system.
- Surge Protection Device (SPD): The built-in 20/40kA DP SPD protects against power surges, safeguarding your equipment.
- Compliance with BS 7671: Fully compliant with 18th Edition Wiring Regulations (BS 7671) and Amendment 3 BS 7671:2018+A3:2024.
- Expandable Design: Includes 1 blank slot for future circuit expansions or custom configurations.
Product Benefits
- Ideal for Homes and Small Businesses: This kit provides safe and efficient electrical distribution without taking up much space.
- Enhanced Fire and Surge Protection: The metal enclosure offers superior fire resistance, while the built-in SPD shields your system from surges.
- Customisable Circuit Protection: You can select the appropriate RCBO amperage for each circuit, ensuring the highest level of protection and performance.
- Metal Enclosure for Safety: Compliant with Amendment 3, the metal body offers better fire protection compared to plastic enclosures.
Technical Specifications
- Model: Live Electrical 3 Way SPD Metal Consumer Unit (LSMC6M-SP)
- Dimensions (W x H x D): 172 x 270 x 110 mm
- Standards: BSEN61008, BS EN60898, BS EN61439-3
- Operating Voltage: 230V/50Hz
- Protection Degree: IP40
- Construction: Durable steel with a drop-down metal lid for added safety and accessibility.
- Surge Protection: Fitted with a 20/40kA DP SPD (SP140 1P+N/1)
- Main Switch: Equipped with a 100A DP Main Switch for system isolation.
- Cable Entries: Multiple circular knock-outs (25mm & 32mm) on the top and bottom, with larger rear slots for flexible cable management.
- Installation: Easy-to-install raised keyholes and DIN rail for secure installation.
- Finish: White polyester powder coating (RAL9010) for a sleek, modern look.
- Meter Tails Gland: Includes a free 32mm meter tails gland for secure connection to your metering equipment.
FAQs – Live Electrical 3 Way SPD Metal Consumer Unit Kit
1. What is a 3-way consumer unit used for?
This unit efficiently manages power distribution for multiple circuits, making it ideal for outbuildings, shed and garages.
2. How does the 100A main switch improve safety?
The 100A main switch allows you to completely isolate the system during maintenance or emergencies, ensuring full control and safety.
3. Is this unit compliant with UK wiring regulations?
Yes, it is fully compliant with the 18th Edition Wiring Regulations (BS 7671) and Amendment 3 BS 7671:2018+A3:2024, ensuring top-level safety for your installation.
4. Why choose metal enclosures over plastic ones?
Metal enclosures, like this one, comply with Amendment 3 of BS 7671, which requires metal consumer units for enhanced fire safety. Metal enclosures provide superior protection against fire hazards, making them safer than plastic alternatives.
Why Metal Enclosures Matter – Amendment 3 Compliance
This consumer unit’s fully enclosed metal body complies with the fire safety requirements of Amendment 3 in the 18th Edition Wiring Regulations. According to these regulations, metal enclosures are mandatory for preventing fire risks in electrical systems. Compared to plastic units, metal offers superior fire resistance, making this product a safer choice for homes and small businesses.
Boost your electrical system’s efficiency with the Live Electrical 3 Way SPD Metal Consumer Unit Kit, and ensure safety and compliance with modern standards.
Ensure your electrical installations meet the highest standards with Live Electrical Consumer Units. Fully compliant with BS7671, our units offer top-tier protection and reliability. For added safety, the Live Electrical SPD Consumer Units come equipped with Surge Protection Devices to guard against transient overvoltages. Whether for residential or commercial projects, these consumer units provide the protection required to keep your systems safe and compliant with the latest regulations.
