Description
19 Way SPD Metal Consumer Unit Kit with 15 Bi-Directional Type A RCBOs
Live Electrical LSMC22M-SP/15RCBO
15 RCBO Units of Your Choice
Please specify amperage (6,10,16,20,32,40A) when placing your order at the checkout.
Included in the Kit / Bundle

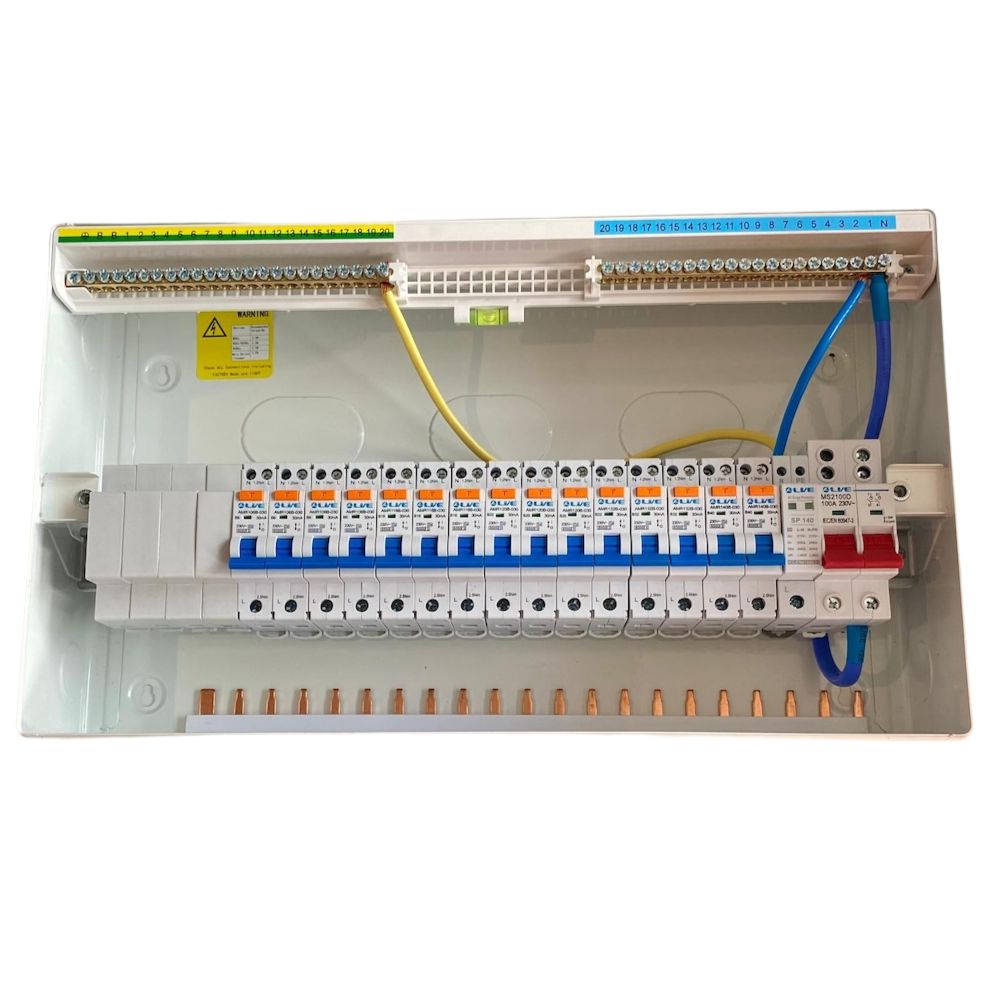

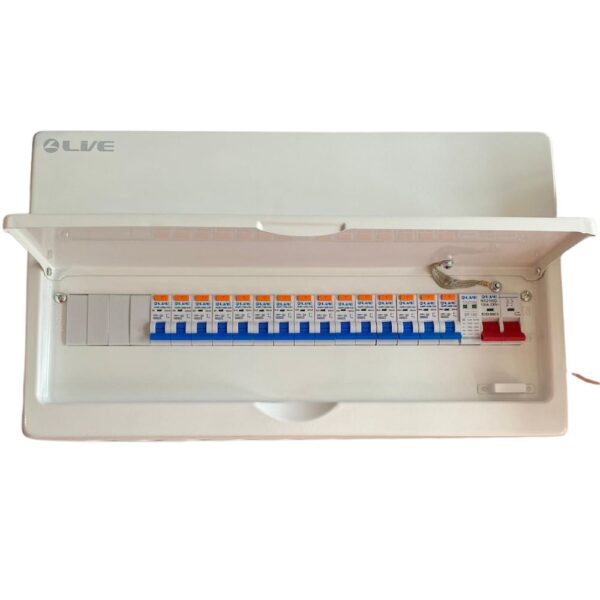

- Live Electrical 19 Way SPD Metal Consumer Unit ( LSMC22M-SP )
- 4 Blanks: Allows for custom configuration and future expansion.

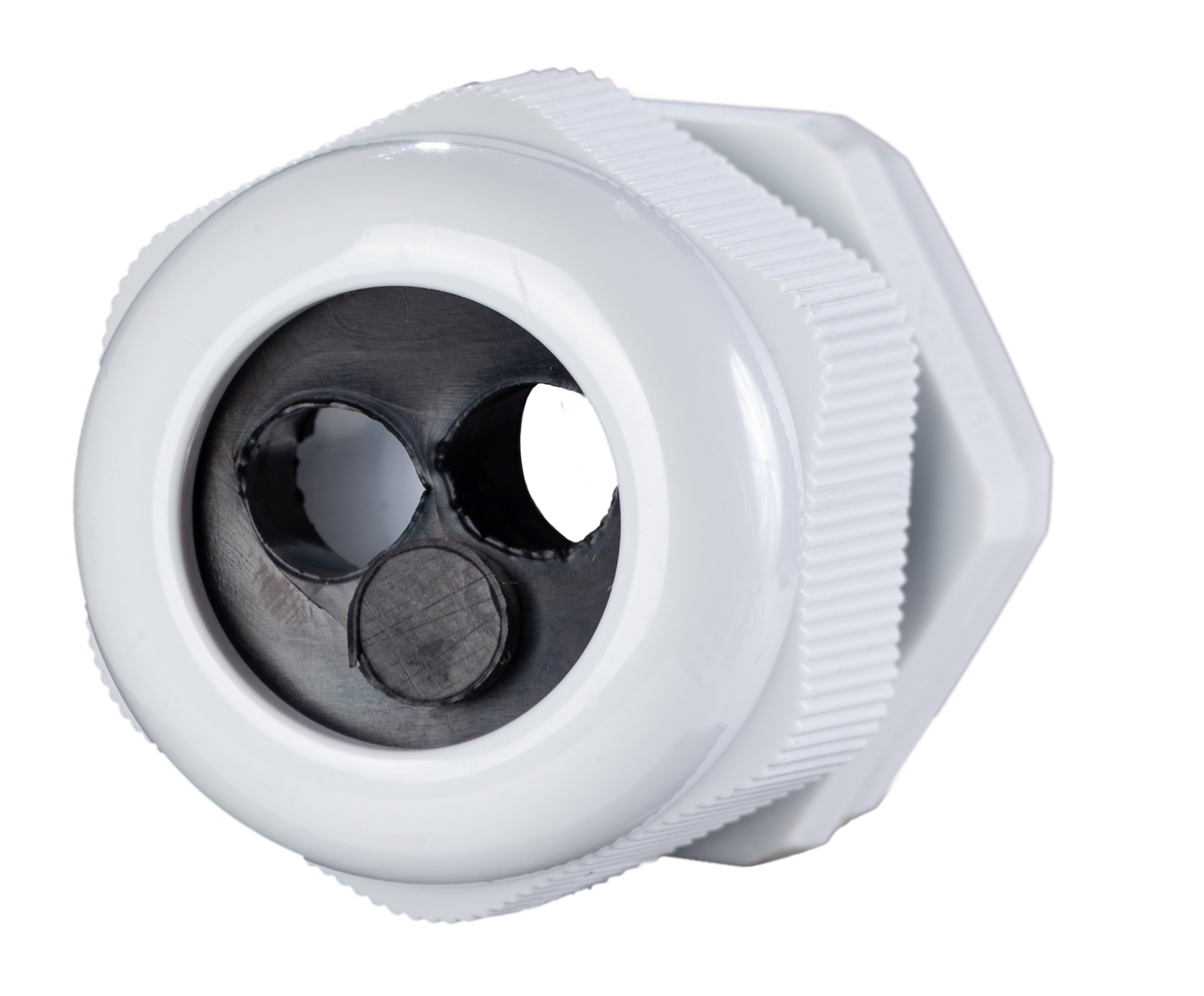

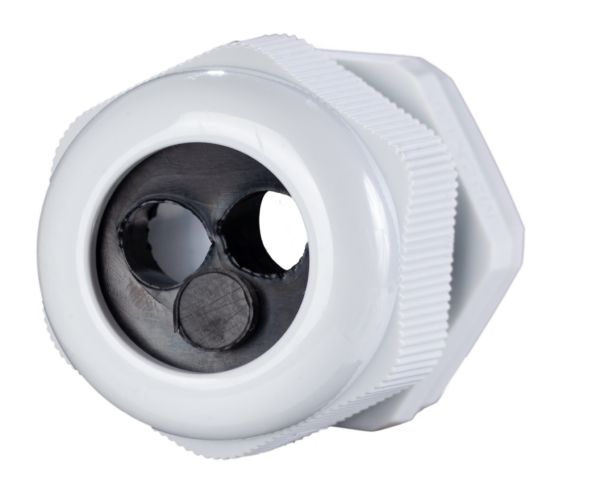

- Free Meter Tails Gland (32mm): Provides a secure and reliable connection to your metering equipment.

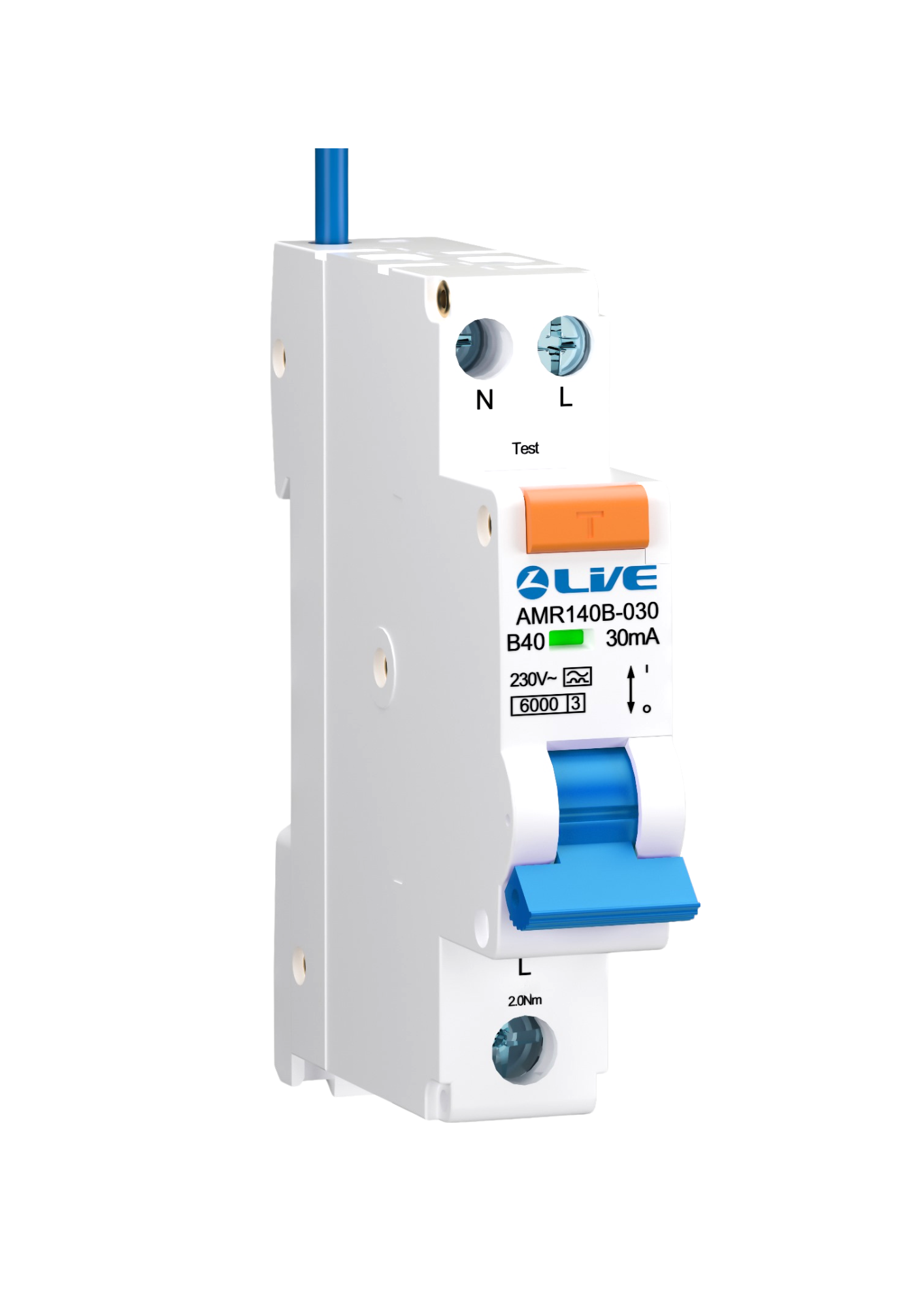

- 15 Bi-Directional Type A, Curve B RCBOs: Specially designed for solar PV installations, these RCBOs are sensitive in both directions to detect and interrupt fault currents effectively, ensuring safety in diverse electrical environments. Customers can choose the amperage that best suits their needs at checkout, allowing for personalised protection levels. These RCBOs are compliant with Amendment 3 BS 7671:2018+A3:2024 of the wiring regulations, ensuring up-to-date safety and performance standards.
The Live Electrical 19 Way SPD Metal Consumer Unit Kit is a great choice for both large residential and commercial installations. It offers an efficient way to distribute power while ensuring advanced protection. With a 19-way configuration, this distribution board is ideal for homes or businesses with multiple electrical circuits.
The built-in 100A main switch provides reliable control, and the surge protection device (SPD) protects against power surges, keeping your system safe.
Why Choose This 19 Way Consumer Unit?
This consumer unit is perfect for properties with high electrical demands. It safeguards your circuits from overloading and short circuits, ensuring efficient power distribution. The 15 Bi-Directional Type A RCBOs are especially suitable for properties with solar PV installations. They detect and stop fault currents from both directions, which makes the system safer.
Key Features of Live Electrical 19 Way SPD Metal Consumer Unit Kit
- 19-Way Capacity: Ideal for larger setups, providing extensive coverage for both residential and commercial applications.
- 15 Bi-Directional Type A RCBOs: Designed for solar PV systems and other installations where advanced protection is required. Choose your desired amperage for each circuit.
- Built-in Surge Protection Device (SPD): Includes a 20/40kA DP SPD for reliable surge protection, safeguarding your system from electrical surges.
- 100A Main Switch: Ensures robust and secure control of the entire electrical system, giving electricians confidence in safe operation.
- Flexible Future Expansion: Includes 4 blank slots for easy future upgrades, allowing for additional circuits as your system grows.
- This kit comes complete with a free 32mm meter tails gland, making installation even easier while maintaining a secure connection to your metering equipment.
Additional Features and Specifications:

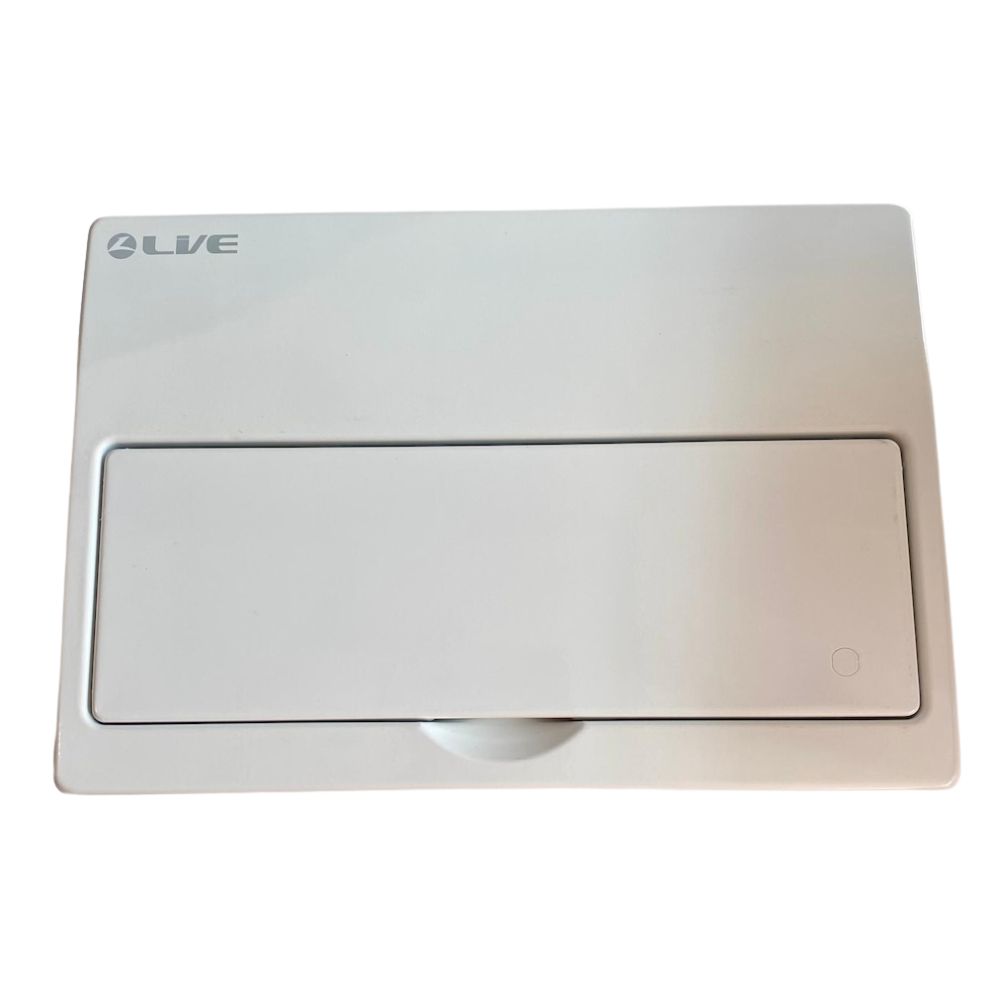

- Fully Enclosed Metal Construction: Built with a robust steel body for enhanced durability and fire protection. Features a drop-down metal lid for easy access.
- Dimensions: 460 x 270 x 110 mm, making it compact yet spacious enough for complex installations.
- Multiple Cable Entry Points: Knock-outs (25mm and 32mm) on the top, bottom, sides, and back for easy cable routing and installation.
- Raised Key Holes: Simplifies secure installation, ensuring a firm fit for all types of setups.
- Raised DIN Rail: Improves cable routing, simplifying both installation and future maintenance.
- White Polyester Powder Coating (RAL9010): Provides a sleek, modern finish for professional aesthetics.
- Compliant with Industry Standards: Meets BSEN61008, BS EN60898, and BS EN61439-3, ensuring your installation complies with current safety and performance requirements.
- IP40 Protection Degree: Ensures solid protection against external elements.
Customisable RCBO Options
The kit includes 15 Bi-Directional Type A RCBOs that offer advanced protection. You can choose the required amperage (6, 10, 16, 20, 32, 40A) during checkout. This lets you tailor the unit to your property’s specific needs. All RCBOs meet Amendment 3 BS 7671:2018+A3:2024 of the wiring regulations, ensuring that your installation is up to the latest safety standards.
Product Benefits:
- Perfect for High-Demand Installations: This unit is ideal for homes with multiple electrical appliances or businesses with high electrical demands, ensuring that power is distributed safely and efficiently.
- Fire and Overload Protection: The fully enclosed metal construction enhances fire protection and durability, ensuring long-lasting safety.
- Flexible Customisation: Allows for tailored configurations, with the option to adjust the amperage of the included RCBOs for optimized circuit protection.
Certifications and Compliance
This consumer unit complies fully with the 18th Edition Wiring Regulations (BS 7671) and Amendment 3 BS 7671:2018+A3:2024, ensuring the highest level of safety for your installation. Its metal enclosure meets Amendment 3 fire safety standards, offering even more protection compared to plastic alternatives.
FAQs:
- What is a 19-way consumer unit used for?
- It manages and protects multiple electrical circuits in large homes or commercial setups, ensuring safe and efficient power distribution.
- How does the 100A main switch improve safety?
- The 100A main switch allows you to safely isolate the entire system for maintenance or in case of an emergency.
- Is this consumer unit compliant with the latest wiring regulations?
- Yes, it complies with both the 18th Edition Wiring Regulations (BS 7671) and Amendment 3 BS 7671:2018+A3:2024, ensuring full compliance with UK standards.
Comparison with Other Consumer Units
Compared to smaller units, the Live Electrical 19 Way SPD Metal Consumer Unit Kit offers more capacity, making it ideal for properties with larger electrical demands. The addition of surge protection and customizable RCBOs provides extra safety, setting it apart from other units.
Why Metal Enclosures Matter – Amendment 3 Compliance
The fully enclosed metal construction meets Amendment 3 fire safety requirements, which makes it a safer choice for homes and businesses. Metal enclosures are much more resistant to fire than plastic, giving your property better protection.
About Live Electrical: As a trusted name in the industry, Live Electrical is known for offering advanced and reliable electrical solutions. With a focus on safety, innovation, and quality, we provide top-tier products to meet the demands of modern installations.
Ensure the longevity and safety of your electrical system with Live Electrical Consumer Units. Our Live Electrical SPD Consumer Units are engineered with advanced surge protection to defend against sudden voltage spikes. Ideal for modern installations where surge protection is a must, these units provide a cost-effective and robust solution for both residential and commercial environments.
