Description

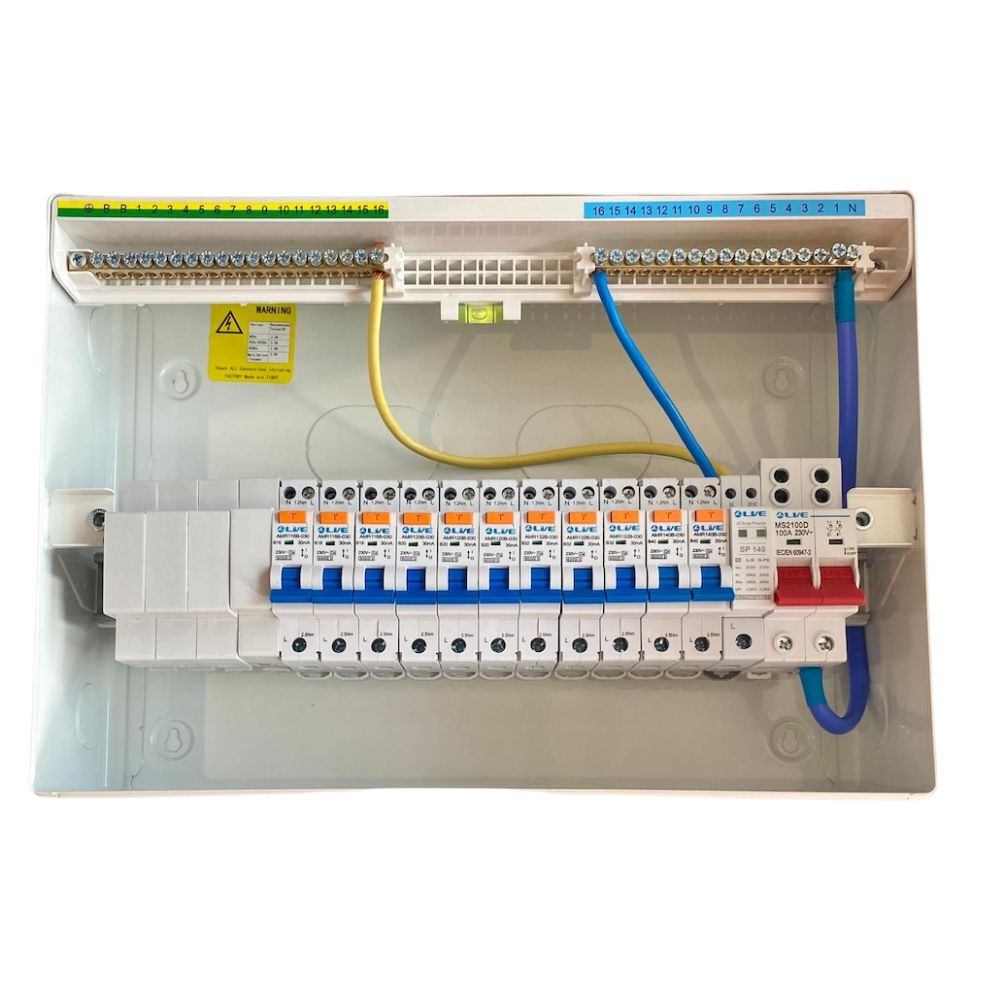

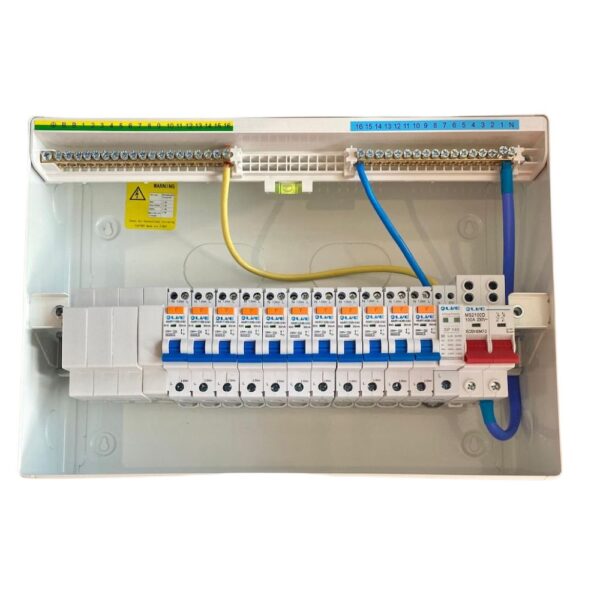

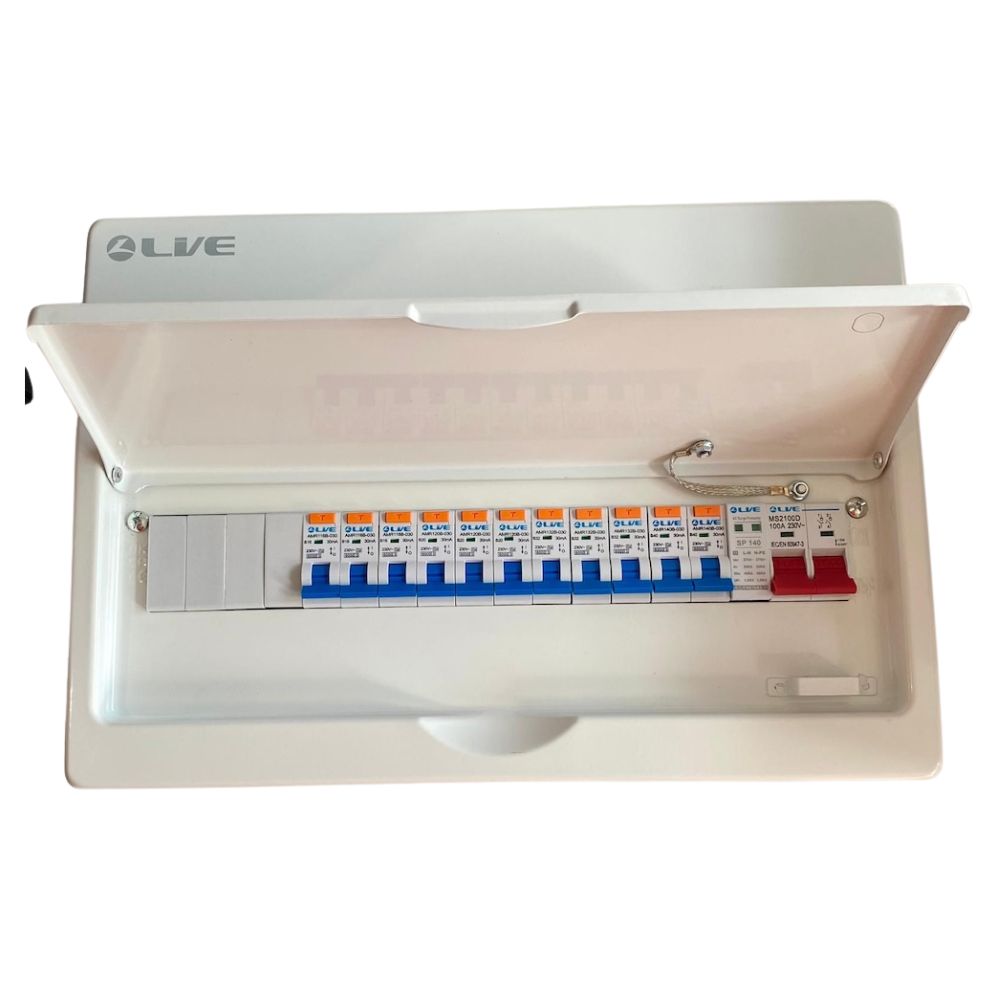

15 Way SPD Metal Consumer Unit Kit with 11 Bi-Directional Type A RCBOs
Live Electrical LSMC18M-SP/11RCBO
The Live Electrical 15 Way SPD Metal Consumer Unit Kit is designed to handle a wide range of electrical applications, offering robust performance for both residential and commercial installations. With a 15-way configuration, it efficiently supports larger setups, ensuring reliable power distribution and advanced protection. This distribution board is equipped with a 100A main switch and built-in surge protection device (SPD), making it an ideal choice for homes and businesses.
11 RCBO Units of Your Choice
Please specify amperage (6,10,16,20,32,40A) when placing your order at the checkout.
Included in the Kit / Bundle
- Live Electrical 15 Way SPD Metal Consumer Unit ( LSMC18M-SP )
- 4 Blanks: Allows for custom configuration and future expansion.

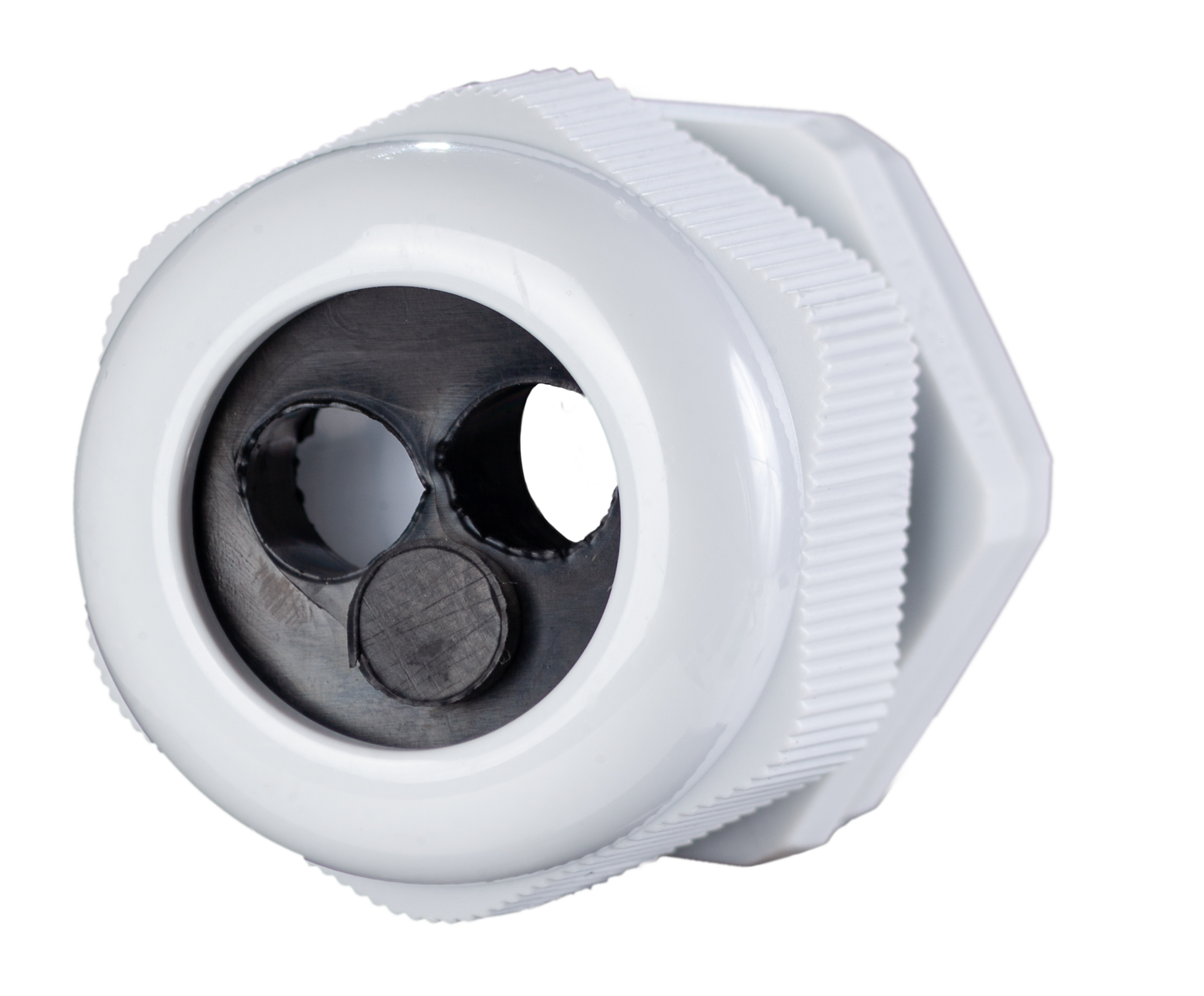

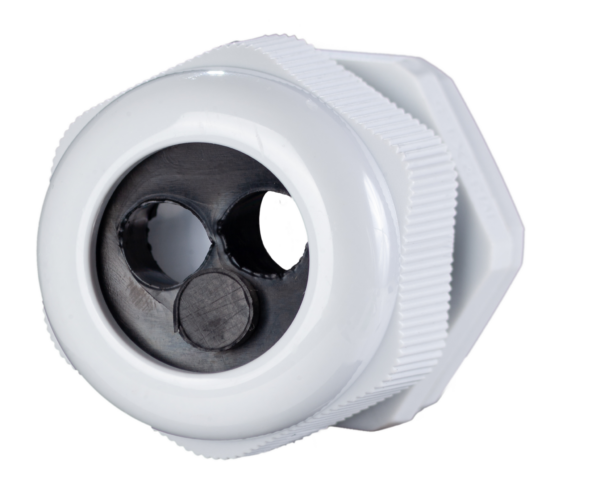

- Free Meter Tails Gland (32mm): Provides a secure and reliable connection to your metering equipment.

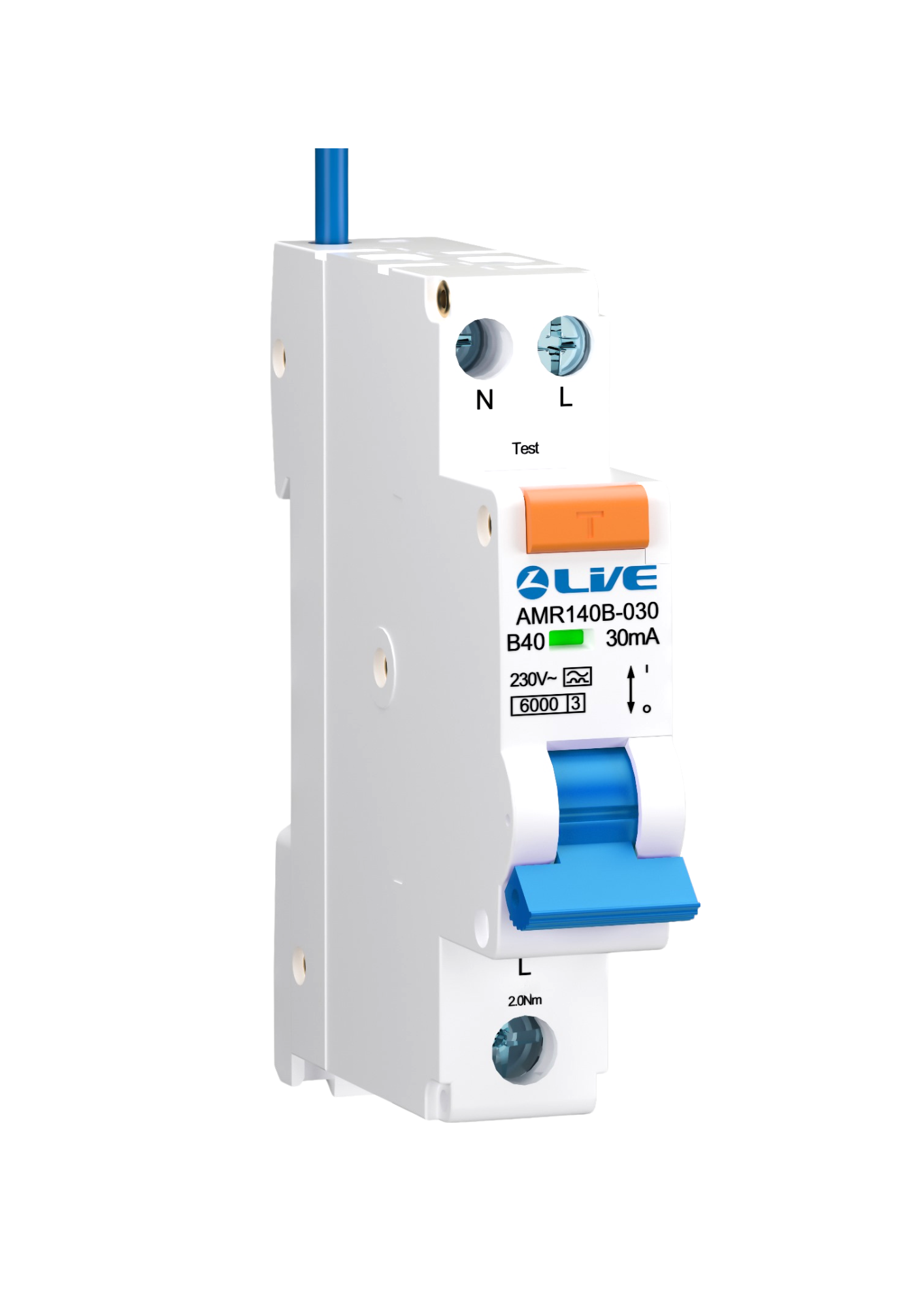

- 11 Bi-Directional Type A, Curve B RCBOs: Specially designed for solar PV installations, these RCBOs are sensitive in both directions to detect and interrupt fault currents effectively, ensuring safety in diverse electrical environments. Customers can choose the amperage that best suits their needs at checkout, allowing for personalised protection levels. These RCBOs are compliant with Amendment 3 BS 7671:2018+A3:2024 of the wiring regulations, ensuring up-to-date safety and performance standards.
Why Choose This 15 Way Consumer Unit?
This consumer unit is perfect for properties requiring safe and efficient electrical distribution across multiple circuits. It safeguards your system from overloads and short circuits, ensuring reliable power distribution for large homes or businesses. The 11 Bi-Directional Type A RCBOs are especially suited for solar PV installations, providing advanced fault detection by sensing currents in both directions. This ensures a safer, more reliable system.
Customisable RCBO Options
The kit includes 11 Bi-Directional Type A RCBOs, allowing you to customise the amperage for each circuit (6, 10, 16, 20, 32, or 40A). You can specify your required amperage during checkout, ensuring the unit is tailored to your property’s specific electrical needs. These RCBOs are compliant with Amendment 3 BS 7671:2018+A3:2024 of the wiring regulations, guaranteeing the highest level of safety.
Key Features:
- 15-Way Capacity: Ideal for managing multiple circuits, suitable for residential properties or commercial setups.
- 100A Main Switch: Provides reliable control over your entire electrical system.
- 11 Bi-Directional Type A RCBOs: Customizable amperage options for each circuit, ideal for solar PV systems and other high-demand installations.
- Surge Protection Device (SPD): Built-in SPD (20/40kA) offers reliable protection against power surges, safeguarding your equipment.
- Compliant with BS 7671: Fully compliant with the 18th Edition Wiring Regulations (BS 7671) and Amendment 3 BS 7671:2018+A3:2024, ensuring safety for all installations.
- Future Expansion: Includes 4 blank slots, allowing for future circuit additions.
- Multiple Cable Entry Knock-Outs: Features 25mm and 32mm knock-outs on the top, bottom, sides, and rear for flexible cable routing and easy installation.
- Secure Installation: Raised key holes and DIN rail make installation easier and more secure.
Product Benefits:
- Perfect for Properties with High Electrical Demands: Whether for homes or businesses, this unit ensures efficient electrical distribution and protects against overloads.
- Advanced Fire and Surge Protection: The fully enclosed metal construction improves fire safety, while the built-in SPD prevents damage from power surges.
- Customisable Circuit Protection: Tailor each circuit to your needs by selecting the appropriate amperage for your RCBOs, ensuring optimized protection.
Certifications and Compliance
This consumer unit complies with the 18th Edition Wiring Regulations (BS 7671) and Amendment 3 BS 7671:2018+A3:2024, providing the highest safety standards for modern electrical installations. Additionally, the fully enclosed metal enclosure meets Amendment 3 fire safety standards, offering enhanced protection compared to plastic enclosures.
Technical Specifications of Live Electrical 15 Way SPD Metal Consumer Unit Kit
- Model: Live Electrical 15 Way SPD Metal Consumer Unit (LSMC18M-SP)
- Dimensions (W x H x D): 388 x 270 x 110 mm
- Standard: BSEN61008, BS EN60898, BS EN61439-3
- Operating Voltage: 230V/50Hz
- Protection Degree: IP40
- Construction: Robust steel with a drop-down metal lid for easy access.
- Surge Protection: Fitted with 20/40kA DP SPD (SP140 1P+N/1)
- Main Switch: Fitted with 100A DP Main Switch
- Multiple Cable Entry Knock-Outs: 25mm & 32mm on the top and bottom, 32mm on the sides, plus larger rear slots.
- Raised Key Holes: For secure, easy installation.
- Raised DIN Rail: Improves cable routing for a cleaner, more organised installation.
- Finish: White polyester powder coating (RAL9010) for a sleek, modern look.
- Flexible Connection: Allows for various configurations of protected ways.
- Free Meter Tails Gland: Includes a 32mm meter tails gland for secure connection to metering equipment.
FAQs:
- What is a 15-way consumer unit used for?
- It manages and protects multiple circuits, making it ideal for larger properties or businesses with high electrical demands.
- How does the 100A main switch improve safety?
- The 100A main switch allows the entire system to be isolated for maintenance or in the event of an emergency, ensuring safe operation.
- Is this unit compliant with UK wiring regulations?
- Yes, this consumer unit is fully compliant with the 18th Edition Wiring Regulations (BS 7671) and Amendment 3 BS 7671:2018+A3:2024, ensuring it meets the highest safety standards.
Why Metal Enclosures Matter – Amendment 3 Compliance
The fully enclosed metal body of this consumer unit meets the stringent fire safety standards of Amendment 3. Metal enclosures provide better fire resistance compared to plastic, offering additional protection for homes and businesses.
Live Electrical designs consumer units using cutting-edge technology, ensuring superior safety, reliability, and compliance with modern electrical standards, making them the trusted choice for both residential and commercial installations.
For top-quality electrical installations, Live Electrical Consumer Units are an essential choice. Available with integrated Surge Protection Devices (SPD), our Live Electrical SPD Consumer Units provide superior protection for sensitive devices and electrical systems. Whether you’re working on a domestic or commercial project, these units offer the perfect balance of protection and performance, ensuring compliance with modern safety standards.
