Live Electrical TPN06-125 125A 6 Way TPN Distribution Board
Live Electrical 125A 6 Way Three Phase Distribution Board
The Live Electrical TPN06-125 125A 6 Way TPN Distribution Board is engineered for optimal performance and ease of installation. Suitable for both commercial and domestic applications, this three-phase distribution board is ideal for managing high volume circuits and providing reliable power distribution.
Key Features:

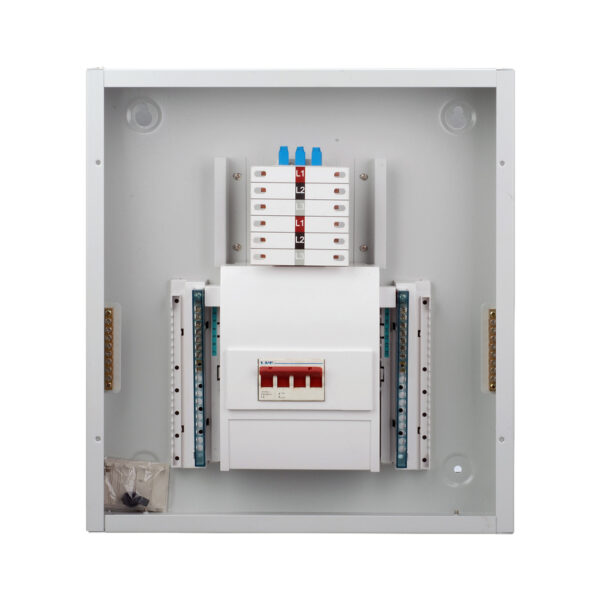

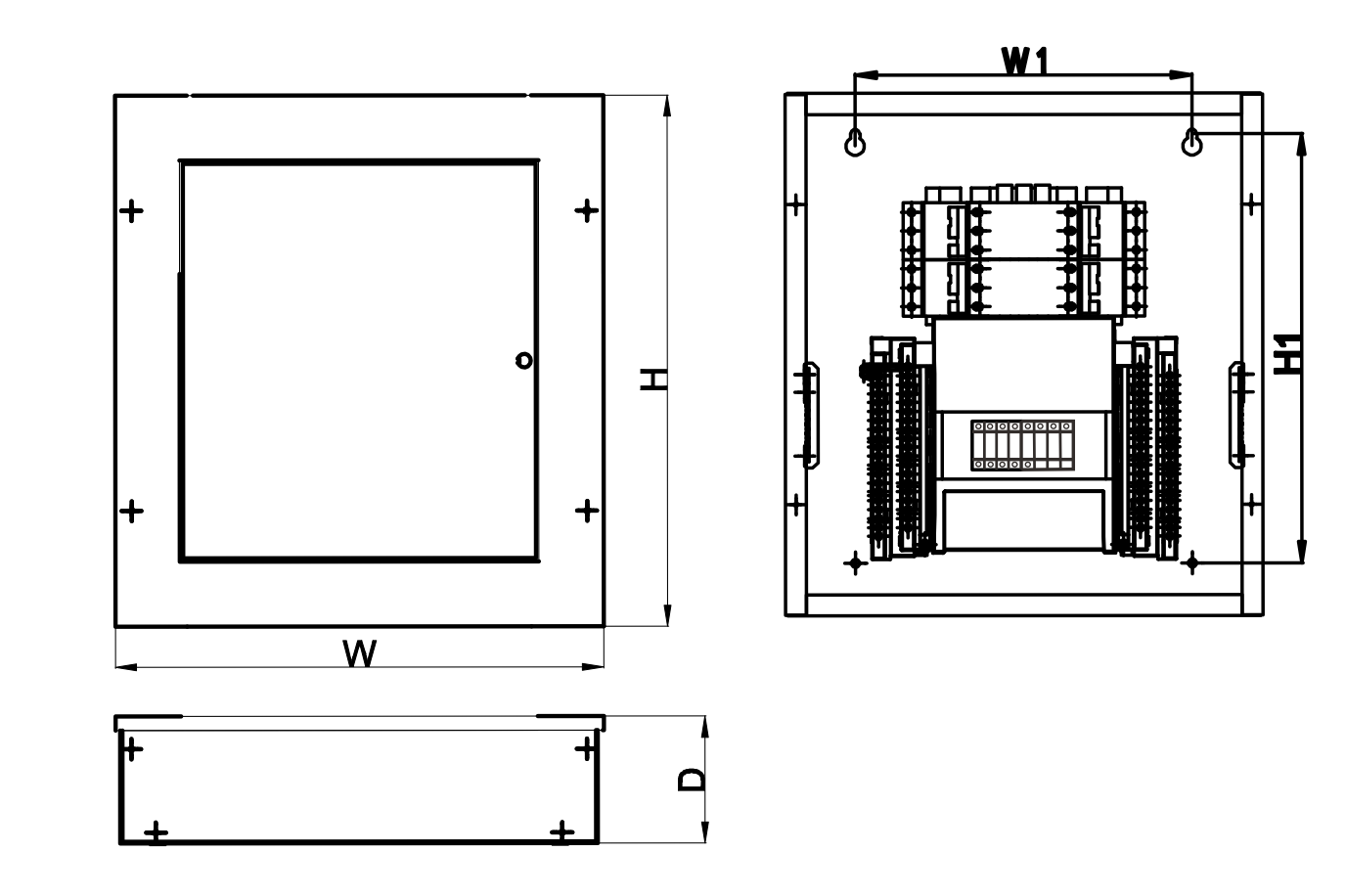

- Dimensions: H: 560mm, H1: 463mm, W: 465mm, W1: 321mm, D: 105mm (Pictures show TPN04-125)
- Capacity: 125A Main Incomer Switch, 6 Three Pole ways, or 18 Single ways
- Section Neutral & Earth Terminal: Fitted on both sides for quicker installation
- Fully Enclosed Busbar System: Ensures safety and reliability
- Complete Shrouding: For main incomer and link for added protection
- Removable Gland Plate: Facilitates ease of cable entry
- Keyhole Fixing: Simplifies wall mounting
- Modern Style: Finished in epoxy powder paint to RAL7035
Benefits:
- Efficient Installation: Earth and neutral terminals are adjacent to the MCBs / RCBOs, speeding up the installation process.
- High Capacity: Handles a maximum loading current of 125A
- Safety Compliance: Meets BS EN 61439-3 standards, ensuring high safety and quality.
- Versatility: Suitable for both three-phase and single-phase installations, thanks to the single-phase kit.
- Optional Surge Protection: Available with optional surge protection device (SPD).
Applications:
- Domestic Installations: Ideal for homes requiring high volume circuits and 400V equipment.
- Commercial Installations: Suitable for office buildings, retail spaces, and other commercial properties.
- Industrial Settings: Provides reliable power distribution for machinery and equipment.
Technical Specifications:
- Rated Voltage: AC380V/415V 50/60Hz
- Maximum Loading Current: 125A
- Compliance: Meets BS EN 61439-3 standards
- Finish: Epoxy powder paint to RAL7035
