Description
Live Electrical TPN04-125 125A 4 Way TPN Distribution Board

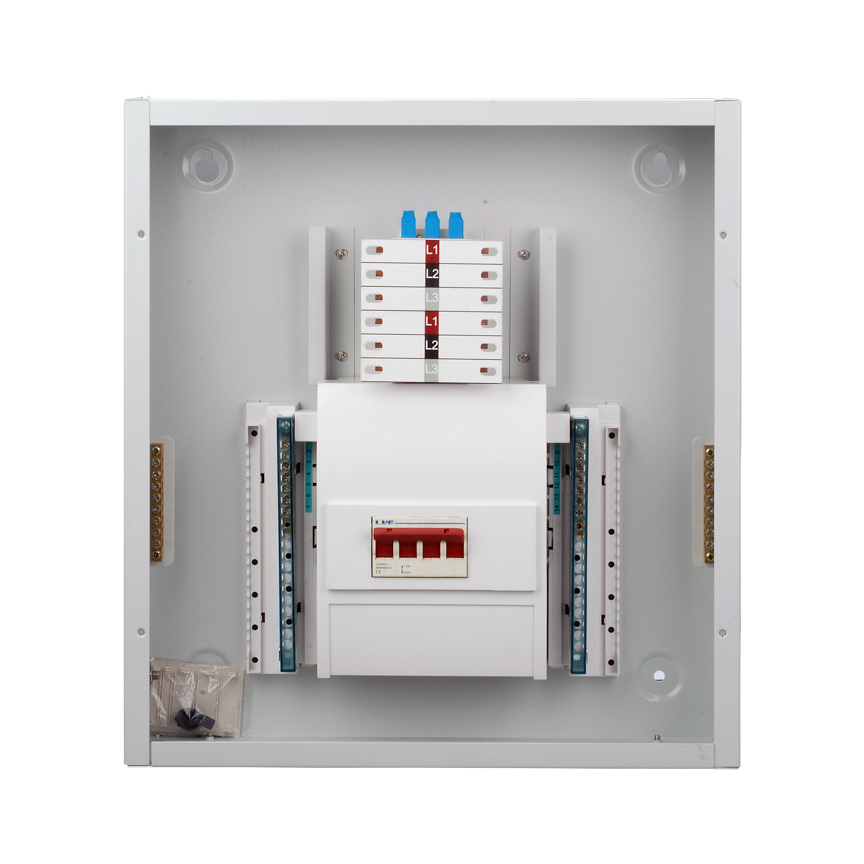

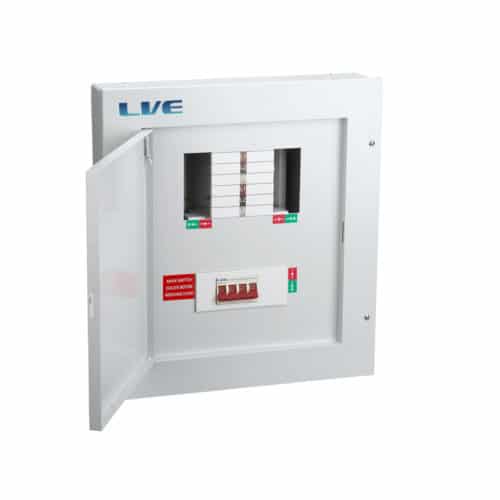

Live Electrical 125A 4 Way Three Phase Distribution Board
The Live Electrical 125A 4 Way Three Phase Distribution Board is engineered for optimal performance and ease of installation. It is ideal for both commercial and domestic applications requiring high volume circuits and reliable distribution of electrical power. This distribution board comes complete with a 125A main incomer switch, ensuring robust and efficient power management.
Key Features:

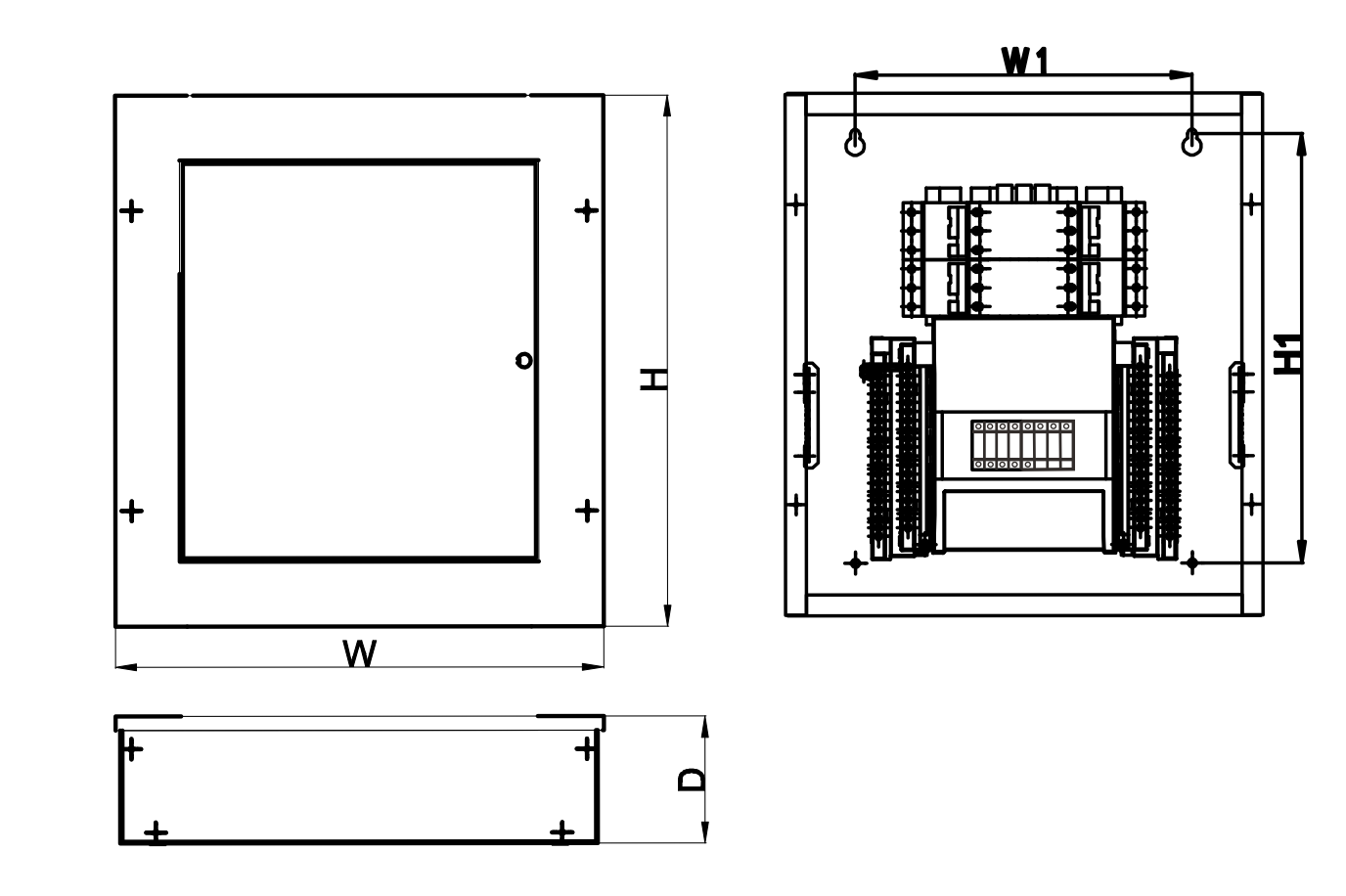

- Dimensions: H: 506mm, H1: 409mm, W: 465mm, W1: 321mm, D: 105mm
- Capacity: 125A Main Incomer Switch, 4 Three Pole ways, or 12 Single ways
- Section Neutral & Earth Terminal: Fitted on both sides for quicker installation
- Fully Enclosed Busbar System: Ensures safety and reliability
- Complete Shrouding: For main incomer and link for added protection
- Removable Gland Plate: Facilitates ease of cable entry
- Keyhole Fixing: Simplifies wall mounting
- Modern Style: Finished in epoxy powder paint to RAL7035
Benefits:
- Efficient Installation: Earth and neutral terminals are adjacent to the MCBs / RCBOs, speeding up the installation process.
- High Capacity: Handles a maximum loading current of 125A.
- Safety Compliance: Meets BS EN 61439-3 standards, ensuring high safety and quality.
- Versatility: Suitable for both three-phase and single-phase installations, thanks to the single-phase kit.
- Optional Surge Protection: Available with optional surge protection device (SPD).
Applications:
- Domestic Installations: Ideal for homes requiring high volume circuits and 400V equipment.
- Commercial Installations: Suitable for office buildings, retail spaces, and other commercial properties.
- Industrial Settings: Provides reliable power distribution for machinery and equipment.
Technical Specifications:
- Rated Voltage: AC380V/415V 50/60Hz
- Maximum Loading Current: 125A
- Compliance: Meets BS EN 61439-3 standards
- Finish: Epoxy powder paint to RAL7035
