Description

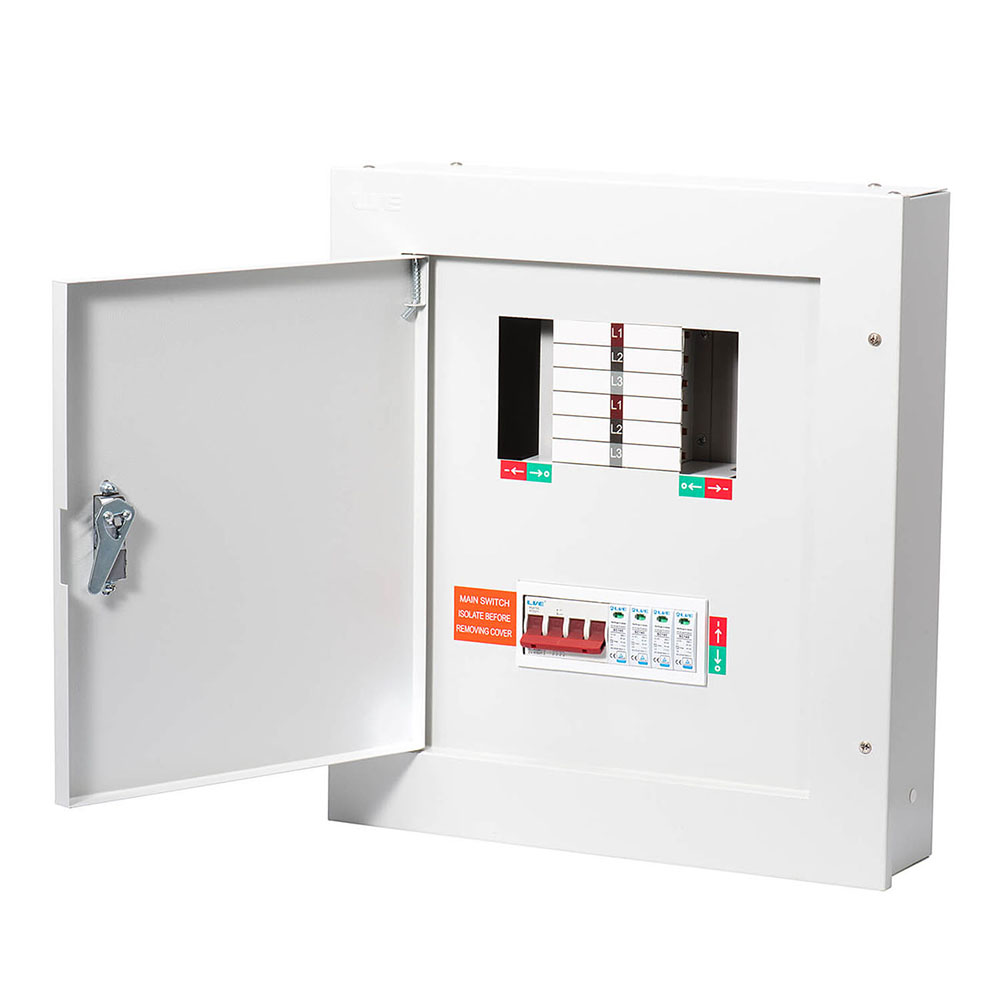

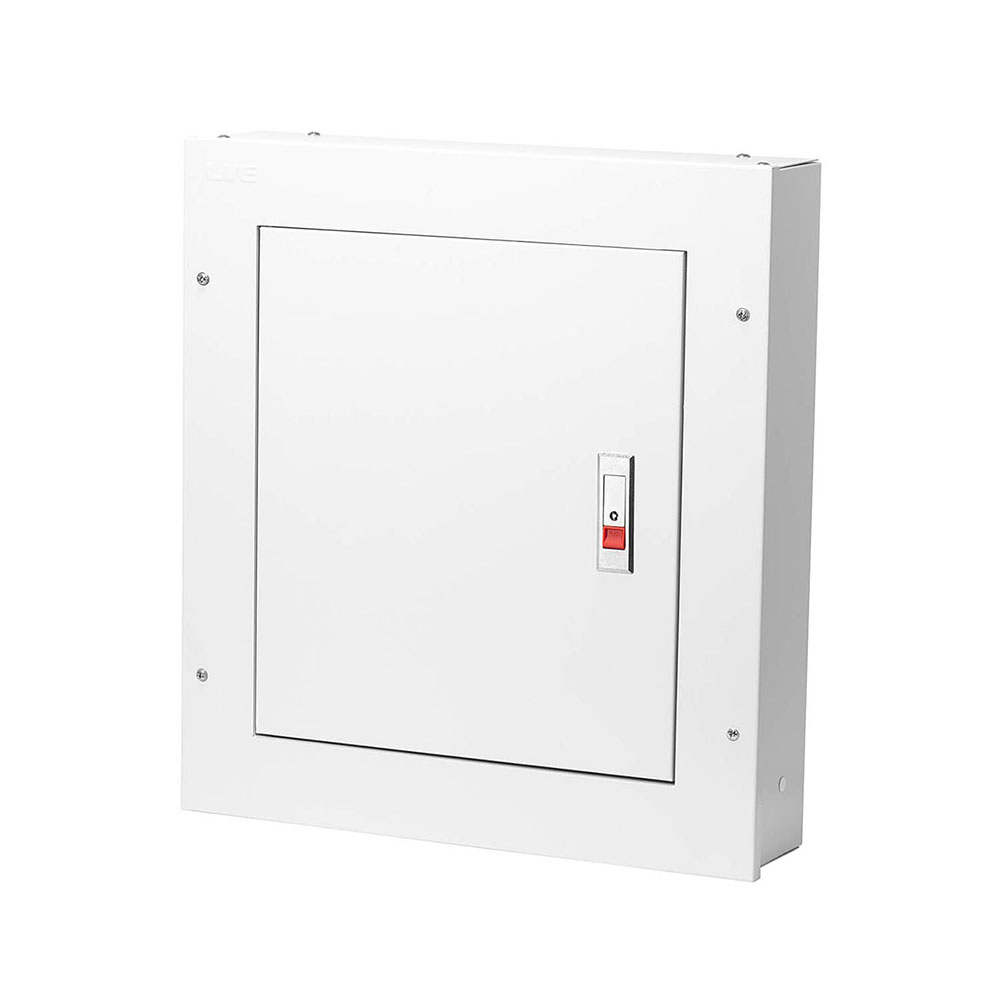

125 Amp 4 Way TPN Distribution Board with SPD
Live Electrical TPN04-125S
Upgrade your electrical setup with the Live Electrical 125 Amp 4 Way TPN Distribution Board, complete with a Main Switch and Surge Protection Device (SPD). This board ensures reliable performance and enhanced safety for both residential and commercial applications.
Key Features of Live Electrical 4 Way SPD TPN Distribution Board
- Capacity: 125A Main Switch and SPD for robust protection

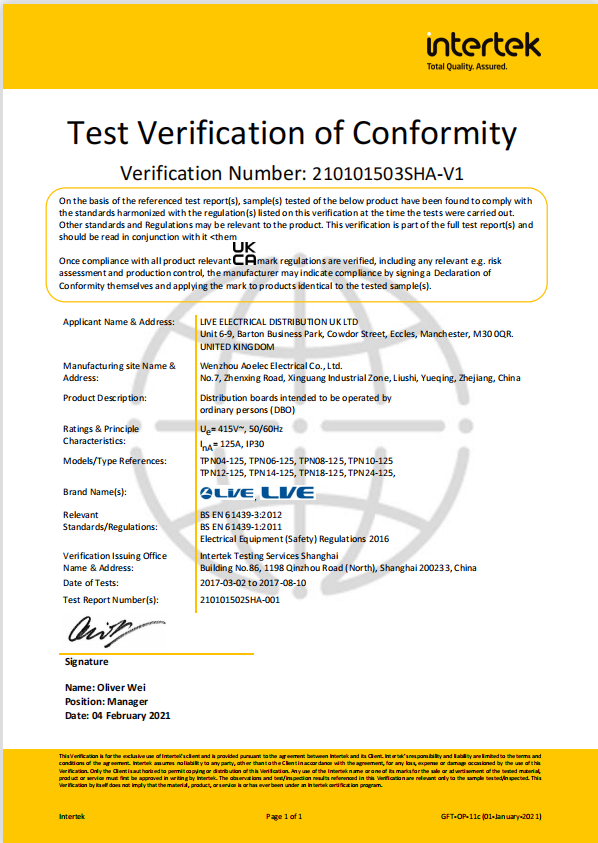

- Compliance: Meets BS EN 61439-3 standards, 18th Edition Compliant

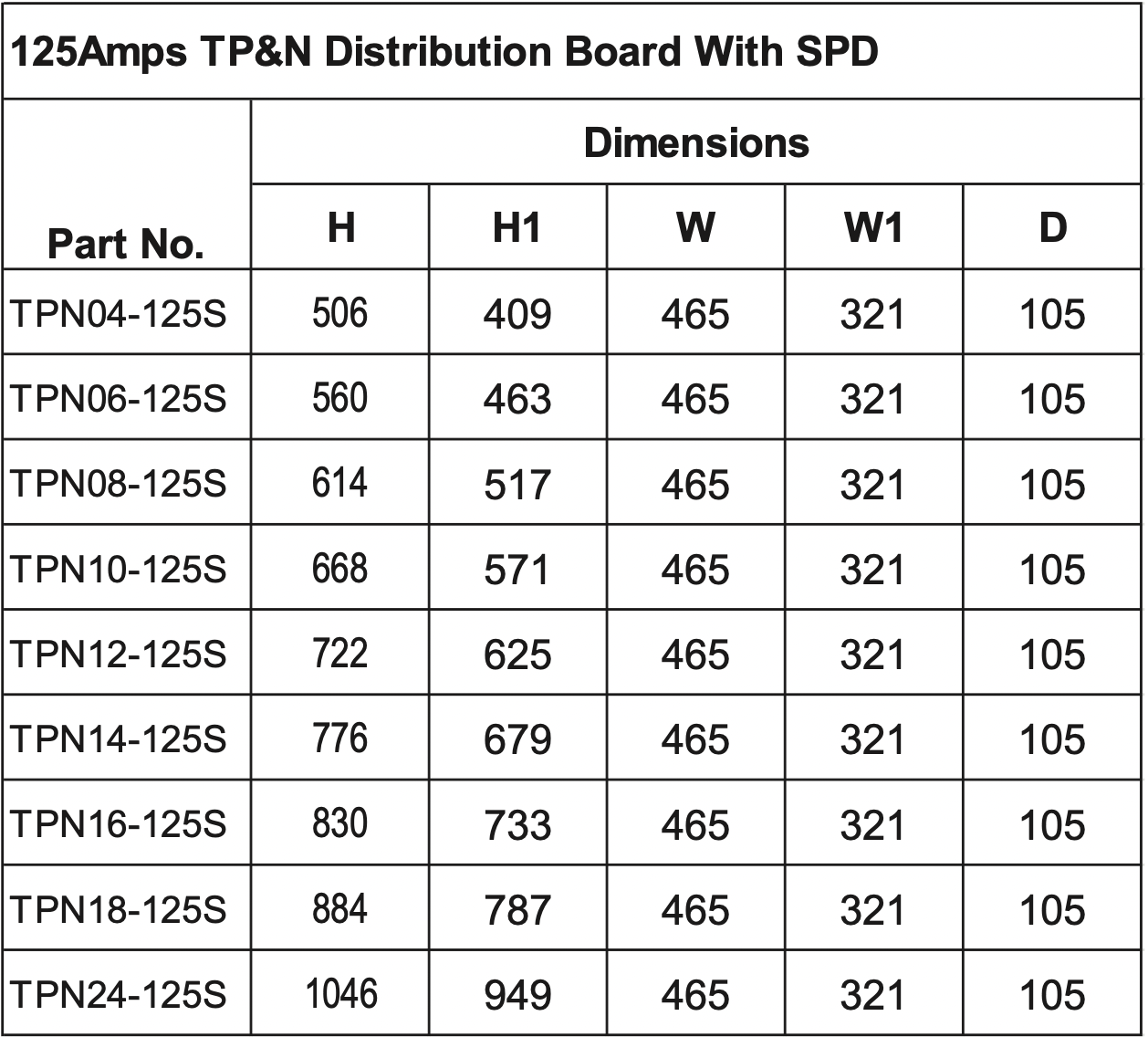

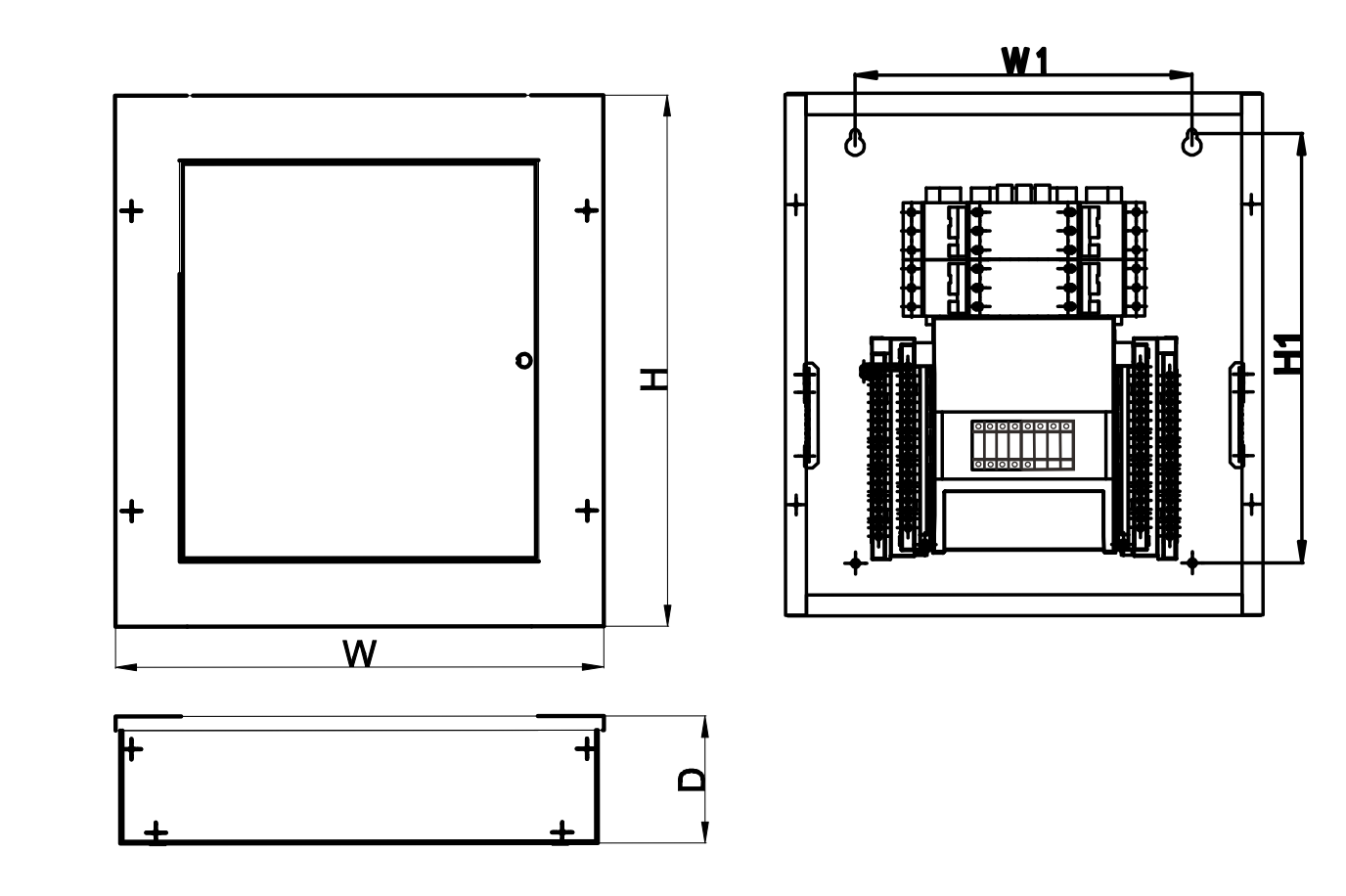

- Dimensions: H: 506mm, H1: 409mm, W: 465mm, W1: 321mm, D: 105mm
- Design: Modern style finished in epoxy powder paint to RAL7035
- Functionality: Section Neutral & Earth terminals fitted on both sides, complete shrouding for main incomer and link
- Convenience: Quick installation with earth & neutral terminals adjacent to the MCBs/RCBOs, removable gland plate for easy cable entry, keyhole fixing for simple wall mounting
- Safety: Fully enclosed busbar system
Specifications:
- Rated Voltage: AC380V/415V 50/60Hz
- Maximum Loading Currents: 125A
Additional Features:
- Faster and easier installation with adjacent earth and neutral terminals
- Complete with main switch and surge protection device
- Easy cable entry with removable gland plate
Scroll down to the bottom of the page to add the protective devices and accessories you need for a complete setup.
Choose the Live Electrical 125 Amp 4 Way TPN Distribution Board for a reliable, compliant, and efficient electrical solution.
