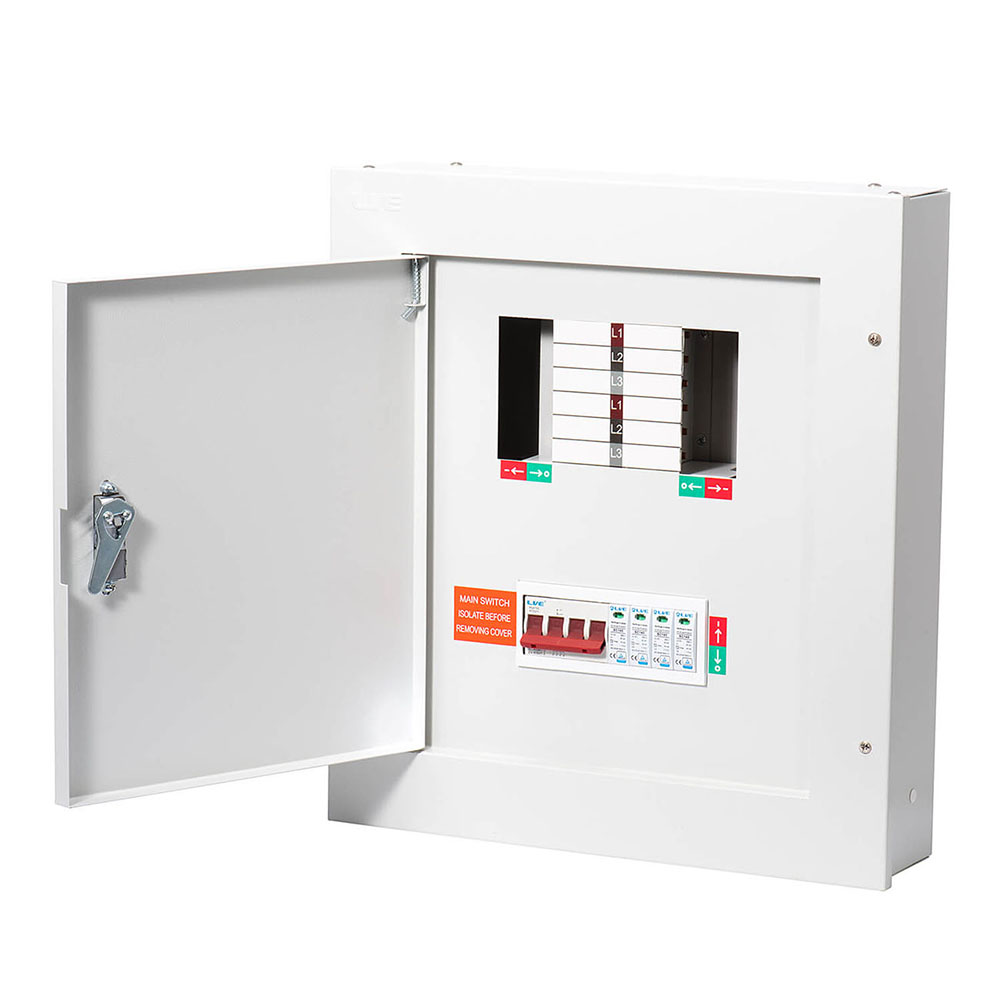

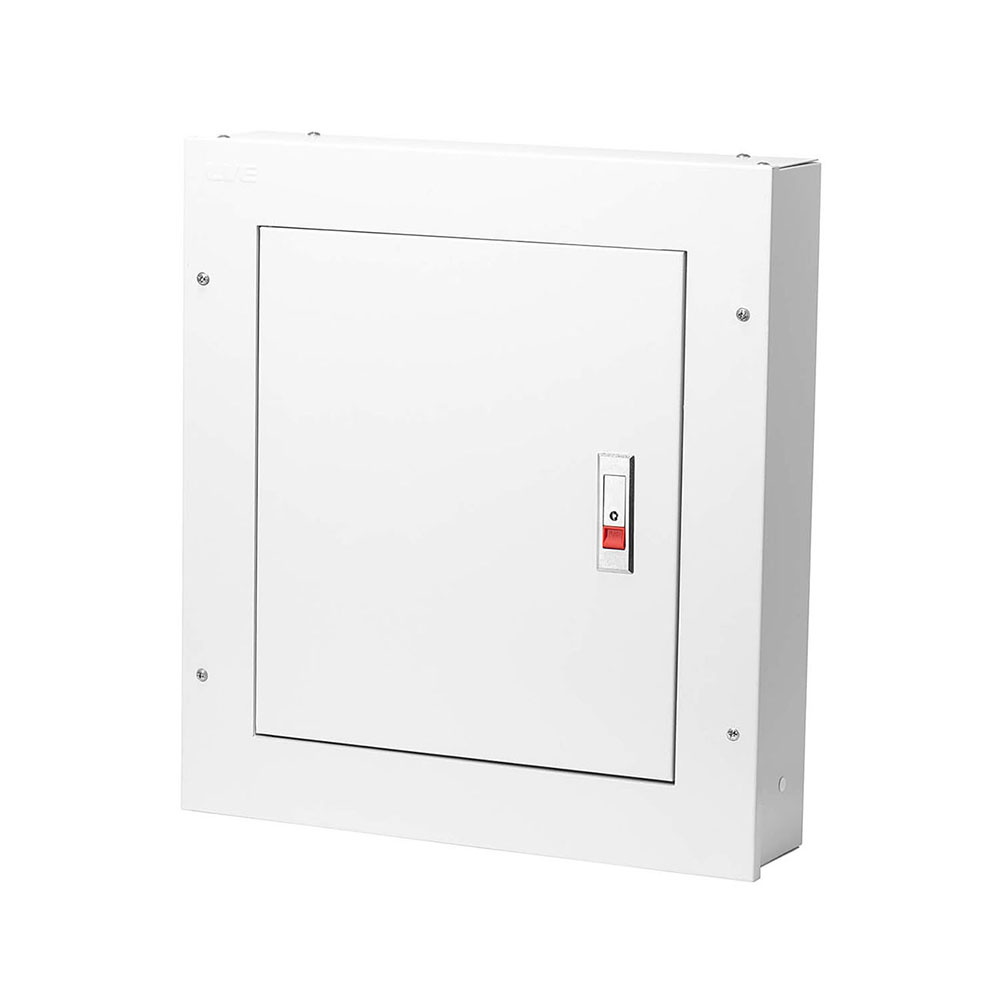

125 Amp 16 Way TPN Distribution Board with SPD
Live Electrical TPN16-125S

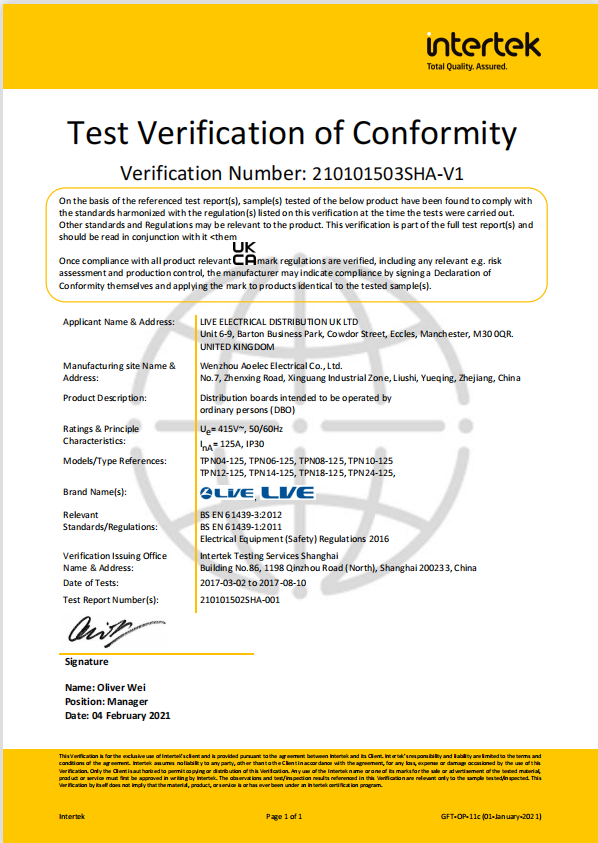

The Live Electrical 125 Amp 16 Way TPN Distribution Board with SPD is a robust and reliable solution for managing three-phase power distribution. It features a 125A Main Switch and a built-in Surge Protection Device (SPD), ensuring superior protection against overloads, short circuits, and voltage surges. This distribution board is ideal for commercial and industrial applications and is fully compliant with 18th Edition Wiring Regulations and BS EN 61429-3.
Key Features of 16 Way TPN Distribution Board with SPD
- High Capacity: Rated for AC380V/415V, 50/60Hz, and maximum loading currents of 125A.
- Integrated SPD: Protects against power surges and ensures safety for sensitive equipment.
- Modern Finish: Coated in epoxy powder paint (RAL7035) for a professional, corrosion-resistant appearance.
- Neutral and Earth Terminals: Fitted on both sides for easier and faster connections.
- Ease of Installation:
- Quicker setup with terminals adjacent to MCBs/RCBOs.
- Removable gland plate for convenient cable entry.
- Keyhole fixing for straightforward wall mounting.
- Fully Enclosed Busbar System: Enhances safety and ensures reliable electrical connections.
- Complete Shrouding: Adds protection for the main incomer and link.

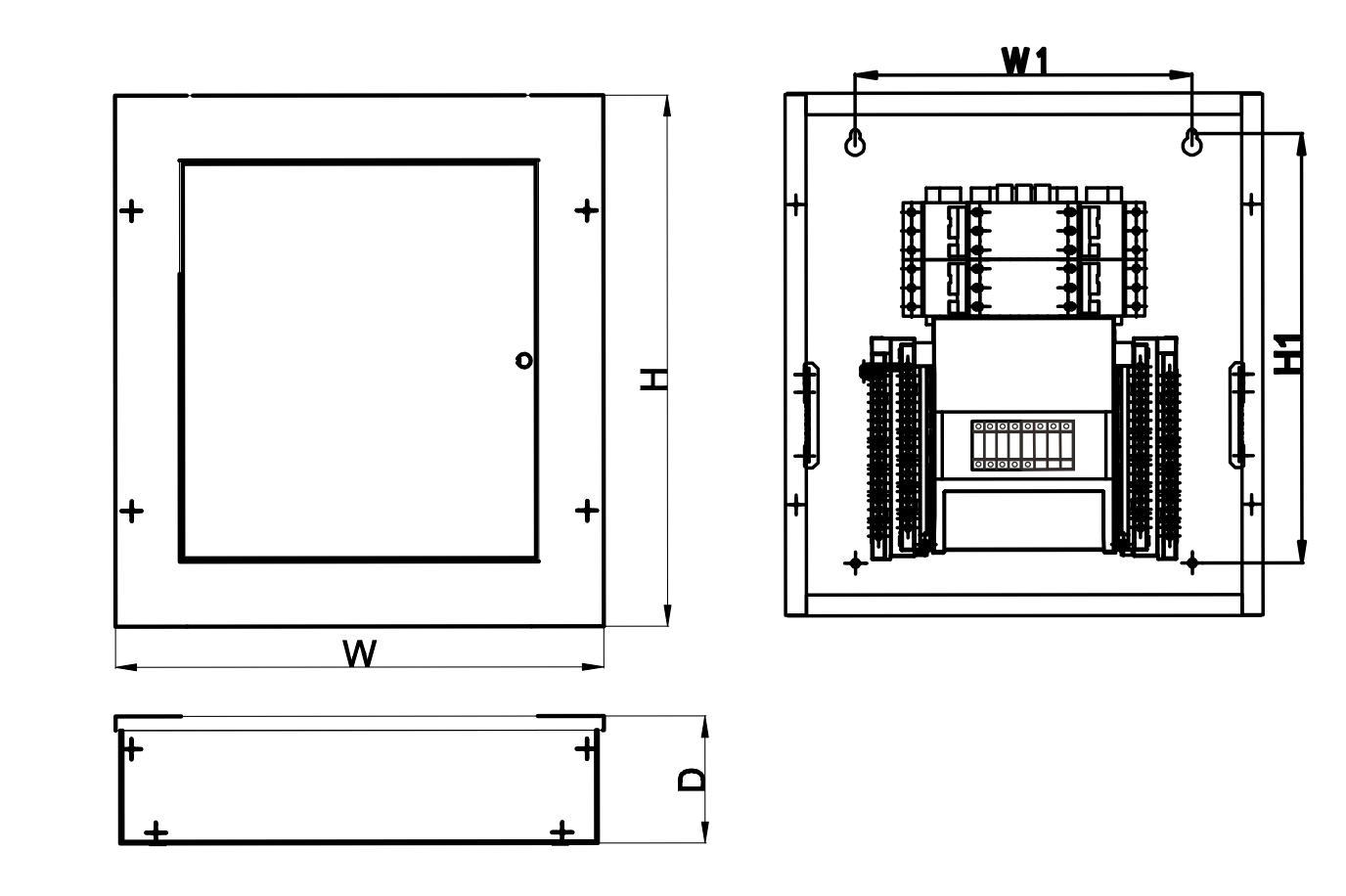

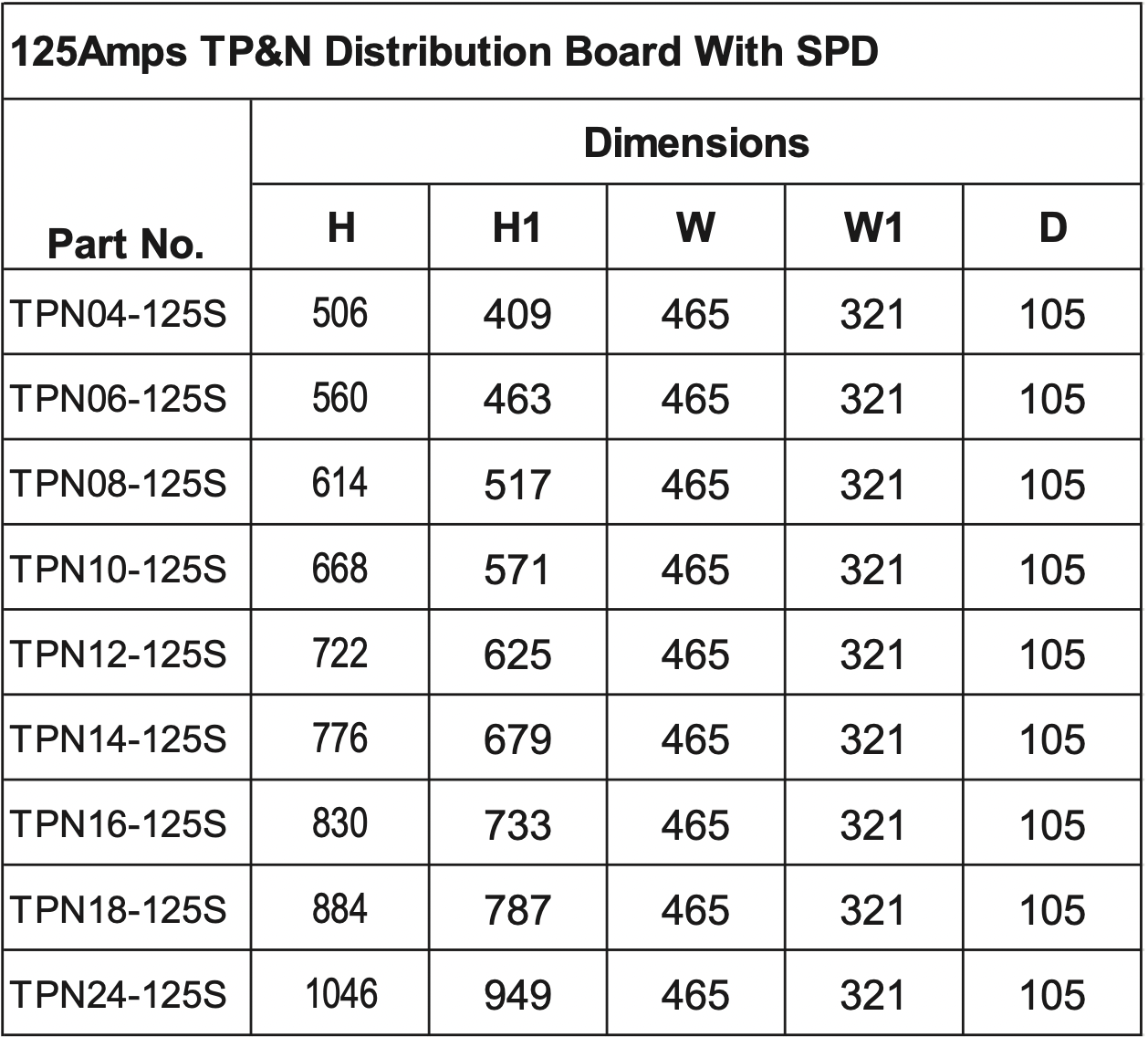

Dimensions (for TPN16-125S):
- Height: 830mm (H1: 733mm)
- Width: 465mm (W1: 321mm)
- Depth: 105mm
Why Choose This Distribution Board?
The Live Electrical 125 Amp 16 Way TPN Distribution Board with SPD offers outstanding reliability, compliance with modern standards, and ease of installation. Its integrated features make it suitable for demanding three-phase power systems, ensuring safety and efficiency in all applications.
Reminder:
Scroll down to select and add the protective devices and accessories needed to complete your installation.
Order now at Electrical4Less for premium circuit protection and exceptional service.
