Description

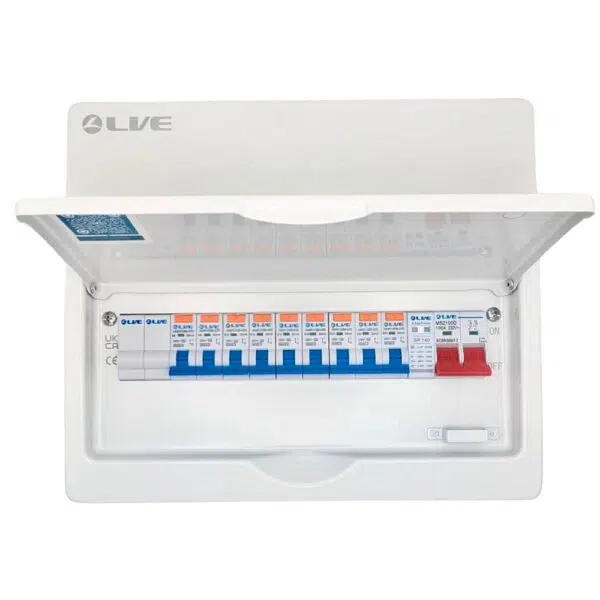

11 Way SPD Metal Consumer Unit Kit with 9 Bi-Directional Type A RCBOs
Explore the capabilities of the Live Electrical 11 Way SPD Metal Consumer Unit, featuring an enhanced 11-way configuration that’s ideal for extensive residential and commercial setups. This robust consumer unit is equipped with advanced safety and efficiency features to support a wide range of electrical applications.
9 RCBO Units of Your Choice
Please specify amperage (6,10,16,20,32,40A) when placing your order at the checkout.
Included in the Kit / Bundle
- Live Electrical 11 Way SPD Metal Consumer Unit ( LSMC14M-SP )

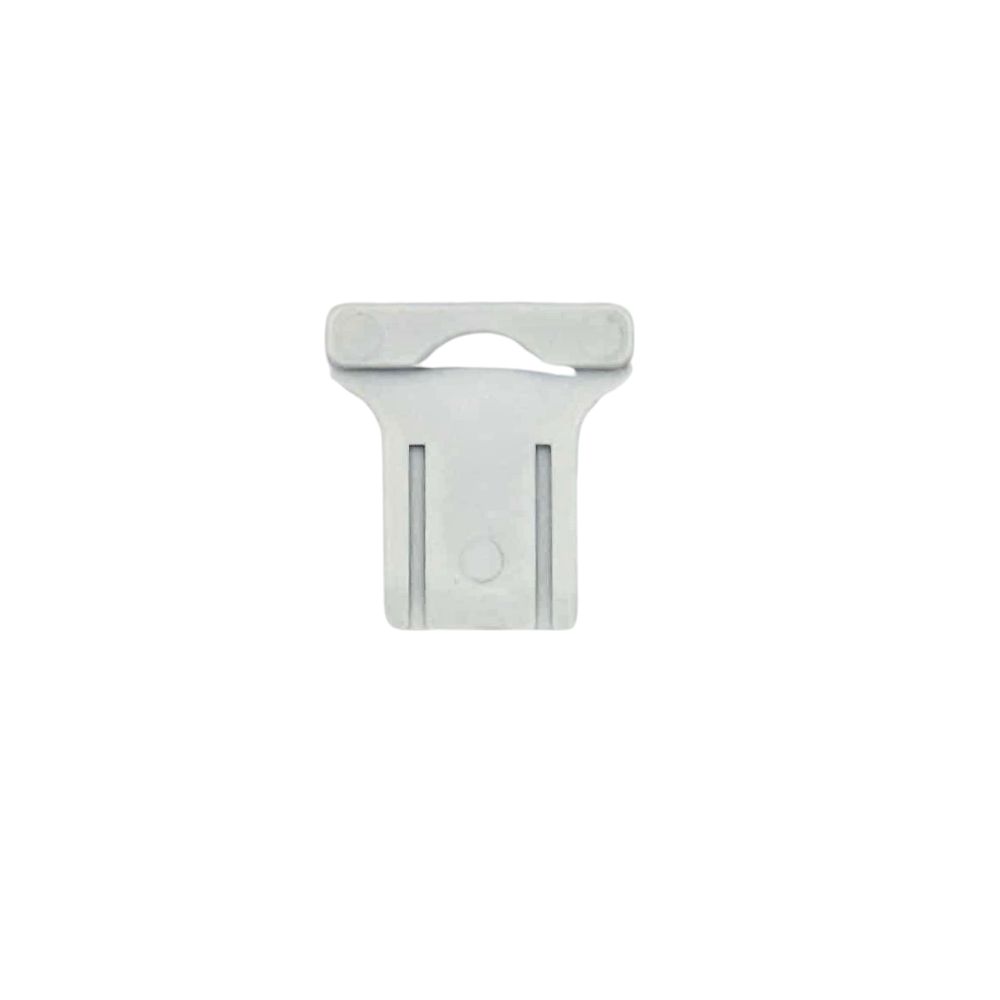

- 2 Blanks: Allows for custom configuration and future expansion.

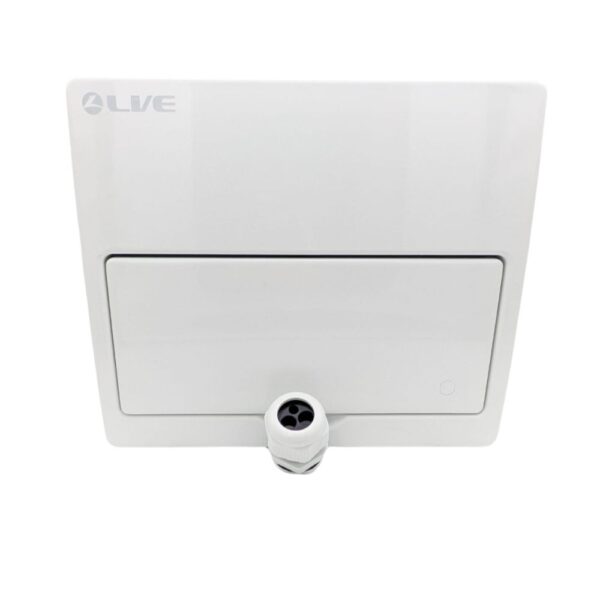

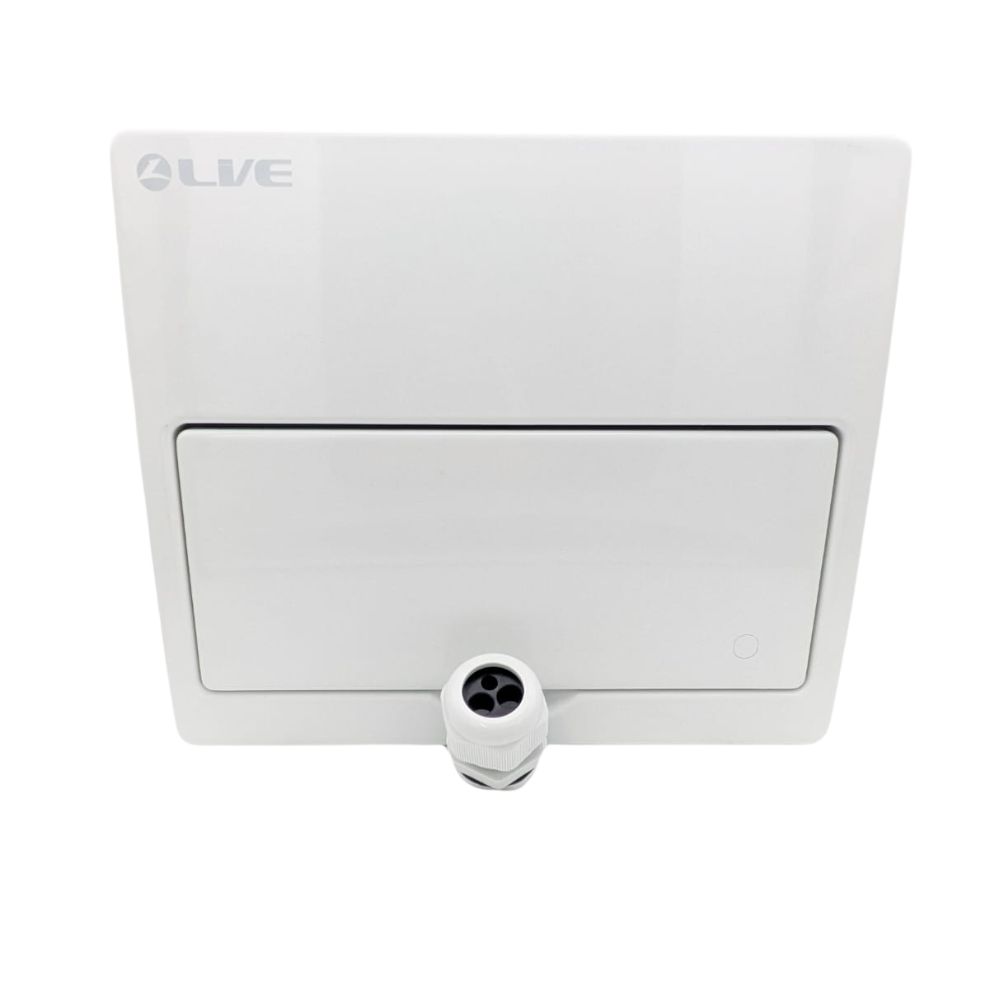

- Free Meter Tails Gland (32mm): Provides a secure and reliable connection to your metering equipment.

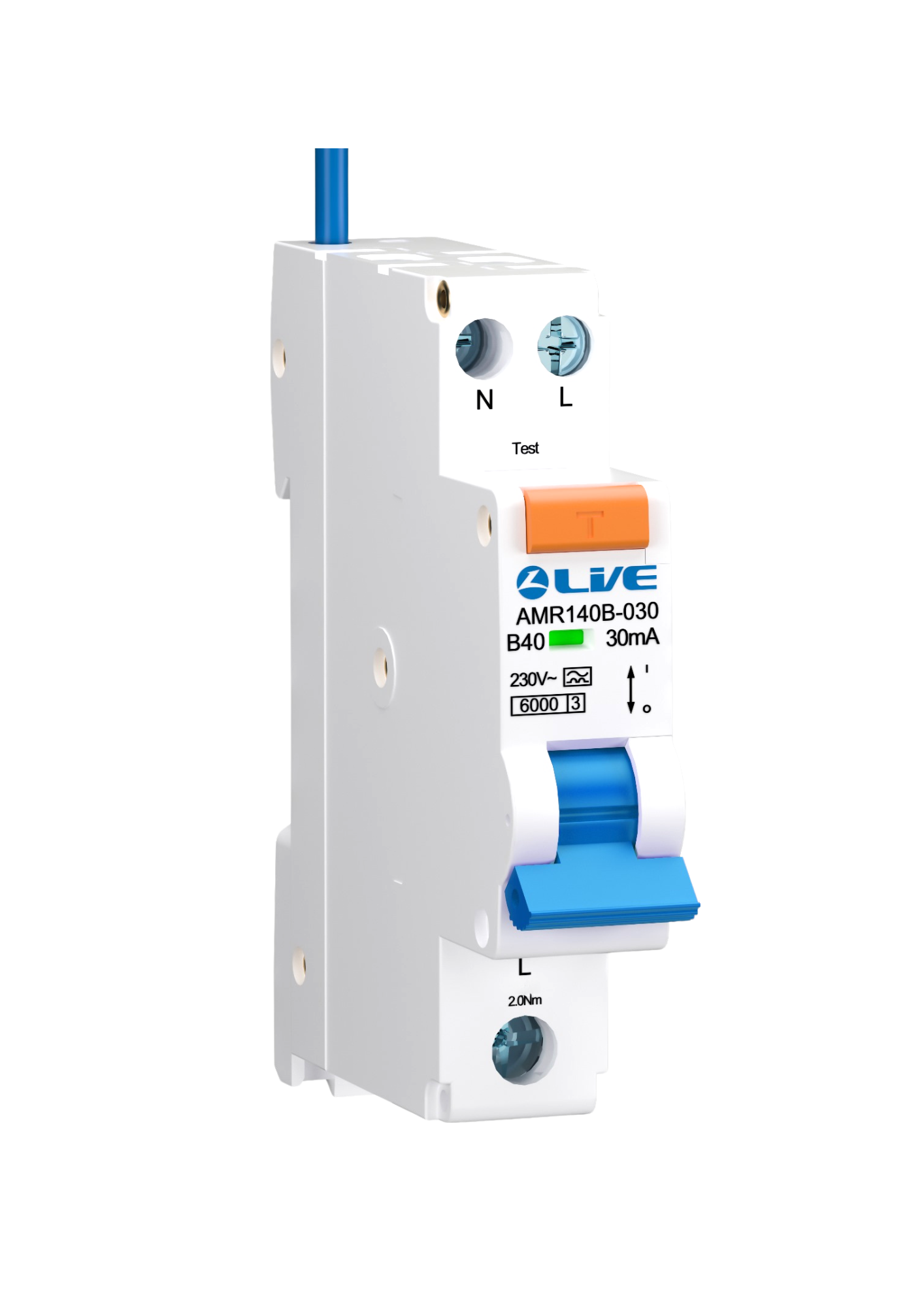

- 9 Bi-Directional Type A, Curve B RCBOs: Specially designed for solar PV installations, these RCBOs are sensitive in both directions to detect and interrupt fault currents effectively, ensuring safety in diverse electrical environments. Customers can choose the amperage that best suits their needs at checkout, allowing for personalised protection levels. These RCBOs are compliant with Amendment 3 BS 7671:2018+A3:2024 of the wiring regulations, ensuring up-to-date safety and performance standards.
Technical Specifications of the Live Electrical 11 Way SPD Consumer Unit Kit

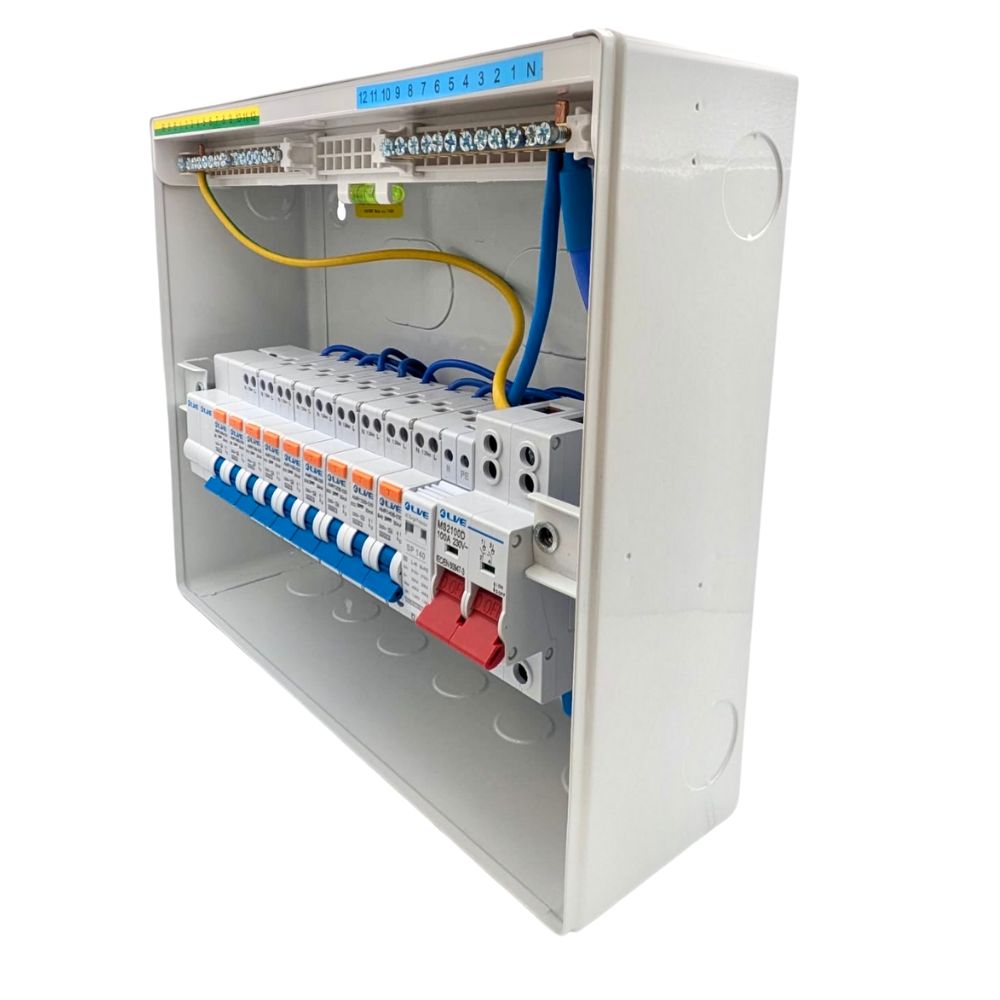

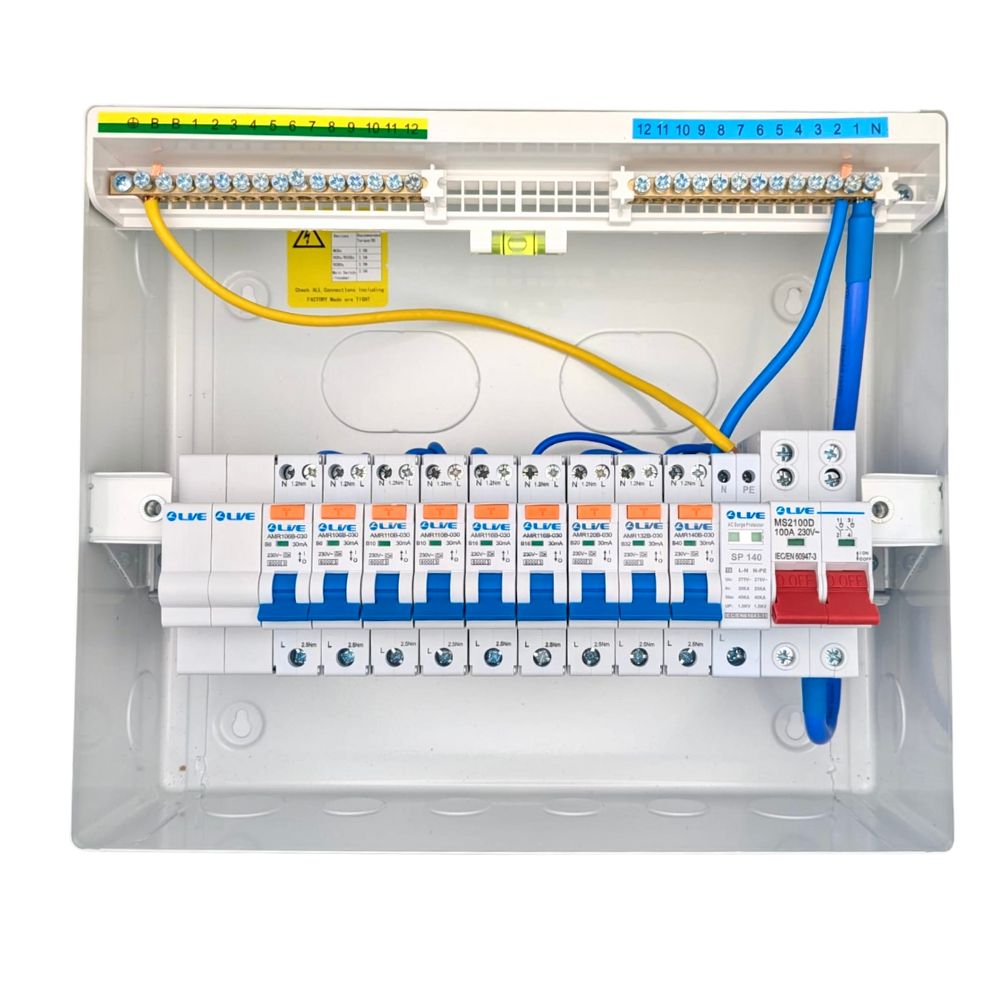

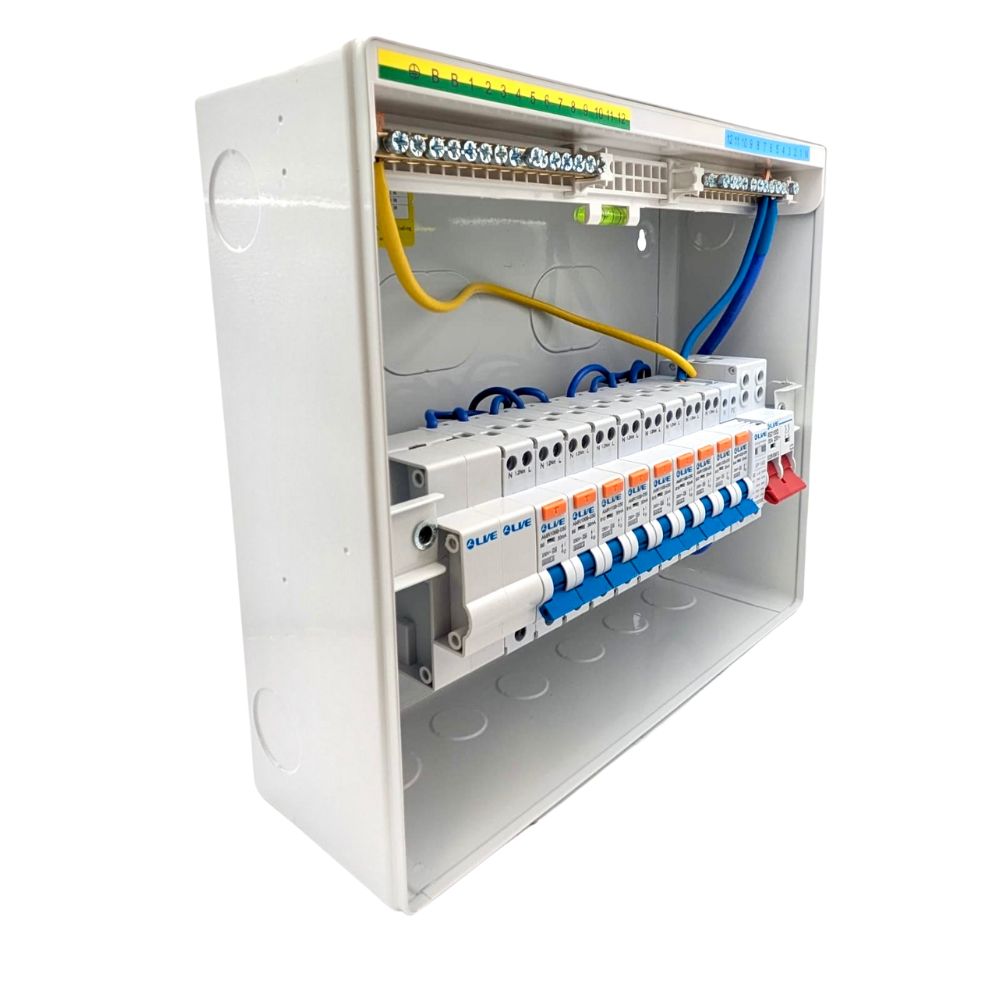

- Consumer unit enclosure supplied with neutral cable, busbar, neutral & earth terminals, DIN rail
- Fitted with 20/40kA DP SPD (SP140 1P+N/1)
- Fitted with DP 100A Main Switch
- Dimensions (W x H x D): 316 x 270 x 110 mm
- Standard: BSEN61008, BS EN60898, BS EN61439-3
- Operating Voltage: 230V/50Hz
- Protection Degree: IP40
- Material: manufactured from robust steel

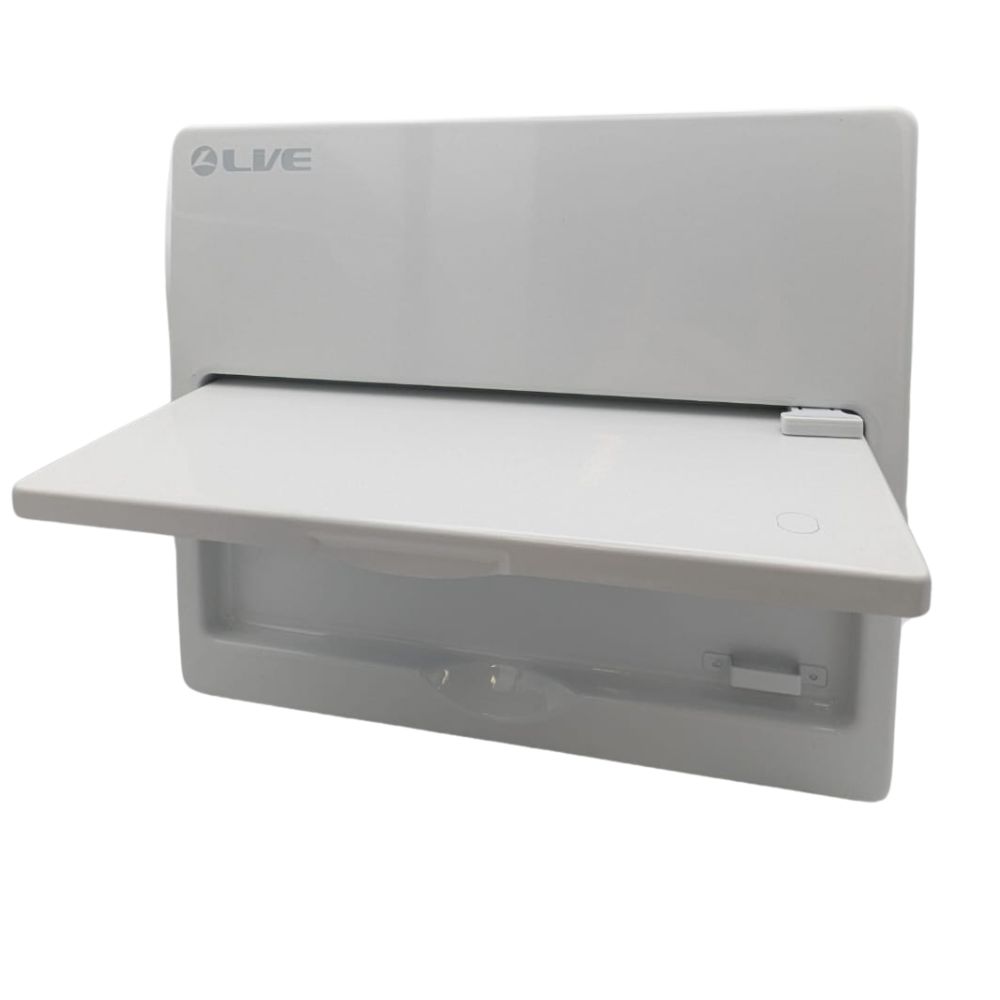

- Fully enclosed metal construction body with drop down metal lid

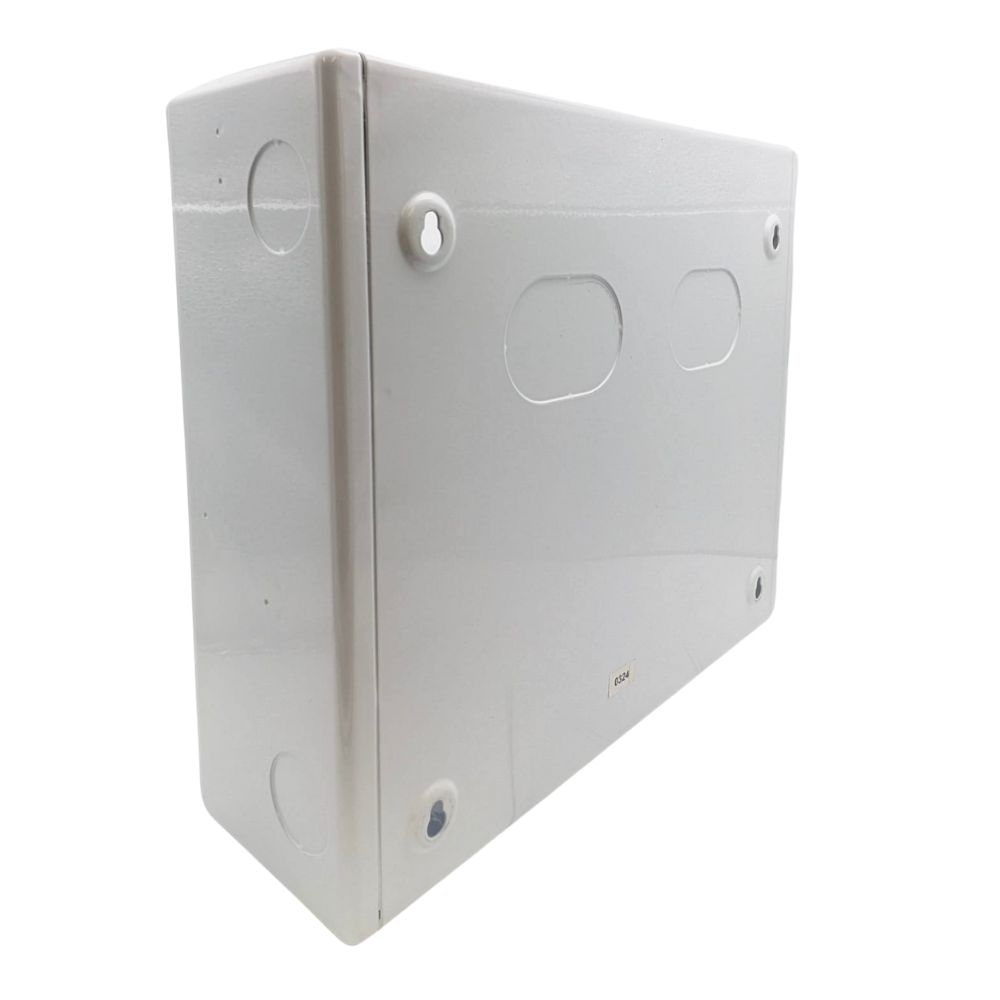

- Multiple circular cable entry knock-outs (25&32 mm) on the top and bottom, 32 mm on the sides, and back plus larger rear slots
- Raised key holes for secure easy installation
- Raised Din rail improves cable routing
- Modern style finished in white polyester powder coating to RAL9010
- Large and accessible wiring space, with extra space for RCBOs
- Flexible connection allows for various configurations of protected ways
Brand: Live Electrical – Your trusted source for advanced electrical solutions.
This kit is tailored to streamline the installation process and ensure compliance with the latest safety and performance standards, making it an ideal choice for sophisticated and efficient electrical systems.
When safety and reliability are top priorities, choose Live Electrical Consumer Units. With built-in surge protection options available, such as in our Live Electrical SPD Consumer Units, you’ll have peace of mind knowing that your installation is safeguarded from electrical surges and spikes. Designed for quick and easy installation, these units are perfect for a wide range of applications, providing both compliance and enhanced protection.
