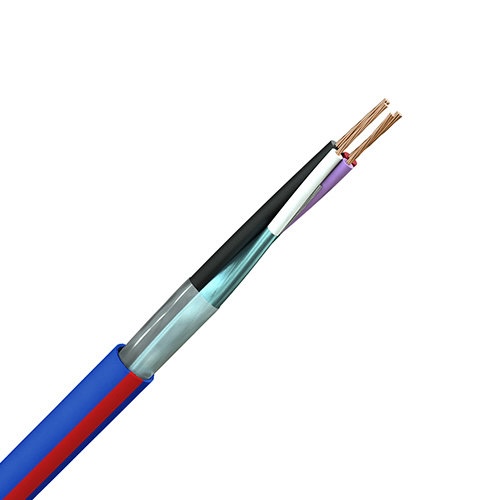

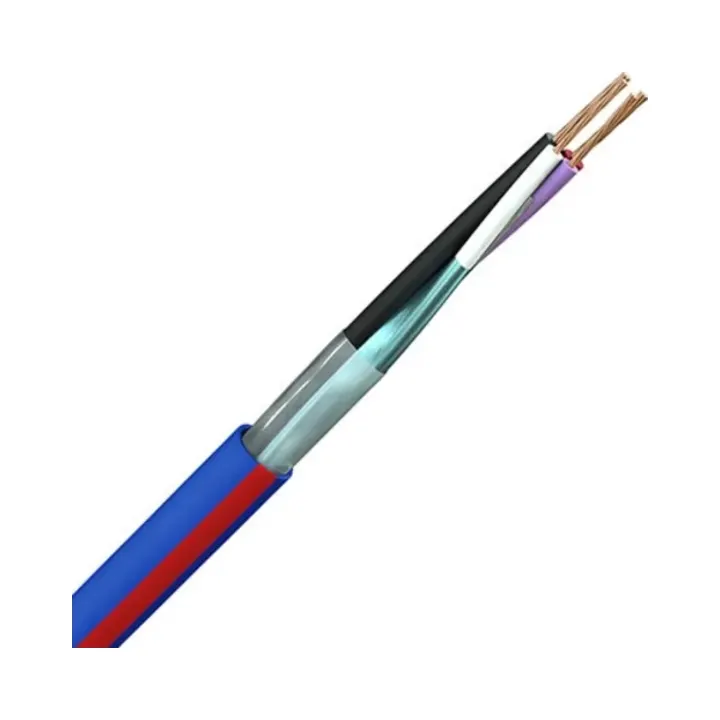

Lighting Control Cable – Length Cut by 1 Meter

Description

Lighting Control Cable – Length Cut by 1 Meter

1 Pair 22awg Foil Screened + 2core 18awg Low Smoke Halogen Free (LSHF).

The lighting control cable is designed to meet the requirements of installers in areas where Low Smoke Zero Halogen (LSZH) is specified by consultants or end clients. This versatile cable is suitable for various applications that require both power and screened cores within the same cable, ensuring reliable performance and safety.

Key Features

• LSZH Construction: Both insulation and sheath are Low Smoke Zero Halogen, ensuring minimal toxic smoke and halogen emission in the event of a fire.
• CPR-Compliant Options: Available for enhanced safety and compliance with regulations.
• Versatile Use: Ideal for lighting control systems and other applications needing power and screened cores.

Technical Specifications

• Data Pair:
  • Conductors: 22(7)AWG tinned copper strands
  • Insulation: Polyethylene
  • Colour Code: Purple & white
  • Conductor Resistance: 58 Ohm/km @ 20°C
  • Capacitance: Core to core 45pF/m nominal
• Power Pair:
  • Conductors: 18(7)AWG tinned copper strands
  • Insulation: Polyethylene
  • Colour Code: Red & black
  • Conductor Resistance: 23 Ohm/km @ 20°C
• Screen: Aluminium/polyester screen with 24(7)AWG tinned copper drain wire
• Nominal Impedance: 120 Ohm
• Voltage Rating: 300V
• Test Voltage: 2.5kV for 5 minutes
• Temperature Rating: 0°C to +70°C
• Smoke Emission: IEC 61034-1 & 2
• Halogen Emission: IEC 60754-1 & 2

Note: This construction data does not apply to 1222LCCH-E00. Please refer to data sheets for more technical information.
