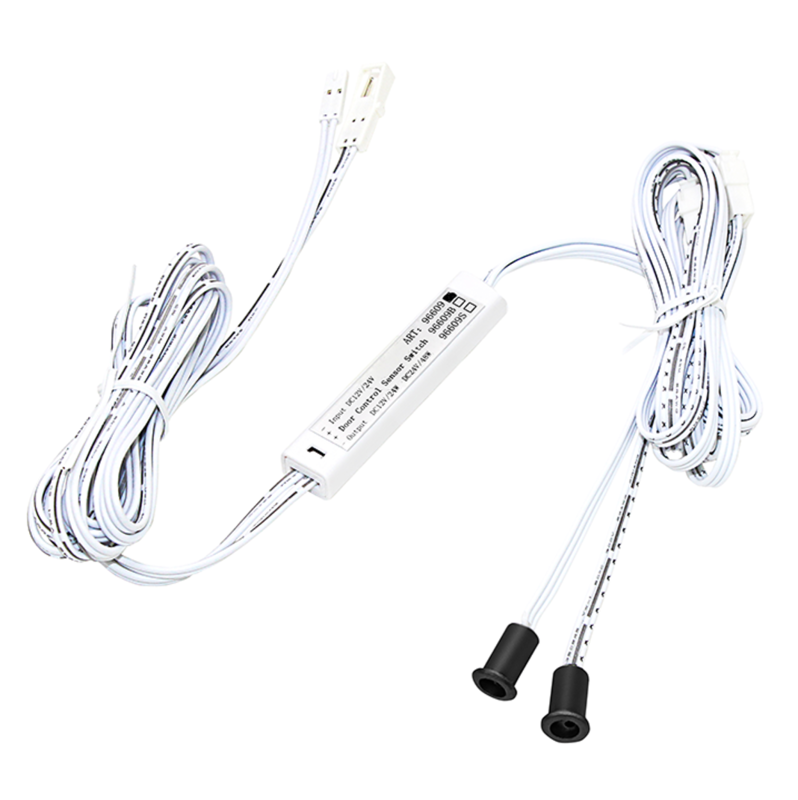

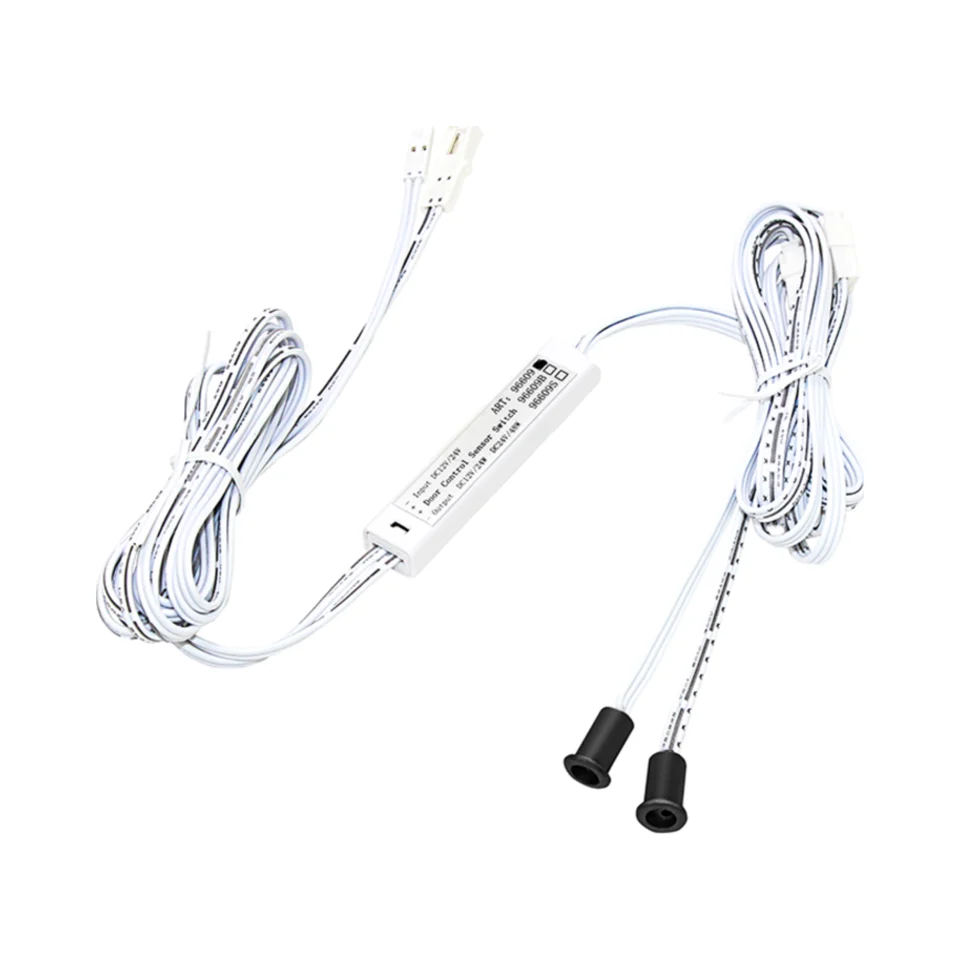

Leyton S-LV-MINI-DS-DUO Discreet Miniature Recessed Double Door 12V/24V Sensor
Leyton S-LV-MINI-DS-DUO
The Leyton S-LV-MINI-DS-DUO is a discreet miniature sensor designed for low voltage applications. It switches low voltage (12V or 24V) and must be wired between the LED driver and LED lighting. This sensor activates lights when the door is opened and turns them off when the door is closed, making it a practical and efficient solution for automated lighting control.
Key Features
- Max Load:
- 12V: 36W
- 24V: 72W
- Compact Design: Features a discreet miniature recessed sensor head.
- Automatic Operation: Lights turn on when the door opens and off when the door closes.
- Detection Range: Effective within 100mm for reliable performance.
- Part Number: S-LV-MINI-DS-DUO
- Finish: Sleek black, suitable for various interior styles.
- Voltage: Compatible with both 12V and 24V power supplies.
- Wattage:
- 12V: Supports up to 36W
- 24V: Supports up to 72W
- IP Rating: IP20, providing protection against solid objects up to 12mm and no protection against liquids.
- Dimensions:
- Length: 76mm
- Width: 35mm
- Depth: 19mm
- Head: 10mm diameter x 13mm depth
- Cut Out: Requires an 8mm cut out for installation.
- Class II: Double insulated, ensuring safety and compliance with electrical standards.
- Material: Made from durable plastic.
Technical Specifications
- Finish: Black
- Voltage: 12/24V
- Wattage: 12V – 36W / 24V – 72W
- IP Rating: IP20
- Dimensions: 76mm (L) x 35mm (W) x 19mm (D)
- Head Dimensions: 10mm diameter x 13mm depth
- Cut Out: 8mm
- Class: II
- Material: Plastic
Applications
Ideal for use in cabinets, wardrobes, and other door-activated lighting scenarios. The Leyton S-LV-MINI-DS-DUO Discreet Miniature Recessed Double Door Sensor offers a sleek and efficient solution for modern lighting needs. Its ability to automatically control lighting based on door activity enhances both convenience and energy efficiency in any space.
