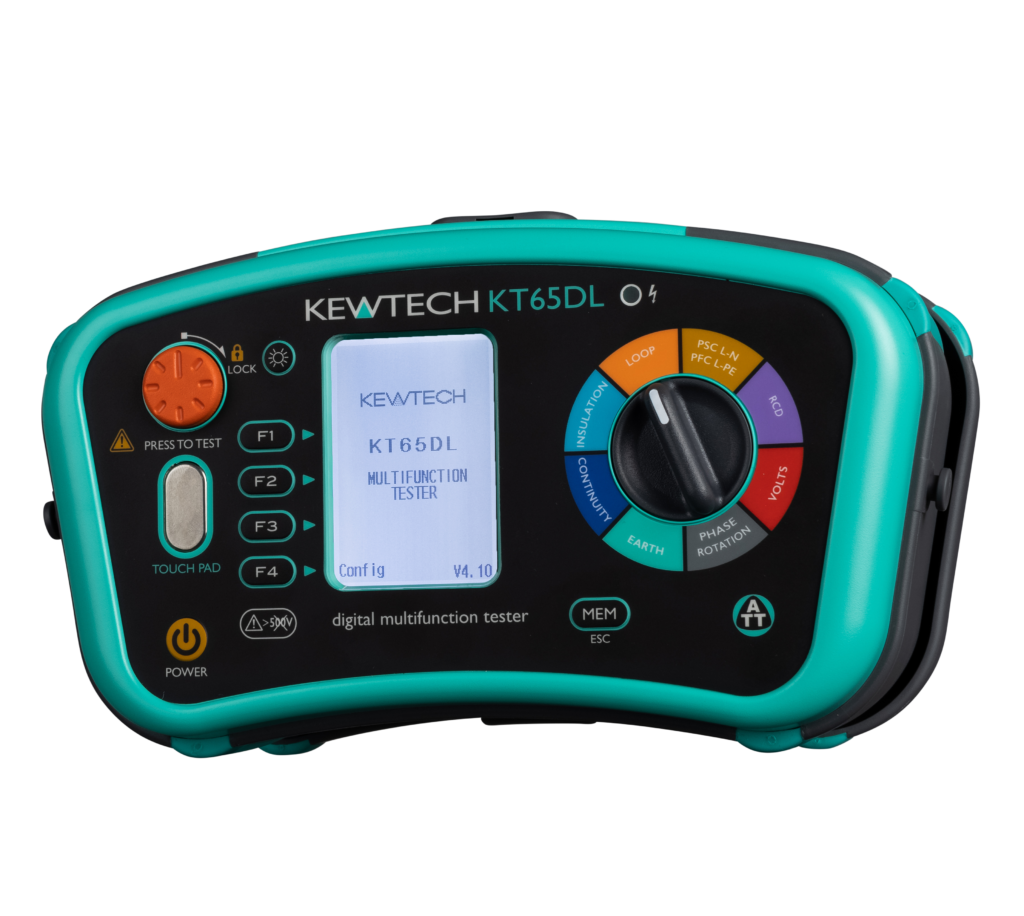

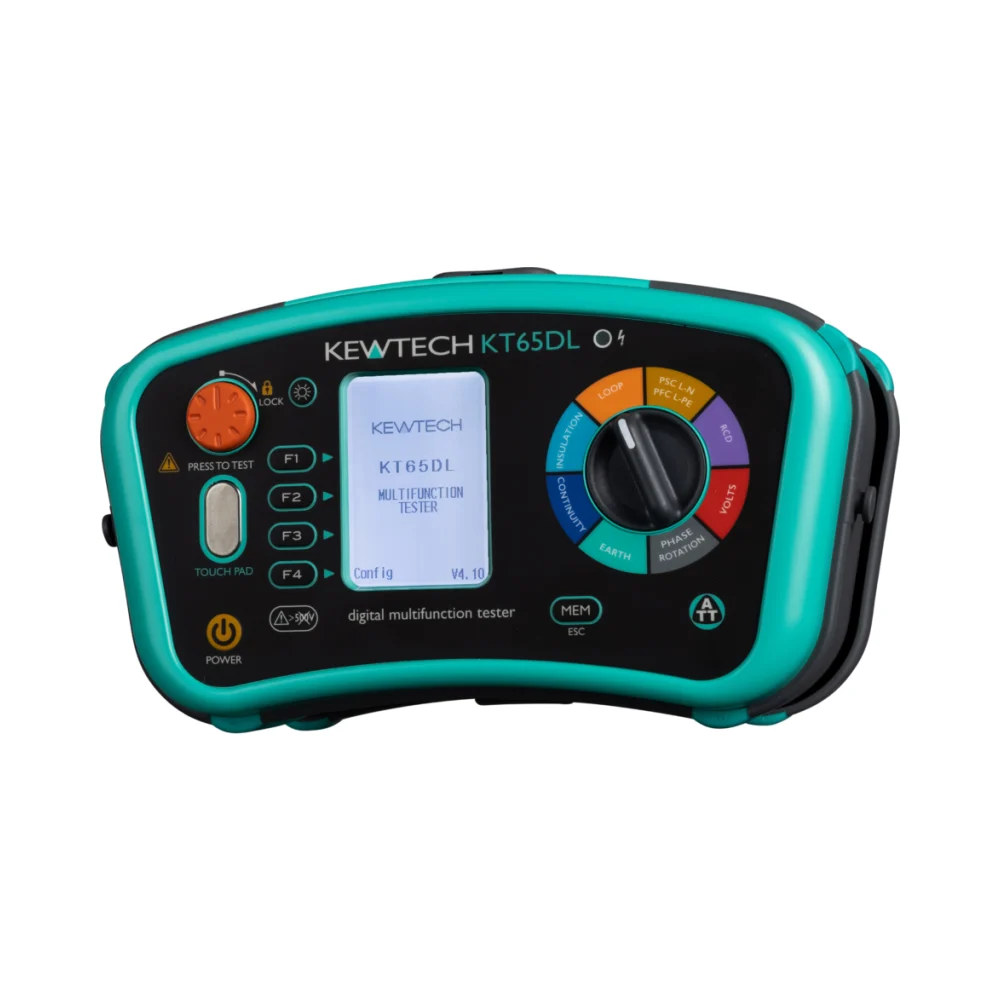

Kewtech KT65DL Digital Multifunction 8-In-1 With 8212 USB KEW Report & PC Software

The Kewtech KT65DL Digital Multifunction Tester is a versatile 8-in-1 testing device, designed to meet the demands of professional electricians working on domestic, commercial, and industrial installations. Known for its rugged build, accuracy, and reliability, this tester delivers precise and repeatable results while ensuring compliance with 18th Edition regulations.

Equipped with high-performance loop circuits, the KT65DL effectively overcomes noise, RCD uplift, and contact resistance issues. It features a 0.001Ω resolution in high current mode, making it ideal for testing circuits close to supply transformers. Additionally, it includes selectable Max Zs tables, applying the 80% rule for MCBs and fuses.

For expanded functionality, this tester supports PAT testing (via PAT ADAPTER1) and earth resistance testing (via ACCES KIT), making it an all-in-one solution for electrical professionals.

Key Benefits

• Straightforward Interface – Simple operation with an intuitive control layout
• Exceptional Loop Testing Accuracy – Designed to minimise noise interference and RCD uplift
• High-Resolution Loop Testing – Offers 0.001Ω accuracy in high current mode
• Auto RCD Testing – Displays all test results on one screen for easy reference
• Selectable Max Zs Tables – Automatically compares measured results with industry standards
• Continuous Live Monitoring – Prevents blown fuses or PCB damage during testing
• Advanced Memory Functionality – Assigns measurements to site, distribution board, circuit number, and test type (Ze or Zs)
• Anti-Trip Technology – Enables no-trip loop testing across all RCD types, minimising interference
• Remote Test Probe Button – Allows for hands-free testing

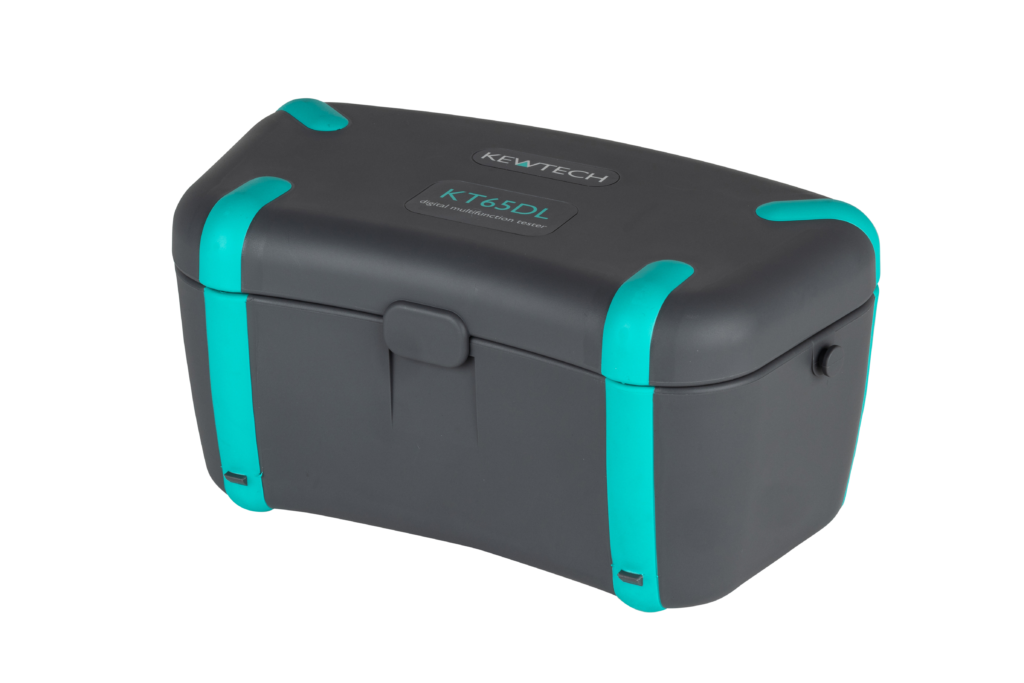

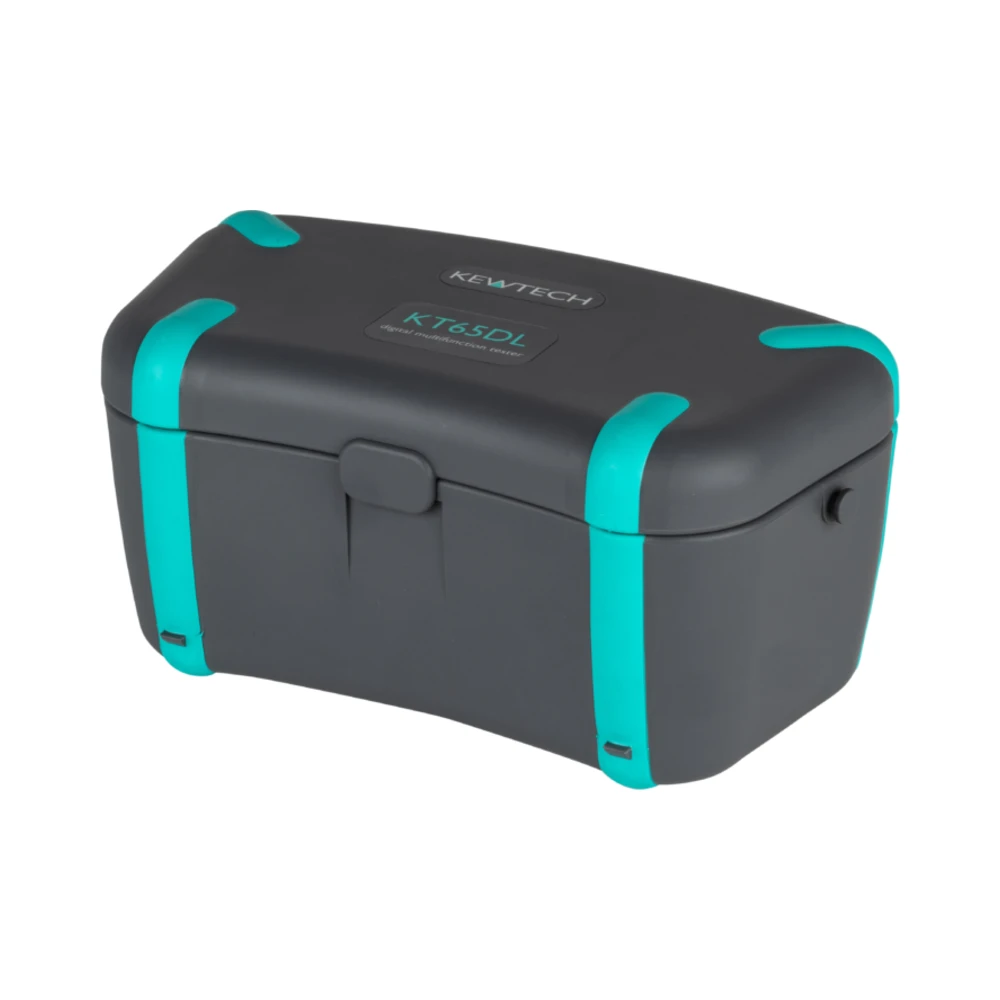

• Durable Protective Lid – Shields screen from damage, water, and dust
• End-of-Line Calibration Certificate – Ensures accuracy and compliance

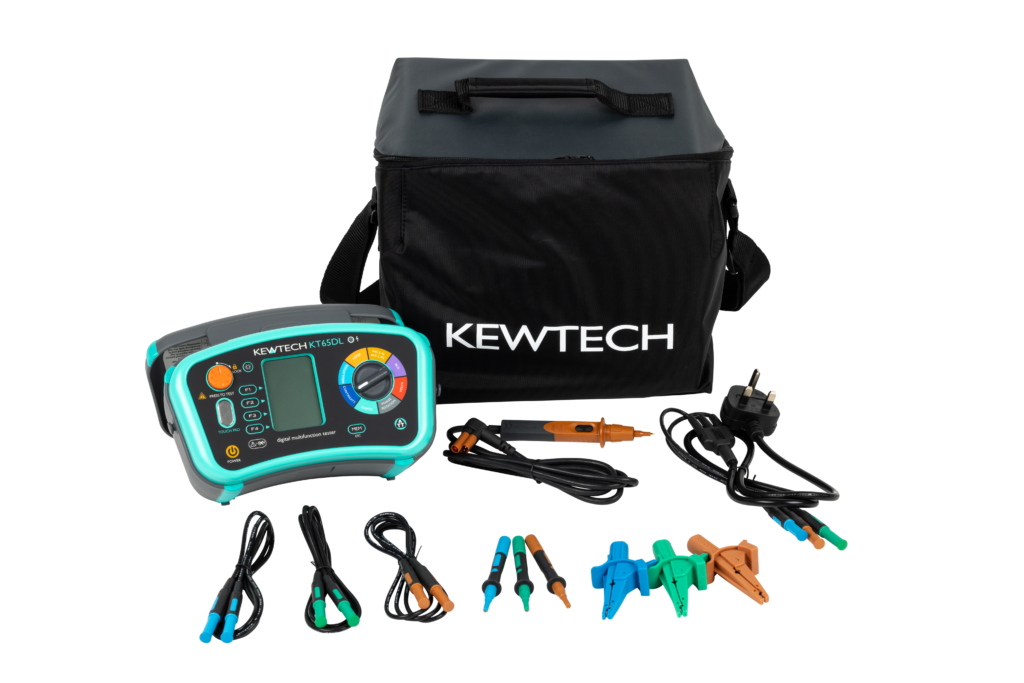

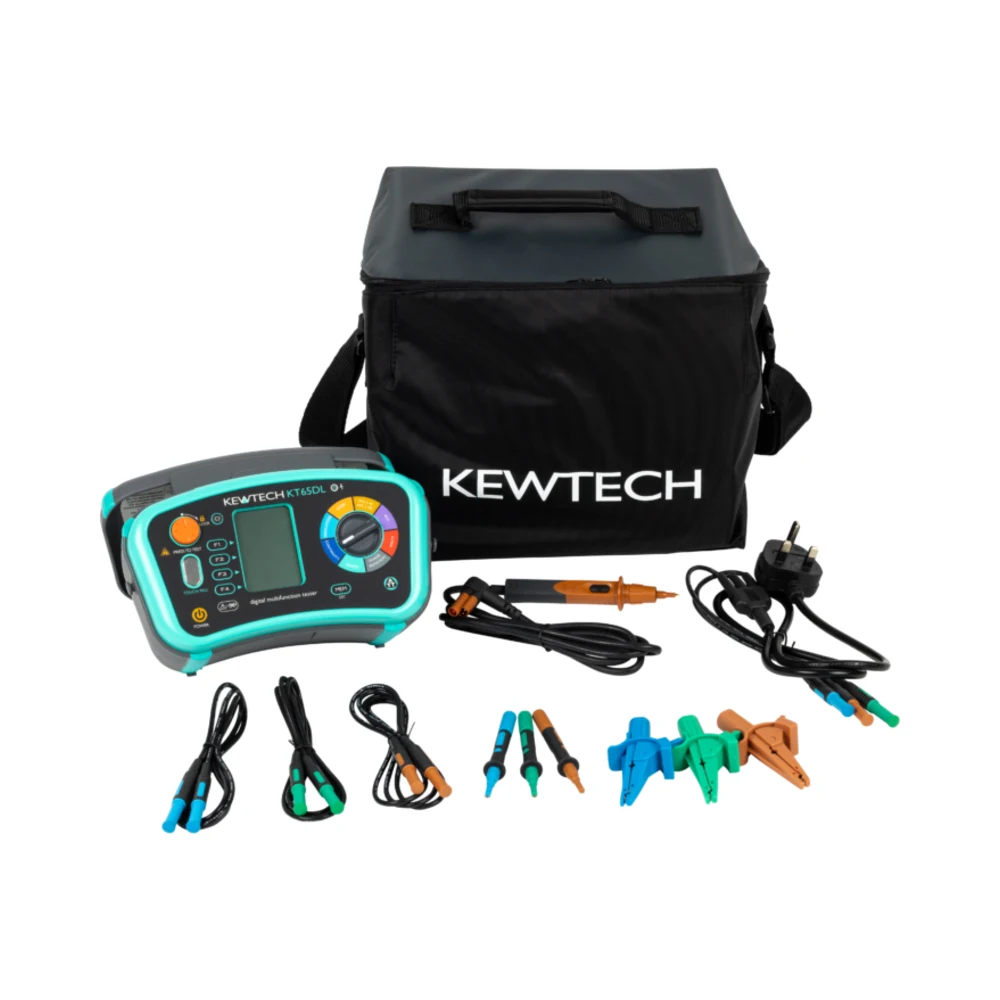

• Supplied in a Soft Carry Case – Includes mains lead, DB leads, remote test probe, and software

Key Features of the Kewtech KT65DL Digital Multifunction 8-In-1

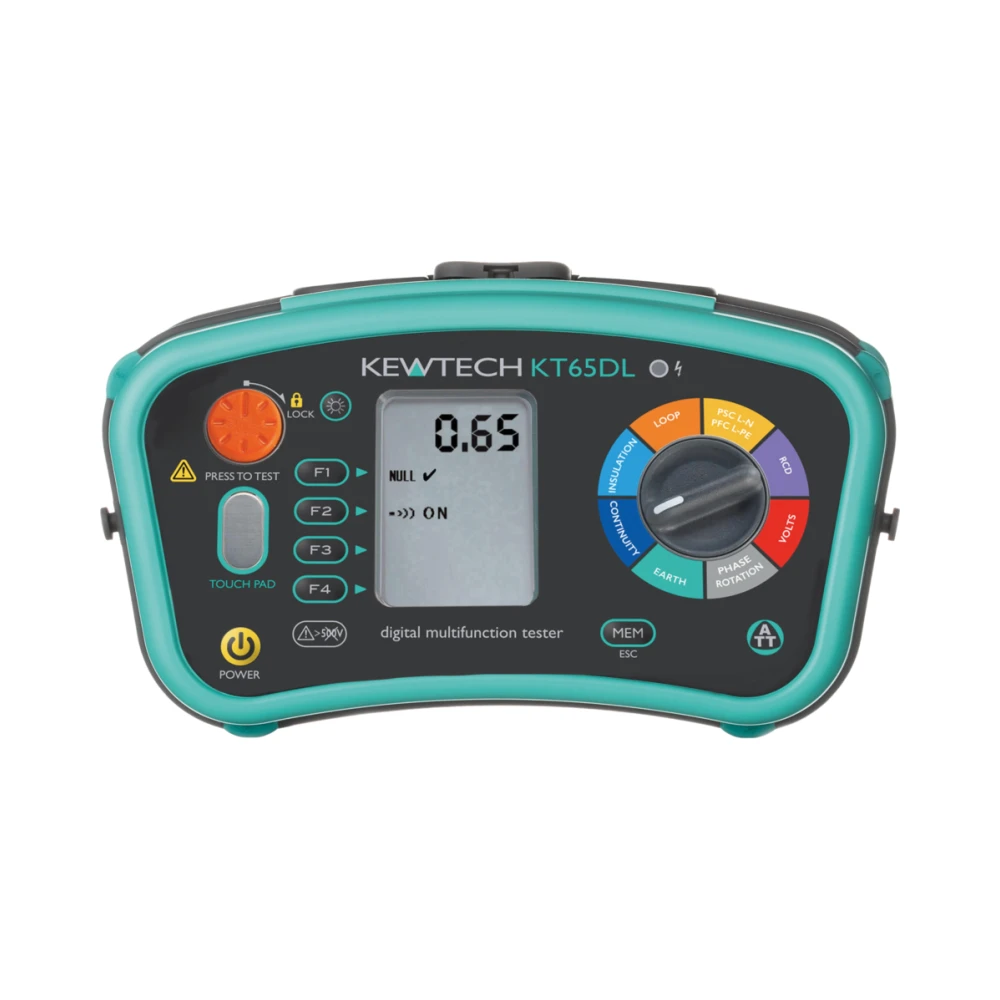

• Continuity Testing – Includes switchable buzzer and auto-null function
• Insulation Testing – Selectable 250V, 500V & 1000V with voltage warning LED & auto discharge
• Loop Testing:
  • ATT (Low Current) & High Current Testing (0.01Ω & 0.001Ω resolution)
  • Phase-to-Phase & 55V Loop Testing for CTE transformers
  • Easy PFC & PSC Measurement without altering test probes
• RCD Testing:
  • Tests Type AC, A, ACS, AS, Auto & Ramp RCDs
  • Current settings: 10mA, 30mA, 100mA, 300mA & 500mA
  • Auto-test memory displays all results on one screen (no scrolling required)
• Phase Rotation Test – Verifies correct phase sequencing
• Earth Resistance Testing – Compatible with optional ACCESKIT earth spike kit
• Memory for Test Lead Resistance Compensation – Ensures accurate continuity readings
• PAT Testing Functionality – Compatible with downloadable test results
• Polarity Check Function – Detects wiring faults in live circuits
• Advanced Memory & Free Software – Enables detailed data management and reporting

Technical Specifications

• Model: KT65DL
• Display: Digital with large screen
• Voltage Measurement: True RMS 2-600V
• Loop Testing: High & low current options, 55V test mode
• RCD Testing: Type AC, A, F, B, EVSE & more
• Insulation Testing: 250V, 500V & 1000V options
• Continuity Testing: 15mA & 200mA options
• SPD Test: Yes
• Earth Resistance Testing: 3-wire & 2-wire methods (optional kit required)
• Phase Rotation Test: Yes
• PAT Testing: Supports downloadable reports
• Software Compatibility: KEW REPORT PC software included

Applications

• Electrical Installation Testing – Ensures 18th Edition compliance for domestic, commercial, and industrial sites
• RCD & Loop Testing – Ideal for new installations, periodic inspections, and fault diagnosis
• PAT Testing & Compliance Checks – Supports portable appliance testing
• Earth Resistance & Insulation Testing – Suitable for industrial sites and grounding systems
• EVSE Charge Point Testing – Works with optional adapters for electric vehicle charger inspections

Why Choose the Kewtech KT65DL Multifunction Tester?

• Comprehensive 8-in-1 Testing Solution – Covers loop, RCD, insulation, continuity, and SPD tests
• High Accuracy & Repeatability – Provides industry-leading test precision
• User-Friendly Interface – Easy navigation with a rotary dial and function buttons
• Robust & Reliable – Designed for long-term professional use
• Free PC Software for Data Management – Includes KEW REPORT software for detailed test logging
• UK-Based Support & Calibration – Backed by Kewtech’s renowned quality assurance

Summary

The Kewtech KT65DL Digital Multifunction Tester is an advanced 8-in-1 device, perfect for domestic, commercial, and industrial electrical testing. Featuring high-accuracy loop, RCD, insulation, and continuity testing, plus PAT and SPD test functions, it ensures compliance with 18th Edition regulations. The intuitive interface, advanced memory, and free PC software make it a must-have for professional electricians.
