Description

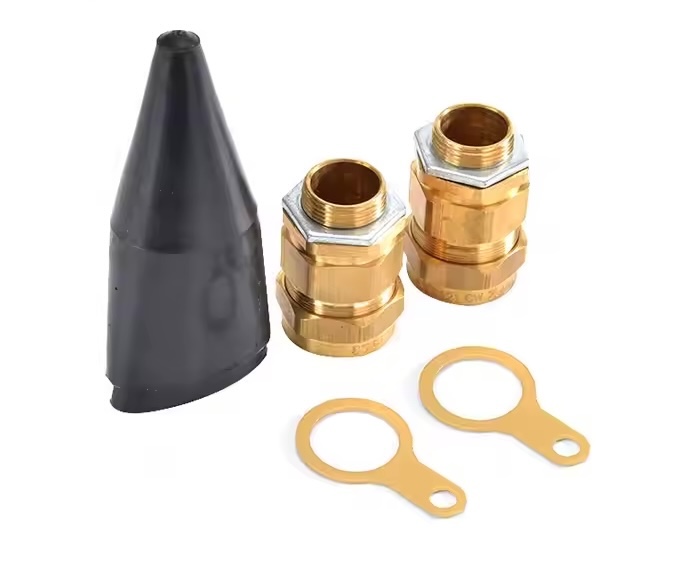

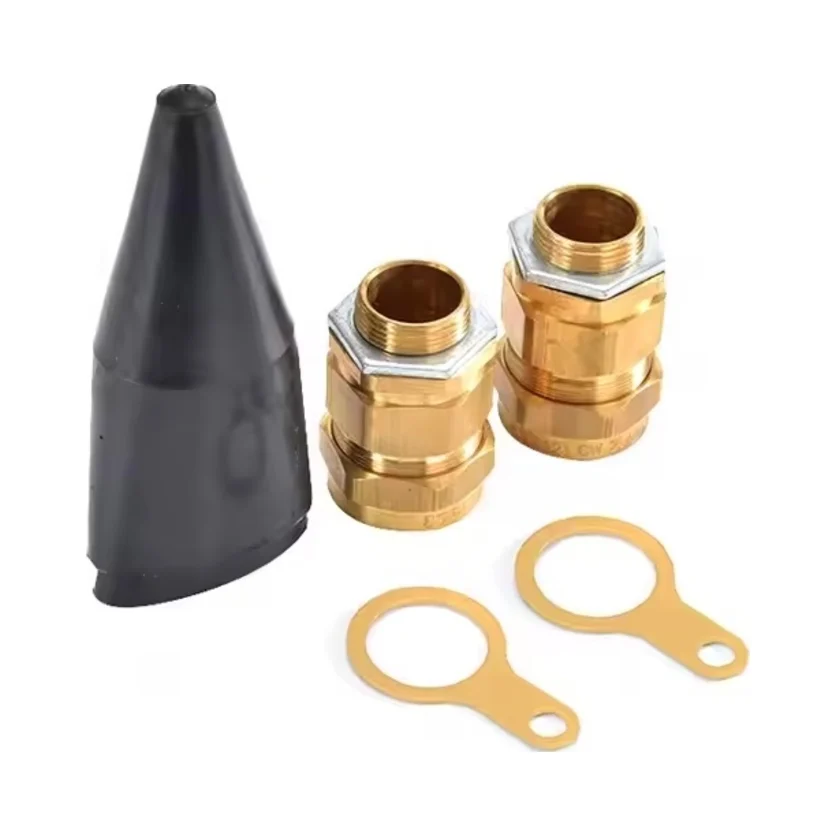

BW25 Internal SWA Cable Gland 25 – Pack of 2
The BW25 Internal SWA Cable Gland 25 – Pack of 2 is a high-quality brass gland set designed specifically for Steel Wire Armoured (SWA) cables (H694-XL). These glands provide secure clamping, ensuring electrical continuity and mechanical retention of the armour wire. Designed for indoor installations, the BW gland is perfect for environments where a waterproof seal is not required.
Recommended Applications
This gland is suitable for the following SWA cable configurations:
- 2 Core SWA: 16-25mm²
- 3 Core SWA: 16-25mm²
- 4 Core SWA: 16mm²
- 5 Core SWA: 16mm²
Key Features of BW25 Internal SWA Cable Gland 25
- High-Quality Brass Construction: Manufactured with durable brass for long-lasting performance and corrosion resistance.
- Secure Clamping: Clamps the armour wire securely, maintaining electrical continuity and mechanical retention.
- Indoor Application: Ideal for indoor use where a waterproof seal is not required.
- Versatile Compatibility: Fully compatible with Steel Wire Armoured cables (H694-XL), supporting a variety of cable sizes.
Size Guide for Cable Glands
Cable Gland Selection Chart
| Conductor Size (sqmm) | 2 Cores | 3 Cores | 4 Cores | 5 Cores |
|---|---|---|---|---|
| 1.5 | 20s/16 | 20s/16 | 20s | 20s |
| 2.5 | 20s | 20s | 20s | 20s |
| 4 | 20s | 20 | 20 | 20 |
| 6 | 20 | 20 | 20 | 20 |
| 10 | 20 | 20 | 20 | 25 |
| 16 | 20 | 20 | 25 | 25 |
| 25 | 20 | 25 | 32 | 32 |
| 35 | 25 | 32 | 32 | 32 |
| 50 | 32 | 32 | 40 | 40 |
| 70 | 32 | 40 | 40 | 40 |
| 95 | 40 | 40 | 50 | 50 |
Important Note
This chart and data are for guidance purposes only. Always consider the actual dimensions of the cables and glands before making a final selection. Manufacturing tolerances as per BS6121: Part 1: 1989 should be taken into account to ensure the correct fit and functionality.
Conclusion
The BW25 Internal SWA Cable Gland 25 – Pack of 2 is a reliable and durable solution for indoor SWA cable installations. With robust brass construction and secure clamping, these glands ensure safety and efficiency for a wide range of applications where a waterproof seal is not required.
