Description

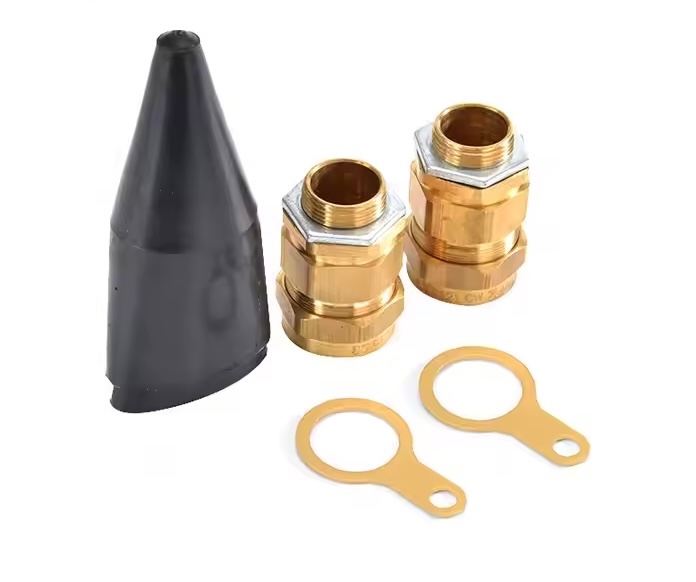

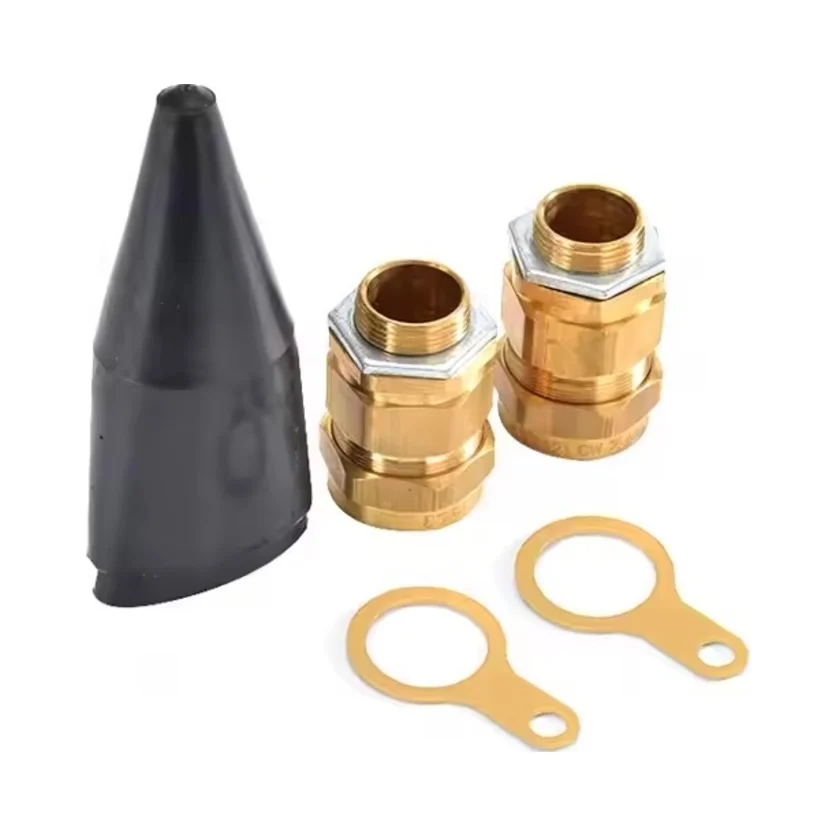

BW20S-PK Internal SWA Cable Gland 20S – Pack of 2
The BW20S-PK Internal SWA Cable Gland 20S – Pack of 2 is specifically designed for Steel Wire Armoured (SWA) cables (H694-XL). Made from high-quality brass, these glands ensure secure clamping, maintaining electrical continuity and mechanical retention of the armour wire. Ideal for indoor applications, the BW gland is suitable where a waterproof seal is not required.
Recommended Applications
This gland is suitable for the following SWA cable configurations:
- 2 Core SWA: 1.5-4mm²
- 3 Core SWA: 1.5-4mm²
- 4 Core SWA: 1.5-2.5mm²
- 5 Core SWA: 1.5mm²
Key Features
- High-Quality Brass Construction: Durable and reliable for long-term use in indoor environments.
- Secure Clamping: Effectively clamps the armour wire to maintain electrical continuity and mechanical retention.
- Indoor Use: Designed for indoor applications where a waterproof seal is not necessary.
- Versatile Use: Fully compatible with Steel Wire Armoured cables (H694-XL), covering a range of cable sizes.
Size Guide for Cable Glands
Cable Gland Selection Chart
| Conductor Size (sq.mm) | 2 Cores | 3 Cores | 4 Cores | 5 Cores |
|---|---|---|---|---|
| 1.5 | 20s/16 | 20s/16 | 20s | 20s |
| 2.5 | 20s | 20s | 20s | 20s |
| 4 | 20s | 20 | 20 | 20 |
| 6 | 20 | 20 | 20 | 20 |
| 10 | 20 | 20 | 20 | 25 |
| 16 | 20 | 20 | 25 | 25 |
| 25 | 20 | 25 | 32 | 32 |
| 35 | 25 | 32 | 32 | 32 |
| 50 | 32 | 32 | 40 | 40 |
| 70 | 32 | 40 | 40 | 40 |
| 95 | 40 | 40 | 50 | 50 |
Important Note
This chart and data are for guidance purposes only. Always consider the actual dimensions of the cables and glands before making a final selection. Manufacturing tolerances as per BS6121: Part 1: 1989 should be taken into account to ensure the correct fit and functionality.
Conclusion
The BW20S-PK Internal SWA Cable Gland 20S – Pack of 2 is a reliable choice for secure and durable SWA cable installations in indoor environments. With robust brass construction and compatibility with a variety of cable sizes, this gland ensures safety and performance where a waterproof seal is not required.
