Description

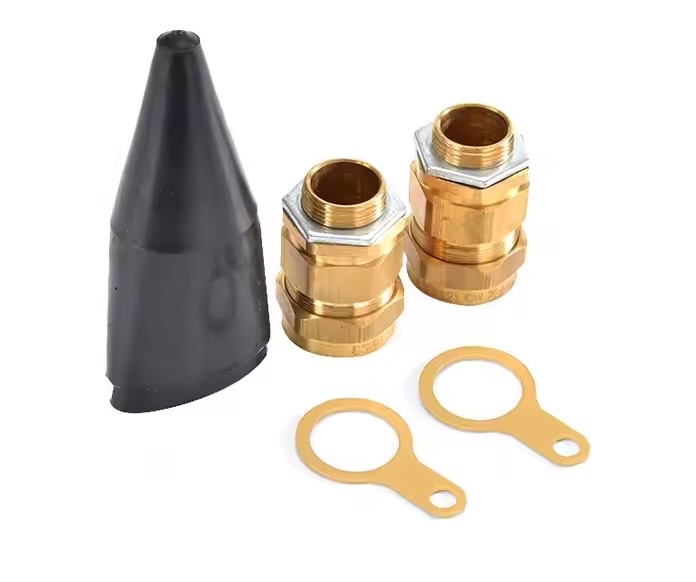

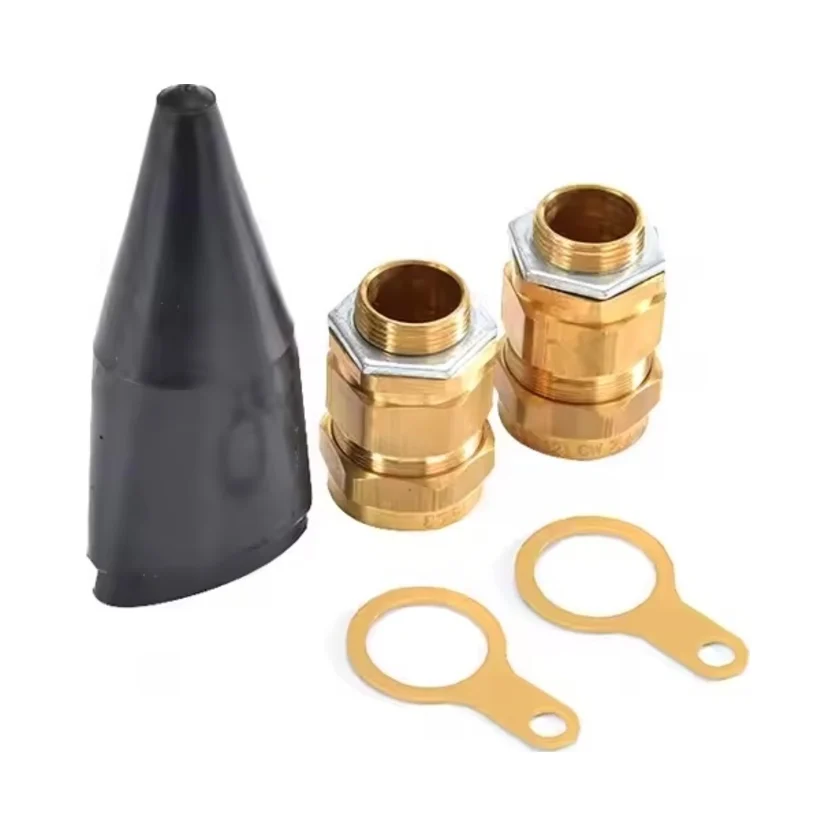

BW20-PK Internal SWA Cable Gland 20 – Pack of 2
The BW20-PK Internal SWA Cable Gland 20 – Pack of 2 is a reliable and durable solution for terminating Steel Wire Armoured (SWA) cables (H694-XL). Made from high-quality brass, these glands provide secure clamping, electrical continuity, and mechanical retention. Designed for indoor applications, the BW gland is ideal for environments where a waterproof seal is not required.
Recommended Applications
This gland is suitable for the following SWA cable configurations:
- 2 Core SWA: 6-10mm²
- 3 Core SWA: 6-10mm²
- 4 Core SWA: 6mm²
- 5 Core SWA: 6mm²
Key Features of BW20-PK Internal SWA Cable Gland
- High-Quality Brass Construction: Provides long-lasting performance and corrosion resistance for indoor environments.
- Secure Clamping: Ensures strong armour wire clamping for reliable electrical continuity and mechanical retention.
- Indoor Application: Designed specifically for indoor installations where a waterproof seal is not required.
- Versatile Use: Fully compatible with Steel Wire Armoured cables (H694-XL), supporting a variety of cable sizes.
Size Guide for Cable Glands
Cable Gland Selection Chart
| Conductor Size (sq.mm) | 2 Cores | 3 Cores | 4 Cores | 5 Cores |
|---|---|---|---|---|
| 1.5 | 20s/16 | 20s/16 | 20s | 20s |
| 2.5 | 20s | 20s | 20s | 20s |
| 4 | 20s | 20 | 20 | 20 |
| 6 | 20 | 20 | 20 | 20 |
| 10 | 20 | 20 | 20 | 25 |
| 16 | 20 | 20 | 25 | 25 |
| 25 | 20 | 25 | 32 | 32 |
| 35 | 25 | 32 | 32 | 32 |
| 50 | 32 | 32 | 40 | 40 |
| 70 | 32 | 40 | 40 | 40 |
| 95 | 40 | 40 | 50 | 50 |
Important Note
This chart and data are for guidance purposes only. Always consider the actual dimensions of the cables and glands before making a final selection. Manufacturing tolerances as per BS6121: Part 1: 1989 should be taken into account to ensure the correct fit and functionality.
Conclusion
The BW20-PK Internal SWA Cable Gland 20 – Pack of 2 provides a dependable solution for terminating SWA cables in indoor environments. With robust brass construction and secure clamping, this gland is perfect for applications where a waterproof seal is not necessary. Enhance your installations with this reliable and efficient choice.
