Description

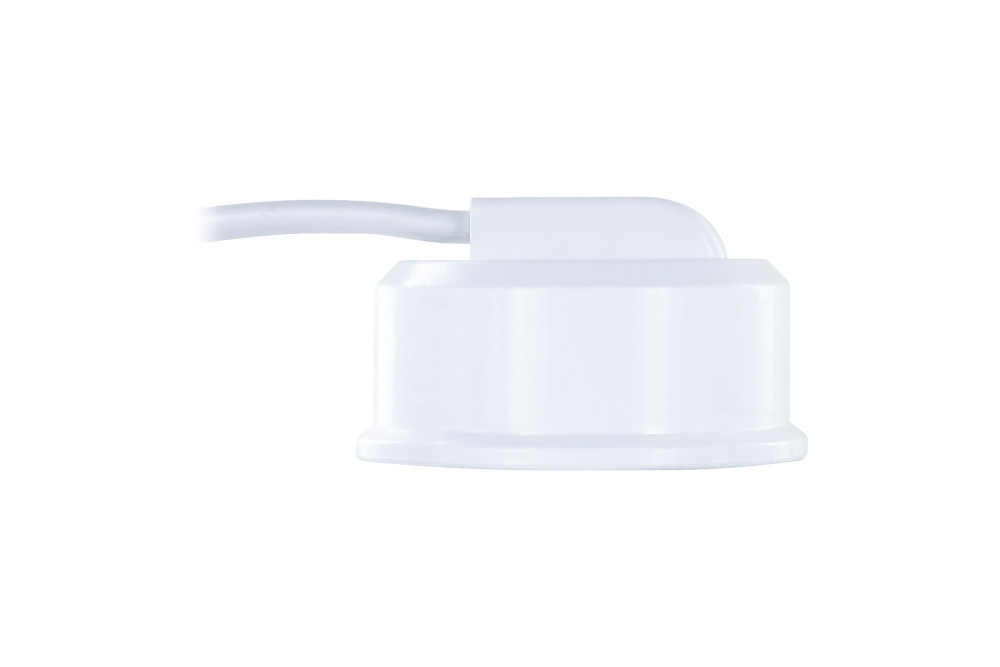

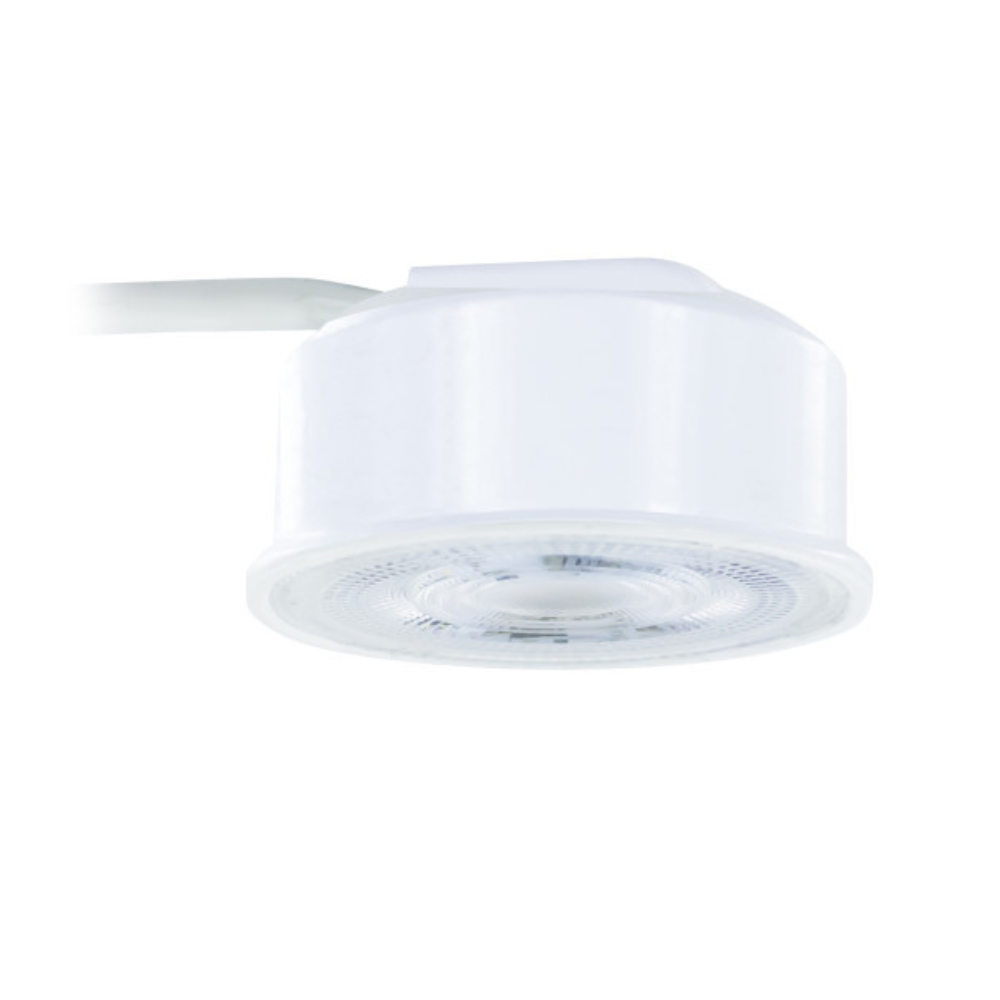

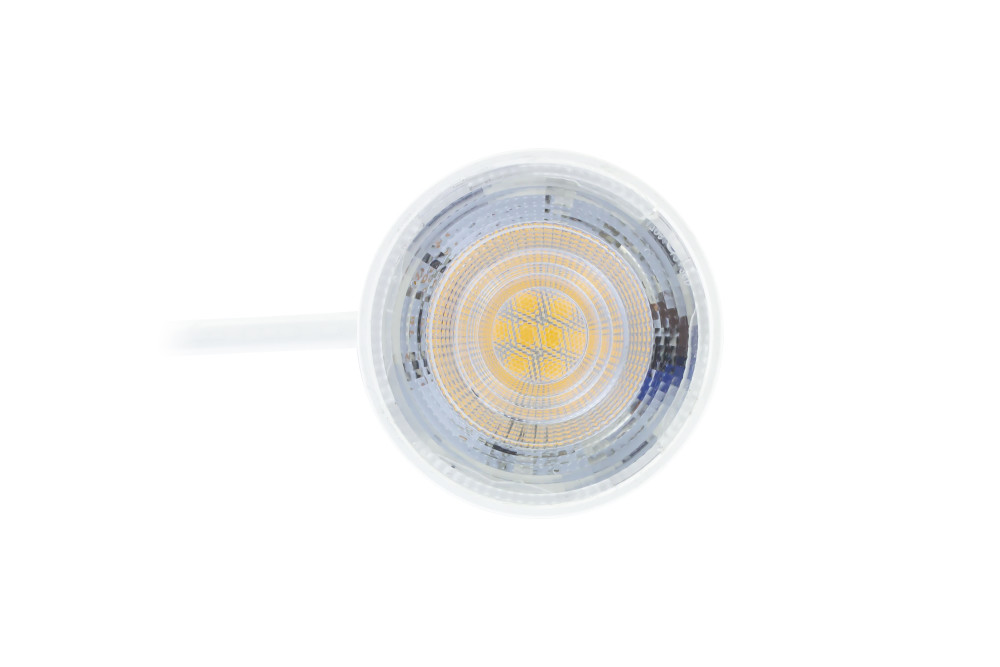

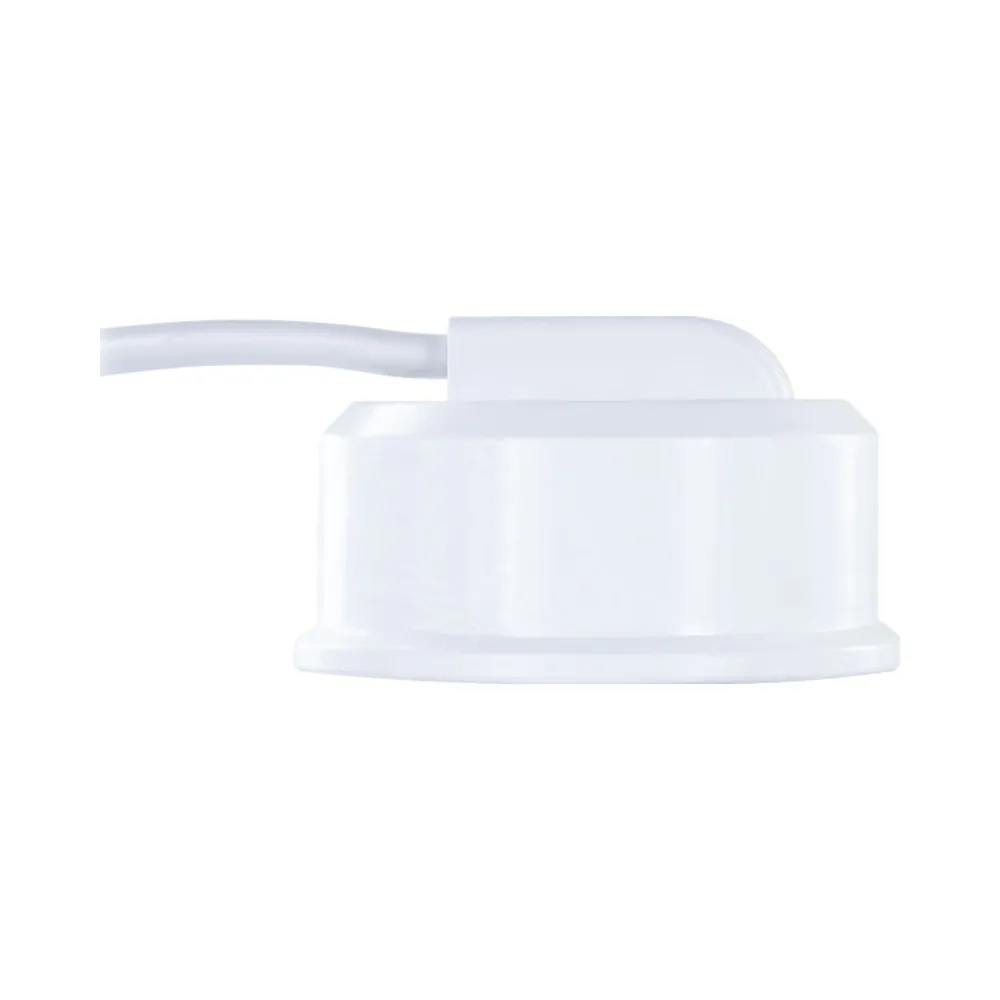

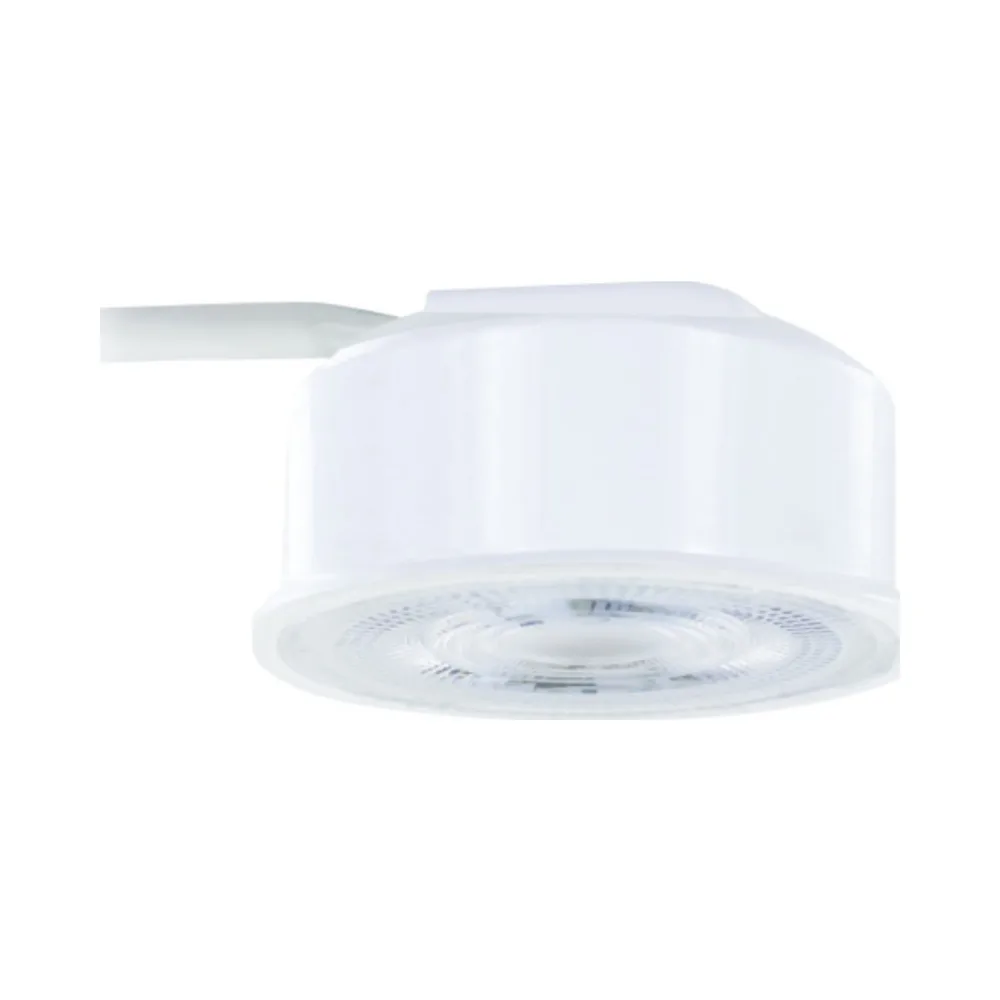

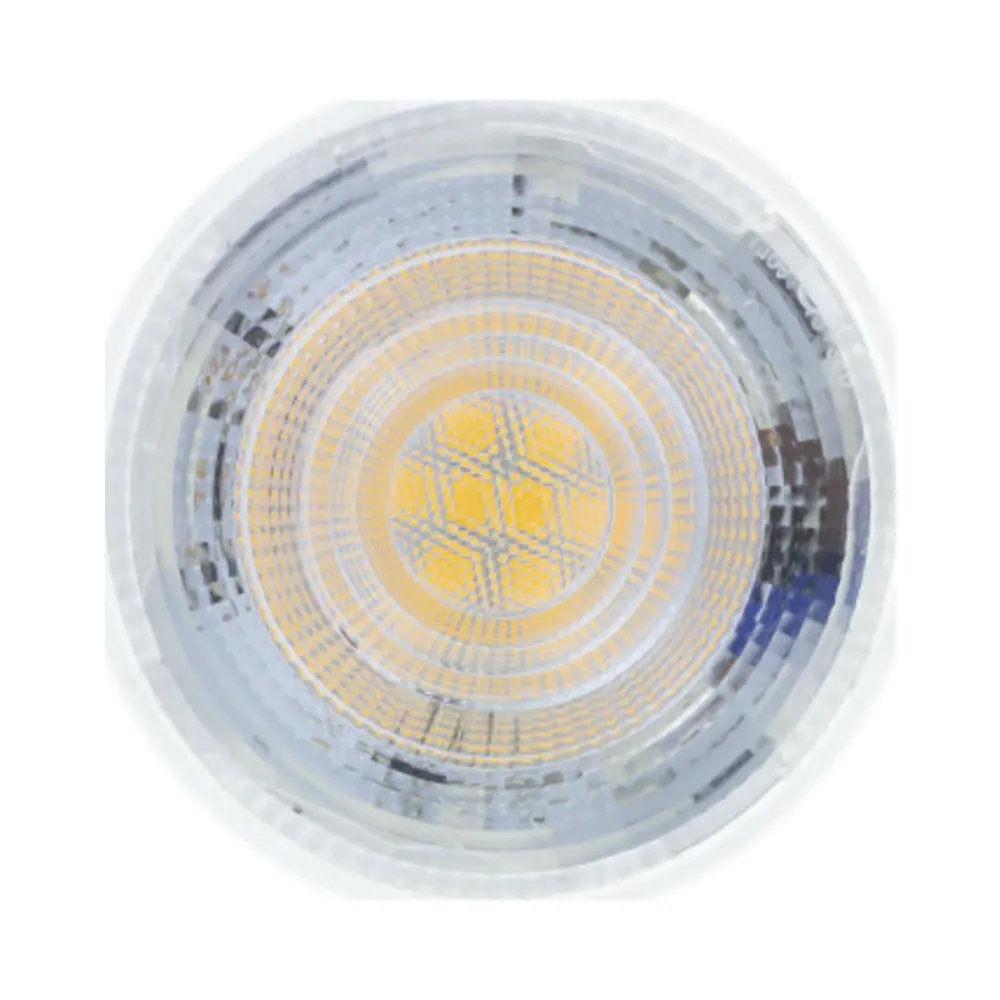

Evolight Dimmable 2700K LED Lamp with Connector Box
Integral ILMDC003
The Integral ILMDC003 Evolight Dimmable LED Lamp is a next-generation pre-wired 240V lighting solution designed to replace 12V MR16 and 240V GU10 lamps, eliminating the need for lamp holders and transformers. With an ultra-low-profile design of just 29mm, it effortlessly fits into tight ceiling voids, making installation simple and efficient.
This model comes equipped with a Fast-Fit screwless junction box and a piano-key style terminal block, enabling tool-free assembly for an even quicker and more secure installation. Producing 410 lumens (345 useful lumens) of 2700K very warm white light with a 36° beam angle, it delivers a cosy, inviting glow, ideal for residential and commercial applications.
Key Features
- All-in-One 240V Solution – No need for lamp holders or transformers
- Ultra-Low Profile – 29mm height, perfect for tight ceiling spaces
- Fast-Fit Screwless Connector Box – Quick, tool-free installation with a piano-key style terminal block
- Pre-Wired for Easy Setup – 28cm cable included for flexible installation
- Dimmable – Compatible with most dimmers for adjustable brightness
- Warm White Light – 2700K colour temperature creates a relaxing atmosphere
- Energy-Efficient – Uses only 3.8W while delivering 410 lumens
- Ideal for Canless Downlights – Works perfectly with Integral LED Evofire+
- Durable Build – Made from plastic and aluminium with a diffuser lens
Technical Specifications
- Part number: ILMDC003
- Material: Plastic, aluminium heat-sink, injection-moulded diffuser
- Finish: White with a classic diffuser lens
- Overall dimensions: 50mm (diameter) x 29mm (height)
- Weight: 36g
- Power consumption: 3.8W
- Luminous output: 410 lumens (345 useful lumens)
- Beam angle: 36°
- Colour temperature: 2700K (very warm white)
- Voltage: 240V
- Dimmable: Yes
- Connector Box: Fast-Fit screwless junction box with piano-key terminal block
- Mounting: Downlight fixture
- Spot type: SMD LED
- Placement: Indoor, general lighting
Ideal Applications
The Integral Evolight LED lamp is perfect for:
- Replacing 12V MR16 lamps, GU10 bulbs, and their holders
- Homes, restaurants, and hotels needing a warm, dimmable lighting solution
- Areas with limited ceiling void space, thanks to its ultra-low-profile design
- Canless downlights and fire-rated downlight installations
- Pairing with Integral LED Evofire+ for a modern, efficient setup
- Installations requiring a quick and tool-free setup with a Fast-Fit screwless connector box
Why Choose the Integral Evolight LED Lamp with Connector Box?
This all-in-one 240V LED lamp is designed for quick and easy installation, making it perfect for electricians and homeowners looking for a hassle-free lighting solution. The Fast-Fit screwless connector box with a piano-key style terminal block allows for tool-free wiring, reducing installation time.
With a 2700K warm white glow, dimmable capability, and energy efficiency, this lamp is an ideal upgrade for modern, efficient, and stylish lighting.
About Integral LED
Integral LED is a trusted provider of high-quality, energy-efficient lighting solutions. The Evolight series combines innovation, convenience, and long-term savings, ensuring reliable performance in residential and commercial applications.
