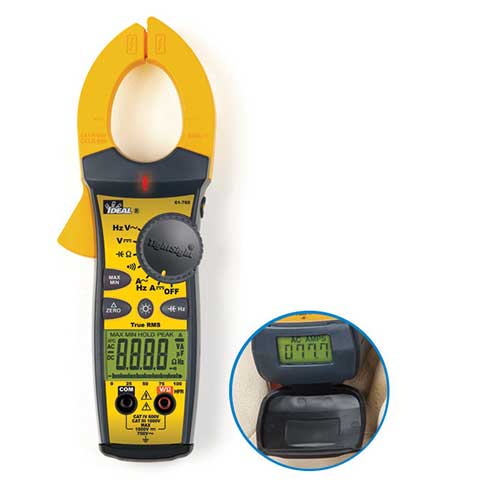

IDEAL TightSight Clamp Meter – 660A AC/DC

Description

IDEAL TightSight Clamp Meter – 660A AC/DC

This meter allows the user to safely and easily view current measurement with the exclusive second TightSight® display.

• TightSight™ bottom display
• Tapered jaws with hook tip
• True RMS current and voltage
• AC/DC voltage
• Audible continuity
• High frequency rejection*
• Peak hold
• Max/min hold
• Data hold
• Selectable audible and visual alerts when potentially hazardous voltages are detected at the probe terminals
• Selectable auto power off
• Backlit display
• Low battery indicator
• Reads accurately on noisy electrical circuits

Safety

• Patented TightSight™ display lets you easily take readings while keeping your head at a safe distance from the panel — no more need to twist the meter or risk pulling on an energized conductor
• Easy to read backlit display with large numbers and icons so you can always see the correct reading
• Selectable audible and visual alerts when potentially hazardous voltages are detected at the probe terminals
• Electronic overload protection on all ranges
• Test leads supplied are IEC61010-031 compliant

Productivity

• Read and record while clamped instead of holding the reading, unclamping, moving and recording
• Hook tip for easier wire separation and tapered jaws for reaching into tight spaces
• Help troubleshoot with min and max value readings over a period, i.e. nuisance tripping and power supply fluctuations
• True RMS provides accurate readings of non-sinusoidal load currents
• Broad current range from 0 to 1000 amps (61-770 series) covers multiple applications

Value

• Includes carrying case and test leads with alligator clips
• Full AC/DC capabilities: the Tightsight™ is equally adaptable for both AC and DC current measurement requirements – such as solar, public transportation, and battery backup applications
• Calibration services available
• 2-year warranty
