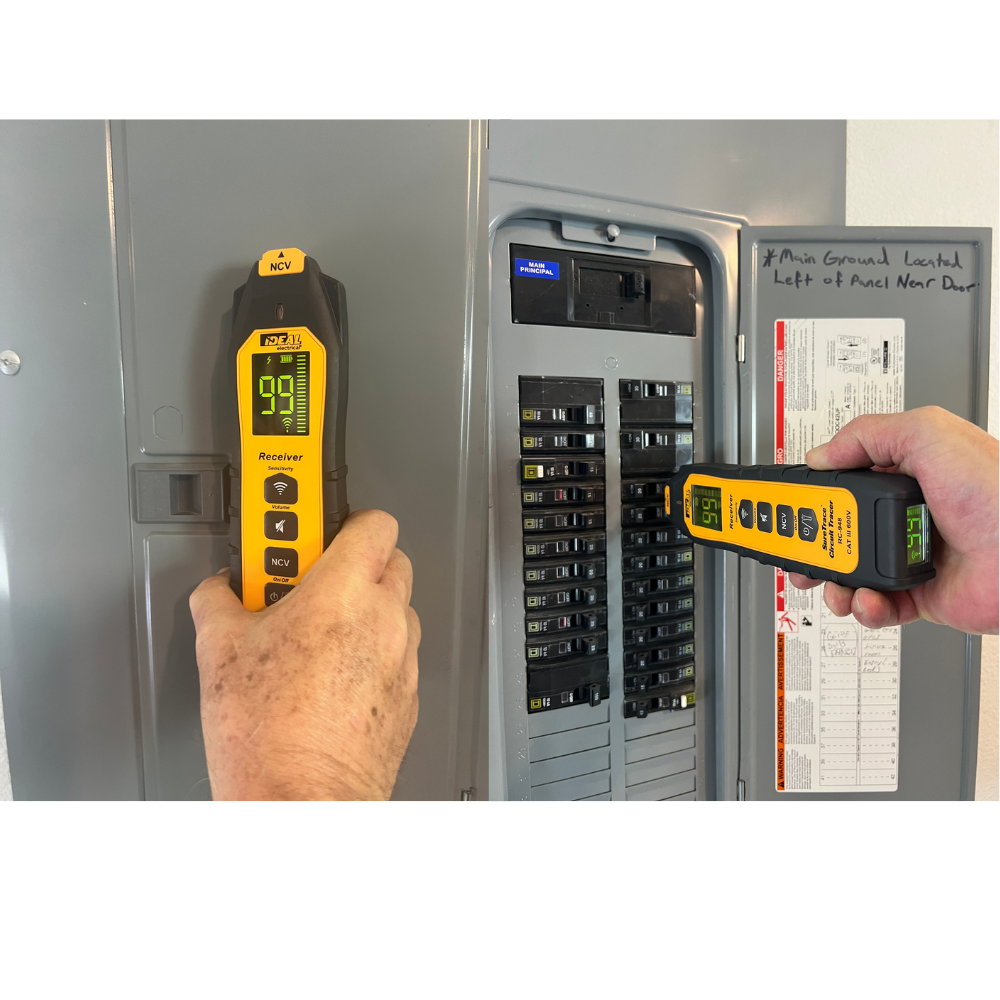

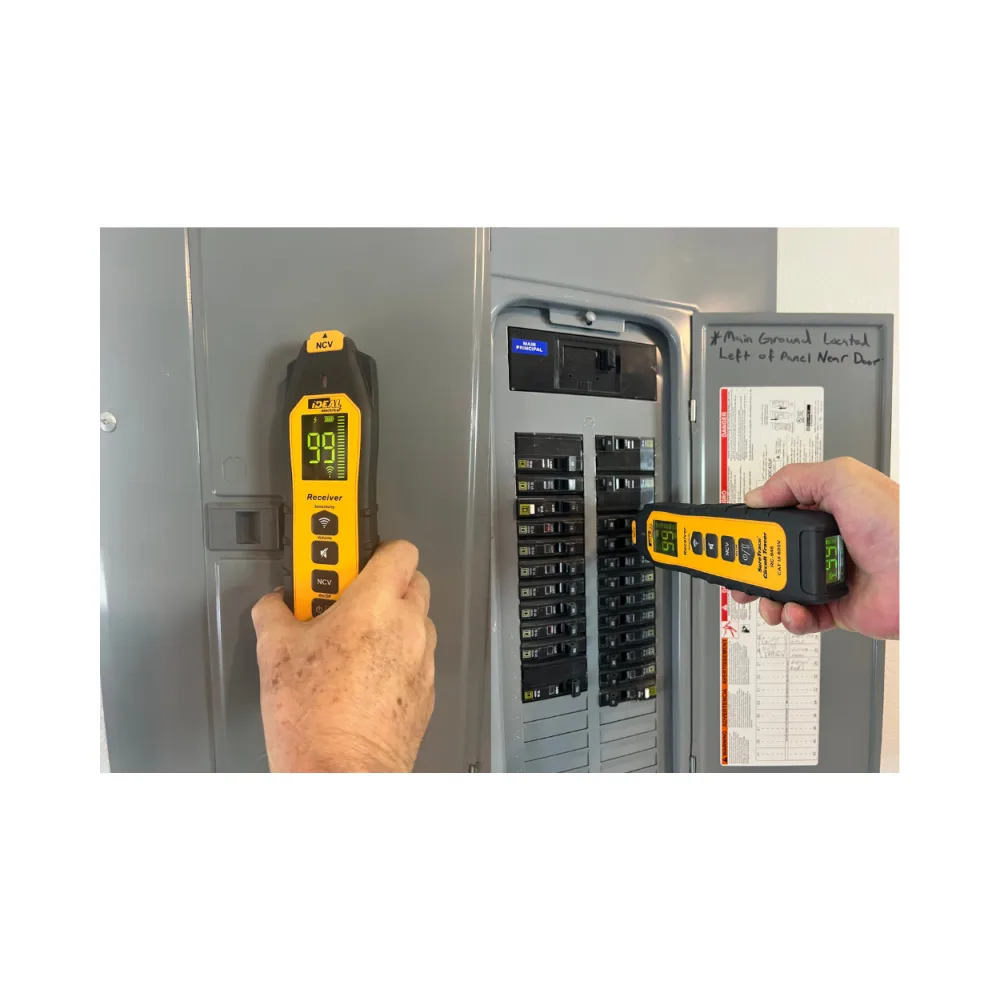

SureTrace™ PLUS Open/Closed Circuit Tracer – Advanced Digital Tracing for Electrical Systems
IDEAL 61-948
The IDEAL 61-948 SureTrace™ PLUS Open/Closed Circuit Tracer is a high-precision troubleshooting tool designed for finding breakers, fuses, conductors, dead shorts, and wiring faults in energised and de-energised circuits. Rated CAT III 600V, this circuit tracer works with 0-600V AC (50 & 60Hz) and DC systems, including three-phase setups.
It features dual high-visibility displays with a patented 180° rotating main display and TightSight® secondary display, allowing for easier circuit tracing in tight spaces. Additionally, the receiver includes a non-contact voltage (NCV) detector, a built-in work light, and a mute function for noise-sensitive environments.

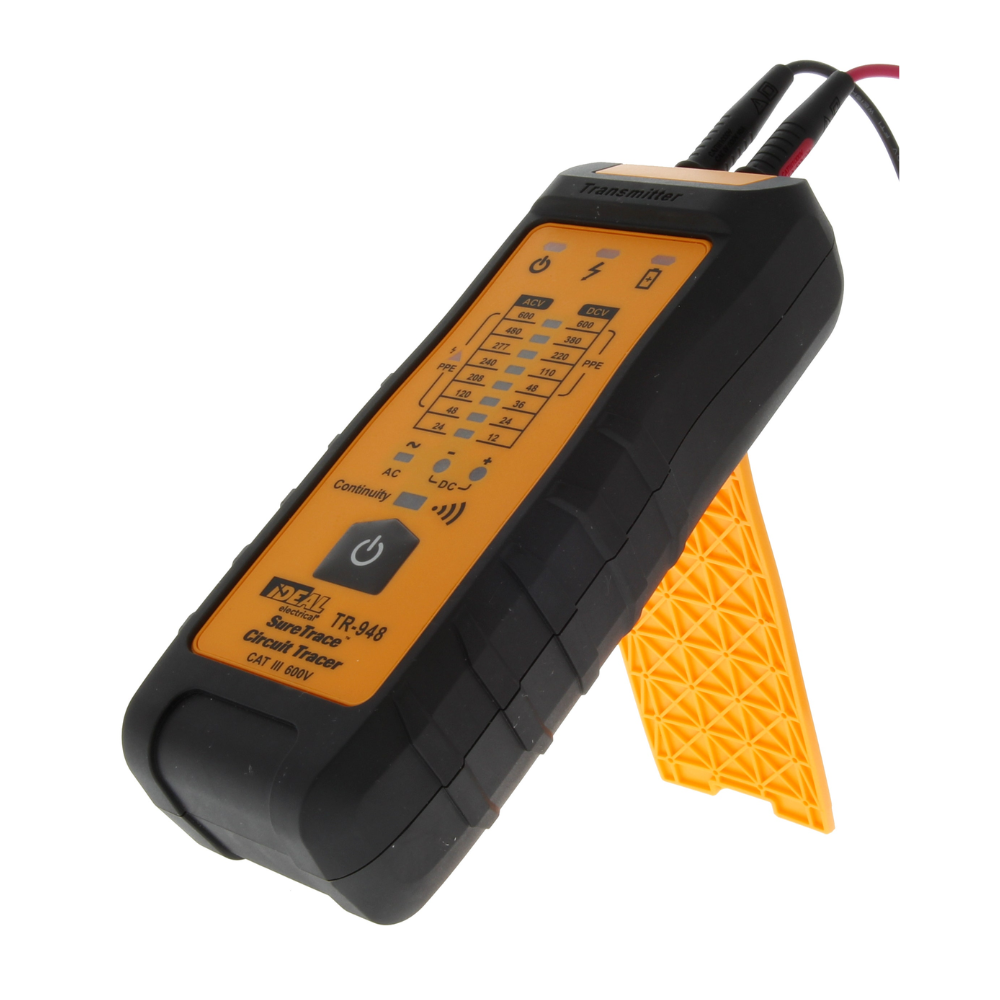

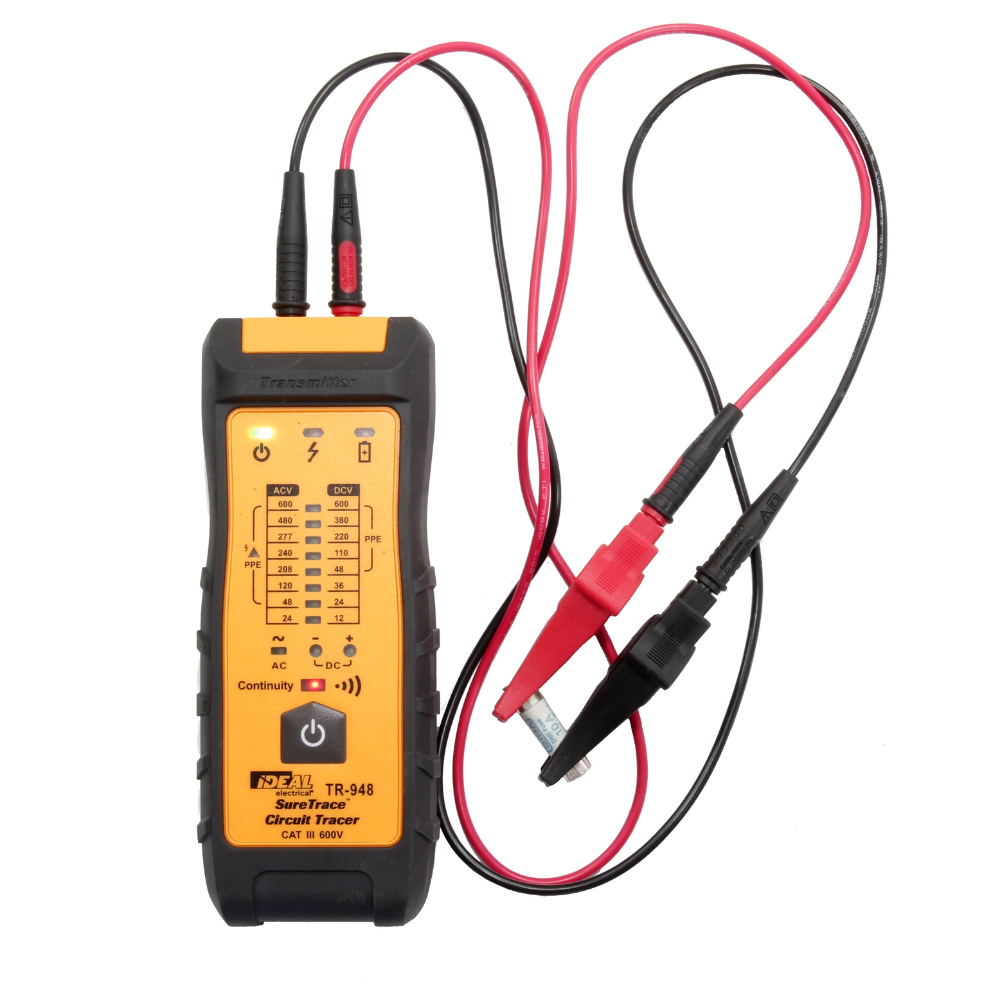

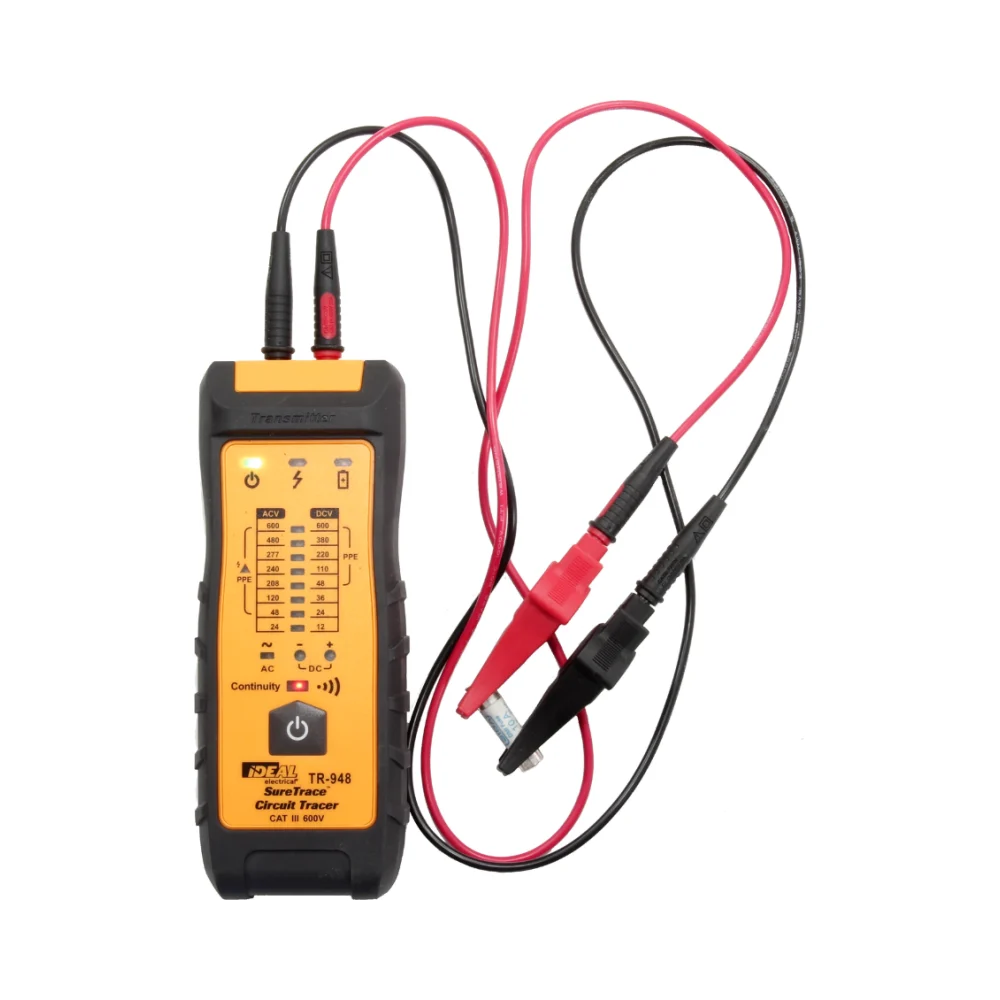

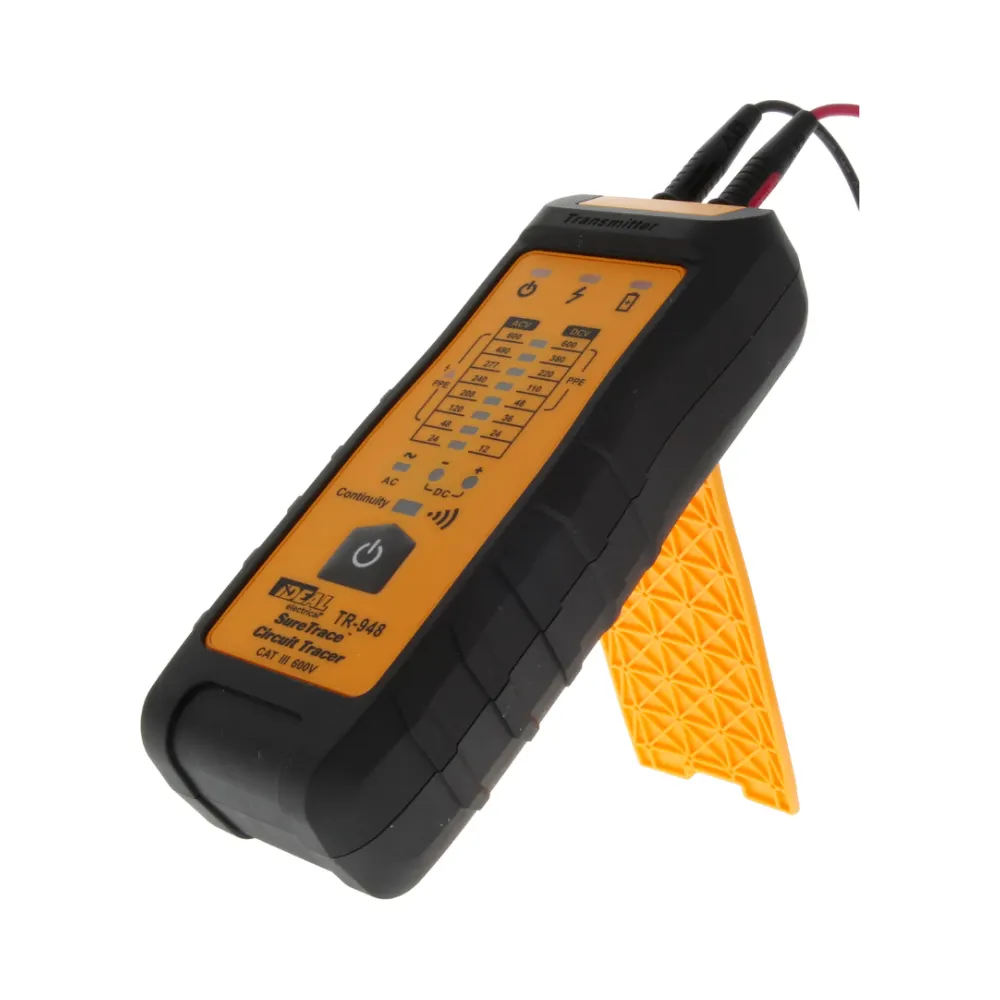

The transmitter features a built-in continuity tester, eliminating the need for additional testing tools. It also detects eight voltage levels between 24V – 600V AC and 12V – 600V DC, with DC polarity indication. Designed for durability, the receiver and transmitter feature industrial-grade over-moulding, offering enhanced grip and drop protection up to 2m (6.6 feet).
Key Features of the Ideal 61-948 SureTrace™ Plus Circuit Tracer
- ETL Certified CAT III 600V, suitable for circuits up to 600V AC/DC, including three-phase systems
- Dual high-visibility displays with a patented 180° rotating main screen and TightSight® secondary display for easy viewing in confined spaces
- Transmitter features a built-in continuity tester, eliminating the need for a separate tester
- Receiver includes a non-contact voltage (NCV) detector, indicating 24V – 600V AC presence with a flashing light and audible beep
- Eight voltage level indication on the transmitter (24 – 600V AC & 12 – 600V DC) with DC polarity detection
- Integrated magnetic/hook strap clip (strap sold separately) and kickstand for hands-free operation
- Industrial over-moulded design, providing secure grip and 2m drop protection

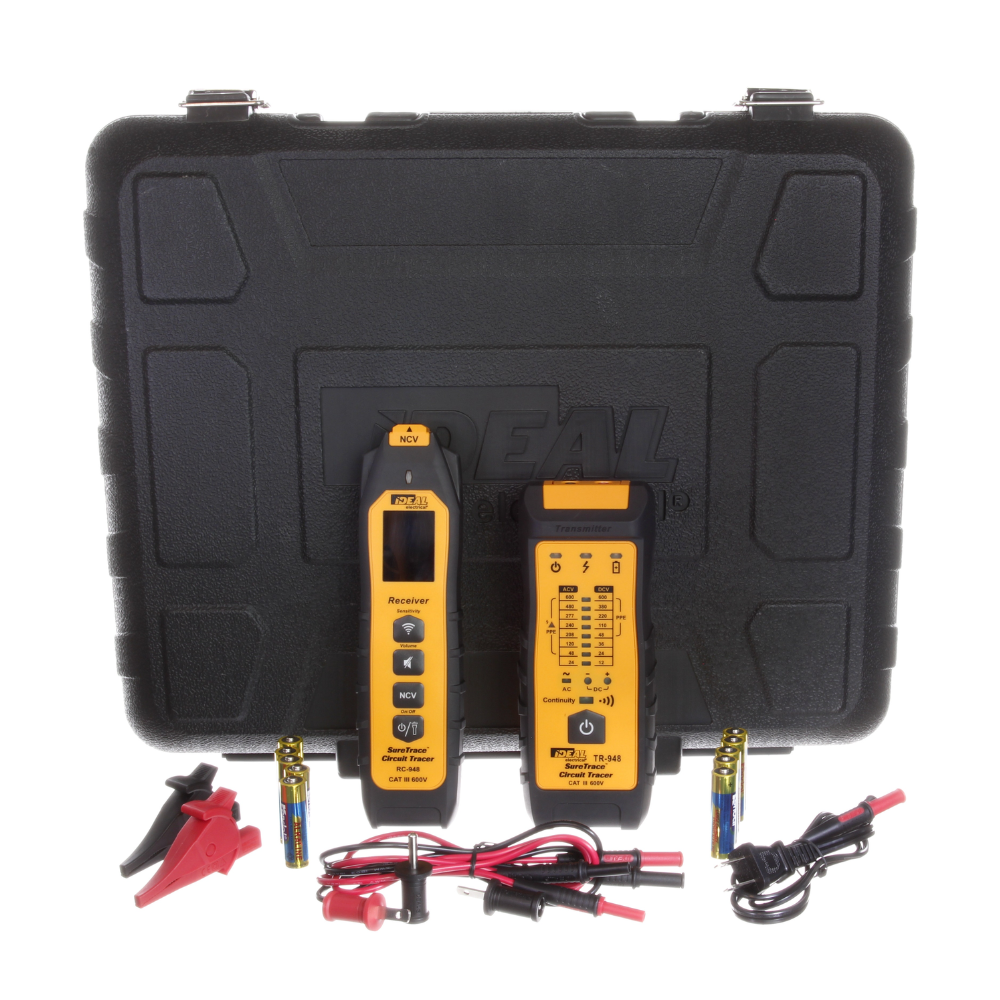

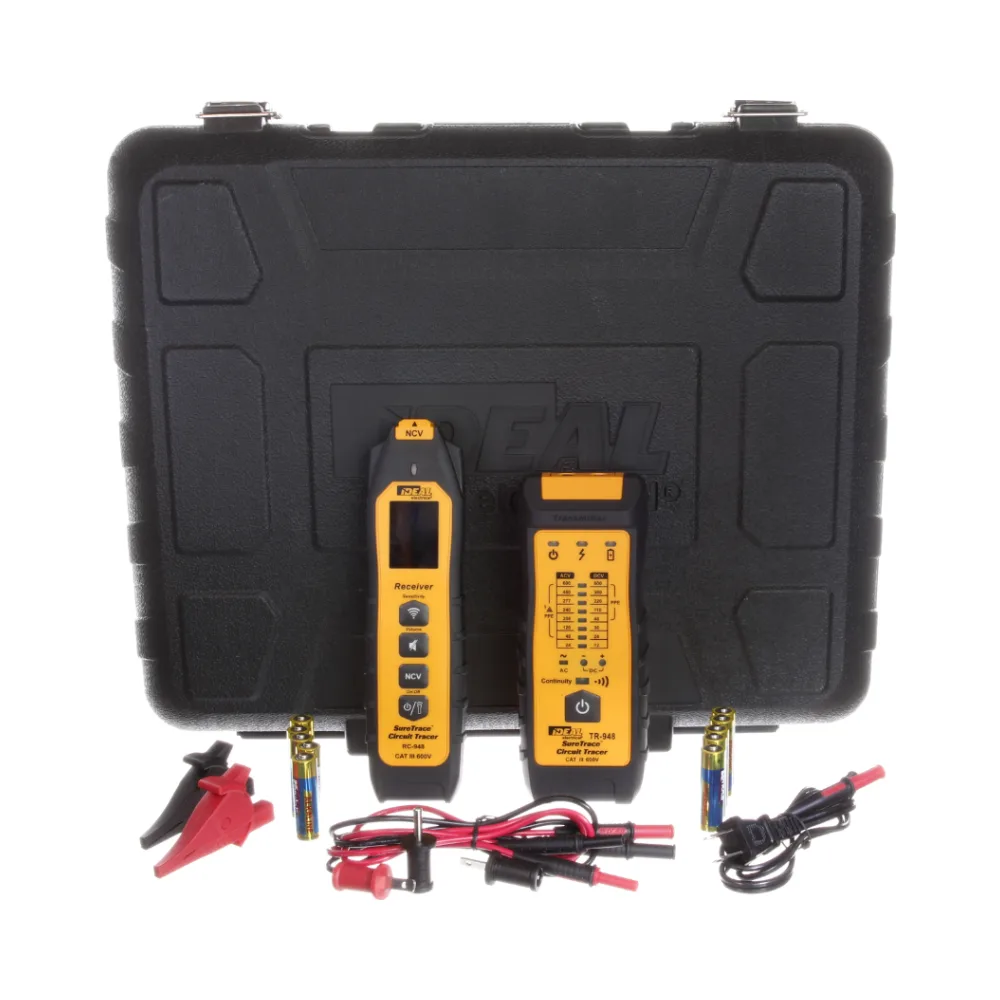

- Includes: AC two-blade receptacle plug with banana plugs, 3-foot test leads, two alligator clips, one ground adapter, two blade adapters, ten AA batteries, and a hard carrying case with extra storage space
- Finds and traces:
- Breakers and fuses
- Splice errors (shared neutrals)
- Dead shorts and open conductors
- Energised/de-energised conductors in walls, ceilings, and floors
- Live circuit identification using Certain Circuit™ technology
Technical Specifications
- Model: IDEAL 61-948 SureTrace™ PLUS
- Voltage compatibility: 0 – 600V AC (50 & 60Hz) / DC
- Circuit types: Open and closed circuits, energised and de-energised systems
- Transmitter features: Built-in continuity tester, 8 voltage level indicators (24 – 600V AC, 12 – 600V DC), DC polarity detection
- Receiver features: Patented 180° rotating display, TightSight® secondary display, NCV detection (24 – 600V AC), built-in work light, mute function
- Durability: Over-moulded industrial design with 2m drop resistance
- Accessories included: AC two-blade plug with banana connectors, 3ft test leads, two alligator clips, one ground adapter, two blade adapters, ten AA batteries, hard carrying case
- Applications: Breaker and fuse identification, circuit tracing, wiring fault detection, three-phase system troubleshooting
About IDEAL Electrical
IDEAL Electrical is a global leader in electrical testing and diagnostic tools, known for innovation, precision, and reliability. Their SureTrace™ range delivers advanced technology for circuit tracing, breaker identification, and electrical troubleshooting. Designed for electricians, maintenance professionals, and contractors, IDEAL Electrical products ensure efficiency and safety in every task.
