Description
6 Way EV Consumer Unit with SPD
Hager VR640EVSPD
Enclosed 100A Main Switch with 40A RCBO & Type 2 Surge Protection – Hager EV Consumer Unit

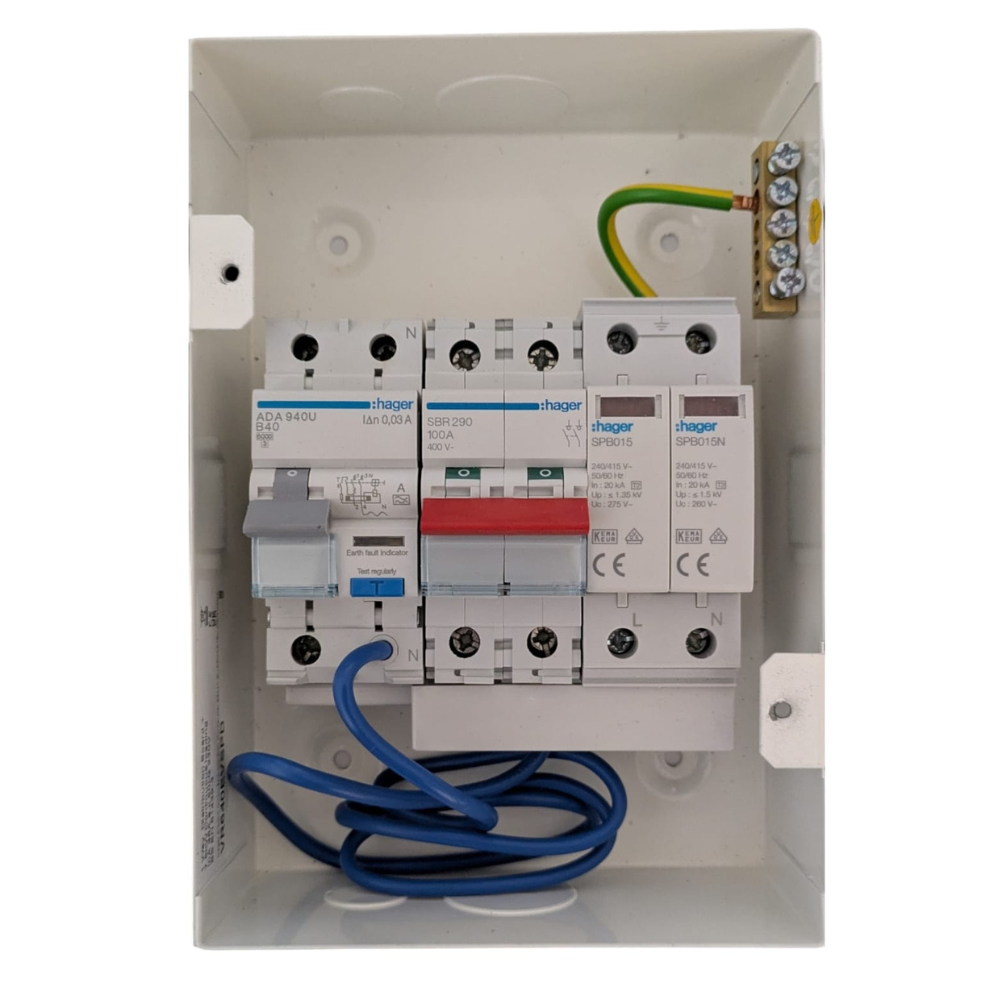

This Hager EV consumer unit is designed to provide reliable protection for EV charging installations. Built with a 100A Main Switch and a 40A 30mA DP RCBO, rated at 36A for continuous loads, it ensures steady power for dedicated EV charging at 7.5kW. Installed before the main consumer unit, it connects directly to the car charger to deliver essential protection and functionality.
Key Features of Hager VR640EVSPD EV Consumer Unit
- 100A Main Switch with 40A RCBO: Supports continuous 7.5kW EV charging, ensuring safe and reliable power delivery.
- Type 2 Surge Protection: Safeguards electronic equipment from transient overvoltages, meeting BS 7671 regulation 443.4.1. This helps prevent injuries, safety service failures, and significant data or financial loss.
- Metal Oxide Varistor (MOV) and Spark Gap Device: Protects both line and neutral. The MOV cartridge features a red flag indicator that signals when it needs replacement, helping to maintain safety.
- IP30 Rated Enclosure: Suitable for indoor use, wall-mounted in garages or similar premises. The enclosure has IK05 impact protection, adding an extra layer of durability.
Electrical Specifications:
- Rated Operational Voltage: 230V a.c. 50Hz
- Rated Impulse Withstand Voltage: 4kV
- Pollution Degree: 2
- Compatible Earthing Systems: TNC-S, TN-S, complying with BS 7671
This Hager EV Consumer Unit (VR640EVSPD) provides essential protection for EV charging installations. Its surge protection features shield installations from transient overvoltages, ensuring compliance with IEC 60364 and BS 7671 standards. It’s an excellent choice for dedicated EV charging circuits.
Application: Ideal for garages or similar indoor locations requiring dedicated EV charging protection. Designed for TNC-S and TN-S earthing systems as per BS 7671.
