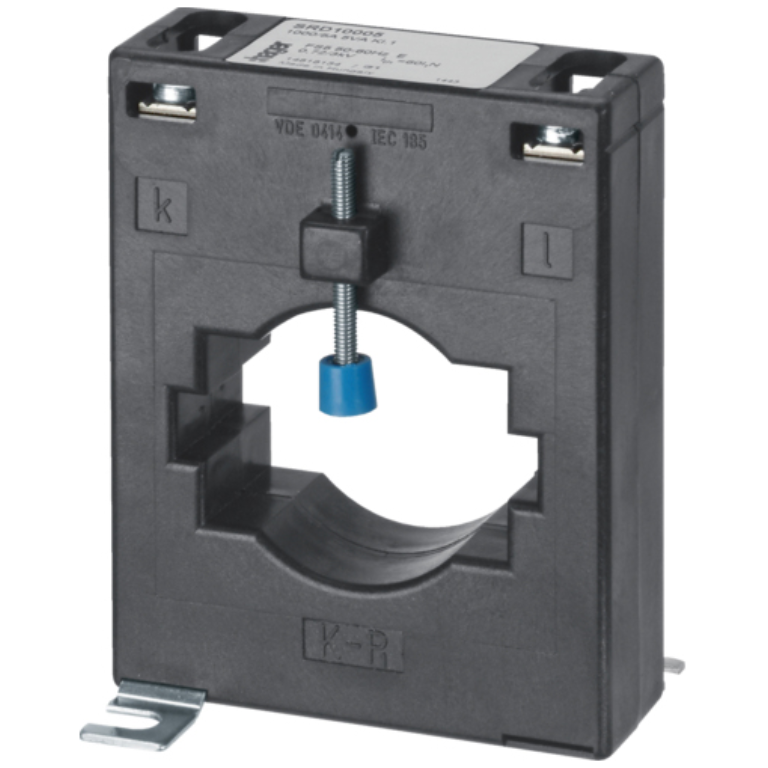

Bar/Cable-Through Current Transformer BG 613 1000/5A 5VA Class 1
Hager SRD10005
The Hager SRD10005 is a high-capacity bar/cable-through current transformer engineered for precise energy monitoring in large-scale systems. With a 1000/5A ratio and 5VA Class 1 accuracy, this device is designed to meet the demands of industrial, commercial, and utility-scale energy management applications. Its larger 45mm opening, robust construction, and screw-type connections ensure reliable performance and ease of installation.
Key Features of Hager SRD10005 Bar/Cable-Through Current Transformer
- 1000/5A Current Ratio: Delivers high-accuracy current measurement with Class 1 precision.
- 5VA Power Rating: Optimised for large-capacity energy monitoring applications.
- Bar/Cable-Through Design: Simplifies installation for seamless integration into existing setups.
- Wide Frequency Range: Operates effectively at 50/60Hz.
- Larger Opening: 45mm opening accommodates extra-large cables for high-capacity systems.
- Durable Build: Designed to handle demanding environments with reliable performance.
- Secure Connections: Screw terminals compatible with flexible and rigid cables for safe and secure wiring.
- Robust Construction: Performs reliably in temperatures from -40°C to 40°C.
Technical Specifications
Electrical Characteristics:
- Frequency: 50/60Hz
- Rated Insulation Voltage: 3kV
- Power Loss Under IN: 8W
Physical Characteristics:
- Depth: 30mm
- Height: 108mm
- Width: 85mm
- Height of Opening: 45mm
Connection Details:
- Flexible Conductor Cross-Section: 1.5–6mm²
- Rigid Cable Cross-Section: 1.5–6mm²
- Connection Type: Screw
Compliance and Standards:
- European Directive WEEE: Concerned
- IP Protection Index: IP10
Environmental Conditions:
- Operating Temperature: -40°C to 40°C
Applications
The Hager SRD10005 is ideal for:
- Industrial: Monitor power usage in heavy-duty machinery and large-scale production setups.
- Commercial: Track energy consumption in multi-tenant buildings, data centers, and retail complexes.
- Utilities: Provide precise current measurements for public infrastructure and high-capacity energy systems.
Why Choose the Hager SRD10005?
The Hager SRD10005 offers exceptional accuracy, robust design, and a large cable opening for seamless integration into large-scale energy systems. Its compliance with Class 1 standards ensures reliability and precision, making it a trusted solution for demanding energy monitoring applications.
