Description

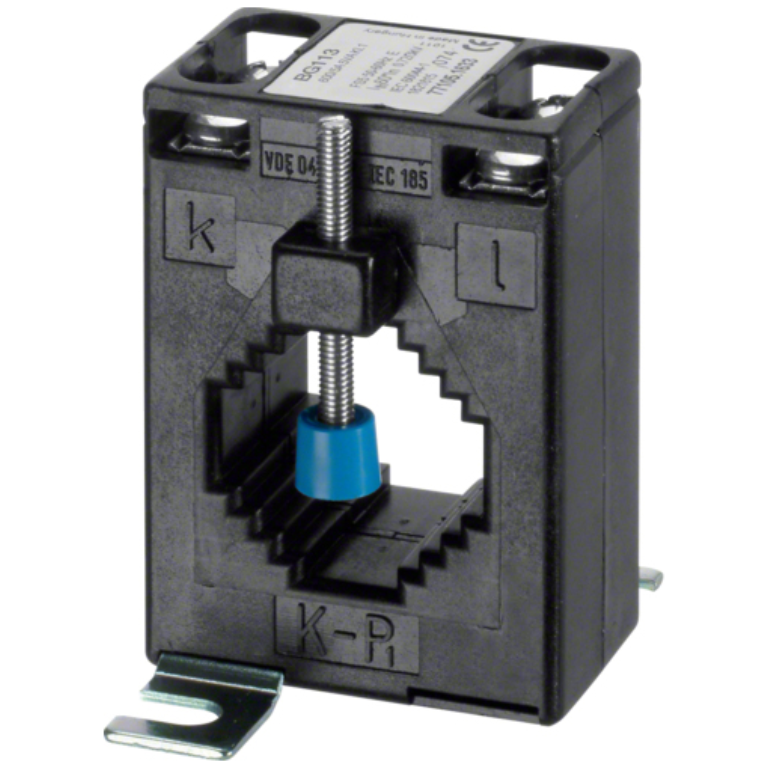

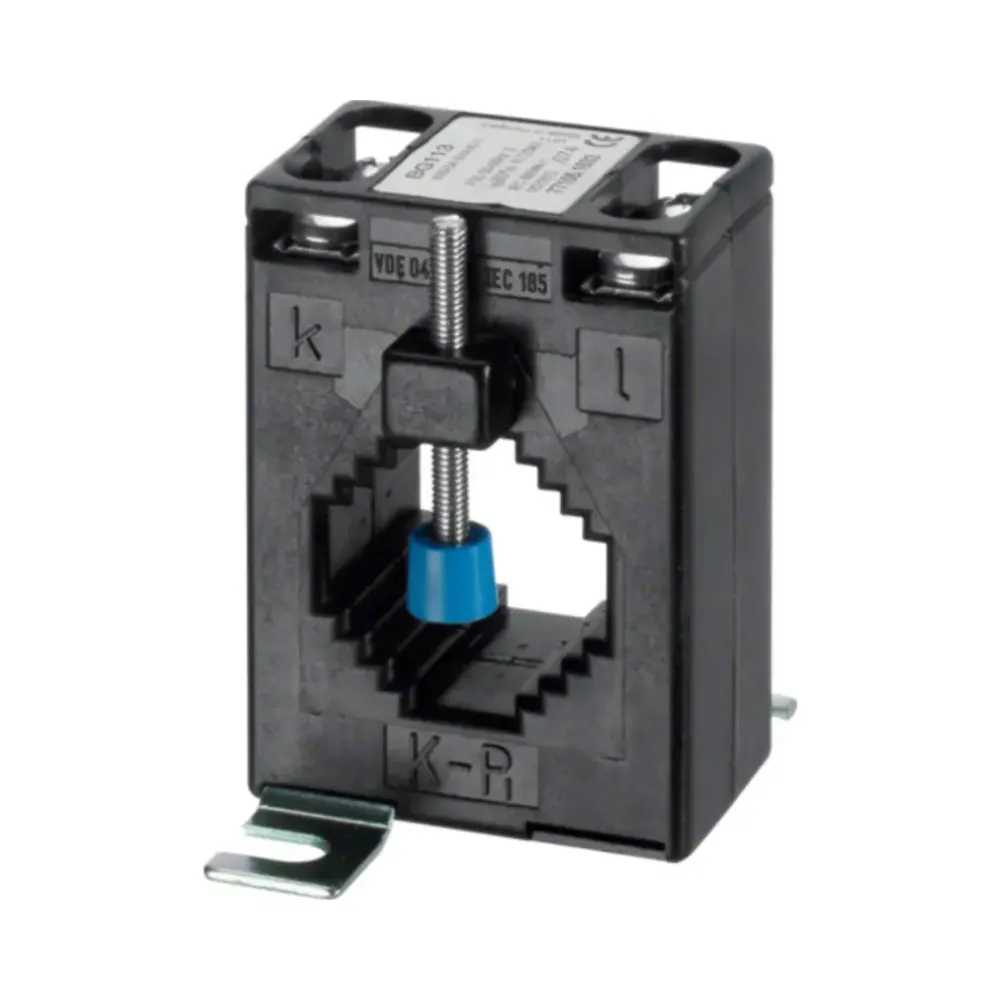

Bar/Cable-Through Current Transformer BG 113 600/5A 5VA Class 1
Hager SRC06005
The Hager SRC06005 is a high-capacity bar/cable-through current transformer engineered for precision energy monitoring in large-scale applications. With a 600/5A ratio and 5VA Class 1 accuracy, this device offers reliable and efficient performance for industrial, commercial, and utility energy systems. Its durable design, compact dimensions, and screw-type connections make it an excellent choice for demanding environments.
Key Features of Hager SRC06005 Bar/Cable-Through Current Transformer
- 600/5A Current Ratio: Provides high-accuracy current measurement with Class 1 precision.
- 5VA Power Rating: Optimised for larger loads in energy monitoring systems.
- Bar/Cable-Through Design: Simplifies installation and allows for seamless integration into existing setups.
- Wide Frequency Range: Operates effectively at 50/60Hz for versatile applications.
- Compact Design: Space-saving size with a height of 70mm and width of 50mm.
- Secure Connections: Screw terminals support flexible and rigid cables for reliable and secure wiring.
- Durable Construction: Operates in extreme temperatures from -40°C to 40°C, ensuring long-lasting performance.
Technical Specifications
Electrical Characteristics:
- Frequency: 50/60Hz
- Rated Insulation Voltage: 3kV
- Power Loss Under IN: 5.5W
Physical Characteristics:
- Depth: 30mm
- Height: 70mm
- Width: 50mm
- Height of Opening: 20mm
Connection Details:
- Flexible Conductor Cross-Section: 1.5–6mm²
- Rigid Cable Cross-Section: 1.5–6mm²
- Connection Type: Screw
Compliance and Standards:
- European Directive WEEE: Concerned
- IP Protection Index: IP10
Environmental Conditions:
- Operating Temperature: -40°C to 40°C
Applications
The Hager SRC06005 is ideal for:
- Industrial: Monitor power usage in large-scale machinery and production setups.
- Commercial: Track energy consumption in multi-tenant buildings, retail outlets, and data centers.
- Utilities: Ensure accurate current measurements for public infrastructure and utility energy systems.
Why Choose the Hager SRC06005?
The Hager SRC06005 combines high accuracy, robust construction, and compact design, making it a dependable choice for energy monitoring in demanding environments. Its bar/cable-through design ensures quick installation, while compliance with Class 1 standards guarantees reliable performance in high-capacity systems.
