Description

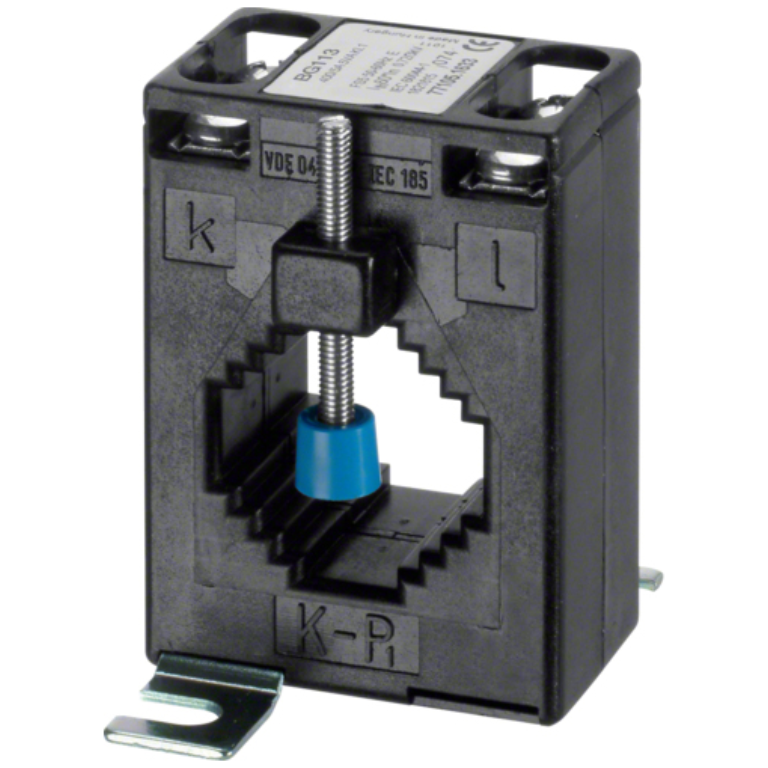

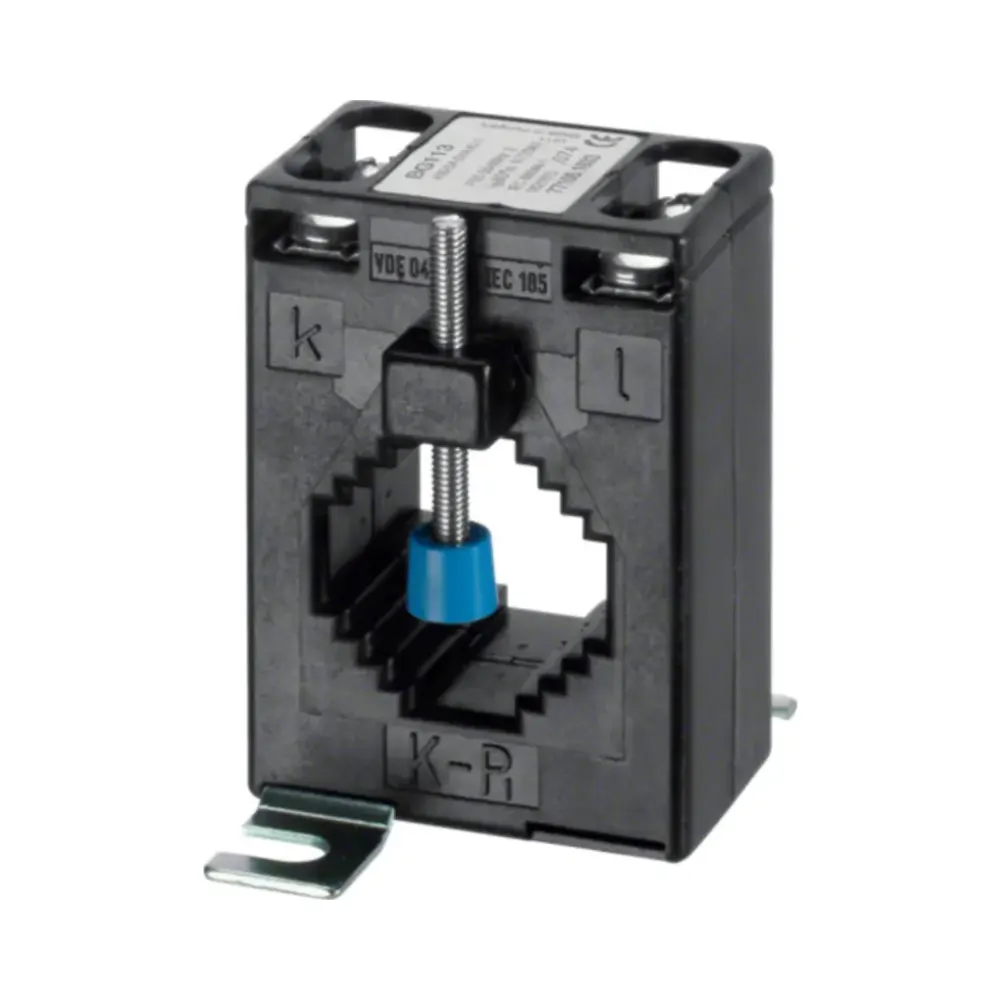

Bar/Cable-Through Current Transformer BG 113 400/5A 5VA Class 1
Hager SRC04005
The Hager SRC04005 is a high-capacity bar/cable-through current transformer designed for precision energy monitoring in demanding environments. With a 400/5A ratio and 5VA Class 1 accuracy, this device is ideal for industrial, commercial, and utility systems. Its durable design, compact size, and screw-type connections ensure reliability and ease of installation.
Key Features of Hager SRC04005 Bar/Cable-Through Current Transformer
- 400/5A Current Ratio: Provides accurate current measurement with Class 1 precision for high-capacity systems.
- 5VA Power Rating: Designed to handle more substantial loads in energy monitoring systems.
- Bar/Cable-Through Design: Streamlines installation for easy integration into existing setups.
- Wide Frequency Range: Operates efficiently at 50/60Hz.
- Compact Dimensions: Space-saving design with a height of 70mm and width of 50mm.
- Secure Connections: Screw terminals accommodate flexible and rigid cables for reliable wiring.
- Rugged Construction: Operates effectively in temperatures ranging from -40°C to 40°C.
Technical Specifications
Electrical Characteristics:
- Frequency: 50/60Hz
- Rated Insulation Voltage: 3kV
- Power Loss Under IN: 3.6W
Physical Characteristics:
- Depth: 30mm
- Height: 70mm
- Width: 50mm
- Height of Opening: 20mm
Connection Details:
- Flexible Conductor Cross-Section: 1.5–6mm²
- Rigid Cable Cross-Section: 1.5–6mm²
- Connection Type: Screw
Compliance and Standards:
- European Directive WEEE: Concerned
- IP Protection Index: IP10
Environmental Conditions:
- Operating Temperature: -40°C to 40°C
Applications
The Hager SRC04005 is ideal for:
- Industrial: Monitor high-capacity systems, including heavy machinery and production equipment.
- Commercial: Track power usage in large office buildings, retail outlets, and multi-tenant facilities.
- Utilities: Provide precise current measurements for public infrastructure and utility energy systems.
Why Choose the Hager SRC04005?
The Hager SRC04005 combines high accuracy, robust construction, and a compact design, making it an excellent solution for high-capacity energy monitoring. Its bar/cable-through design ensures easy installation, while compliance with Class 1 standards guarantees reliable performance in demanding environments.
