Description

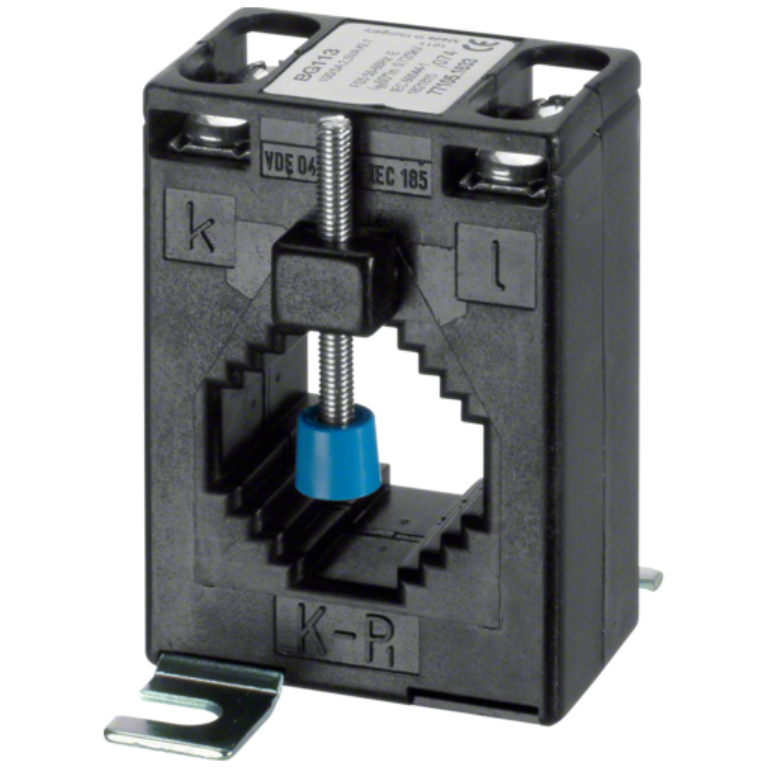

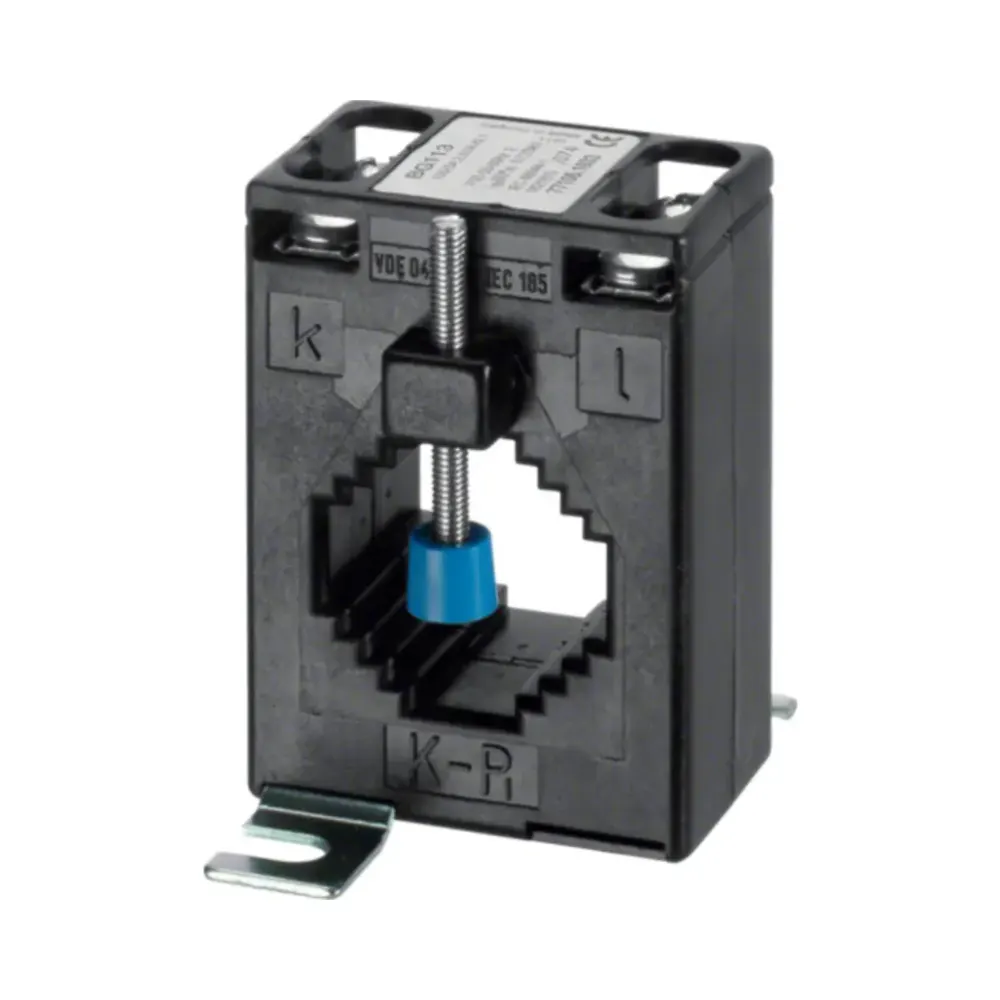

Bar/Cable-Through Current Transformer BG 113 100/5A 2.5VA Class 1
Hager SRA01005
The Hager SRA01005 is a reliable bar/cable-through current transformer designed for accurate current measurement in energy monitoring systems. With a 100/5A ratio and 2.5VA Class 1 rating, it offers precision and efficiency for industrial, commercial, and utility applications. Its compact design, screw connection, and compliance with international standards make it a trusted solution for diverse installations.
Key Features of Hager SRA01005 Bar/Cable-Through Current Transformer
- 100/5A Current Ratio: Designed for efficient energy monitoring with Class 1 accuracy.
- 2.5VA Power Rating: Ideal for precision energy measurement and monitoring systems.
- Bar/Cable-Through Design: Simplifies installation and integration with existing systems.
- Wide Frequency Range: Operates effectively at 50/60Hz.
- Compact Size: Measures 70mm in height and 49.5mm in width, saving space in installations.
- Robust Construction: Screw-type connections ensure secure and reliable wiring.
- Durable Build: Designed to operate in temperatures as low as -40°C and up to 40°C.
Technical Specifications
Electrical Characteristics:
- Frequency: 50/60Hz
- Rated Insulation Voltage: 3kV
- Power Loss Under IN: 0.7W
Physical Characteristics:
- Depth: 30mm
- Height: 70mm
- Width: 49.5mm
- Height of Opening: 20mm
Connection Details:
- Flexible Conductor Cross-Section: 1.5–6mm²
- Rigid Cable Cross-Section: 1.5–6mm²
- Connection Type: Screw
Compliance and Standards:
- European Directive WEEE: Concerned
- IP Protection Index: IP10
Environmental Conditions:
- Operating Temperature: -40°C to 40°C
Applications
The Hager SRA01005 is ideal for:
- Industrial: Monitor power usage in heavy machinery and production facilities.
- Commercial: Track energy consumption in office buildings, retail spaces, and data centers.
- Utilities: Provide accurate current measurement for energy monitoring in public infrastructure.
Why Choose the Hager SRA01005?
The Hager SRA01005 combines precision, compact design, and durable construction for reliable energy monitoring. Its bar/cable-through design simplifies installation, while compliance with Class 1 accuracy ensures dependable performance in demanding applications.
