Hager JKM02 Multifunction Measurement Device DIN Rail 2×3-Phase RS485

Description

Multifunction Measurement Device DIN Rail 2×3-Phase RS485

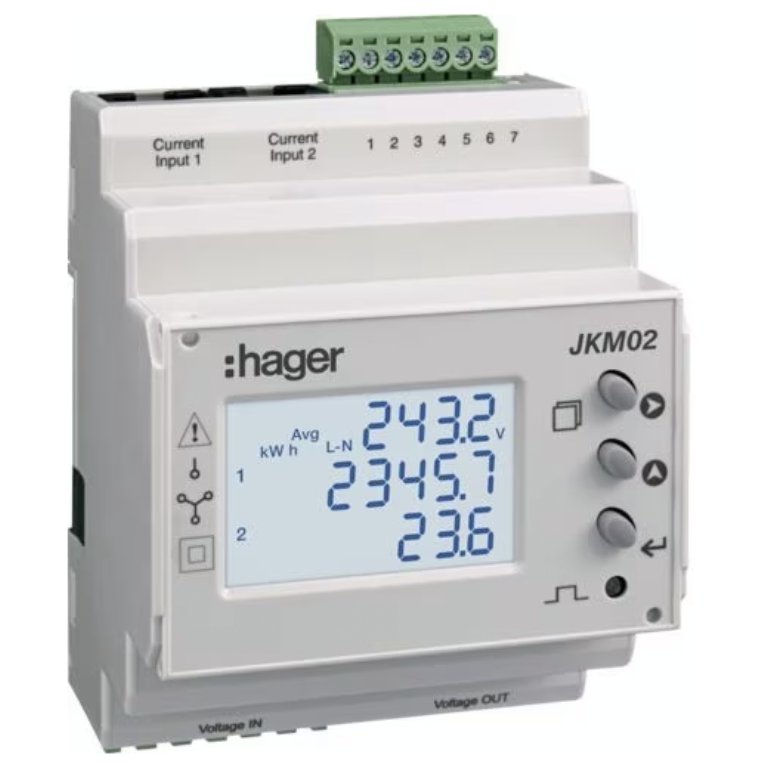

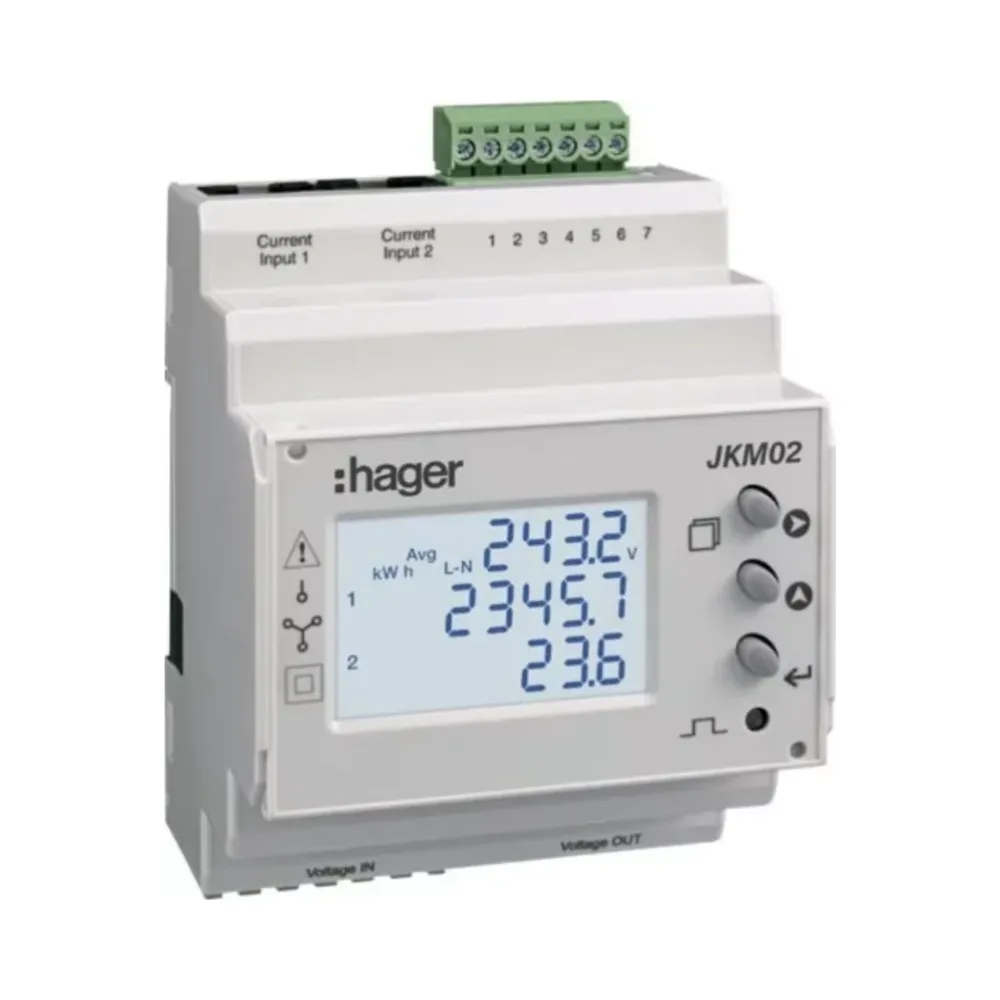

Hager JKM02

The Hager JKM02 Multifunction Measurement Device is a versatile DIN rail-mounted energy monitoring solution for two independent three-phase systems or up to six single-phase circuits. Featuring RS485 communication, dual pulse outputs, and CT/VT compatibility, it is designed for advanced energy management in industrial and commercial environments.

Key Features of Hager JKM02 Multifunction Measurement Device

• Dual System Monitoring: Supports two independent three-phase (2x 3P+N) systems or six single-phase (6x 1P+N) circuits, ideal for multi-load monitoring.
• Wide Voltage Input Range: Rated for 60-300V AC (L-N) and 104-520V AC (L-L).
• RS485 Communication: Allows seamless integration into advanced energy management systems for real-time monitoring.
• Current Transformer (CT) Compatibility: Handles CT primary inputs from 5A to 10,000A with a 330mV secondary input.
• Voltage Transformer (VT) Compatibility: Supports VT primary inputs from 100V to 10kV and secondary inputs between 100-500V AC (L-L).
• Dual Pulse Output: Separate outputs for each monitored system, configurable from 5-27V DC with a maximum current of 100mA.
  • Pulse Mapping:
    • 3 Phase 4 Wire (2×3 Phase): ⎍1 = CT1 / ⎍2 = CT2
    • 1 Phase 2 Wire (6×1 Phase): ⎍1 = CH1+CH2+CH3 (CT1), ⎍2 = CH4+CH5+CH6 (CT2)
• Self-Supplied Auxiliary Power: Powered directly from L1 phase, simplifying installation.
• Compact DIN Rail Design: Efficient form factor for easy panel integration.
• Energy Efficiency: Low voltage rated burden of <8VA on L1 and <0.2VA on L2 and L3.

Technical Specifications

Electrical Input:

• Wiring Input: 3 Phase 4 Wire / 1 Phase 2 Wire
• Rated Input Voltage: 60-300V AC (L-N), 104-520V AC (L-L)
• Frequency Range: 45-65Hz

Current Transformer (CT):

• Primary: 5A to 10,000A
• Secondary: 330mV

Voltage Transformer (VT):

• Primary: 100V to 10kV
• Secondary: 100-500V AC (L-L)

Pulse Output:

• Voltage: 5-27V DC
• Maximum Current: 100mA
• Dual Pulse Mapping: Configurable for multi-load applications

Environmental Conditions:

• Operating Temperature: -10°C to +55°C
• Storage Temperature: -20°C to +70°C
• Humidity: 0-85% (Non-condensing)

Physical Characteristics:

• Installation Category: III
• Weight: 200g

Applications

The Hager JKM02 is ideal for:

1. Industrial: Monitor energy consumption in multiple loads across factories, warehouses, and production facilities.
2. Commercial: Track energy usage in large office complexes, retail outlets, and multi-tenant spaces.
3. Utilities: Suitable for public infrastructure requiring detailed energy management of multiple circuits.

Why Choose the Hager JKM02?

The Hager JKM02 delivers unmatched flexibility with its dual-system monitoring capability, RS485 communication, and compact DIN rail design. Whether managing independent three-phase systems or multiple single-phase loads, it ensures precision, reliability, and ease of integration into modern energy management systems. Its robust build and MID certification make it a dependable solution for diverse energy monitoring needs.
