Description

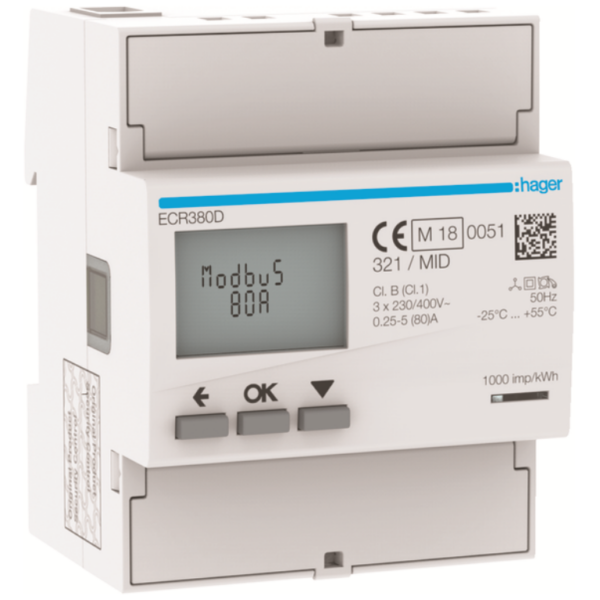

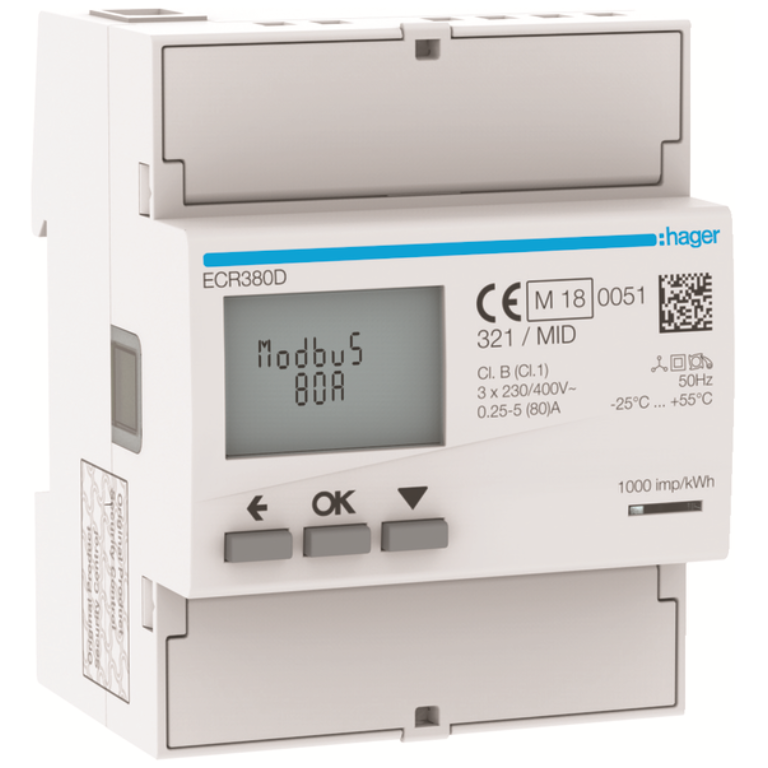

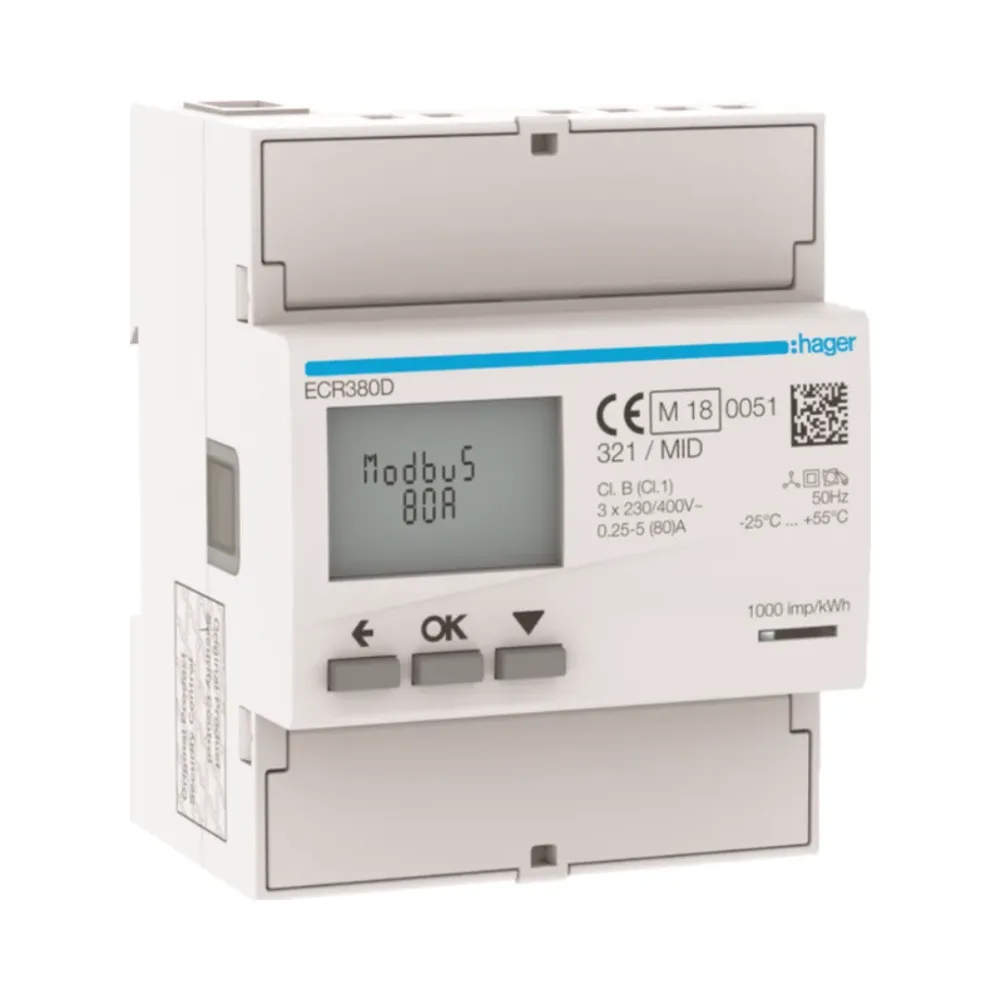

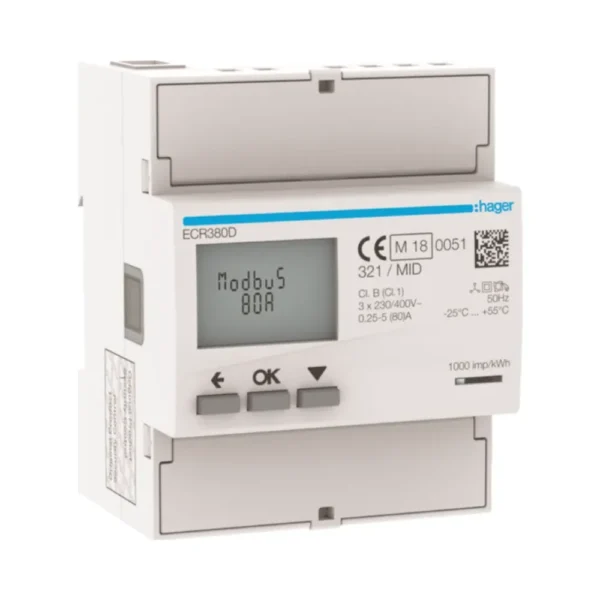

3 Phase kWh Meter Direct 80A 4M MODBUS MID
Hager ECR380D
The Hager ECR380D is a high-precision three-phase kWh meter designed for direct 80A measurement with MODBUS communication. This 4M MID-certified meter is built for industrial, commercial, and utility energy monitoring. With a compact design, retro-illuminated display, and robust construction, it offers seamless integration into energy management systems, ensuring accurate and efficient tracking of energy consumption.
Key Features of Hager ECR380D 3 Phase kWh Meter
- MODBUS Communication: Facilitates real-time energy monitoring and integration with MODBUS-based energy management systems.
- Direct 80A Measurement: Capable of handling moderate to high energy loads, ideal for various applications.
- Compact 4M Design: Space-saving width of 72mm, perfect for efficient panel installations.
- Retro-Illuminated Display: Ensures clear visibility of energy data, even in low-light conditions.
- Three-Phase Counter: Designed for 3P+N systems, providing accurate and reliable energy tracking.
- MID Certified: Compliant with international standards for precise billing and energy management.
- DIN Rail Mounting: Quick and secure installation for streamlined setups.
- Energy Efficiency: Consumes only 2VA power with a total power loss of 0.6W under nominal current.
- Reliable Operation: Functions effectively in temperatures from -25°C to 55°C.
Technical Specifications
Architecture:
- Bus System: MODBUS
- Number of Poles: 4P (3P+N)
- Fixing Mode: DIN rail type O (symmetrical)
Electrical Features:
- Rated Operational Voltage (Ue): 92-480V AC
- Frequency: 50Hz
- Max Operating Voltage: 300V
- Rated Impulse Withstand Voltage: 6kV
Physical Dimensions:
- Depth: 60mm
- Height: 92mm
- Width: 72mm
Power Consumption:
- Power Consumed: 2VA
- Total Power Loss: 0.6W
Measurement:
- Type: Electronic Measuring Instrument
Display and Counter:
- Display: Retro-Illuminated Display
- Counter Type: 4 Wires Counter
Standards and Protection:
- Protection Index: IP20
- European Directive WEEE: Concerned
Operating Conditions:
- Operating Temperature: -25°C to 55°C
Installation:
- Tightening Torque: 2 Nm
Applications
The Hager ECR380D is ideal for:
- Industrial: Monitor power consumption in factories, warehouses, and production facilities.
- Commercial: Track energy usage in offices, retail outlets, and hospitality venues.
- Utilities: Suitable for public infrastructure and utility energy monitoring systems.
Why Choose the Hager ECR380D?
The Hager ECR380D offers a reliable solution for precise energy monitoring with MODBUS communication for seamless system integration. Its compact 4M design, retro-illuminated display, and robust construction make it an excellent choice for demanding applications. The MID certification ensures compliance with billing and energy management standards, guaranteeing accuracy and dependability.
