Description
3 Phase kWh Meter via CT 1A or 5A 4M MODBUS MID

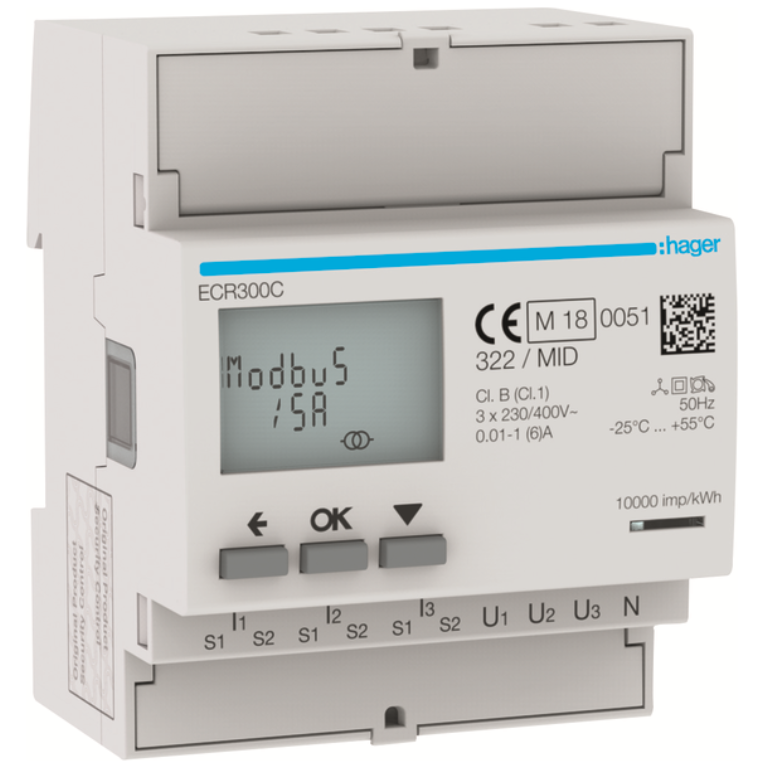

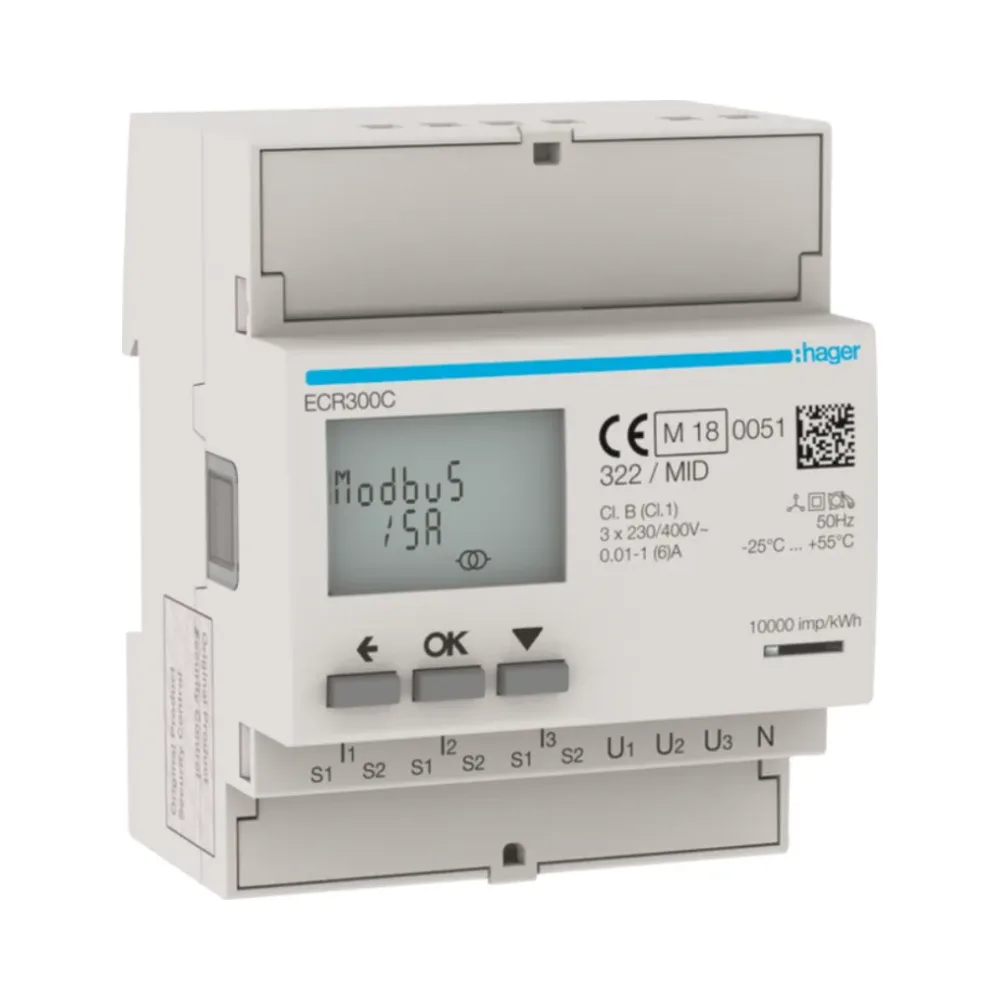

Hager ECR300C
The Hager ECR300C is a precise and efficient three-phase kWh meter designed for indirect measurement via 1A or 5A current transformers (CT). Equipped with MODBUS communication, this 4M MID-certified meter ensures seamless integration into energy management systems, making it ideal for industrial, commercial, and utility applications.
Key Features of Hager ECR300C 3 Phase kWh Meter
- CT-Based Measurement: Compatible with 1A or 5A CT inputs, ideal for monitoring high-load environments.
- MODBUS Communication: Allows for real-time energy tracking and integration with MODBUS-based energy management systems.
- Compact 4M Design: Space-efficient width of 72mm, perfect for panel installations.
- Retro-Illuminated Display: Provides clear and readable energy data, even in low-light conditions.
- Three-Phase Counter: Built for 3P+N systems, offering reliable and accurate energy tracking.
- MID Certified: Meets international standards for billing and energy management accuracy.
- DIN Rail Mounting: Quick and secure installation for streamlined setups.
- Energy Efficiency: Consumes just 2VA power with a total power loss of 0.6W under nominal current.
- Durable Performance: Operates reliably in environments with temperatures ranging from -25°C to 55°C.
Technical Specifications
Architecture:
- Bus System: MODBUS
- Number of Poles: 4P (3P+N)
- Fixing Mode: DIN rail type O (symmetrical)
Electrical Features:
- Rated Operational Voltage (Ue): 92-480V AC
- Frequency: 50Hz
- Max Operating Voltage: 300V
- Rated Impulse Withstand Voltage: 6kV
Physical Dimensions:
- Depth: 60mm
- Height: 90mm
- Width: 72mm
Power Consumption:
- Power Consumed: 2VA
- Total Power Loss: 0.6W
Measurement:
- Type: Electronic Measuring Instrument
- CT Input: 1A or 5A
Display and Counter:
- Display: Retro-Illuminated Display
- Counter Type: 4 Wires Counter
Standards and Protection:
- Protection Index: IP20
- European Directive WEEE: Concerned
Operating Conditions:
- Operating Temperature: -25°C to 55°C
Applications
The Hager ECR300C is ideal for:
- Industrial: Monitor energy consumption in high-demand environments such as factories and warehouses.
- Commercial: Track power usage in large offices, retail outlets, and hospitality facilities.
- Utilities: Suitable for public infrastructure and indirect energy monitoring with CT-based systems.
Why Choose the Hager ECR300C?
The Hager ECR300C offers a reliable and flexible solution for energy monitoring with its CT-based measurement and MODBUS communication. Its compact design and MID certification ensure accurate energy tracking and seamless integration into advanced energy management systems. Ideal for high-load applications, it delivers precision, reliability, and ease of use.
