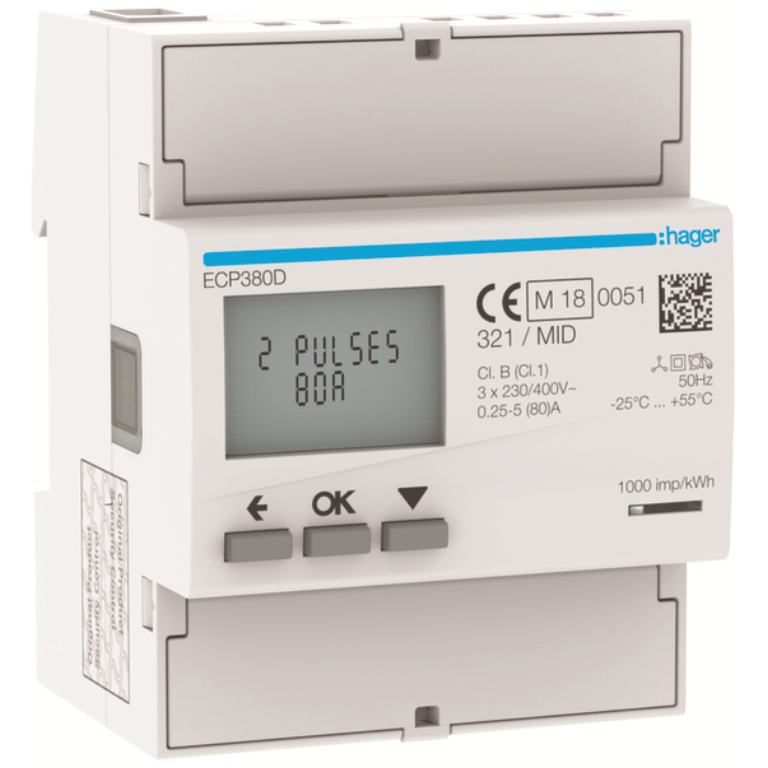

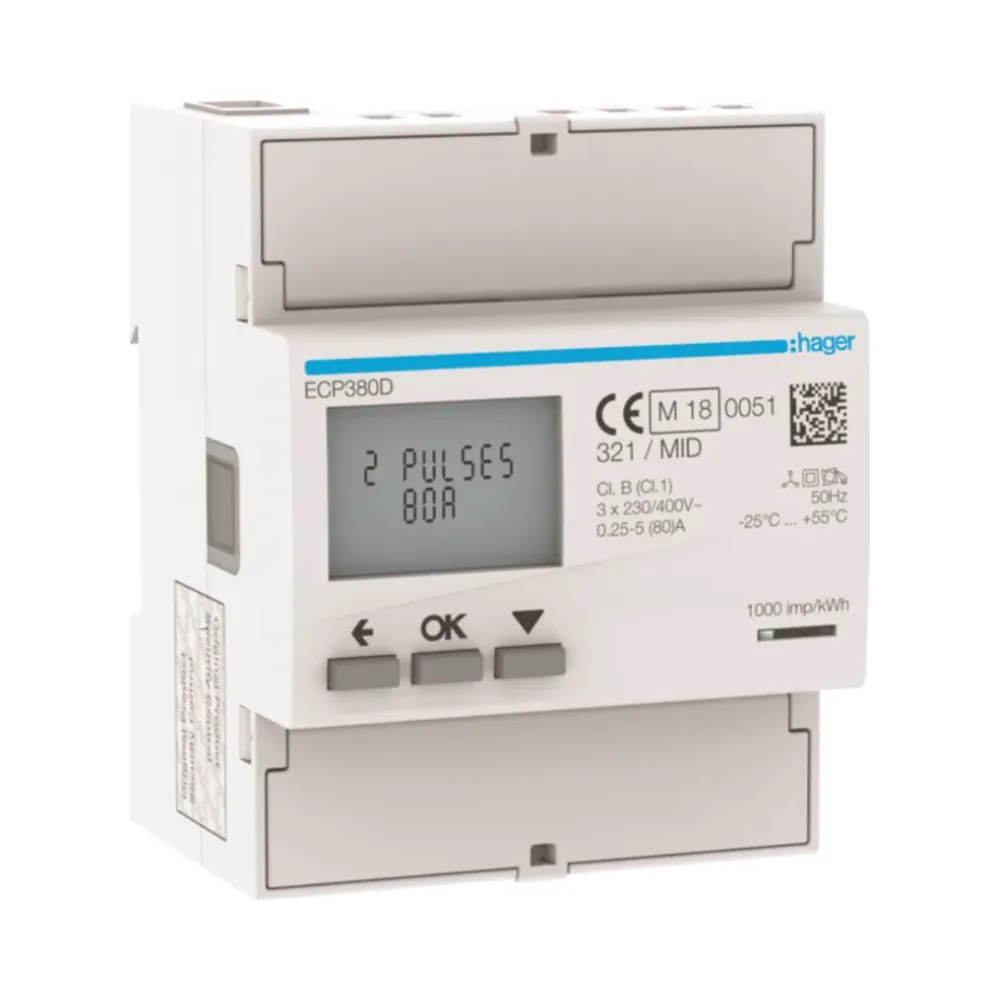

3 Phase kWh Meter Direct 80A 4M S0 MID
Hager ECP380D
The Hager ECP380D is a robust three-phase kWh meter designed for direct 80A measurement with S0 pulse output. This 4M MID-certified meter offers precise energy monitoring and is ideal for industrial, commercial, and utility applications. Its compact design, retro-illuminated display, and compatibility with energy management systems ensure dependable and efficient energy tracking.
Key Features of Hager ECP380D 3 Phase kWh Meter
- S0 Pulse Output: Provides seamless integration with energy management systems for real-time energy monitoring.
- Direct 80A Measurement: Capable of handling moderate to high energy loads efficiently.
- Compact 4M Design: Space-saving width of 72mm, ideal for panel installations.
- Retro-Illuminated Display: Ensures clear visibility of energy usage data in various lighting conditions.
- Three-Phase Counter: Designed for 3P+N systems, offering reliable and accurate energy tracking.
- MID Certified: Meets international standards for billing and energy management accuracy.
- DIN Rail Mounting: Allows for quick and secure installation in DIN rail systems.
- Energy Efficiency: Consumes just 2VA power with a total power loss of 0.6W under nominal current.
- Reliable Operation: Operates effectively in a wide temperature range of -25°C to 55°C.
Technical Specifications
Architecture:
- Number of Poles: 4P (3P+N)
- Fixing Mode: DIN rail type O (symmetrical)
Electrical Features:
- Rated Operational Voltage (Ue): 92-480V AC
- Frequency: 50Hz
- Max Operating Voltage: 300V
- Rated Impulse Withstand Voltage: 6kV
Physical Dimensions:
- Depth: 60mm
- Height: 92mm
- Width: 72mm
Power Consumption:
- Power Consumed: 2VA
- Total Power Loss: 0.6W
Measurement:
- Type: Electronic Measuring Instrument
Display and Counter:
- Display: Retro-Illuminated Display
- Counter Type: 4 Wires Counter
Standards and Protection:
- Protection Index: IP20
- European Directive WEEE: Concerned
Operating Conditions:
- Operating Temperature: -25°C to 55°C
Installation:
- Tightening Torque: 2 Nm
Applications
The Hager ECP380D is ideal for:
- Industrial: Monitor energy consumption in warehouses, factories, and production facilities.
- Commercial: Track power usage in offices, retail outlets, and hospitality environments.
- Utilities: Suitable for energy monitoring in public infrastructure and utility applications.
Why Choose the Hager ECP380D?
The Hager ECP380D combines precision, durability, and compatibility, making it an ideal choice for energy monitoring. With its S0 pulse output, the meter integrates seamlessly into energy management systems. Its compact 4M design, MID certification, and retro-illuminated display ensure accuracy, reliability, and ease of use across various applications.
