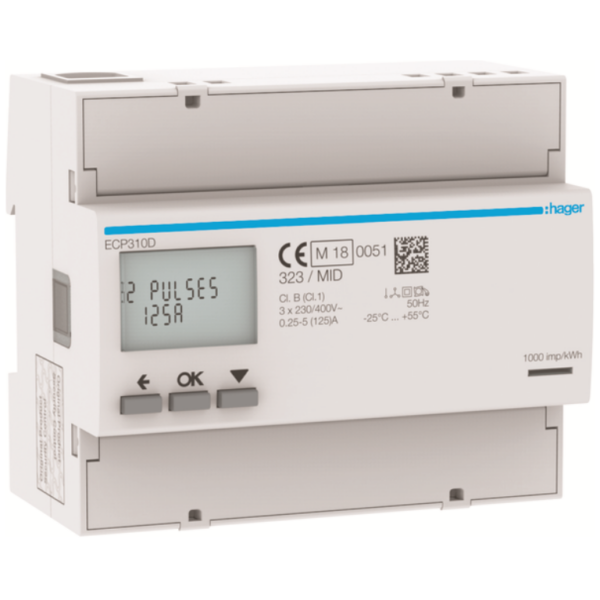

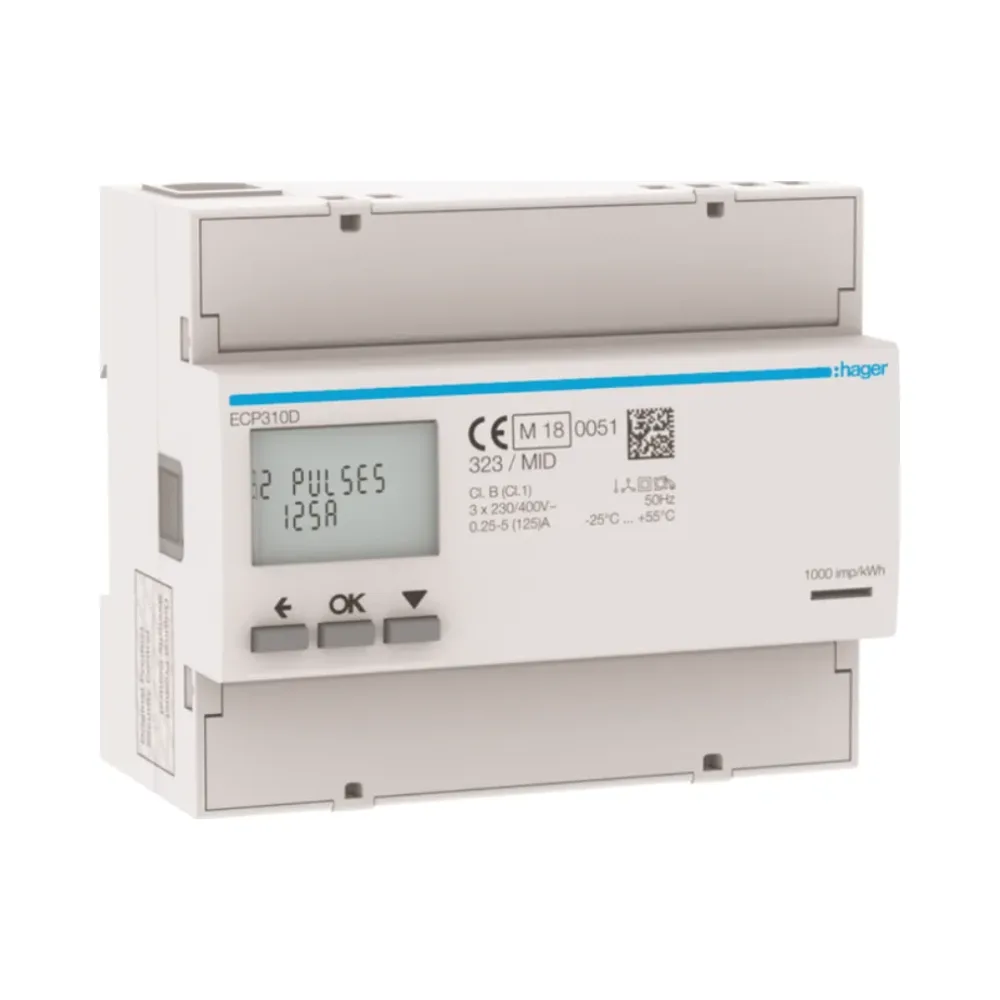

3 Phase kWh Meter Direct 125A 6M S0 MID
Hager ECP310D
The Hager ECP310D is a high-capacity three-phase kWh meter designed for direct 125A measurement with S0 pulse output, enabling seamless integration into energy management systems. This 6M MID-certified meter is ideal for industrial, commercial, and large-scale energy monitoring, providing precision, durability, and compatibility for demanding applications.
Key Features of Hager ECP310D 3 Phase kWh Meter
- S0 Pulse Output: Facilitates integration with energy monitoring systems for real-time consumption tracking.
- Direct 125A Measurement: Designed to handle heavy energy loads, making it perfect for high-demand environments.
- Compact 6M Design: Space-efficient design with a width of 107mm for easy installation in panels.
- Retro-Illuminated Display: Ensures clear and readable energy data in all lighting conditions.
- Three-Phase Counter: Built for 3P+N systems, ensuring reliable and precise energy tracking.
- MID Certified: Compliant with international standards for accuracy in billing and energy management.
- DIN Rail Mounting: Quick and secure installation with DIN rail compatibility.
- Energy Efficiency: Consumes only 2VA power with a total power loss of 0.6W under nominal current.
- Durable Construction: Operates reliably in diverse environments with temperatures ranging from -25°C to 55°C.
Technical Specifications
Architecture:
- Number of Poles: 4P (3P+N)
- Fixing Mode: DIN rail type O (symmetrical)
Electrical Features:
- Rated Operational Voltage (Ue): 92-480V AC
- Frequency: 50Hz
- Max Operating Voltage: 300V
- Rated Impulse Withstand Voltage: 6kV
Physical Dimensions:
- Depth: 60mm
- Height: 92mm
- Width: 107mm
Power Consumption:
- Power Consumed: 2VA
- Total Power Loss: 0.6W
Measurement:
- Type: Electronic Measuring Instrument
Display and Counter:
- Display: Retro-Illuminated Display
- Counter Type: 4 Wires Counter
Standards and Protection:
- Protection Index: IP20
- European Directive WEEE: Concerned
Operating Conditions:
- Operating Temperature: -25°C to 55°C
Installation:
- Tightening Torque: 5 Nm
Applications
The Hager ECP310D is ideal for:
- Industrial: Monitor energy consumption in factories, warehouses, and production facilities.
- Commercial: Track energy usage in office buildings, retail outlets, and hospitality venues.
- Utilities: Suitable for energy monitoring in public infrastructure and large utility setups.
Why Choose the Hager ECP310D?
The Hager ECP310D combines precision, reliability, and seamless integration with energy monitoring systems through its S0 pulse output. Its robust 125A capacity and compact 6M design make it an excellent choice for demanding applications, while the MID certification ensures accuracy and compliance for billing and energy tracking.
