Hager ECP300C 3 Phase kWh Meter via CT 1A or 5A 4M S0 MID

Description

3 Phase kWh Meter via CT 1A or 5A 4M S0 MID

Hager ECP300C

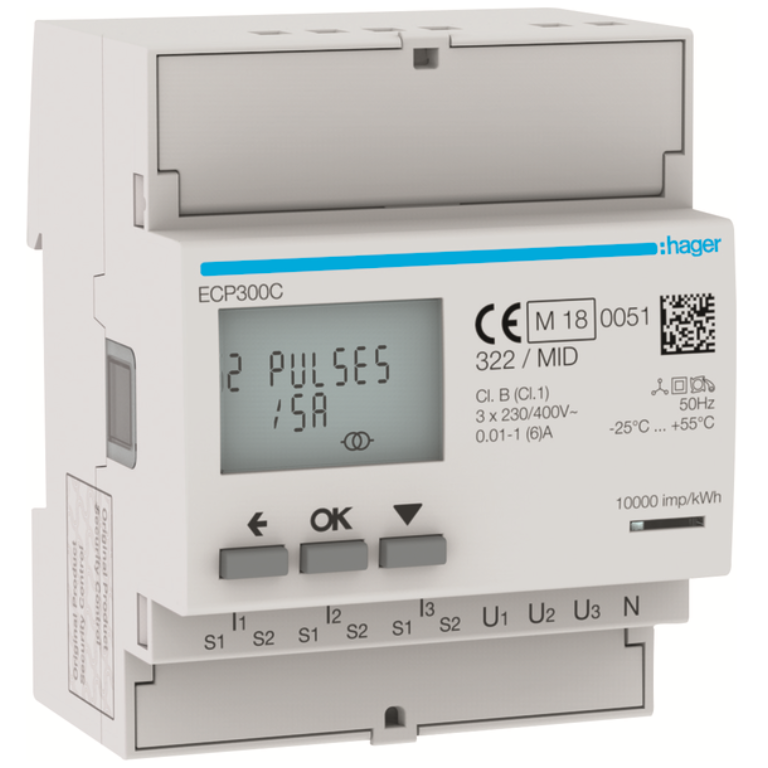

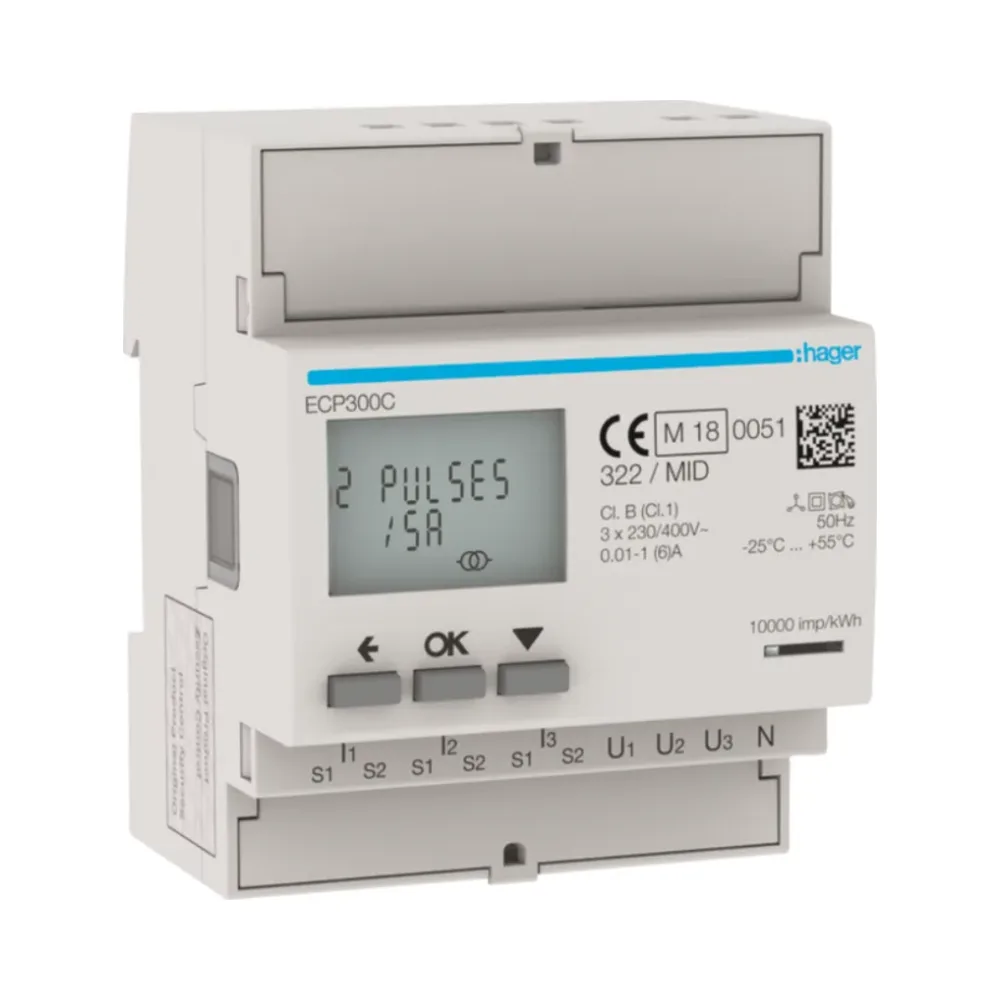

The Hager ECP300C is a three-phase kWh meter designed for indirect measurement using 1A or 5A current transformers (CT). Equipped with S0 pulse output, this 4M MID-certified meter ensures accurate energy tracking and seamless integration into energy management systems. It is perfect for industrial, commercial, and large-scale applications requiring precise and reliable monitoring.

Key Features of Hager ECP300C 3 Phase kWh Meter

• CT-Based Measurement: Supports indirect energy measurement with 1A or 5A current transformers, ideal for high-load environments.
• S0 Pulse Output: Provides compatibility with energy management systems for real-time monitoring and data analysis.
• Compact 4M Design: Space-saving width of 72mm, suitable for efficient panel installations.
• Retro-Illuminated Display: Ensures clear visibility of energy data, even in low-light conditions.
• Three-Phase Counter: Built for 3P+N systems with a toroidal measurement method and pulse output.
• MID Certified: Meets international standards for energy measurement and billing accuracy.
• DIN Rail Mounting: Quick and secure installation on DIN rail systems.
• Energy Efficiency: Consumes only 2VA power with a total power loss of 0.6W under nominal current.
• Durable Construction: Operates reliably in temperatures ranging from -25°C to 55°C.

Technical Specifications

Architecture:

• Number of Poles: 4P (3P+N)
• Fixing Mode: DIN rail type O (symmetrical)

Electrical Features:

• Rated Operational Voltage (Ue): 92-480V AC
• Frequency: 50Hz
• Max Operating Voltage: 300V
• Rated Impulse Withstand Voltage: 6kV

Physical Dimensions:

• Depth: 60mm
• Height: 90mm
• Width: 72mm

Power Consumption:

• Power Consumed: 2VA
• Total Power Loss: 0.6W

Measurement:

• Type: Electronic Measuring Instrument
• CT Input: 1A or 5A

Display and Counter:

• Display: Retro-Illuminated Display
• Counter Type: Three-Phase Counter with Toroidal Measurement and Impulse Output

Standards and Protection:

• Protection Index: IP20
• European Directive WEEE: Concerned

Operating Conditions:

• Operating Temperature: -25°C to 55°C

Applications

The Hager ECP300C is ideal for:

1. Industrial: Monitor energy usage in factories, warehouses, and production facilities.
2. Commercial: Track power consumption in offices, retail outlets, and hospitality venues.
3. Utilities: Suitable for indirect energy monitoring in public infrastructure and large-scale systems.

Why Choose the Hager ECP300C?

The Hager ECP300C offers precision, flexibility, and seamless integration into energy management systems through its CT-based measurement and S0 pulse output. Its compact 4M design ensures efficient installation, while the MID certification guarantees accurate energy tracking and billing compliance. Ideal for high-load applications, it delivers reliability and ease of use.
