Hager ECP180D 1 Phase kWh Meter Direct 80A 2M S0 MID

Description

1 Phase kWh Meter Direct 80A 2M S0 MID

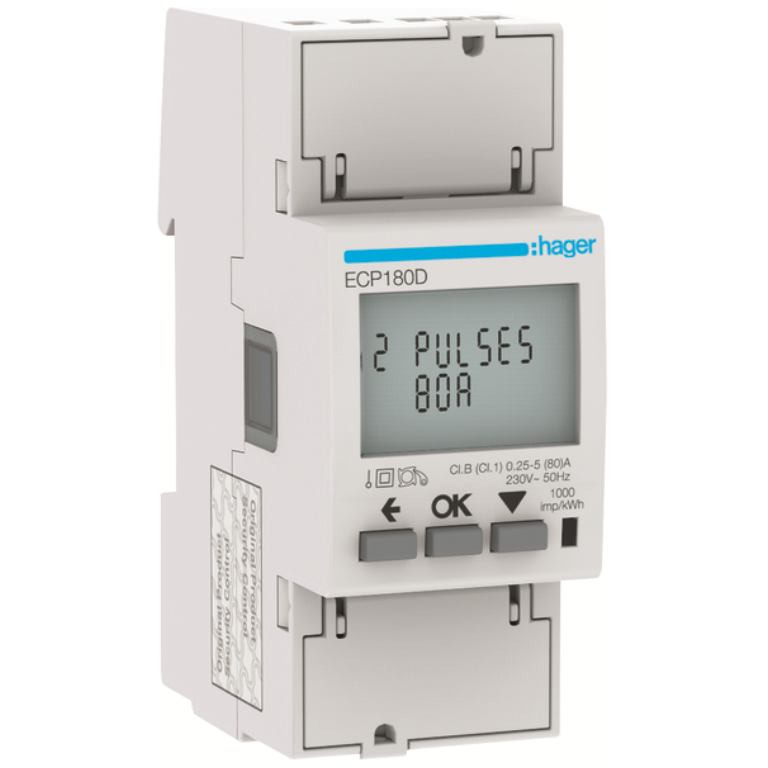

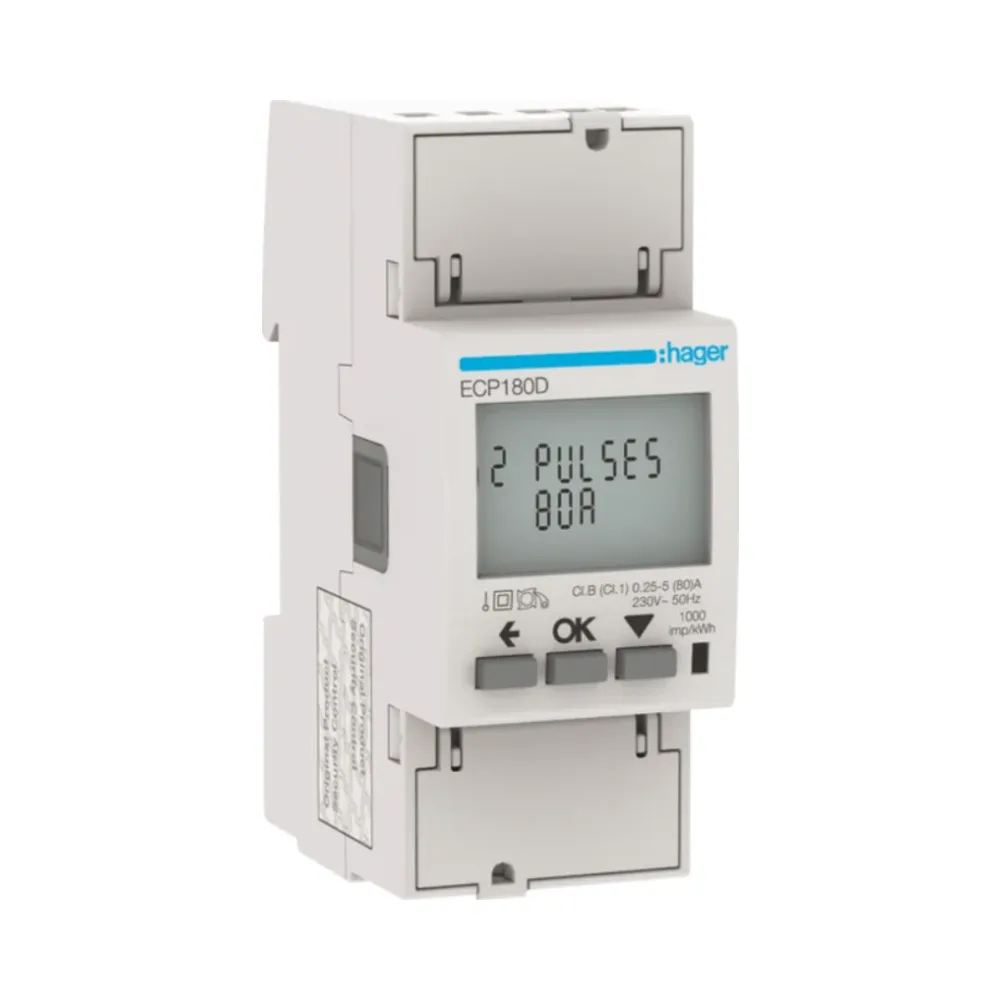

Hager ECP180D

The Hager ECP180D is a single-phase kWh meter designed for high-precision energy measurement, featuring an S0 pulse output for seamless integration into energy monitoring systems. With a robust 80A capacity, MID certification, and compact 2M design, this meter is ideal for residential, commercial, and industrial applications where reliability and accuracy are essential.

Key Features of Hager ECP180D 1 Phase kWh Meter

• S0 Pulse Output: Enables integration into energy management systems for real-time energy monitoring.
• Direct 80A Measurement: Designed to handle high energy loads effectively.
• Compact 2M Design: Space-saving dimensions with a width of 36mm for easy panel installation.
• Retro-Illuminated Display: Provides clear and readable energy data in any lighting condition.
• Single-Phase Counter: Specifically built for 1P+N systems with accurate tracking of energy usage.
• MID Certified: Ensures compliance with international standards for precise billing and energy tracking.
• DIN Rail Mounting: Quick and secure installation on DIN rail systems.
• Energy Efficiency: Consumes only 2VA power with a total power loss of 1W under nominal current.
• Durable Design: Operates within a wide temperature range of -25°C to 55°C, making it suitable for diverse environments.

Technical Specifications

Architecture:

• Number of Poles: 2P (1P+N)
• Fixing Mode: DIN rail type O (symmetrical)

Electrical Features:

• Rated Operational Voltage (Ue): 92-276V AC
• Frequency: 50Hz
• Max Operating Voltage: 300V
• Rated Impulse Withstand Voltage: 6kV

Physical Dimensions:

• Depth: 60mm
• Height: 92mm
• Width: 36mm

Power Consumption:

• Power Consumed: 2VA
• Total Power Loss: 1W

Measurement:

• Type: Electronic Measuring Instrument

Display and Counter:

• Display: Retro-Illuminated Display
• Counter Type: Single-Phase

Standards and Protection:

• Protection Index: IP20
• European Directive WEEE: Concerned

Operating Conditions:

• Operating Temperature: -25°C to 55°C

Installation:

• Tightening Torque: 2 Nm

Applications

The Hager ECP180D is ideal for:

1. Residential: Monitor high-demand energy usage in homes and apartments.
2. Commercial: Track power consumption in retail outlets, offices, and small industrial setups.
3. Industrial: Measure energy in warehouses, factories, and facilities with higher energy demands.

Why Choose the Hager ECP180D?

The Hager ECP180D stands out with its 80A capacity and S0 pulse output, providing exceptional performance for precise energy monitoring. Its compact 2M design ensures efficient use of space, while the MID certification guarantees accuracy for billing purposes. Whether for residential, commercial, or industrial applications, this meter delivers dependable and accurate results.
