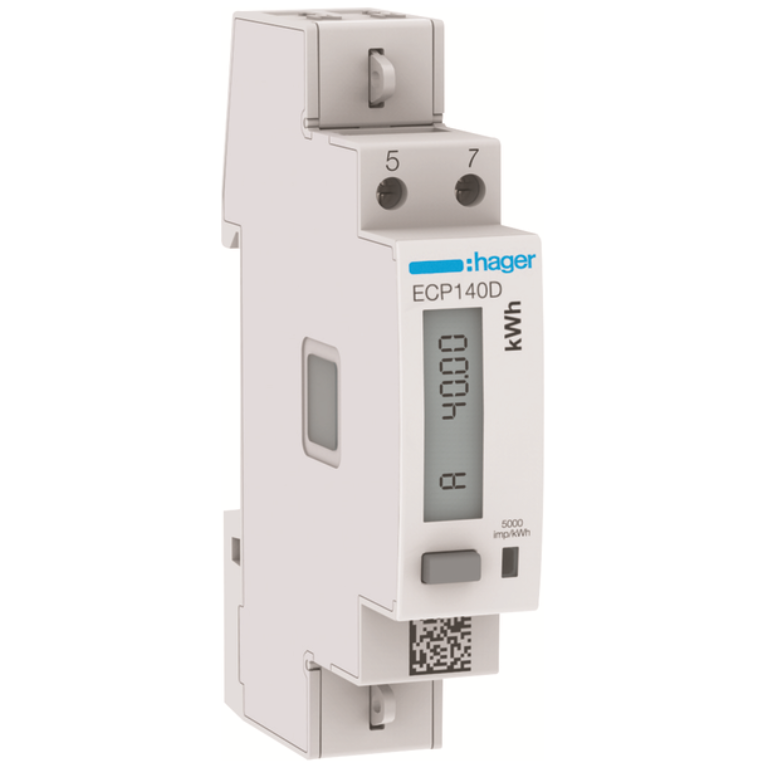

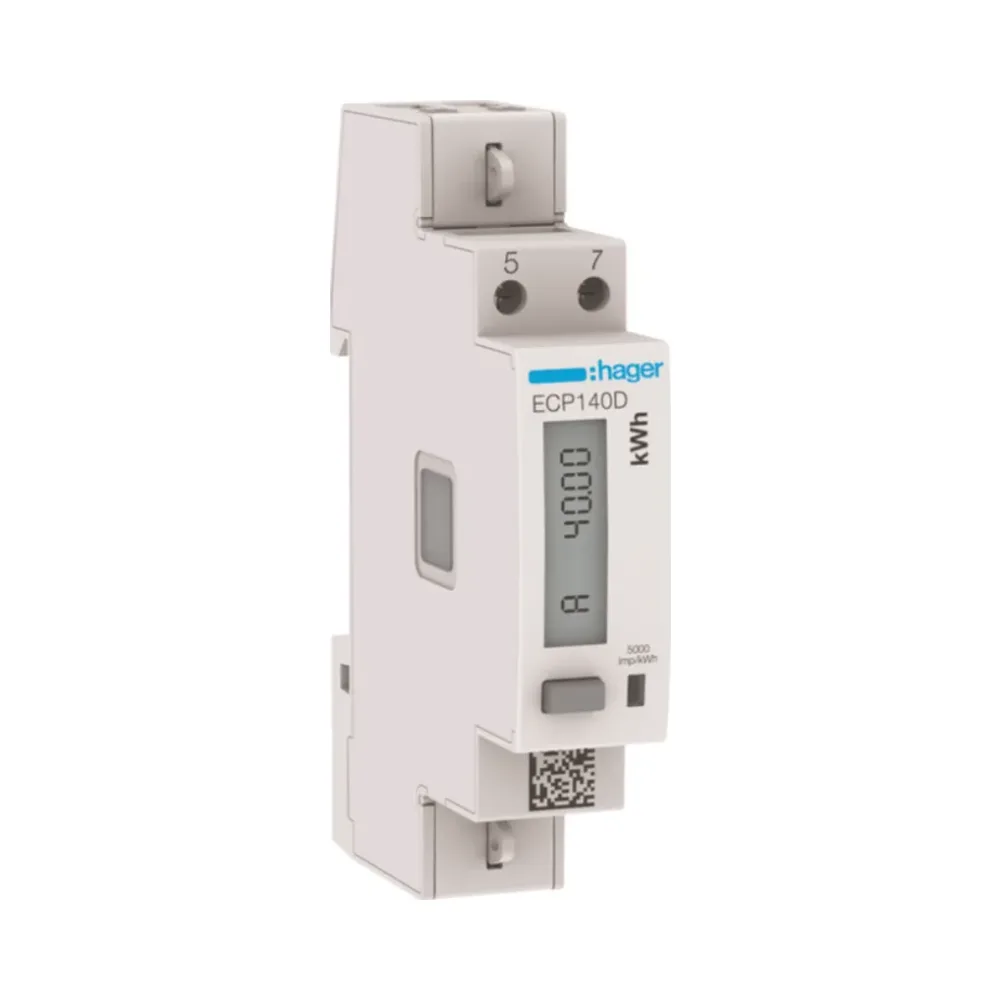

1 Phase kWh Meter Direct 40A 1M S0 MID
Hager ECP140D
The Hager ECP140D is a single-phase kWh meter designed to deliver accurate and reliable energy measurement. Featuring S0 pulse output, this MID-certified meter is perfect for integrating into energy monitoring systems. With a compact 1M design and robust construction, it is ideal for DIN rail installations in residential, commercial, and industrial settings.
Key Features of Hager ECP140D 1 Phase kWh Meter
- S0 Pulse Output: Allows for straightforward integration with energy management systems.
- Compact Design: 1M width (18mm) ensures space-saving installation.
- Single-Phase Measurement: Designed for 1P+N systems with a direct connection up to 40A.
- LCD Display: Provides clear and accurate real-time energy usage data.
- MID Certified: Ensures compliance with strict measurement accuracy standards.
- DIN Rail Mounting: Quick and secure installation for streamlined setup.
- Wide Voltage Range: Operates between 92-276V AC with a maximum voltage of 300V.
- Energy Efficiency: Consumes only 2VA power with a total power loss of 1W under nominal current.
- Durable Construction: Operates in a temperature range of -25°C to 55°C, suitable for varied environments.
Technical Specifications
Architecture:
- Number of Poles: 2P (1P+N)
- Fixing Mode: DIN rail type O (symmetrical)
Electrical Features:
- Rated Operational Voltage (Ue): 92-276V AC
- Frequency: 50Hz
- Max Operating Voltage: 300V
- Rated Impulse Withstand Voltage: 6kV
Physical Dimensions:
- Depth: 60mm
- Height: 92mm
- Width: 18mm
Power Consumption:
- Power Consumed: 2VA
- Total Power Loss: 1W
Measurement:
- Type: Electronic Measuring Instrument
Display and Counter:
- Display: LCD
- Counter Type: Single-Phase
Standards and Protection:
- Protection Index: IP20
- European Directive WEEE: Concerned
Operating Conditions:
- Operating Temperature: -25°C to 55°C
Applications
The Hager ECP140D is ideal for:
- Residential: Measure energy consumption in homes and apartments.
- Commercial: Track energy usage in offices and retail environments.
- Industrial: Monitor power consumption in warehouses, factories, and other facilities.
Why Choose the Hager ECP140D?
The Hager ECP140D combines precision, compact design, and ease of use, making it an excellent choice for energy monitoring systems. Its S0 pulse output enhances compatibility with modern systems, while its MID certification ensures accurate and reliable measurements.
