Hager ECM300C3 Phase kWh Meter via CT 1A or 5A 4M MBUS MID

Description

3 Phase kWh Meter via CT 1A or 5A 4M MBUS MID

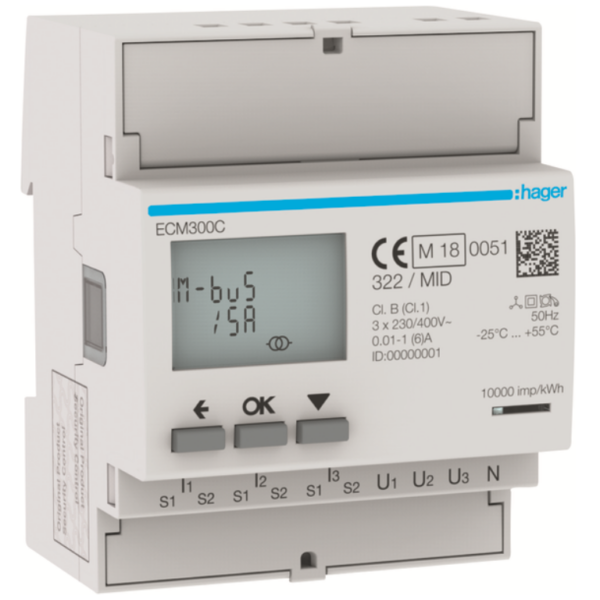

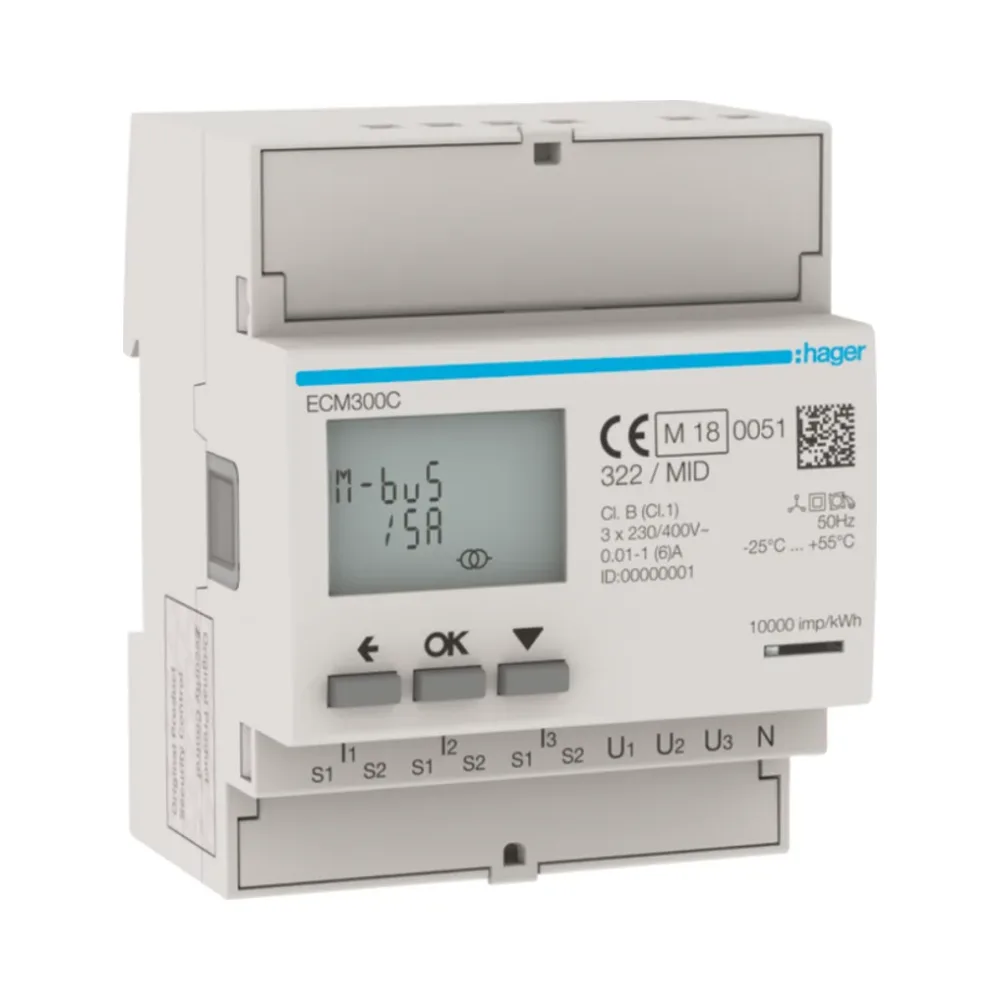

Hager ECM300C

The Hager ECM300C is a 3-phase kWh meter designed for use with current transformers (CT) for indirect energy measurement. With compatibility for 1A or 5A CT inputs and MBUS communication, this 4M MID-certified meter ensures accurate and efficient energy monitoring. Ideal for industrial, commercial, and utility applications, it combines precision, durability, and seamless integration into energy management systems.

Key Features of Hager ECM300C3 Phase kWh Meter

• CT-Based Measurement: Supports indirect measurement via 1A or 5A current transformers, perfect for high-load environments.
• MBUS Communication: Enables real-time energy monitoring and integration with energy management systems.
• Compact 4M Design: Space-saving width of 72mm, ideal for panel installations.
• Retro-Illuminated Display: Provides clear and readable energy data, even in low-light conditions.
• Three-Phase Counter: Designed for 3P+N systems, offering reliable and accurate energy tracking.
• MID Certified: Meets international standards for billing and energy management accuracy.
• DIN Rail Mounting: Quick and secure installation for streamlined setups.
• Energy Efficiency: Consumes only 2VA power with a total power loss of 0.6W under nominal current.
• Wide Operating Temperature Range: Operates effectively in environments from -25°C to 55°C.

Technical Specifications

Architecture:

• Number of Poles: 4P (3P+N)
• Fixing Mode: DIN rail type O (symmetrical)

Electrical Features:

• Rated Operational Voltage (Ue): 92-480V AC
• Frequency: 50Hz
• Max Operating Voltage: 300V
• Rated Impulse Withstand Voltage: 6kV

Physical Dimensions:

• Depth: 60mm
• Height: 90mm
• Width: 72mm

Power Consumption:

• Power Consumed: 2VA
• Total Power Loss: 0.6W

Measurement:

• Type: Electronic Measuring Instrument
• CT Input: 1A or 5A

Display and Counter:

• Display: Retro-Illuminated Display
• Counter Type: 4 Wires Counter

Standards and Protection:

• Protection Index: IP20
• European Directive WEEE: Concerned

Operating Conditions:

• Operating Temperature: -25°C to 55°C

Applications

The Hager ECM300C is ideal for:

1. Industrial: Monitor energy consumption in factories, warehouses, and production facilities with high power demands.
2. Commercial: Track power usage in large offices, retail outlets, and hospitality environments.
3. Utilities: Suitable for indirect energy monitoring in public infrastructure and utility setups.

Why Choose the Hager ECM300C?

The Hager ECM300C combines precision and flexibility with its CT-based measurement and MBUS communication. Designed for high-load environments, it ensures seamless integration with energy management systems while maintaining space efficiency with its compact 4M design. The MID certification guarantees billing accuracy, making it a reliable choice for diverse applications.
