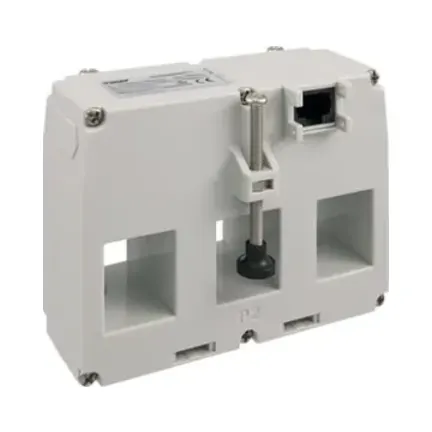

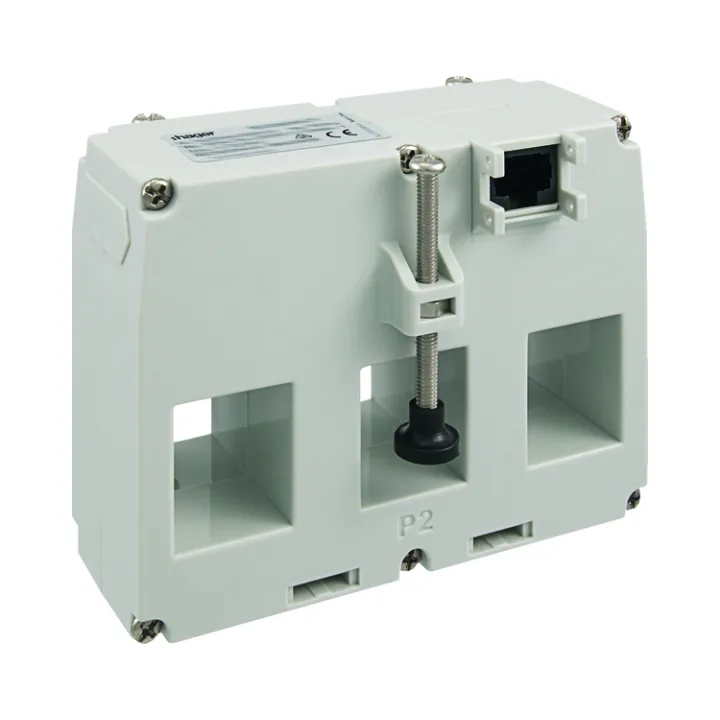

Hager EC25200CT 3 Phase Current Transformer with RJ45 Output – 200A/330mV 35mm

Description

3 Phase Current Transformer with RJ45 Output – 200A/330mV 35mm

Hager EC25200CT

The Hager EC25200CT is a precision-engineered 3-phase current transformer designed to handle primary currents of up to 200A. Featuring a 330mV output via RJ45, this transformer integrates seamlessly with modern energy monitoring systems. Its robust construction and 35mm aperture make it ideal for commercial and industrial applications requiring accuracy and reliability.

Key Features of Hager EC25200CT 3 Phase Current Transformer

• 200A Primary Rating: Suitable for monitoring 3-phase systems with up to 200A load capacity.
• 330mV Output Signal: Ensures compatibility with advanced energy management systems via RJ45 connectivity.
• Class 1 Accuracy: Certified to IEC/EN60044-8 and IEC/EN61869-2 standards for precise measurement.
• Wide Frequency Range: Operates efficiently between 47Hz and 63Hz.
• Thermal and Dynamic Current Ratings:
  • Continuous Overcurrent: 1.2x rated current
  • Short-Time Thermal Current (Ith): <60x rated current for 1 second
  • Dynamic Current (Idyn): 2.5x Ith
• High Insulation Level: Rated at 3kV r.m.s., 50Hz for 1 minute for enhanced safety.
• Durable Construction: Built with self-extinguishing polycarbonate housing rated IP40 for long-lasting reliability.
• Environmental Resilience: Functions in temperatures from -25°C to 40°C and stores safely between -40°C and 85°C.
• Compact Aperture: 35mm diameter ensures ease of installation in diverse setups.

Technical Specifications

Electrical Characteristics:

• Primary Current: 200A
• Output: 330mV
• Accuracy Class: Class 1
• Frequency Range: 47-63Hz
• Highest Voltage (Um): 0.72kV r.m.s.
• Continuous Overcurrent: 1.2x rated current
• Short-Time Thermal Current (Ith): <60x rated current for 1 second
• Dynamic Current (Idyn): 2.5x Ith

Insulation and Safety:

• Rated Secondary Burden: >5kΩ
• Insulation Level: 3kV r.m.s., 50Hz, 1 minute

Environmental Conditions:

• Operating Temperature: -25°C to 40°C
• Storage Temperature: -40°C to 85°C
• Relative Humidity: ≤85% (Non-condensing)
• Altitude: ≤2000m

Physical Characteristics:

• Housing Material: Self-extinguishing polycarbonate
• Housing IP Rating: IP40
• Terminal IP Rating: IP20

Compliance:

• Certifications: CE, RoHS

Applications

The Hager EC25200CT is ideal for:

1. Industrial: Monitor high-demand systems in factories, production lines, and warehouses.
2. Commercial: Track energy usage in retail outlets, offices, and multi-tenant buildings.
3. Utilities: Ensure precise current measurement in public infrastructure and utility energy monitoring setups.

Why Choose the Hager EC25200CT?

The Hager EC25200CT combines robust construction, precision, and seamless integration with energy monitoring systems through its RJ45 output. Its 35mm aperture ensures easy installation, while compliance with IEC/EN standards guarantees safety and reliability in demanding energy monitoring applications.
