Description

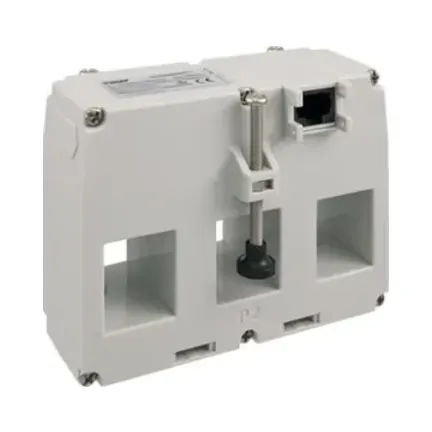

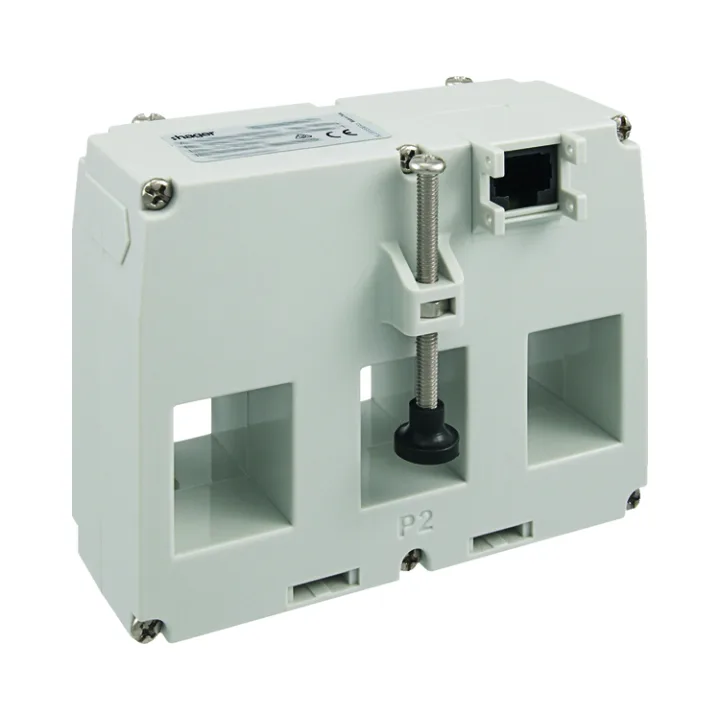

3 Phase Current Transformer with RJ45 Output – 160A/330mV 35mm
Hager EC25160CT
The Hager EC25160CT is a reliable 3-phase current transformer designed for systems with a primary current of up to 160A. With a 330mV output via RJ45, this transformer ensures seamless integration with modern energy management systems. Its durable construction and 35mm aperture make it suitable for industrial and commercial applications where precision and robustness are essential.
Key Features of Hager EC25160CT 3 Phase Current Transformer
- 160A Primary Rating: Ideal for monitoring 3-phase systems with up to 160A load.
- 330mV Output Signal: RJ45 connectivity ensures compatibility with advanced energy management devices.
- Class 1 Accuracy: Meets IEC/EN60044-8 and IEC/EN61869-2 standards for precise current measurement.
- Wide Frequency Range: Operates efficiently between 47Hz and 63Hz.
- Thermal and Dynamic Current Ratings:
- Continuous Overcurrent: 1.2x rated current
- Short-Time Thermal Current (Ith): <60x rated current for 1 second
- Dynamic Current (Idyn): 2.5x Ith
- High Insulation Level: Rated at 3kV r.m.s., 50Hz for 1 minute, ensuring electrical safety.
- Compact Aperture: 35mm diameter for easy installation in diverse setups.
- Durable Construction: Made with self-extinguishing polycarbonate housing rated IP40 for safety and reliability.
- Environmental Resilience: Operates reliably in temperatures from -25°C to 40°C and stores safely between -40°C and 85°C.
Technical Specifications
Electrical Characteristics:
- Primary Current: 160A
- Output: 330mV
- Accuracy Class: Class 1
- Frequency Range: 47-63Hz
- Highest Voltage (Um): 0.72kV r.m.s.
- Continuous Overcurrent: 1.2x rated current
- Short-Time Thermal Current (Ith): <60x rated current for 1 second
- Dynamic Current (Idyn): 2.5x Ith
Insulation and Safety:
- Rated Secondary Burden: >5kΩ
- Insulation Level: 3kV r.m.s., 50Hz, 1 minute
Environmental Conditions:
- Operating Temperature: -25°C to 40°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: ≤85% (Non-condensing)
- Altitude: ≤2000m
Physical Characteristics:
- Housing Material: Self-extinguishing polycarbonate
- Housing IP Rating: IP40
- Terminal IP Rating: IP20
Compliance:
- Certifications: CE, RoHS
Applications
The Hager EC25160CT is ideal for:
- Industrial: Monitor power usage in factories, production lines, and warehouses.
- Commercial: Track energy consumption in retail outlets, offices, and data centers.
- Utilities: Provide accurate current measurements for public infrastructure energy monitoring.
Why Choose the Hager EC25160CT?
The Hager EC25160CT combines precision, durability, and integration capabilities with its RJ45 connectivity and compliance with international standards. Its 35mm aperture ensures flexibility in installation, making it a trusted choice for various energy monitoring applications.
