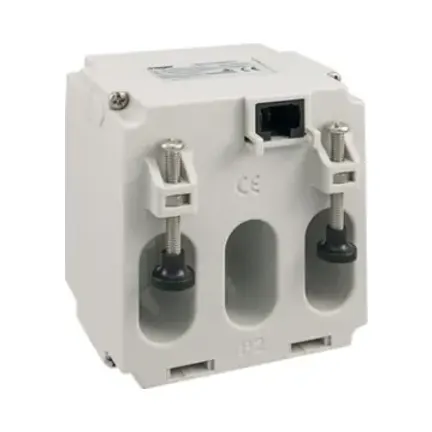

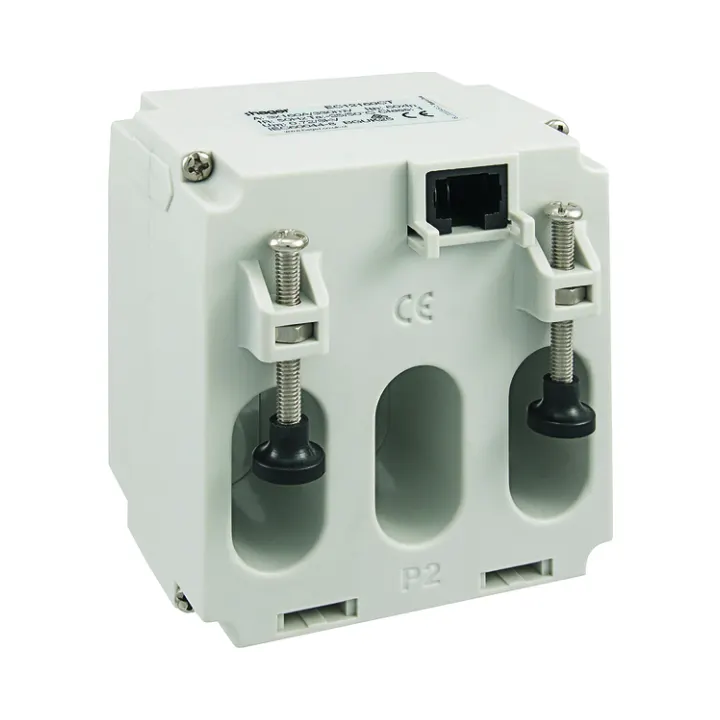

3 Phase Current Transformer with RJ45 Output – 160A/330mV 25mm
Hager EC12160CT
The Hager EC12160CT is a precision 3-phase current transformer designed for monitoring systems with up to 160A primary current. With a 330mV output via RJ45, it offers seamless integration into modern energy management systems. Built to IEC/EN standards, it delivers accurate measurements with robust construction for commercial and industrial environments.
Key Features of Hager EC12160CT 3 Phase Current Transformer
- 160A Primary Rating: Designed for monitoring 3-phase systems with up to 160A load.
- 330mV Output Signal: Ensures compatibility with advanced energy monitoring devices using RJ45 connectivity.
- Class 1 Accuracy: Meets IEC/EN60044-8 and IEC/EN61869-2 standards for precise current measurement.
- Wide Frequency Range: Operates effectively between 47Hz and 63Hz.
- High Insulation Level: Rated at 3kV r.m.s., 50Hz for 1 minute for safe and reliable operation.
- Thermal and Dynamic Current Ratings:
- Continuous Overcurrent: 1.2x rated current
- Short-Time Thermal Current (Ith): <60x rated current for 1 second
- Dynamic Current (Idyn): 2.5x Ith
- Compact Aperture: 25mm diameter for easy installation in tight spaces.
- Durable Construction: Made with self-extinguishing polycarbonate housing rated IP40 for safety and reliability.
- Environmental Resilience: Operates in temperatures from -25°C to 40°C and stores between -40°C and 85°C.
Technical Specifications
Electrical Characteristics:
- Primary Current: 160A
- Output: 330mV
- Accuracy Class: Class 1
- Frequency Range: 47-63Hz
- Highest Voltage (Um): 0.72kV r.m.s.
- Continuous Overcurrent: 1.2x rated current
- Short-Time Thermal Current (Ith): <60x rated current for 1 second
- Dynamic Current (Idyn): 2.5x Ith
Insulation and Safety:
- Rated Secondary Burden: >5kΩ
- Insulation Level: 3kV r.m.s., 50Hz, 1 minute
Environmental Conditions:
- Operating Temperature: -25°C to 40°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: ≤85% (Non-condensing)
- Altitude: ≤2000m
Physical Characteristics:
- Housing Material: Self-extinguishing polycarbonate
- Housing IP Rating: IP40
- Terminal IP Rating: IP20
Compliance:
- Certifications: CE, RoHS
Applications
The Hager EC12160CT is ideal for:
- Industrial: Monitor energy usage in high-demand environments like factories and warehouses.
- Commercial: Track power consumption in retail spaces, offices, and multi-tenant buildings.
- Utilities: Provide precise current measurements in public infrastructure setups.
Why Choose the Hager EC12160CT?
The Hager EC12160CT offers robust design, precision, and seamless integration with energy management systems through its RJ45 connectivity. Its compliance with international standards ensures reliability and accuracy, making it a dependable choice for various energy monitoring applications.
